4.) V U
OLUME P
This is a user defined button that executes Macro 54 on all Vortexes. The reason that
the button is user defined is that different rooms will use different outputs that are sent
to the amplifier.

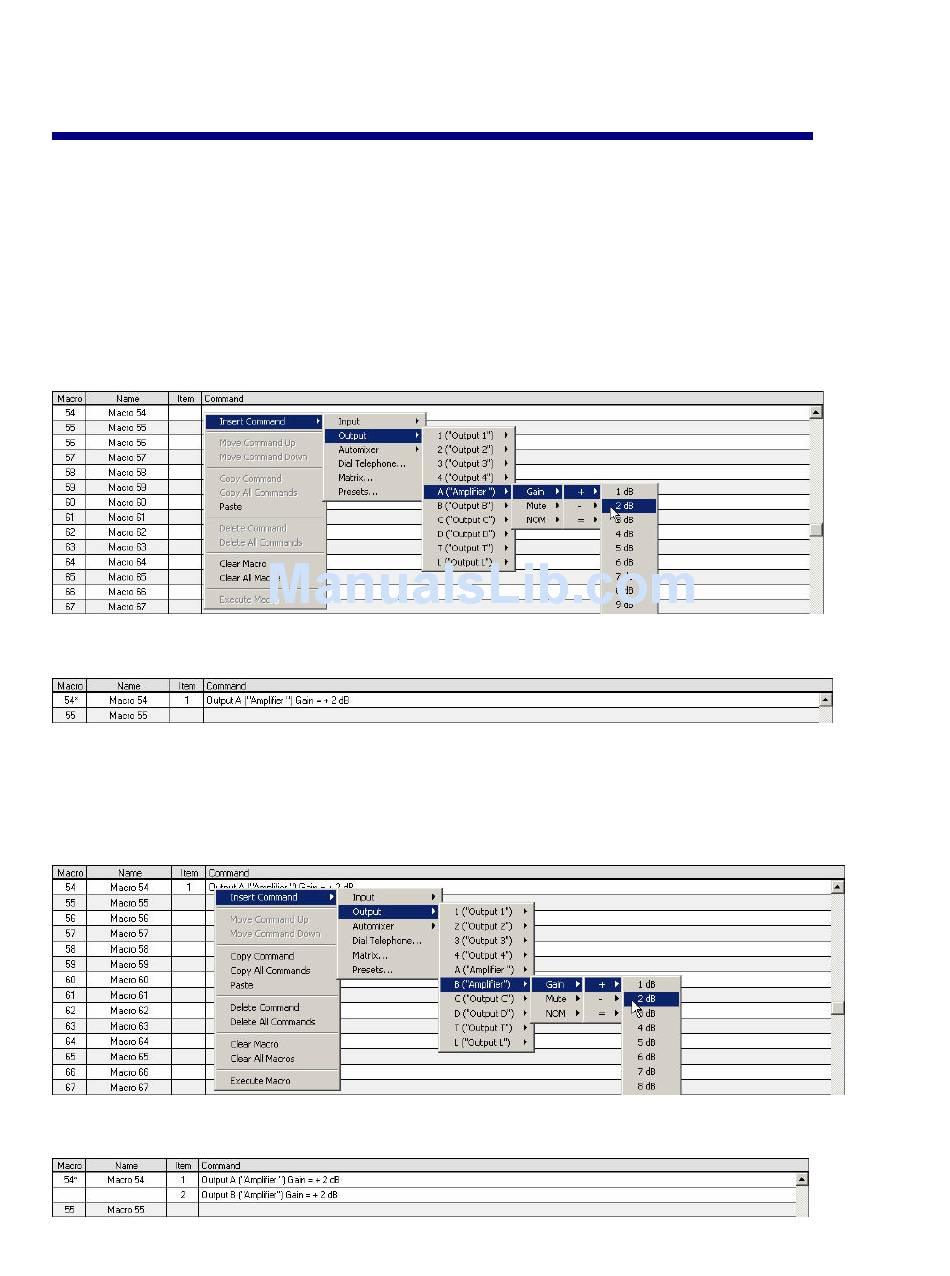

Here is an example of how to create a Volume Up Macro for Output A. For this
example, we will increase the output by 2 dB each time the Volume Up button is
pushed. First, go to the Macros page of Conference Composer and scroll down until
you see M 54. Now, right click your mouse under the C column. Select
ACRO OMMAND
I C , O , A, G , +, 2 B:
NSERT OMMAND UTPUT AIN D
You should see this when you are finished:
If you want to lower the gain on multiple outputs, just add another command to Macro
54. In this example, let's raise Output B by 2 dB each time the Volume Up button is
pushed. Right click your mouse in the row for Macro 54 and select I C ,
NSERT OMMAND
O , B, G , +, 2 B:
UTPUT AIN D
You should see this when you are finished:
9
