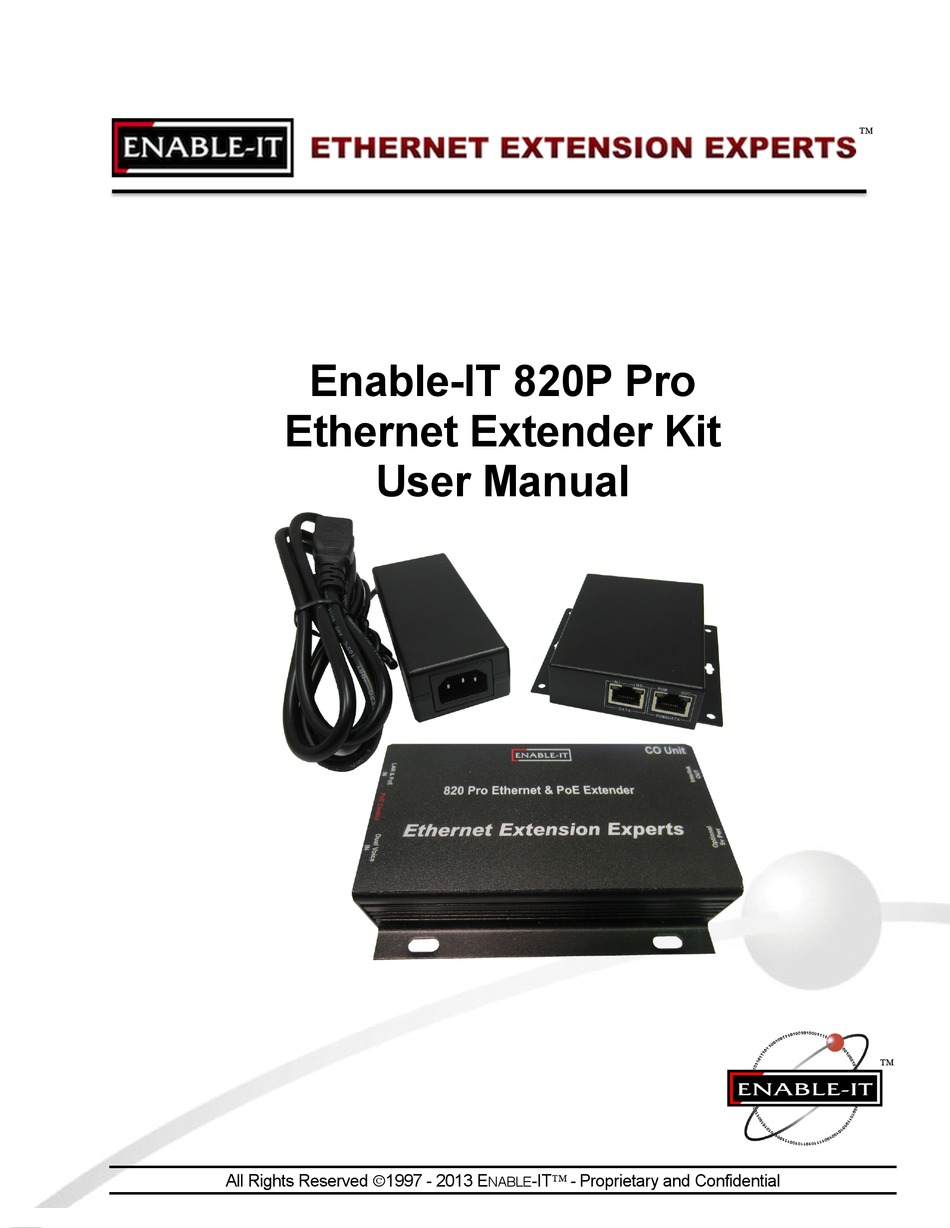

Page 1: User Manual
Enable-IT 820P Pro Ethernet Extender Kit User Manual All Rights Reserved 1997 - 2013 E -IT - Proprietary and Confidential NABLE... - Page 2 Software is delivered as "Commercial Computer Software" as defined in DFARS 252.227-7014 (June 1995) or as a "commercial item" as defined in FAR 2.101 (a) and as such is provided with only such rights as are provided in Enable-IT, Inc.'s standard commercial license for the software/firmware.
-
Page 3: Table Of Contents
Unpacking the Enable-IT 820P Pro Ethernet Extender Kit ......10 Performing the On-Site Installation.............. 10 Mounting the 820P Pro Ethernet Extender ..........10 Building the 820P Pro Wiring............... 10 Cabling Devices to the Enable-IT 820P Pro Extended Ethernet Kit .... 10 Troubleshooting ................... 11 ....................11 ECHNICAL UPPORT Online Technical Services ................ -
Page 4: About This User Manual
ANUAL This product User Manual provides all the information needed to install and use the Enable-IT 820P Pro Ethernet Extender Kit. This User Manual is intended for use by technicians who are responsible for installing and setting up network equipment. -
Page 5: Introducing Thernet 820P Pro Ethernetrnet Extender Kit
820P Pro Extended Ethernet Unit meets the challenge of modern switched LANs and allows you to add features and capacity as your network expands. The 820P Pro LRE kit includes a high powered PoE switch kit and the 820P Pro unit itself. Unit Model... -
Page 6: Key Benefits
Operating temp: -49°F to 168°F (-45°to 76°C) (1) RJ-45 Transport Interlink port Humidity 5% to 90%, non-condensing (1) Optional 5v DC Power adapter input – not required for 820P Pro that is PoE Powered All Rights Reserved 1997 - 2013 Enable-IT, Inc. Page 6 of 14... -
Page 7: Typical Use Applications
Access Providers can came and go, but the 820P Pro Extended Ethernet Unit technologies continue to provide lasting value such as the other utilities like Water, gas and electricity. The Enable-IT 820P Pro IP PoE Camera Extender Kit is suited for the following key environments: ... -
Page 8: Installing The 820P Pro Ethernet Extender Kit
THERNET XTENDER The Enable-IT 820P Pro IP PoE Camera Extender Kit has a distance restriction of 800ft (244m) over existing Category 2, up to Category 5e, 6 or 7, wiring from device extension to device extension. Therefore quick, simple site surveys and installation planning are highly recommended. -
Page 9: Performance Settings (Dip Switch)
LAN device not mentioned may need to be configured for 10Mbps auto-sensing as the 820P Pro is a 10Mbps Ethernet switch. It may be the case that your Ethernet switch is not passing data through the 820 Pro to your remote LAN device, therefore setting the LAN configuration on your device to 10Mbps will allow it to recognize the 820P Pro switch settings. -
Page 10: Unpacking The Enable-It 820P Pro Ethernet Extender Kit
(1) Enable-IT 820P Pro Quickstart Guide Performing The On-Site Installation After removing the Enable-IT 820P Pro IP PoE Camera Extender Kit from the box all that remains to install the unit on-site is to mount the unit, add RJ-45 Male heads to your wiring, connect the wiring, cross connect voice lines if needed and attach end device Ethernet patch cord cabling. -
Page 11: Troubleshooting
Online Technical Services The Enable-IT Support Portal is available 24/7 to open a ticket or check the status of one. Please use this support website as your first source for help as it contains an on-line knowledge base of articles, documentation, FAQ's and other problem-solving resources. -
Page 12: Returning Products For Refund
Remedies for Breach of Warranty. In the event of a breach of the foregoing warranty, Enable-IT will, in its sole discretion and at its cost, and subject to the terms of the following paragraph, repair the non-conforming Product, replace the non-conforming Product with a new or reconditioned Product or refund the purchase price for the Product. - Page 13 (2) return the Product to Enable-IT in its original packaging freight pre-paid; and (3) provide to Enable-IT the original receipt or bill of sale establishing the date on which the Product was purchased. Products returned to Enable-IT without an RMA number will be returned to the End User.
-
Page 14: Contact Us
Enable-IT and/or its licensors. You acknowledge and agree that you may not, and may not allow any third party to, (i) use the Embedded Software...
