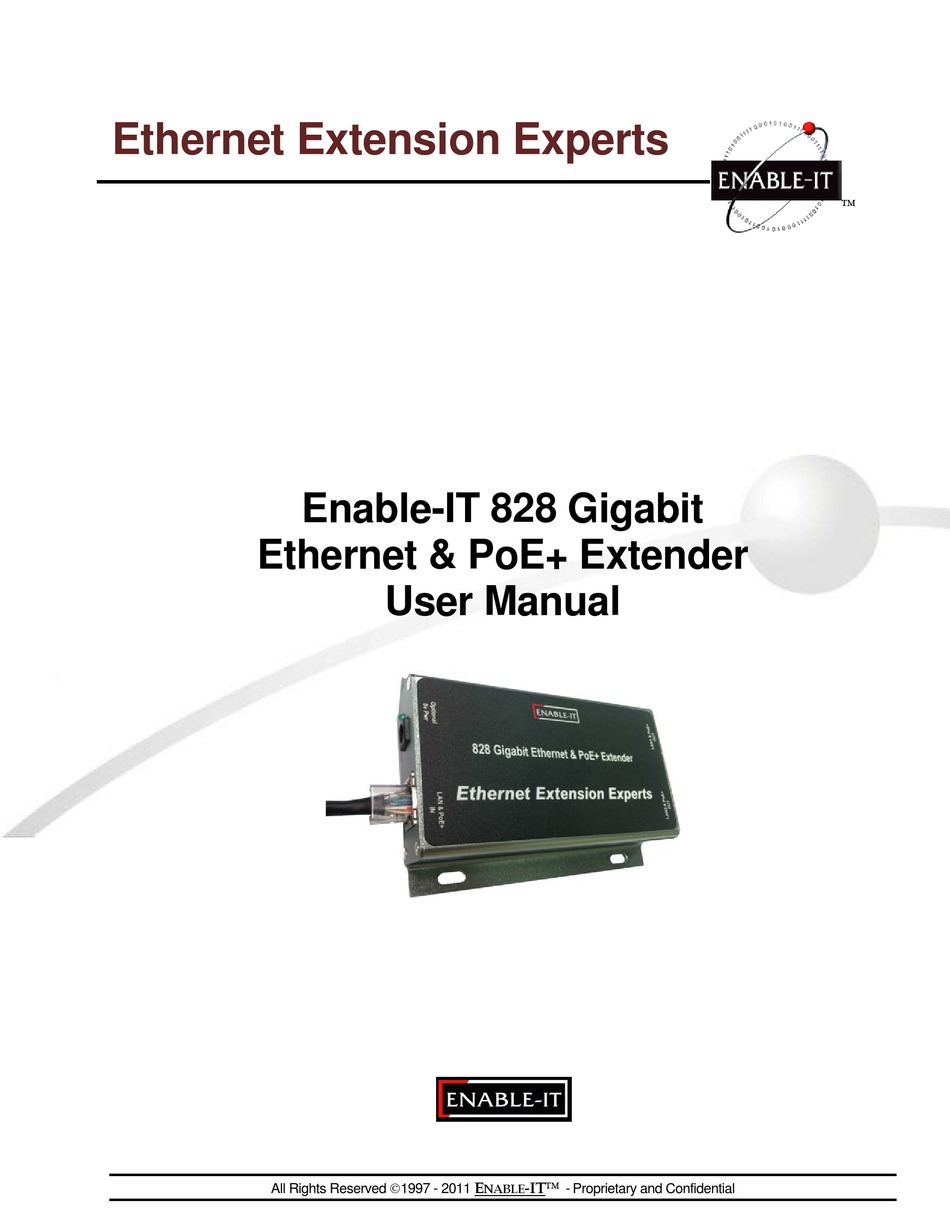

Page 1: User Manual
Ethernet Extension Experts Enable-IT 828 Gigabit Ethernet & PoE+ Extender User Manual -IT All Rights Reserved 1997 - 2011 NABLE - Proprietary and Confidential... - Page 2 If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as a separate document, in the hard copy documentation. If you are unable to locate a copy, please contact Enable-IT, Inc and a copy will be provided to you.
-
Page 3: Table Of Contents
UIDE -IT 828 G & P E+ E NTRODUCING NABLE IGABIT THERNET XTENDER About the 828 Gigabit Ethernet & PoE+ Extender Key Benefits Summary of Features Typical Use Applications -IT 828 G & P E+ E NSTALLING THE NABLE IGABIT... -
Page 4: About This Guide
ABOUT THIS GUIDE This guide provides all the information needed to install and use the Enable-IT 828 Gigabit Ethernet & PoE+ Extender. This guide is intended for use by technicians who are responsible for installing and setting up network equipment. -
Page 5: Introducing He
2,000ft / 610m * Actual throughput rate will vary on the quality of the copper wire, twisted pair and environmental factors – but you can expect full wire speed regardless of distance or number of 828 Extenders used. Page 5 of... - Page 6 Key Benefits The following list identifies the 828 Gigabit Ethernet & PoE+ Extender key benefits. • Dramatic cost reduction over any competing technology (Copper or Fiber) • Extreme Broadband technology that delivers Full Speed Gigabit Ethernet up to five times the IEEE 802.3 distance limit over Category 5 wiring or better.
-
Page 7: Typical Use Applications
Typical Use Applications Enable-IT 828 Gigabit Ethernet & PoE+ Extender can be quickly installed on existing or new Category rated wiring infrastructures where extension of backbone services is required and expensive fiber options are prohibitive. The 828 Gigabit Ethernet & PoE+ Extender allows a standard Ethernet segment to be deployed quickly over existing Category 5, 5e or 6 wiring (All 4-pairs required). -
Page 8: Site Plan - Installation Design Considerations
400ft / 122m distance out each LAN port – so placing the 828 in the middle of your run is ideal. 828 units are designed to be daisy chained in a series to further extend distance. Up to (4) 828 units can be used in series to reach 2,000ft / 610m. - Page 9 On power up the 828 will show power and connectivity LED’s. Next connect your PoE device to the output port of the 828 or if using a non-PoE powered device – Make sure to set the DIP switch to disable PoE output.
-
Page 10: Mounting The 828 Gigabit Ethernet & Poe+ Extender
Option 2: Standalone 828 unit powered by your PoE injector or PoE switch. Option 3: 828P Kit with 60w-56v PoE+ injector. Option 4: 828P Kit with 60w-56v PoE+ injector and multiple 828 units. Mounting the Enable-IT 828 Gigabit Ethernet & PoE+ Extender The Enable-IT 828 Gigabit Ethernet &... -
Page 11: Technical Support
LAN equipment, PoE Injector and 828 Extender and power is applied to the 828 via the PoE or optional 5v adapter. 2) You can easily isolate any issue by performing an out of the box test confirm either the 828 Extender or your wiring. -
Page 12: Online Technical Services
Remedies for Breach of Warranty In the event of a breach of the foregoing warranty, Enable-IT will, in its sole discretion and at its cost and subject to the terms of the following paragraph, repair the non-conforming Product, replace the non-conforming Product with a new or reconditioned Product or refund of the purchase price for the Product. - Page 13 Enable-IT; (ii) modification (including but not limited to opening the Product housing) or repair by any party in any manner other than as approved by Enable-IT in writing; (iii) fraud, tampering, unusual physical or electrical stress, unsuitable operating or physical conditions, negligence or accidents;...
-
Page 14: Contact Us
Enable-IT and/or its licensors. You acknowledge and agree that you may not, and may not allow any...
