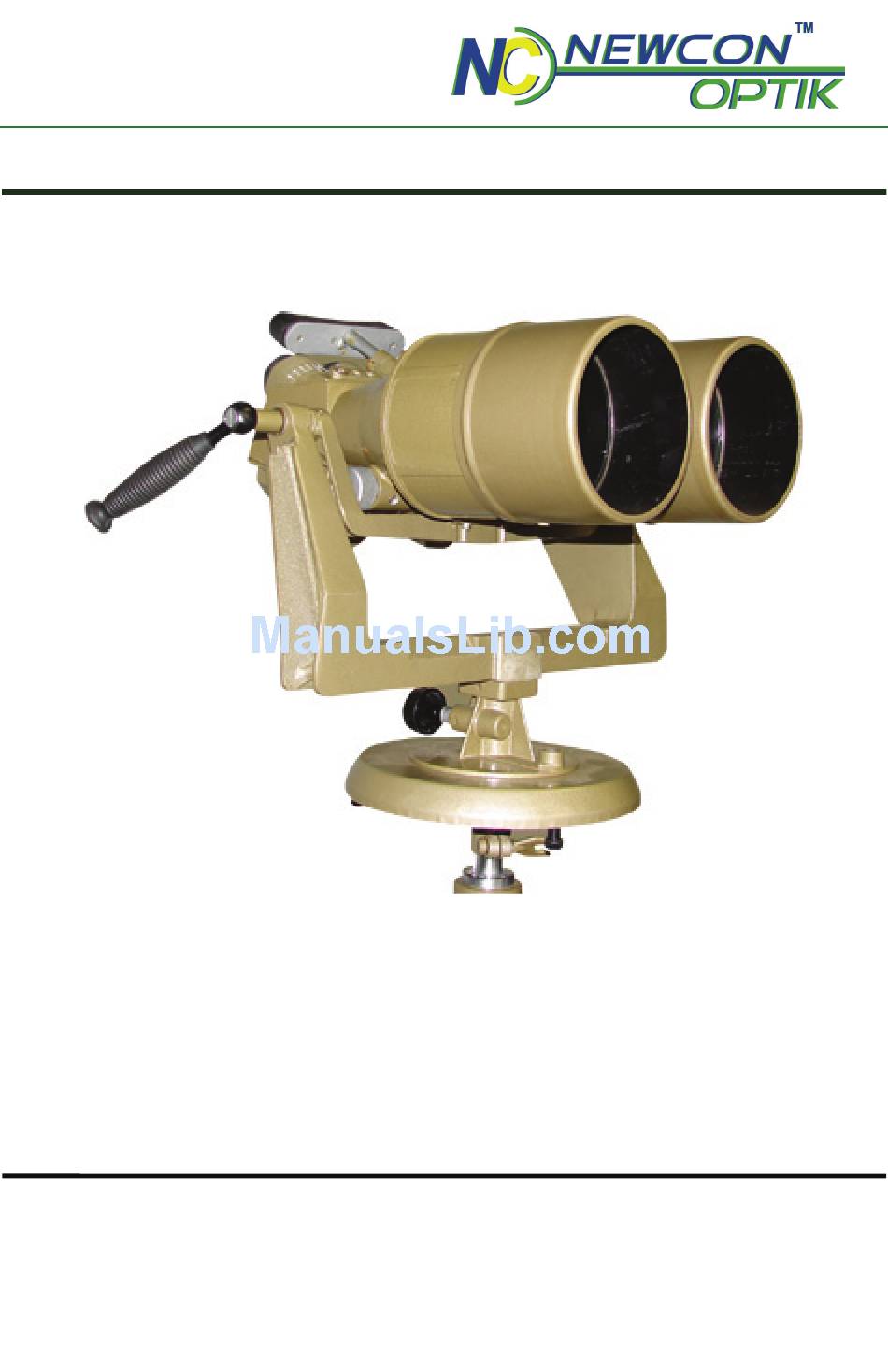

- Page 1 Operator’s Manual Big Eye 15x110 Binoculars 105 Sparks Ave., Toronto, ON, M2H 2S5, Canada...
-
Page 3: Table Of Contents
Table of contents APPLICATION....................4 SPECIFICATIONS ..................4 STANDARD EQUIPPMENT ..............5 ASSEMBLY....................6 Basic Optical Train ..................6 Design of the device ................6 GENERAL DIRECTIONS................8 CONTAINERS AND PACKING..............8 PREPARATION OF THE DEVICE ............8 ORDER OF OPERATION................9 DERANCEMENT AND METHODS OF ELIMINATION......9 WARRANTY .....................10 CUSTOMER SUPPORT................11 Figure 1..........................12 Figure 2..........................13 Figure 3..........................14... -
Page 4: Application
1. APPLICATION The binocular observation device BIG EYE 15x110 is designed for observation of air and ground targets from stationary and emergency observation posts in the day - time and at night in the searching light. Operating temperature range is from – 50°C up to + 40°C with relative humidity of maximum 100% at the temperature + 25°C. -
Page 5: Standard Equippment
3. STANDARD EQUIPPMENT Designation Name Quantity Spare parts AL3.803.101 Desiccator AL5.883.033 Round level Tools AL8.392.030 Wrench AL6.890.030-08 Screwdriver Accessories AL6.430.256 AL6.430.257 Art brush from squirrel hair AL8.890.011-01 Napkin AL5.940.187 Light Filter AL5.940.187-01 Light Filter AL6.454.018 Pipe Connection AL6.832.138 Cover Removable parts AL156.025 Tripod AL6.150.231... -
Page 6: Assembly
4. ASSEMBLY The binoculars appearance is shown on the Figure 1. It consists of the binocular itself, U-mount and tripod. 4.1 Basic Optical Train The optical train of the device is a telescopic system which consists of two branches. Each branch has an objective composed of lenses I, 2 (Fig. 1) and prism 3, 4, 14, an eyepiece composed of lenses 5, 6 and cemented lenses 7, 8, 9, changeable light filters 10, 11. - Page 7 them against lighting by the sunrays and serve for decreasing detrimental (diffused) light, which penetrates in the device. The tripod (Fig.6) is designed for mounting the device on this ground or any immovable base. The mechanism of the vertical laying consists of outer bracket, its box embodies gearing train, gears and limb with the scale of angles of elevation.
-
Page 8: General Directions
5. GENERAL DIRECTIONS For faultless operation of the device it is necessary to keep to the following: - protect the device against impacts and damages; - avoid touching the optical surfaces with hands and oiled cleaning cloth; - remove systematically dust, dirt and moisture from the optical surfaces with the use of clean napkin or brush from the single STA kit;... -
Page 9: Order Of Operation
8. ORDER OF OPERATION Operation with the device in the following way: - put one of light filters from the single STA kit in the device. If it is necessary (fit the light filter mount at the places of its cutting for its reliable fastening on the eyepieces); - move out the blinds;... -
Page 10: Warranty
WARRANTY NEWCON warrants this product against defects in material and workmanship for one year from the date of the original purchase, but no more than 12 months from the date of manufacturing. Longer warranty is available, subject to the terms of the specific sales contract. -
Page 11: Customer Support
CUSTOMER SUPPORT Should you experience any difficulties with your NEWCON OPTIK product, consult this manual first. If the problem remains unresolved, contact our customer support department at (416) 663-6963 or toll free at 1-877-368-6666. Our operating hours are 9am-5pm, Monday - Friday, Eastern Standard Time. At no time should equipment be sent back to Newcon without following the instructions of our technical support department. -
Page 12: Figure 1
Figure 1... -
Page 13: Figure 2
Figure 2... -
Page 14: Figure 3
Figure 3... -
Page 15: Figure 4
Figure 4... -
Page 16: Figure 5
Figure 5... -
Page 17: Figure 6
Figure 6... -
Page 18: Figure 7
Figure 7... -
Page 19: Figure 8
Figure 8... - Page 20 NEWCON OPTIK™ 2010 Printed in Canada...
