User Manual - Introduction F50 User Manual - Introduction...
Active Stereo 3D. 1.2 Training To get the best performance out of the projector as well as the system, training at Barco is highly advised, in addition to studying this user guide. Various courses are available. At the University, skilled trainers will teach you basic projector use as well as more advanced set-up and configuration across multiple application areas.
Page 8
User Manual - Introduction F50 User Manual - Introduction...
2 Safety and compliance 2.1 General safety considerations • Use only the cables and cords supplied with the projector or original replacement cables. Using other cables or cords may lead to malfunction and permanent damage to the unit. • Always use 3-prong (grounded) power cord to ensure proper grounding of the unit. Never use 2-prong power cords, as this is dangerous and could lead to electrical shock.
CANADA This Class A digital apparatus complies with Canadian ICES-003. / Cet appareil numérique de la classe A est conforme à la norme NMB- 003 du Canada. User Manual - Introduction F50 User Manual - Safety and compliance...
For more information about recycling of this product, please contact your local city office or your municipal waste disposal service. For details, please visit the Barco website at: http://www.barco.com/en/AboutBarco/weee. 2.4.2 Disposal of batteries in the product This product contains batteries covered by the European Directive which must be collected and disposed of separately from municipal waste.
Page 12
User Manual - Introduction F50 User Manual - Safety and compliance...
3 What is in the box? The following components are standard delivery: Projector Power Cable (Country Dependent) Remote Control User Documentation Additional accessories available for the projector: Exhaust air kit (for ceiling mount) A: Air-inlet filter (also sold separately) B: Side cover/Air-inlet C: Ceiling mount cover/Air-outlet (also sold separately) D: Exhaust air duct*...
Page 14
User Manual - Introduction F50 User Manual - What’s in the box?
4 Installation 4.1 System considerations Please refer to Chapter 5 Overview for an explanation on the various features of the projector. Installation should only be performed by trained and skilled personnel in order to achieve the desired results. Safety first: Projectors and other equipment that are not mounted properly represent a potential danger to people and may result in injury or death! Creating a successful system installation requires proper skills, competencies and knowledge of the particular system requirements.
A set of optional accessories is available for this projector, covering anything from cables and lenses to air flow parts and lens control. For information on availability, specifications and pricing, please refer to our web site: www.barco.com User Manual - Introduction...
4.3 Ceiling and rig mounting Use the three mounting holes provided in the bottom part to securely fix the projector to a ceiling or rig mount. Use M6 screws that protrude maximum 9mm into the projector body. Figure 4-2. Ceiling/rig mounting mounting holes 4.4 Locking the projector The projector can be locked physically by using a so called Kensington lock.
Please keep the caps on until mounting the lens on the projector! Remove lens protection caps before mounting the lens and using the projector. Release button Figure 4-5. Projection lens release button User Manual - Introduction F50 User Manual - Installation...
Note that the lens positioning when using lens shift may affect the accessibility of the lens button. If so, reposition the lens to gain access. 4.6.3 Lens range The table shows a selection of lenses available. Please see www.barco.com for more information about lens availability. ITEM TYPE...
Using the remote control, press the OK key to center the lens or arrow keys to position it (restricted downwards movability). • Using the RS-232 or LAN control interfaces, please refer to the relevant SIS (Simplified Instruction Set) commands available for download on www.barco.com User Manual - Introduction F50 User Manual - Installation...
4.9 Lens planarity (Scheimpflug adjustment) This adjustment is rarely needed, do not apply it unless it is required. Certain applications require fine adjustment of the lens planarity in order to obtain an image that is focused. The projector is fitted with three adjustment screws (Allen key 3mm/5mm) around the bayonet mount that facilitate such adjustment, a so called Scheimpflug adjust- ment.
Please see the relevant SIS (Simplified Instruction Set) commands available for download on www.barco.com for easy access to more information. Power up the projector and the source! 4.14 Source format integrity – EDID...
4.00 7.50 6.00 3.50 6.25 5.00 3.00 5.00 2.50 4.00 2.00 3.75 3.00 1.50 2.50 2.00 1.00 1.00 1.25 0.50 0.00 Projection distance Lens types and specifications may change without prior notice. For correct lens information please refer to www.barco.com...
Page 24
User Manual - Introduction F50 User Manual - Installation...
Page 25

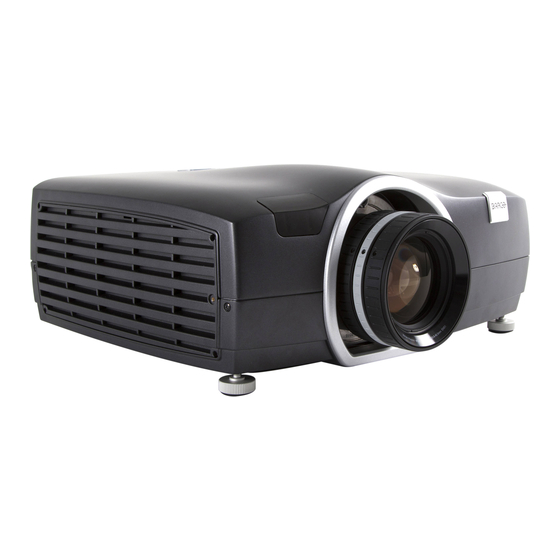

5 Overview Remote Control Receiver Interchangeable Projection Lens Projection Lens Release Button Figure 5-10. Projector front Remote Control Receiver Hot Air Exhaust Signal and Control Connector Panel Mains Power Connector Figure 5-11. Projector rear Keypad Figure 5-12. Projector top...
Page 26
Accessory Mounting Features Ceiling/Rig Mounting Features Figure 5-13. Mounting features Lamp Door Air Inlet Figure 5-14. Projector left and right hand side User Manual - Introduction F50 User Manual - Overview...
5.1 Keypad and indicator Figure 5-15. Projector top key pad VALUE POWER Power on or power off (standby) MENU Activate or deactivate on-screen menu system UP, DOWN, LEFT, RIGHT Select source when not in Shift or Menu mode Shift lens when not in Menu and after SHIFT/OK pressed Navigate when in Menu system SHIFT/OK Shift lens when not in menu system...
Activates lens shift function Reserved for future use OK/ARROWS Confirms the selection / Directional navigation tools BACK Returns to previous alternative MENU Activates the projector menu SOURCE Toggles between available sources (forward/backwards arrows) User Manual - Introduction F50 User Manual - Overview...
5.3 Connectors Figure 5-17. Connector panel (see technical data for details) 5.3.1 Signal connectors CONNECTOR CONNECTOR FUNCTION NAME TYPE HDBaseT RJ45 Video over twisted pair DVI-I*) dual link Digital video (dual-link) HDMI HDMI type A Digital video DP (Display Port) DP Digital video (2) 9 pin mini DSUB Analog RGBHV video 3G-SDI...
Pre-stored, and user defined settings. language: Selects menu language. status: System information. The top level menu item 3D is only visible for Active Stereo 3D enabled projectors. User Manual - Introduction F50 User Manual - Overview...
5.5 3D main menu The 3D menu contains settings for turning 3D on and off, in addition to defining various aspects of setup using Dual Head and specifying the types of glasses to be used. 3D : Offers the possibility to switch the 3D function off and to chose between the following alternatives for setup: off, side by side (60Hz<...
DVI (DL) 3G SDI 3 G SDI HDBaseT DVI (Single Link Mode) HDMI DVI (Dual Link Mode) 3G SDI (A) 3G SDI (B) Not possible Possible Figure 5-18. Dual head setup possibilities User Manual - Introduction F50 User Manual - Overview...
DICOM, custom, advanced. If the profile is marked by an asterisk (*), this indicates that the original settings have been changed. RealColor: Barco’s proprietary color management suite. See description in RealColor sub menu. gamma: 10 predefined gamma curves: Film 2.2: Exponential 2.2 curve...
(red, green, blue, white, black, cyan, magenta, yellow). Presents measured values for RealColor (see below). Calibration settings have to be made individually for each separate profile. User Manual - Introduction F50 User Manual - Overview...
5.6.2 Picture > Advanced sub menu horizontal position: Shifts the image sideways (VGA only) vertical position: Shifts the image up or down (VGA only) phase: Adjust for stable image. A jittery image may appear with certain VGA sources. You may also press the AUTO button on the keypad or remote control to optimize.
(enables receiving signals via longer cables/with a higher bit rate) DisplayPort 2 eq Choice between Normal and High (enables receiving signals via longer cables/with a higher bit rate) EDID : Sub menu for EDID. synchronization: Sub menu for synchronization. User Manual - Introduction F50 User Manual - Overview...
5.7.1 Installation > EDID sub menu VGA : Define the detailed timing descriptor in the EDID data for VGA connector. Select between auto, WUXGA, 1080@60Hz, SX+, SXGA, 1366x768, 720@60Hz, 720@50Hz, XGA, SVGA, VGA. DVI : Define the detailed timing descriptor in the EDID data for DVI connector. Select between auto, WQXGA@60Hz, WUXGA@120Hz, WUXGA@60Hz,1080 @120Hz, 1080@60Hz, SX+, SXGA, 1366x768, 720@60Hz, 720@50Hz, XGA, SVGA, VGA.
If you use one of the sync connectors as 2D or 3D sync input, this may block the use of the same connector as output. For further info on the various possible user scenarios, please refer to our web page. User Manual - Introduction F50 User Manual - Overview...
5.8 Settings menu PIN code: Protect the projector from usage with a PIN. If enabled the projector will ask for the PIN at every start up. network : Set IP address, Subnet mask and default gateway TCP/UDP port number. DHCP is supported and is enabled by default, but can be disabled. factory reset: Restore all settings to the factory defined values.
To change the PIN code you first have to enter the current PIN code (Default PIN: 1234). Then you enter a new 4 digit code and confirm this code by entering the same code again. Click OK and the new code is set. User Manual - Introduction F50 User Manual - Overview...
5.8.2 Settings > Network sub menu change LAN settings: In this sub-menu you can switch the DHCP enabled function on or off. If off you can set a fixed IP-address. LAN DHCP: DHCP is supported and is enabled by default, but can be disabled under change LAN settings LAN IP address: Info field stating the current LAN IP address.
5.8.4 Settings > Service sub menu service: Restricted area with information intended for qualified service personnel only enter code: Enter the 5-digit access code to gain assess to the service information. User Manual - Introduction F50 User Manual - Overview...
Remaining lamp time. lamp time: Lamp time used. total operating: Total operating time for projector. lamp power: Lamp power in watts. IP address LAN: Projector IP address for use in network/remote control . User Manual - Introduction F50 User Manual - Overview...
5.10.1 Status > Source Information sub menu advanced: Access to sub menu for more settings depending on source used. See 4.10.2 Status > Source Information > Advanced sub menu source: Info on which source is in use. brightness: Info on brightness settings. contrast: Info on contrast settings.
Info on current horizontal and vertical image size. active image size: Info on current active image size. scan: Projector serial number. pixelclock: Week of manufacturing. mode id: Info on current mode setup (VGA source only). User Manual - Introduction F50 User Manual - Overview...
5.10.3 Status > Source Synchronisation sub menu Indicates which 3D mode is used. 2D frame lock: Indicates what the projector locks to in 2D Frequency: Shows the current frequency of the locking signal Status: Indicates the locking status Phase: Indicates phase between the source and the locking signal 3D source sync: Indicates where the source L/R sync is connected Frequency:...
Page 48
User Manual - Introduction F50 User Manual - Overview...
6 Functionality The various functions of the projector are described in detail in the following chapters. 6.1 Powering On and Off 6.1.1 Manual power control Switch the projector between On and Standby using the POWER switch on the keypad or the wireless remote control.
For manual override of the automatically detected color space and digital level, go to PICTURE > ADVANCED in the menu. Set the COLOR SPACE and INPUT LEVEL to one of the manual settings, choosing your desired color space and digital drive level. User Manual - Introduction F50 User Manual - Functionality...
• Using the RS232 or LAN control interfaces, please see the relevant SIS (Simplified In- struction Set) commands available to download on www.barco.com 6.7 On screen display (OSD) messages When detecting sources and using the various features of the projector, OSD messages will appear on the screen.
Do not turn off projector/remove the power cord while the upgrade is still in progress! • The projector may restart several times during the upgrade • The upgrade has finished successfully when yellow rapid blink has changed to stable yellow light User Manual - Introduction F50 User Manual - Functionality...
7.1 Calibration data All Barco projectors are measured and calibrated with high precision equipment at the factory for the best out-of-box experience. Over the lifetime of the lamps the characteristics of the projector might change slightly. The same applies when replacing lamps.
Red, Green, Blue, Cyan, Magenta, Yellow, White. In this mode color points and intensity for each color can be manipulated separately. To change the RealColor™ mode please go the menu PICTURE > REALCOLOR > DE- SIRED VALUES > DESIRED COORDS MODE. User Manual - Introduction F50 User Manual - Optimising the image...
7.2 Setting a white point or color temperature After enabling RealColor™ set the color temperature in the menu PICTURE > REALCOLOR > TEMPERATURE. Values between 3200K and 9300K can be selected. These color temperatures are tracking the “black body curve”- the black curved line in the center of CIE Chart in Figure 7-1.
Page 56
The names of the curves are descriptive for their recommended use. Using any of the computer curves for video applications will results in significant image noise. Figure 7-1. Film 2.2 gamma Figure 7-2. Film 2.4 gamma Figure 7-3. Film 2.6 gamma User Manual - Introduction F50 User Manual - Optimising the image...
Page 57
Figure 7-4. Film 2.8 gamma Figure 7-5. Video 1 gamma Figure 7-6. Video 2 gamma...
Page 58
Figure 7-7. Computer 1 gamma Figure 7-8. Computer 2 gamma Figure 7-9. Dynamic gamma User Manual - Introduction F50 User Manual - Optimising the image...
Page 59
Figure 7-10. DICOM 180 Lux* (example HB color wheel: other shapes with other alternatives) * Several DICOM settings (10, 60, 180, 250, 400 Lux - The higher Lux number (ambient light), the steeper the curve.
Page 60
User Manual - Introduction F50 User Manual - Optimising the image...
9 Lamp change The indicator on the keypad will turn RED when lamp life is expired. Change the lamp when lifetime expires. Always replace lamp with the same type and rating. USE ORIGINAL LAMPS ONLY. The lamp holder employs an electronic lamp timer that is tracking the life time of the lamp. Always disconnect the power cord and wait until the projector has cooled down (60 minutes) before opening the lamp cover.
Page 64
User Manual - Introduction F50 User Manual - Lamp change...
