Peg-Perego Viaggio HBB Instructions For Use Manual

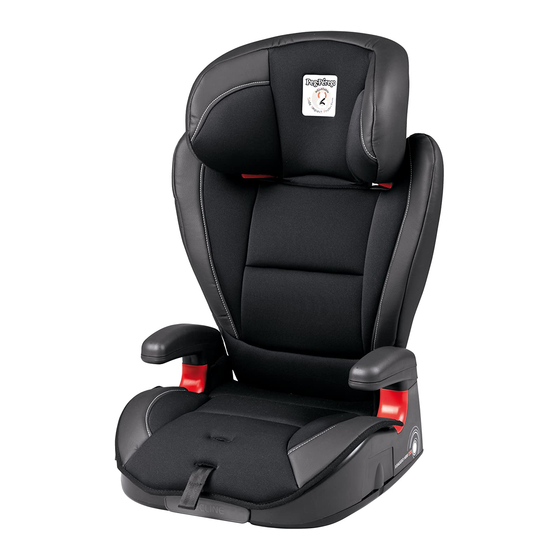

Per-perego viaggio hbb car seat instructions for use
Hide thumbs
Table of Contents

Advertisement

Quick Links

USA

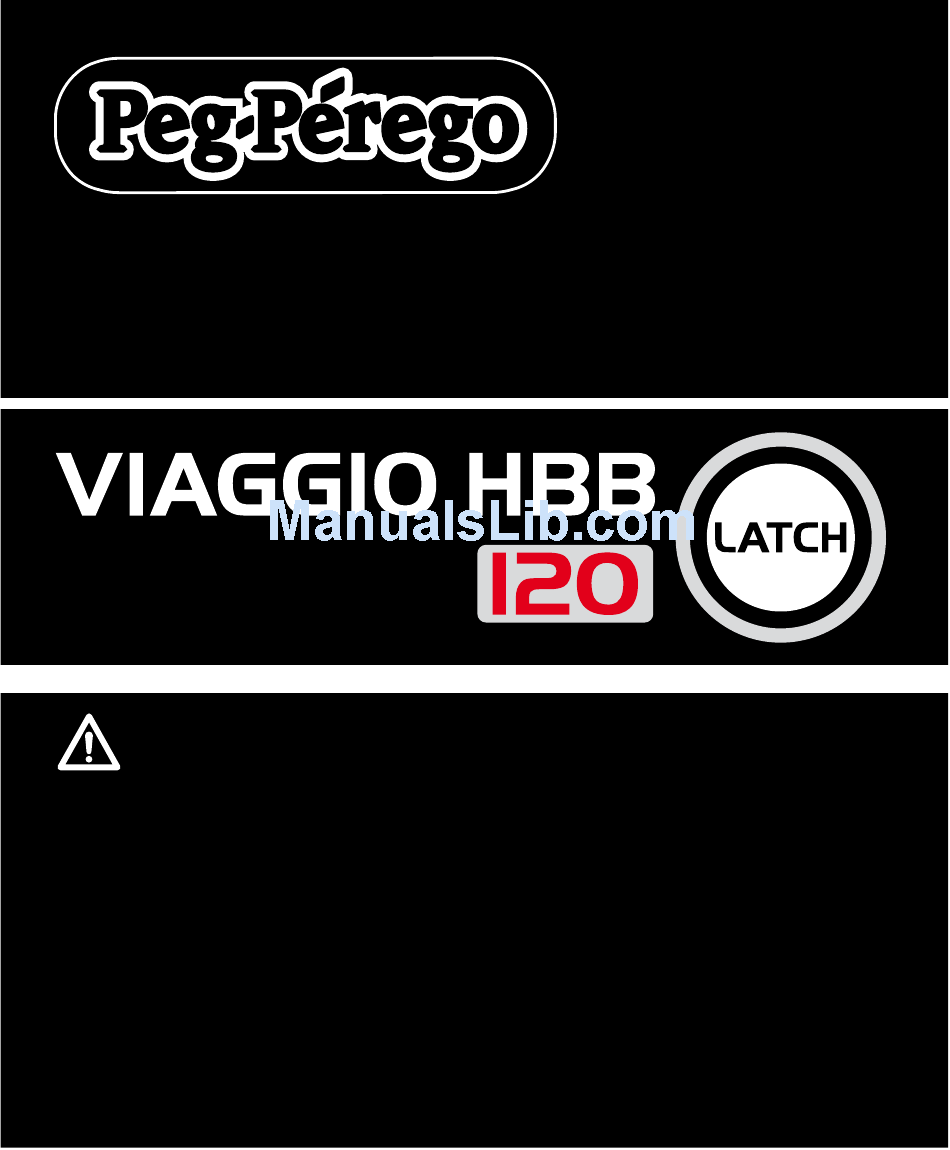

EN Instructions for use
FIUS1201I145
WARNING:
Weight limits:
• Do not install or use this
child
restraint
until
you
40 – 120 lbs
read and understand all the
(18.2 – 54 kg)
instructions in this manual and
the labels on the product. To
avoid serious injuries to your
Height limits:
baby, follow the instructions
carefully. Keep the instruction
39 - 55 inches
manual
in
the
dedicated
(99 – 140 cm)
pocket for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Viaggio HBB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Peg-Perego Viaggio HBB

Summary of Contents for Peg-Perego Viaggio HBB

  • Page 1 EN Instructions for use FIUS1201I145 WARNING: Weight limits: • Do not install or use this child restraint until 40 – 120 lbs read and understand all the (18.2 – 54 kg) instructions in this manual and the labels on the product. To avoid serious injuries to your Height limits: baby, follow the instructions...

  • Page 2: Table Of Contents

    Table of Contents Introduction ..............3 Warning ..............5 Safety information ............8 Registration form ............9 Your car seat ..............10 Product assembly prior to use .........11 Product features ............14 Vehicle seatbelts design and compatibility ..16 Installing the seat in the vehicle ......19 Securing the child in the seat ........23 Headrest height adjustment ........26 Backrest angle adjustment ........27 Using the booster without backrest ......28...

  • Page 3: Introduction

    PegPerego product, your car seat as a concerned Viaggio HBB 120 has been parent, driving carefully designed and certified when you have a child by a dedicated team of on board but also, before...
  • Page 4 Peg Perego Customer Service 1-800-671-1701 help. Now that you know your new Viaggio HBB 120 , you are ready to enjoy safe and happy journeys with your family and your children.

  • Page 5: Warning

    Warning • Do not install or use lies flat with no slack. this child restraint until • This car seats meets or you read and understand exceeds all applicable all the instructions in Federal Motor Vehicle this manual and the Safety Standard labels on the product.
  • Page 6 Warning manual for installation this car seat is involved details and check your in a car accident, it may vehicle owner’s manual be no longer safe for use. for further details. You may need to get a • This car seat is designed new unit.
  • Page 7 Warning occupied. This car seat is a heavy object that could cause severe damage to other occupants in case of an accident. • Keep fingers away from moving parts.

  • Page 8: Safety Information

    Safety Informations • Use Viaggio HBB120 • When not in use, store in forward facing mode the product in a proper with children weighing place, away from light, in the range 40 – 120 lbs moisture, (18.2 – 54 kg) and whose excessive heat or cold.

  • Page 9: Registration Form

    Registration Form Important! Child restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall. Send your name, address and the restraint's model number and manufacturing date to: Peg Perego U.S.A., Inc. 3625 Independence Drive Fort Wayne, IN 46808 Or call 1-800-671-1701 (toll free) For recall information, call the U.S.

  • Page 10: Your Car Seat

    Your car seat Instruction manual pocket Backrest Headrest Shoulder Headrest belt router adjustable handle Latch connectors Armrest Lap belt router Seat Latch strap Cup holder Recline handle...

  • Page 11: Product Assembly Prior To Use

    Product assembly prior to use 1. Always check product prior to assembly. The product is composed of an headrest (a) a backrest (b) and a seat (c). Backrest and headrest are factory assembled. To assemble correctly the product please follow the instructions carefully.
  • Page 12 Product assembly prior to use 2. Rotate the red stops in the open position and slide the backrest in the housings located behind the seat as shown in the picture. 3. Keeping the product flat, close the red stops until a click is heard.
  • Page 13 (b). The product is now ready for use. IMPORTANT NOTE: Viaggio HBB 120 is a High Back Booster. Its headrest and backrest have been designed on the experience made in side impact dynamic testing.

  • Page 14: Product Features

    Product features product equipped with integral holders, located at the side of the seat. To operate the cup holder, simply pull /push the part until it stops. WARNING: never put hot liquids in the cup holder. Your child or a nearby occupant may become injured in case of a turn or sudden stop.
  • Page 15 Product features 3. To return the foot to the original position, pull the lever again and push the seat downward.

  • Page 16: Vehicle Seatbelts Design And Compatibility

    Vehicle seatbelts design and compatibility Viaggio HBB is designed to be installed with vehicle belts commonly fitted on most of the available cars. However, in the market there are several different types of vehicles manufactured in different periods. As a result, there are many different vehicle belt designs.
  • Page 17 Vehicle seatbelts design and compatibility NON COMPATIBLE VEHICLE BELT DESIGNS WARNING: do not use Viaggio HBB with the following vehicle belt design: 1. Lap/motorized 2. Lap belt only of any shoulder belts. Belts kind. mounted on the door...
  • Page 18 Vehicle seatbelts design and compatibility 3. Side facing seats 4. Rear facing seats or seats that rotate in different positions For your child’s safety, always read your vehicle owner’s manual for further informations.

  • Page 19: Installing The Seat In The Vehicle

    Installing the seat in the vehicle 1. Lean the child seat on the selected vehicle seat in forward facing mode. 2. Primo Viaggio HBB120 is equipped with LATCH connectors to be used with your vehicle’s lower anchors. Connectors are stored in the back side of the seat.
  • Page 20 Installing the seat in the vehicle 3. Attach the connectors to the vehicle’s lower anchors. audible click is heard when the product is attached to the lower anchors. Pull the central strap (b) and push the product against the seat (c). Check that the product is attached by moving it sideways.
  • Page 21 Installing the seat in the vehicle button in order to release the seat. IMPORTANT NOTE: use of LATCH connectors are recommended by PegPerego to achieve the best stability of the product in case of sudden stops or steep turns. Also, using the LATCH will give guarantee that the product is located in the correct position with...
  • Page 22 Installing the seat in the vehicle 5. In case of lower anchors unavailability whenever the product is used without LATCH connectors, make sure that the product leans firmly on the seat. IMPORTANT NOTE: this case, make sure that the product is removed from the vehicle’s interior...

  • Page 23: Securing The Child In The Seat

    Securing the child in the seat Make sure that your child sitting comfortable seat, with the back fully against the backrest of the product. Pull the vehicle belt and make sure that the lap portion of it passes below both armrests.
  • Page 24 Securing the child in the seat 3. Tread the diagonal belt in the red router located below the headrest. To do this slide the belt from outside toward the center of the product. Check that the belt is not twisted when doing this operation.
  • Page 25 Securing the child in the seat 4. Picture shows the correct belt pattern around the child in your Primo Viaggio HBB 120.

  • Page 26: Headrest Height Adjustment

    Headrest height adjustment 1. Headrest is adjustable in 6 different positions. To adjust the backrest, pull the lever located behind and move the headrest up and down to the desired position. When the handle is released the headrest will lock in place. Move the headrest up and down to ensure that the lock is properly engaged.

  • Page 27: Backrest Angle Adjustment

    Backrest angle adjustment 1. For longer journeys, the product can be used in a comfort position. This will guarantee that your child will sleep keeping the head gently leaned on the headrest and being kept protected by the side wings in case of a lateral impact.

  • Page 28: Using The Booster Without Backrest

    Using Viaggio HBB without backrest Your Viaggio HBB has been designed to have a removable high back backrest. The backrest will provide protection to your child’s head and shoulders in a side collision. Please, use Viaggio HBB without its backrest only...
  • Page 29 Using Viaggio HBB without backrest To remove the backrest: Rotate the red stops in the open position and slide the backrest out of its housing.
  • Page 30 Using Viaggio HBB without backrest Make sure that your child sitting comfortably in the seat, with the back fully against the vehicle seat backrest. Pull the belt and make sure that the lap portion of it passes below both armrests.

  • Page 31: Cleaning And Maintenance

    Cleaning and maintenance Your product requires a minimum of cleaning and maintenance. Do not clean with harsh products or solvents. Keep moving parts clean. In case, clean plastic parts with a damp cloth. Do not use water with harness and latching mechanisms. Protect the product from extreme cold, water, rain and sun exposure.
  • Page 32 Cleaning and maintenance 1. To remove the seat upholstery: recline backrest until lies flat; undo plastic hooks starting with rear of the seat (a and b); undo snap buttons located under the armrest (c and d; pay attention to hold the button properly in order to avoid ripping the upholstery apart);...
  • Page 33 Cleaning and maintenance remove backrest upholstery, undo the plastic cover first unsnapping it from the top, as shown in the picture. 4. Undo the elastic bands from the hooks located in the backrest structure. Before undoing the hooks for the first time make sure that the correct pattern is understood.
  • Page 34 Cleaning and maintenance 5. Remove the backrest upholstery from bottom first. Then free shoulder cover from its structure. 6. Remove the headrest plastic cover unsnapping it from below as shown in the picture (a). Undo elastic hooks from the headrest structure (b).
  • Page 35 Cleaning and maintenance Remove headrest upholstery. 8. To refit the backrest upholstery in place, first fit the shoulder cones and then the bottom part.
  • Page 36 Cleaning and maintenance 9. Attach the elastic hooks in the center lower structure of the backrest. 10. Put the backrest plastic cover in place as shown in the picture (lower part first, then upper snaps).
  • Page 37 Cleaning and maintenance 11. Put the headrest plastic cover in place as shown in the picture (upper part first, then lower snaps).

  • Page 38: Replacement Parts

    Replacement Parts 1) ASPI0148NF 2) SPST7164NF 3) BRIVIA• 4) BSCVIA• 5) BSAVIA• NOTE: Spare parts available in different colors* to be specified when ordering.
  • Page 40 EN Instructions for use FIUS1201I145 WARNING: Weight limits: • Do not install or use this child restraint until 40 – 120 lbs read and understand all the (18.2 – 54 kg) instructions in this manual and the labels on the product. To avoid serious injuries to your Height limits: baby, follow the instructions...
