Summary of Contents for Peg-Perego Viaggio Switchable

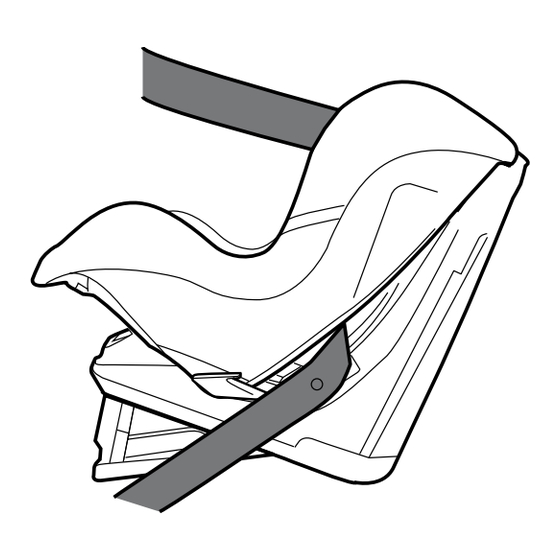

  • Page 2 Group UNIVERSAL CATEGORY 0-13 Kg BELTED E N• "Viaggio 0+1 Switchable" is fastened to the vehicle in a rear-facing position using the vehicle’ s seatbelt when used as a Group 0+ car seat (from 0 to 13 Kg). KR• 신생아부터 13kg 까지는 자동차 벨트를 이용하여 반드시 뒤보기 장착을 해야 합니다.
  • Page 3 Group 1 UNIVERSAL CATEGORY 9-18 Kg BELTED E N• "Viaggio 0+1 Switchable" is fastened to the vehicle in a forward-facing position using the vehicle’s seatbelt when used as a Group 1 car seat (from 9 to 18 Kg). 9~18 kg 아기는 자동차 시트 벨트를 이용하여 반드시 전방장착을 해야 합니다. KR•...
  • Page 4 gr. 0+...
  • Page 5 gr. 1...
  • Page 9 gr. 0+ gr. 0+ gr. 0+...
  • Page 10 gr. 0+ gr. 1 gr. 1 gr. 1...
  • Page 11 gr. 1...
  • Page 16 EN_English Viaggio 0+1 Switchable Thank you for choosing a Peg-Perego product. Product characteristics Features of the product Car seat, Group 0+, “Universal” category with vehicle seatbelt • Type-approved under European standard ECE R44/04, for children of weight up to 13 kg (from birth to approximately 1 year). • Suitable for installation on most, but not all vehicle seats. • The car seat can be correctly installed if the vehicle's use and maintenance manual indicates compatibility with "Universal" Groups 0+ restraint systems. • This car seat is classed as “Universal” in compliance with stricter type approval criteria than previous models that do not have type approval labels. • The car seat can only be used in type approved vehicles, fitted with static or inertia-reel three-point seatbelts, approved under regulation UN/ECE no. 16 or equivalent standards. • It must not be used with two-point or lap seatbelts. Car seat, Group 1, “Universal” category with vehicle seatbelt • Type approved under European standard ECE R44/04,...
  • Page 17 from the seat in the case of an accident. stricter type approval criteria than previous models that • Ensure that the vehicle’s three-point seatbelt fixing do not have type approval labels. the car seat is always taut and not twisted. It should IMPORTANT be replaced in the case of heavy stress as a result of an • "Viaggio 0+1 Switchable" must be installed in a accident. rear-facing position when used as a Group 0+ car • Never leave your child unattended in the car seat: seat and in a forward-facing position when used as watch him/her even when s/he is sleeping. a Group 1 car seat. • Never remove the child from the car seat when the • Do not install “Viaggio 0+1 Switchable” on rear- or vehicle is in motion. sideways-facing vehicle seats. • Make sure that the car seat is not blocked by a mobile • When used as a Group 0+ car seat on the vehicle’s part of the vehicle seat or by a door. front seat, the front airbag must be disabled. • Adjust the height and tension of the shoulder straps, • When used as a Group 1 car seat on the vehicle’s ensuring that they are as snug to the child’s body as front seat, the car seat should be positioned as far possible without constricting him/her too much. Check as possible from the dashboard. that the harness is not twisted and that the child does • This item has a progressive serial number. not release it.
  • Page 18 service. Contact information is provided on the last Instructions for use page of this manual. UNIVERSAL CATEGORY - Belted • The car seat must always be secured in the vehicle, Group 1 even when the child is not sitting in it; in the event of Fastening with seatbelts sudden braking, it could injure the passengers. 5• IMPORTANT: For the correct use of the “Viaggio 0+1 • Do not use this car seat if more than seven years have Switchable” car seat in Group 1 mode, it is necessary elapsed from the date of production indicated on the structure; the natural aging of the materials may mean the - Reposition the casing within the base of the car seat. car seat is no longer compliant with safety standards. Press the lever and push inwards, as indicated in • Do not use accessories that have not been approved by the manufacturer or by the competent authorities. the figure. 6• Install the “Viaggio 0+1 Switchable” car seat on the vehicle’s Instructions for use seat so that it is front-facing, as shown in the figure. UNIVERSAL CATEGORY - Belted 7• To make it easier to pass the vehicle’s seatbelts Group 0+ through the back of the car seat, it is necessary to recline the car seat to its lowest position by operating...
  • Page 19 down to the desired position. harness by pushing the red button on the crotch strap When you have finished, try moving the headrest buckle. to check it is properly locked into place. 15• Lift the harness and attach the buckles to the elastic 23• WARNING: Do not use the car seat in Group 0+ mode bands on the sides. without first extracting the casing, as shown in point 1 16• Place the child in the car seat and arrange the harness over A-B (Fig.A). the child’s shoulders and waist, as shown in the figure. WARNING: Do not use the car seat in Group 0+ mode 17• Lock the harness by overlapping the tongues and without first reclining the backrest, as shown in point inserting them into the buckle of the crotch strap until 1C (Fig.B). they click into place. 24• Use in Group 0+ mode: To determine the best 18• The child is now sitting correctly with the harness shoulder strap position, bear in mind that the child’s fastened properly. shoulders must be just above the shoulder strap guides. 19• Finally, tighten the shoulder straps until they are snug 25• IMPORTANT: The straps must not be too high or to the child’s body by pulling the central adjustment too low with respect to the child’s shoulders. strap towards you, as shown in the figure, taking care 26• WARNING: Do not use the car seat in Group 1 mode not to over-tighten the straps. with the casing extracted. IMPORTANT: Leave minimal slack (the space of 27• Use in Group 1 mode: To determine the best shoulder a finger) between the strap and the child's chest. strap position, bear in mind that the child’s shoulders 20• To slacken the straps, press the button at the centre must be just below the shoulder strap guides. of the car seat and at the same time pull the straps IMPORTANT: The straps must not be too high or 28•...
  • Page 20 slide the strap out through the crotch strap cover (Fig. F). 45• Open the rear panel and fasten the straps onto the rear 35• Slip the strap out through the opening in the soft cover latch plate. and remove the soft cover, as shown in the figure. • Fasten the straps from the front (point 16). • For infants and for use in Group 0+ mode, reposition Soft cover maintenance the booster cushion. Brush the fabric parts to remove dust. Serial numbers • Before placing the soft cover in the washing machine, slide the foam rubber cushion out of the booster seat 4 6• The following information can be found under the from the rear. seat of the “Viaggio 0+1 Switchable”: product name, • Machine wash at a maximum of 30°C with a delicate production date and serial number. wash setting and short spin cycle. 47• The type approval label can be found behind the • Do not use chlorine bleach. backrest of the “Viaggio 0+1 Switchable”. • Do not iron. 48• Harness production date. • Do not dry clean. In the event of problems with the product, these • Do not remove stains with solvents. details will be of use to customers. • Do not tumble dry. Product cleaning °...
  • Page 21 • Production serial number: on issue of type approval, • 유럽 안전 기준 ECE R44/04을 합격한 신생아부터 each car seat is personalised with its own number. 13kg(약 12개월)까지 사용가능 합니다. •거의 모든 자동차 시트에 장착 가능합니다. PEG-PEREGO S.p.A. • 본 카시트는 자동차의 유지 관리 설명서가 법용 그룹 Peg-Perego S.p.A. is an ISO 9001 certified 0+시스템과 호환성을 나타낸다면 company. This certification is a guarantee 자동차에 올바르게 정착될 수 있습니다.
  • Page 22 • 만약 이 제품을 장착하는데 어려움이 있다면 자동차 에 앉히기 전에 시트가 너무 뜨거운지 체크 해주세요. 의자의 머리 받침대를 올리거나 제거해주세요. • 카시트 시트커버는 제품 안전 시스템에 아주 필수적인 제품이기 때문에 허가 받지 않은 제조자의 제품으로 대 WARNING (경고) 체 사용하면 안됩니다. • 제품을...
  • Page 23 3. 그림과 같이 뒤보기로 장착합니다. 자동차 시트 벨트 장치)를 오픈 후 A처럼 사선 방향의 벨트를 통과시킨 를 카시트의 프레임과 본체 사이를 그림에서와 같이 단 후 B 처럼 벨트가 꼬이지 않고 팽팽하게 당긴 후 고정장 계별로 통과시킵니다. 치를 딸깍 소리 나게 눌러줍니다. - 먼저...
  • Page 24 30. 뒤쪽 래치(빗장)판에서 벨트를 느슨하게 합니다. 머리받침대(headrest) 31. 뒤쪽에서 벨트를 느슨하게 한 후 앞쪽에서 벨트를 조절 방법 (그림 22 ~29번 설명) 머리 받침대는 아기 높 당겨냅니다. 이에 맞게끔 조절(7단계) 해야 합니다. 32. 어깨패드를 뒤쪽에서 느슨하게 하고 앞쪽에서 벨트 22. 아래쪽에서 위로 올리기 위해서는 받침대 중앙에 를...
  • Page 25 제품 일련 번호 어지며 부여받은 인증형태를 나타 냅니다. 46. 시트 아래에는 제품명, 생산일자 와 일련번호가 표 시되어 있습니다. PEG-PEREGO S.p.A. 47. 뒤쪽에는 제품 인증 라벨이 붙어 있습니다. 48. 고정 벨트 생산 날짜. 제품 이상 있을 경우 이 상세 뻬그뻬레고는 ISO9001가 인증한 회...
  • Page 26 Peg-Perego after-sales service 뻬그뻬레고 A/S 부품이 분실되었거나 손상 되었을 때 는 반드시 뻬그뻬레고 정품 부품을 사용하세요. 어떠한 수리나 교체 시, 정품 부품과 액세서리 구입에 대해서 는 제품에 있는 뻬그뻬레고 고객센타에 연락 하세요. Tel : 1566-9323 Email : good@pegperego.co.kr website : www.pegperego.co.kr...
