Single Control Kitchen Faucet
and Deluxe Pull-Out Spray
Thank you for selecting American-Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--
please read these instructions carefully before you begin.
TOOLS REQUIRED
Phillips Screwdriver
1
INSTALL FITTING WITH OR WITHOUT DECK ESCUTCHEON
Turn off hot and cold water
CAUTION
supplies before beginning.

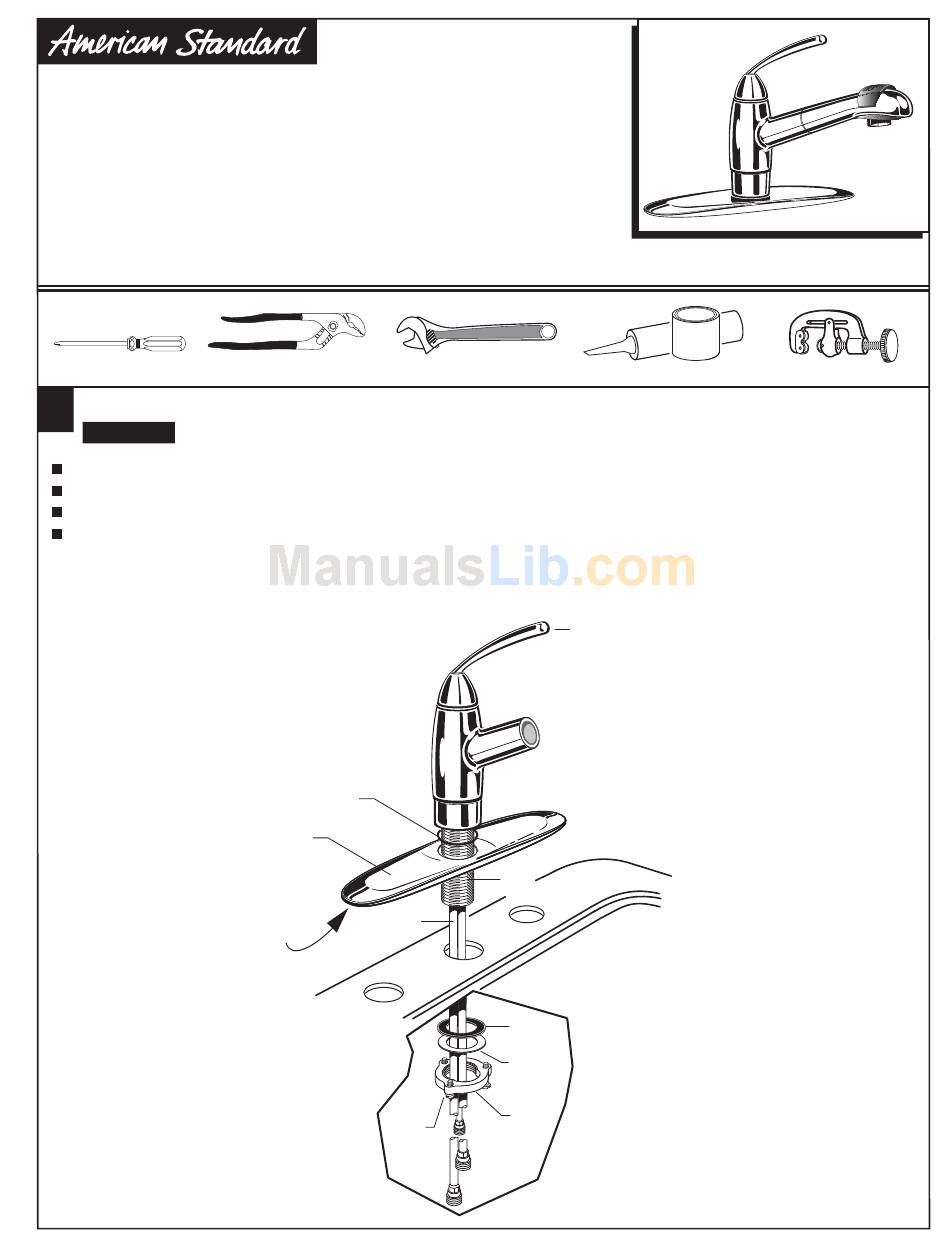

Apply a bead of putty to bottom edge of ESCUTCHEON (1). Note: Installation of ESCUTCHEON (1) is optional.
Make certain the large O-RING (2) is properly seated in recess of faucet body.
Insert supply TUBES (3) and SHANK (4) through center hole of ESCUTCHEON (1) (if used) and sink.
Assemble RUBBER WASHER (5), BRASS WASHER (6), and threaded LOCKNUT (7) onto SHANK (4) from underside
of sink. Hand tighten LOCKNUT (7) and check that rotation of HANDLE (8) from HOT to COLD is centered.
Use a screwdriver to tighten the SCREWS (9) on LOCKNUT (7). Work your way around LOCKNUT (7), tightening
the screws slightly each time until all are snug to ensure even pressure.
Channel Locks
2
1
3
P U T T Y
9
Installation
Instructions
4137.100
Adjustable Wrench
Plumbers' Putty or Caulking
8
4
5
6
7
Certified to comply with ANSI A112.18.1M
M 9 6 8 2 0 8 R E V. 1. 4
Tubing Cutter
