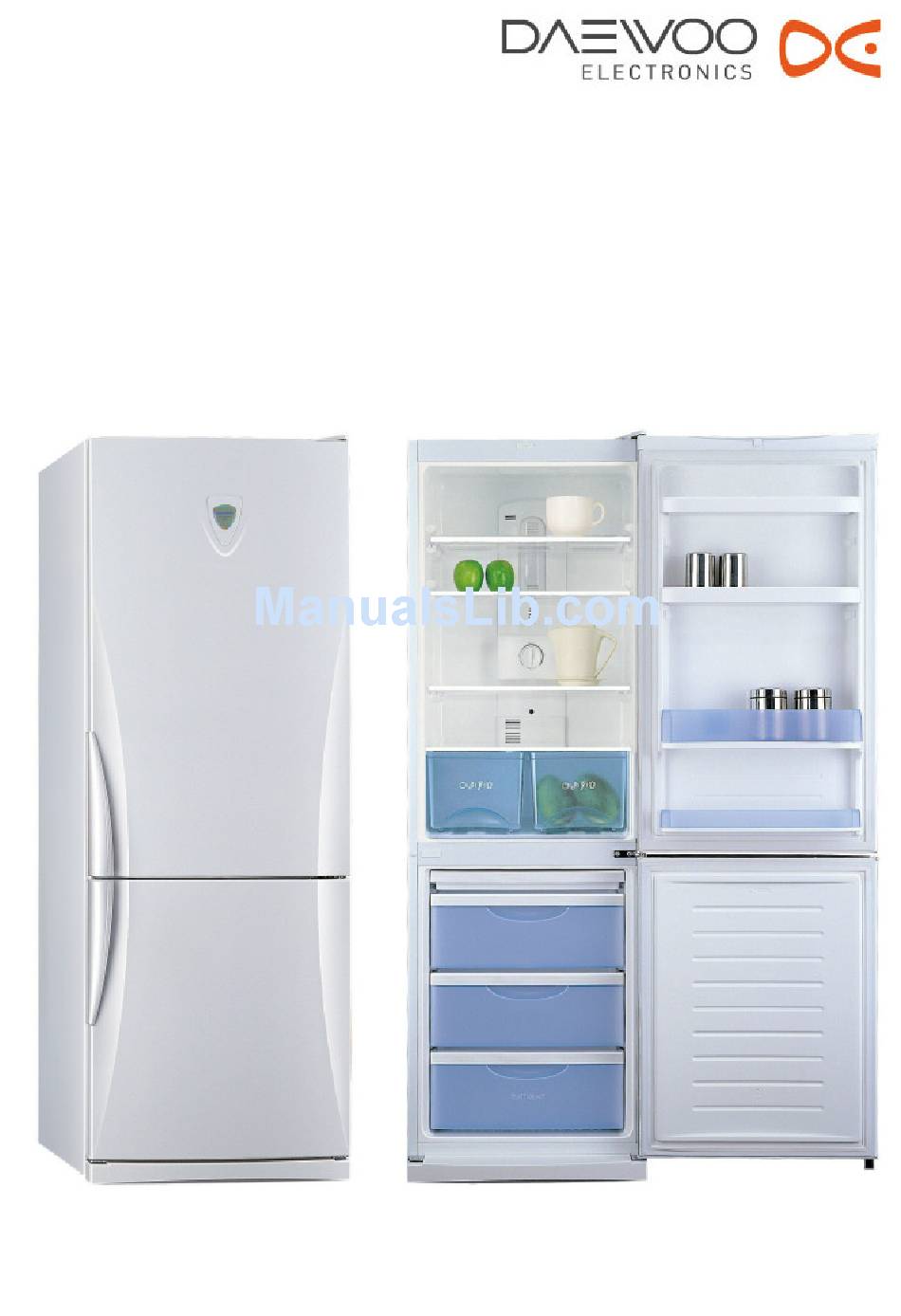

- Page 1 Service Manual No-Frost Combi-Refrigerator Models: ERF-366MNL / ERF-396MNL ERF-386MNL / ERF-416MNL DAEWOO ELECTRONICS MANUFACTURING ESPAÑA, S.A.
-
Page 2: Table Of Contents
. CONTENTS 1. SPECIFICATIONS 2. EXTERNAL DRAWINGS 3. REAL VIEW 4. MACHINE ROOM VIEW 5. REFRIGERANT CYCLE 6. WIRING DIAGRAM 7. COMPONENTS DISASSEMBLY PICTURES 8. DOOR POSITION CHANGE PROCESS 9. EXPLODE DRAWING 10. PARTS LIST... -
Page 3: Specifications
1. SPECIFICATIONS Model name 366MNL 386MNL 396MNL 416MNL Division MECHANIC TYPE Refrigerant type R-134A Refrigerant Q´ty 100 grs Blowing agent C-PENTANE Cooling system Fan cooling system Defrost system Automatic start & Automatic stop system Compressor KPC CBE-140L5Z Rated voltage AC220~240V / 50Hz Rated input (W) Lamp rated input (W) Freezer... -
Page 4: External Drawings
2. EXTERNAL DRAWINGS MODEL 1722 862.5 621.5 1765 ERF-366M 621.5 1098 993.5 ERF-396M 1896 1853 638.5 ERF-386M 710.5 1854 1811 862.5 1098 993.5 710.5 1985 1942 ERF-416M 32.5 595.2... -
Page 5: Real View
3. REAL VIEW... -
Page 6: Machine Room View
4. MACHINE ROOM VIEW SCREW MACHINE... -
Page 7: Refrigerant Cycle
5. REFRIGERANT CYCLE CAPILLARY TUBE... -
Page 8: Wiring Diagram
6. WIRING DIAGRAM... -
Page 9: Components Disassembly Pictures
7. COMPONENTS DISASSEMBLY PICTURES - SWITCH DOOR - Force switch door to the left side and input a thin driver in the rigth part as picture shows. After this operation, lift switch up. * Remark: Input driver carefully in order to lift up easily and avoid paint damages and scratches. - Page 10 - MULTI DUCT - Unscrew all fixed screws. - Remove insulator multi-duct. - Unscrew defrost timer and thermostat. - Take out temperature control knob by a minus driver carefully.
- Page 11 - LOUVERS: - Unscrew the two fixing screw for diassembly louver A and B TO DISASSEMBLE IT IS NECESSARY A STAR DRIVER WITH A MINIMAL LENGHT OF 10 CM - Disconnect fan motor housing - Unscrew the fixing screw in order to disassemble Louver A.
- Page 12 L POSITION - When louvers are disassembled is very important check Knob F louver position. Default position is M L POSITION H POSITION -CHANGE DOOR OPEN SIDE - Unscrew cover T hinge Follow next sheets instructions to change door open side...
-
Page 13: Door Position Change Process
8. DOOR POSITION CHANGE PROCESS STEP 1 : Remove door Follow to remove 1. Remove“ COVER HINGE” and “ HINGE T” 2. Remove“ R” door. 3. Remove “ HINGE M” 4. Remove“ F” door 5. Remove“COVER BRACKET” 6. Remove“ HINGE U” STEP 2 : Change door handle 7. - Page 14 door open side STEP 3 : Change the position of door 11. Attach the“ HINGE U” on the left. 12. Attach the“ F DOOR” 13. Reverse the position of “ HINGE M” and “ CAP SCREW HOLE” 1. Attach the“ R DOOR” 15.
-
Page 15: Explode Drawing
9. EXPLODE DRAWING... -
Page 17: Parts List
3011477200 COVER HRNS*L SILVER 03 SILVER DMS1477210 COVER HRNS*L SNOW WHITE SNOW WHITE DMS1477220 COVER HRNS*L (NG) NOBLE GREY EMBLEM DAEWOO ERF**6M SILVER 2005 SILVER EMBLEM DAEWOO ERF**6M WHITE 2005 WHITE 3012306600 GASKET R DR 36./38. WHITE 3012306800 GASKET R DR-39./41. WHITE... - Page 18 MODEL NO PART CODE PART NAME REMARK 366M 386M 396M 416M 3010967400 CAP DOOR BUSHING (SNOW WHITE) SNOW WHITE DMS0967420 CAP DR BUSHING SILVER 03 SILVER DMS0967410 CAP DOOR BUSHING (DARK GRAY) DARK GREY 3019025200 POCKET R 33 DMS9026110 POCKET BOTL AS BLUE MILKY 3019026200 POCKET MULTI AS BLUE MILKY...
- Page 19 MODEL NO PART CODE PART NAME REMARK 366M 386M 396M 416M 3016004300 SPECIAL SCREW A 69 DMS6402129 CAPACITOR RUNNIING FINISH 4uF 70 DMS6006510 SPECIAL WASHER R/C 71 DMS6006410 SPECIAL NUT R/C 72 DMS0527900 RELAY BOX 73 DMS1200100 CLAMP CORD A 74 DMS1200200 CLAMP CORD B 75 DMS1A00100 SWITCH OL 4TM232RHBYY-53 (SANYO) 76 DMS1C00100 SWITCH PTC PTH7M330MD2 (SANYO)
- Page 20 DAEWOO ELECTRONICS MANUFACTURING ESPAÑA S.A Polígono industrial de Júndiz C/Zurrupitieta 27, 01015 Vitoria, Spain Tel: 00 34 945292292 Fax:00 34 945290965...
