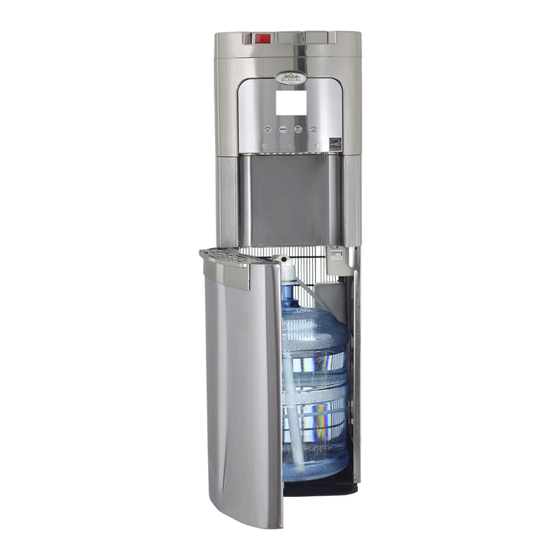

Page 1: Self Cleaning
TO REDUCE THE RISK OF INJURY AND PROPERTY DAMAGE, USER MUST READ THIS MANUAL BEFORE ASSEMBLING, INSTALLING & OPERATING DISPENSER. SAVE THIS MANUAL FOR FUTURE USE If you have a question or problem, please contact for assistance. info@eastwestintl.com 8LDIECHK-SC-WFC-VW-SSP © 2012 Electrotemp Technologies Inc. PN: 5M009363X1... -
Page 2: Safety Precautions
SAFETY PRECAUTIONS WARNING To reduce risk of injury and property damage, user must read this entire manual before assembling, installing & operating dispenser. Failure to execute the instructions in this manual can cause personal injury or property damage. This product dispenses water at very high temperatures. Failure to use properly can cause personal injury. -
Page 3: Safety Precautions-Electrical Requirements
SAFETY PRECAUTIONS - Electrical Requirements WARNING Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. A 120 volt, 60 Hz., AC only, 15- amp, fused electrical supply is required. -
Page 4: Table Of Contents
You will need this information to obtain warranty service. Self Cleaning Hot & Cold Hidden Product Bottle Water Cooler With Display 8LDIECHK-SC-WFC-VW-SSP Model Number Serial ID Number Date of Purchase IMPORTANT: Do NOT Return Dispenser To Store. -
Page 5: Specifications
SPECIFICATIONS 120V~/60Hz / 6.5A Power Supply R-134A Refrigerant Type 100W Max Cold Water Power ≥5 L/H Cold Capacity / Hour 3°C – 10°C / 37.4 F- 50 Cold Temp Range 650W Hot Water Power ≥5 L/H Hot Capacity / Hour 80°C –... -
Page 6: Assembly
ASSEMBLY WARNING Keep plastic bags away from children. 1. Remove dispenser from packaging. 2. Unpack drip tray and insert into dispenser. 3. Remove protective packaging from around probe. 4. Properly dispose all of packaging. INSTALLATION 1. Place dispenser upright. 2. Locate water cooler on a hard and level surface in a cool shaded location near a grounded wall outlet. -
Page 7: Operation
OPERATION CAUTION This water cooler is intended for water cooler only, Do NOT use other liquids. Do NOT use for other purposes. Warranty is void if used for any other liquids including coffee, tea, juices, beer or wine. This water cooler has been designed to sandard water bottles with a 3, 5 or 5.2 gallon capacity. - Page 8 NOTICE: When using a 5 gallon rectangular bottle, slide into place as shown in illustration below. 4. Plug cord into a properly grounded wall outlet. • Water will be pumped into the hot and cold water reservoirs from the bottle. 5.
-
Page 9: Dispense Hot Water
Dispense Hot Water CAUTION HOT WATER This unit dispenses water at temperatures that can cause severe burns. Avoid direct contact with hot water. Keep children and pets away from unit while dispensing. Never allow children to dispense hot water without proper and direct supervision. Note: After setup, hot water will be available in 15-20 minutes. -
Page 10: Self Cleaning
SELF CLEANING Congratulations! You have acquired State-Of-The-Art water cooler with self cleaning capability It is designed to preserve an original bottled water quality and to eliminate slime and bacteria it carries. . It is not meant for filtering tap water. Areas covered by self cleaning includes cold water tank, cold tank cover with water level controls, cold water faucet up to the dispensing nozzle and surrounding connectors. -
Page 11: Guide For Installation And Use Of Alkaline Filter
Guide for installation and use of ALKALINE FILTER Filter Rinse 1.Submerge filter into container with clean water. Hold for 3 minutes 2.Take filter out of the water, shake few times and re-submerge into clean water. 3.Repeat step 1 and 2 several times until water is clean and pure, without black dust from activated carbon coming out. - Page 12 10. Swivel back to vertical position. 11.When replacing filter, unscrew filter housing over the kitchen sink to prevent water dripping onto the floor. 12. After changing filter place bottle into dispenser. Allow dispenser to pump water into reservoir. Observe if filter cartridge is leaking water. i.
-
Page 13: Proper Care & Cleaning
PROPER CARE & CLEANING Self-clean function covers internal waterways, It does not cover probe stick and external part of cold faucet hot faucet is sanitized by the hot water itself. General Cleaning Perform: As needed Time Required: 5 minutes. Note: Do NOT use abrasive materials or chemical cleaners. 1.Unplug power cord from wall outlet. -
Page 14: Display's Operation Explanation
USING THE DISPLAY 1 Setting the time and the day of the week 1.Press the MODE button and hold for 3 seconds. The hour digits will begin flash. 2.Adjust the hours by pressing the up or down arrows. AM or PM will toggle automatically. Press the SET button. - Page 15 5 Setting the Energy Saving Mode (This controls when cold and hot water will be available) 1. Press the SET button until the Office, Home or Always on icon flash. 2. Select the working time by pressing the up or down arrows.
-
Page 16: Troubleshooting
TROUBLESHOOTING Water cooler does not operate. • Make sure the power cord is properly connected to a working outlet. • Look if two power switches at the back are ON. They will glow in ON position if power gets to them. Turn them OFF and ON to make sure that cooler is plugged in and circuit breaker is not tripped. - Page 17 Water is leaking. • Bottle may have a leak. Remove bottle and replace with new bottle. • If leak remains, remove probe from bottle and call 888-828-1426 for assistance. Push buttons are stuck and/or faucets are leaking. • Apply mineral oil (baby oil) to button slides to reduce friction. Cold water is not cold.
