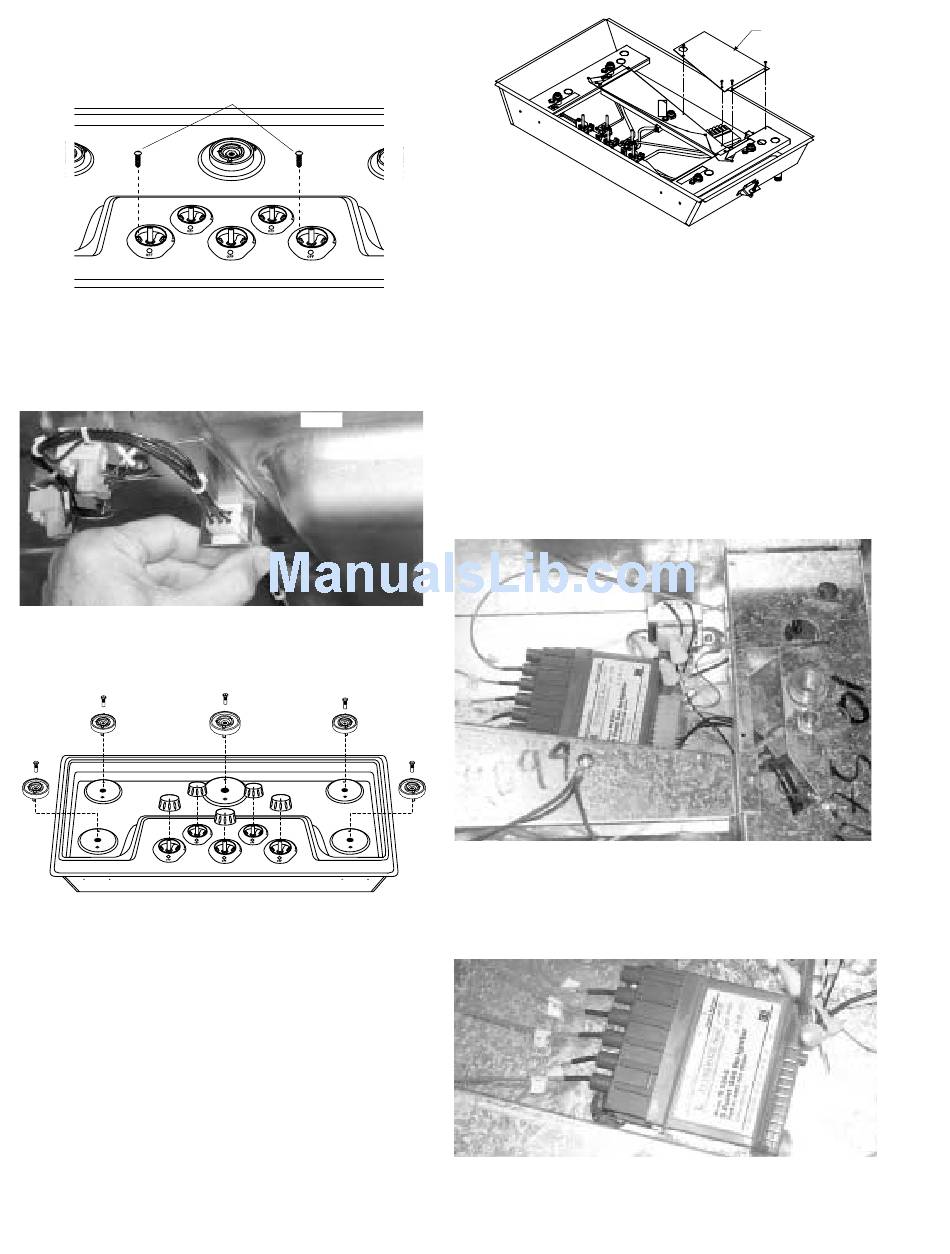

6. Remove the left screws holding the bezels for
the left-front and right-front gas valve knobs.
Remove Screws
7. Raise the maintop front about 6 in. and discon-
nect the 6-pin connector under the maintop and
behind the right-front valve.
8. Push the spark electrode wires through the
holes in the maintop.
9. Pick the maintop straight up and place face up
in a safe area where it will not be scratched or
accidently knocked over.
10. To service the spark module or transformer,
remove the heat shield held by 4 Phillips
screws.
11. To reinstall the maintop, reverse the procedure
1 through 10.

Spark Module Removal

1. Remove the maintop (see
2. Remove the heat shield held by 4 Phillips
screws.
3. Unplug the connector from the spark module.
4. Unplug 5 igniter wires from the spark module.
5. Remove 2 screws and the spark module.
6. To reinstall the spark module, ensure the con-
nector is properly seated and the igniter wires
are connected in their original positions.
– 12 –
Heat
Shield
).
Maintop Removal
