Specifications And Nomenclature5 - GE Monogram ZGU375NS Technical Service Manual

Model Number
Monogram
GAS
The serial plate of your cooktop is located on
the bottom of the burner box. In addition to
the model and serial numbers, it tells you the
ratings of the burners and the type of fuel
and pressure the cooktop was adjusted for
when it left the factory. Also included are
minimum wall clearance requirements.
Orifice/Jet DMS
Natural Gas
Natural @ 4" LF
10.5K
Rate, HI
2.5K
Rate,LOW
1.2K
Rate,SIM
1.45mm 1.59 mm 1.59 mm 1.45mm 1.78 mm
Main Orifice
0.57 mm 0.57 mm 0.57 mm 0.57 mm 0.51 mm
Sim. Orifice
0.71 mm 0.71 mm 0.71 mm 0.71 mm 0.71 mm
Valve Jet
Orange
Main Or. Color
P
Sim. Or. Code

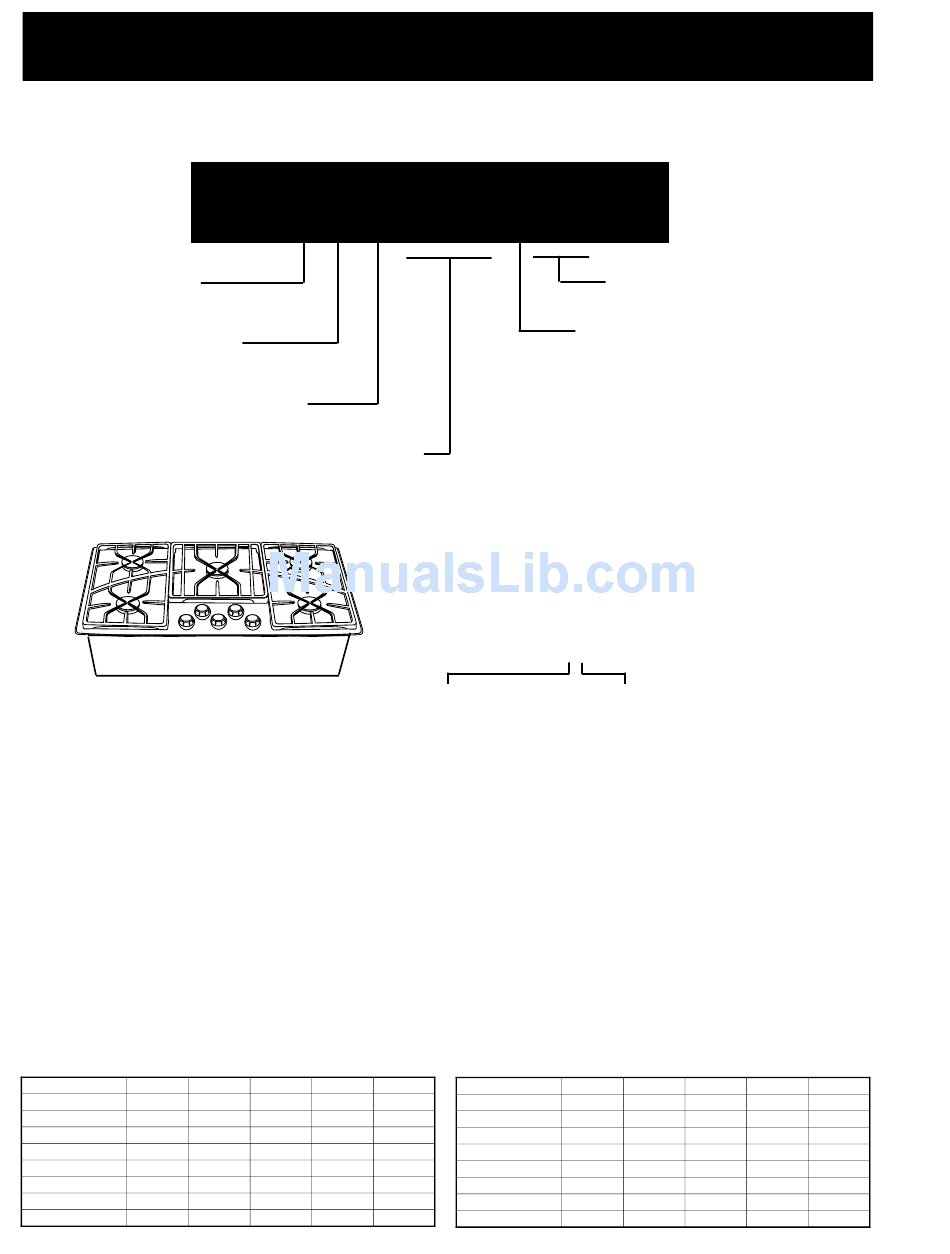

Specifications and Nomenclature
Z G U 3 7 5 N S
Cooktop
Feature Pack
Designates features–the higher
the number, the more features.
LR RR RF
12K 12K 10.5K
2.5K 2.5K 2.5K
1.2K 1.2K 1.2K
Red Red Orange Yellow
P P P
Serial Number
The first two characters of the serial number
identify the month and year of manufacture.
Example: AA123456S = January, 2001
A - JAN 2005 - H
D - FEB 2004 - G
F - MAR 2003 - F
G - APR 2002 - D
H - MAY 2001 - A
L - JUN 2000 - Z
M - JUL 1999 - V
R - AUG 1998 - T
S - SEP 1997 - S
T - OCT 1996 - R
V - NOV 1995 - M
Z - DEC 1994 - L
Note: The technical sheet is located under the
control panel.
LP Gas
C LP @ 10"
15K
Rate, HI
3.4K
Rate,LOW
1.2K
Rate,SIM
0.81 mm 0.81 mm 0.81 mm 0.81 mm 1.10 mm
Main Orifice
0.34 mm 0.34 mm 0.34 mm 0.34 mm 0.37 mm
Sim. Orifice
0.46 mm 0.46 mm 0.46 mm 0.46 mm 0.46 mm
Valve Jet
Main Or. Color
V
Sim. Or. Code
– 4 –
Stainless Steel
Type of Gas to Be Used
N = Natural
L = LPG
The letter designating the
year repeats every 12
years.
Example:
T - 1974
T - 1986
T - 1998
LF LR RR
8.5K 8.5K 8.5K
2.3K 2.3K 2.3K
1.1K 1.1K 1.1K
White White White
E E E
RF C
8.5K 15K
2.3K 2.4K
1.1K 1.1K
White Black
E G
