PURSUIT OS 315 Owner's Manual

Hide thumbs Also See for OS 315:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
OS 315
OWNER'S MANUAL
FISHING BOATS
3901 St. Lucie Blvd.
Ft. Pierce, Florida 34946
© 2008 S2 Yachts, Inc.
OS 315
Part Number 921287
August 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OS 315 and is the answer not in the manual?

Questions and answers

Related Manuals for PURSUIT OS 315

Summary of Contents for PURSUIT OS 315

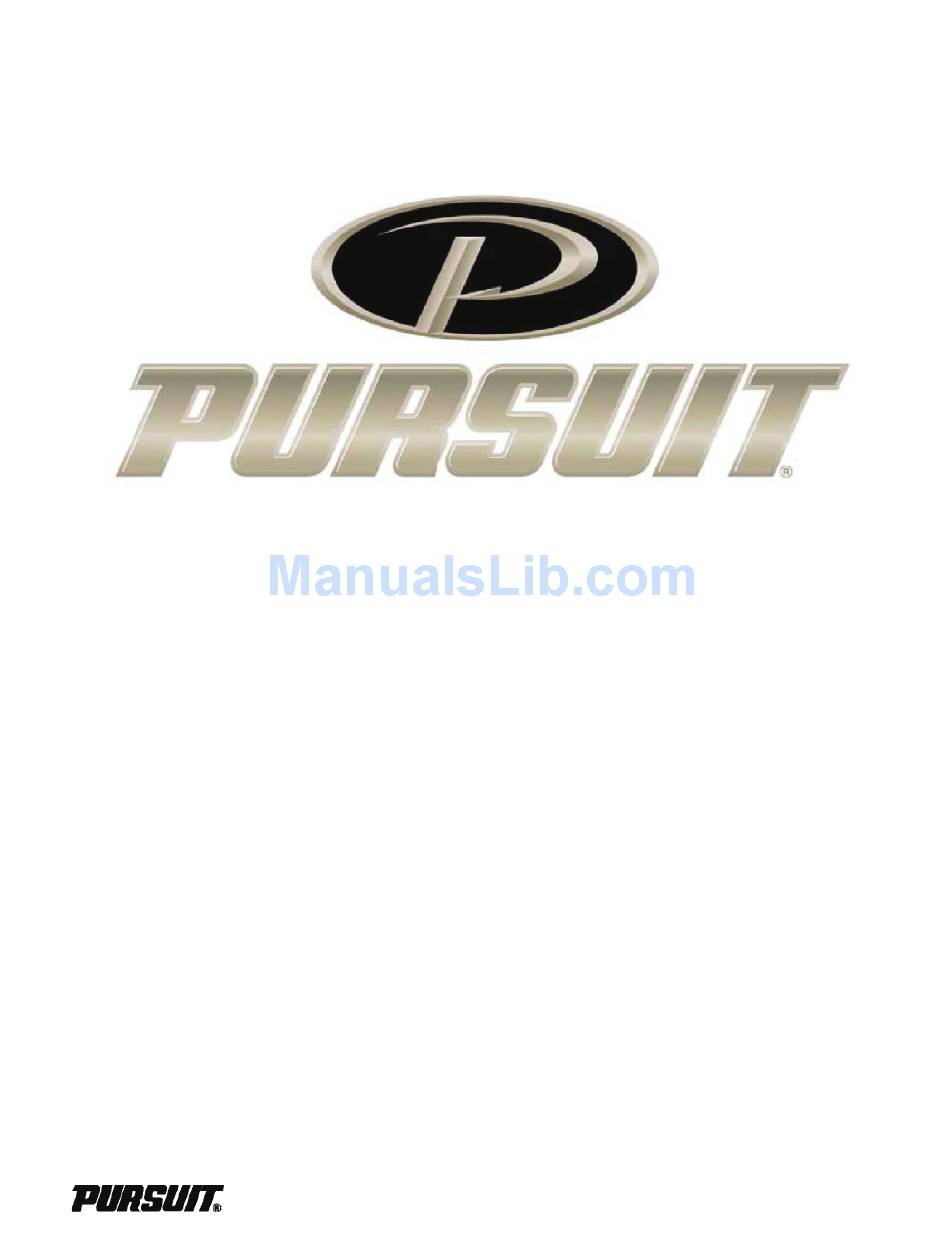

  • Page 1 OS 315 OWNER’S MANUAL FISHING BOATS 3901 St. Lucie Blvd. Ft. Pierce, Florida 34946 © 2008 S2 Yachts, Inc. OS 315 Part Number 921287 August 2008...

  • Page 2: Safety Information

    (CO) is colorless, odorless and ! DANGER extremely dangerous. Indicates a hazardous situation which, if Every precaution has been taken by Pursuit not avoided, will result in death or seri- Fishing Boats to reduce the risks associated ous injury.

  • Page 3: Table Of Contents

    2.12 Control Systems Maintenance ..2-5 7.3 Tower (Dealer Installed) .....7-5 Fuel Systems ......3-1 3.1 General ..........3-1 3.2 Fuel System ........3-1 3.3 Diesel Generator Fuel System (Optional) ........3-3 3.4 Fueling Instructions ......3-3 3.5 Fuel System Maintenance ....3-4 OS 315...
  • Page 4 10.9 Controls, Steering or Propulsion System Failure ......10-8 10.10 Collision ........10-9 10.11 Grounding, Towing and Rendering Assistance ........10-9 10.12 Flooding or Capsizing ....10-9 10.13 Transporting your Boat .... 10-10 10.14 Trailering your Boat ....10-10 OS 315...

  • Page 5: Specifications

    Specifications Small Craft Owner's Manual Supplement OS 315 Boat Manufacturer/Model: Constructeur/Modèle du bateau: Modelo/Fabricante de la Embarcación: Boothersteller/Model: Costruttore/modello della barca: Fabricante/Modelo do Barco: Design Category: C-Inshore Propulsion Type: Tipo di propulsione: Categorie de conception: C- Antriebsart: Tipo de propulsión: à...
  • Page 6 Specifications Small Craft Owner's Manual Supplement OS 315 2.82 9.97 3.25 10.64 Kraftstofftankkapazität Fuel Tank Capacity (0.73kg/Liter): 1075.06 Liters Fuel Type: Gasoline Diesel (0,73 kg/Liter): 1075.06 Liter Oil Tank Capacity: Liters Kraftstoffart: Benzin Diesel Öltankkapazität: Oil Type: 10-40 Liter Ölsorte: Water Tank Capacity (1kg/Liter): 113.56...
  • Page 7 Specifications Small Craft Owner's Manual Supplement OS 315 Diesel Locate and Identify: Localizar e identificar: Localizzazione e identificazione dei A) Fuel Tank A) Depósito de Combustible componenti: B) Fuel Tank Filling Point B) Punto de Carga del Depósito de A) Serbatoio carburante...
  • Page 8 Specifications Small Craft Owner's Manual Supplement OS 315 Diesel Repèrez et identifiez: Position and Beschreibung: Localizar e Identificar: A) Réservoir de carburant A) Kraftstofftank A) Depósito de Conbustível B) Point de remplissage réservoir B) Kraftstofftankfüllpunkt B) Ponto de Enchimento do Depósito de C) Öltank (n.z.)
  • Page 9 Specifications Working Deck Area OS315 11/21/2007 Working Deck Areas for occupation during normal operation of the boat OS 315...
  • Page 10 Specifications OS 315...
  • Page 11 Specifications OS 315...
  • Page 12 Specifications OS 315...

  • Page 13: General Information

    General Information Boat Information Fill out the following information and leave it in your PURSUIT Owner’s Manual. This information will be important for you and PURSUIT service personnel to know, if and when you may need to call PURSUIT for technical assistance or service.

  • Page 14: Warranty And Warranty Registration Cards

    PURSUIT, engine manufacturers, and the warranty coverage to subsequent owners of suppliers of major components maintain PURSUIT models for the duration of the their own manufacturer's warranty and ser- original warranty period. Please refer to the vice facilities. It is important that you prop-...
  • Page 15 They can also help in pro- viding local navigational information when moving to a new boating area. Contact your dealer, State Boating Authority or the Boat- OS 315...
  • Page 16 Operator Notes OS 315...

  • Page 17: Propulsion Systems

    1.1 General Use only the fuel recommended by the engine manufacturer. Use of old, con- Your Pursuit boat is designed to be powered taminated fuel can cause the engine with twin 2-cycle or 4-cycle outboard to malfunction or severe damage.

  • Page 18: Engine Lubrication

    (example 14 x 21). Pitch is the theoretical distance the pro- peller will travel in one rotation. Repair or replace a propeller immediately if it has been damaged. A damaged propeller can cause OS 315...

  • Page 19: Engine Instrumentation

    The the engine, investigate the problem instrumentation is unique to the type of out- and correct it. board engines installed on your Pursuit. Your boat may not be equipped with all of the following gauges. Fuel Gauge...
  • Page 20 The gauges are designed with drain holes to reduce the accumulation of moisture. Make sure that if a gauge is removed, it is reinstalled with the drain holes in the proper position. OS 315...

  • Page 21: Helm Systems

    Each manufacturer of the control compo- nents provides an owner’s manual with its The helm on your Pursuit is designed for a product. It is important that you read, under- binnacle style control with a single gear shift stand and become familiar with the proper and a throttle lever for each engine;...

  • Page 22: Neutral Safety Switch

    2.6 Engine Stop Switch WARNING Your Pursuit is equipped with an engine stop switch and lanyard. When the lanyard is LOSS OF CONTROL AND UNSAFE pulled away, it will shut off the engines.

  • Page 23: Automatic Fire Extinguisher System (With Optional Generator)

    DO NOT use the boat. Contact your Automatic Fire Extinguisher Display Unit Pursuit Dealer and have it repaired. 2.8 Steering System The steering system is hydraulic and made of two main components: the helm assembly and the hydraulic cylinder.

  • Page 24: Trim Tabs

    They also control starboard and port up and down movements. Bow up and bow down will con- trol the hull planning attitude, while port and starboard up and down provide control for the hull trim side to side. OS 315...

  • Page 25: Compass

    Periodic lubrication of all moving parts and connec- tions with light waterproof grease required. Control system adjustments may become necessary. If adjustments are necessary, see your Pursuit Dealer. Bow Thruster Control OS 315...
  • Page 26 Check steering operation and visually inspect for loose or missing hardware before operating the boat. If you suspect the steering system is damaged, see your Pursuit dealer. DO NOT operate the boat if you suspect the steering system is malfunctioning. WARNING...

  • Page 27: Fuel Systems

    3.1 General Certain bulkhead areas are sealed fol- lowing U.S. Coast Guard regulations The fuel system of your Pursuit boat is at the date of manufacture. Any modi- designed to meet the requirements of the fications must be in accordance with U.S.
  • Page 28 The filter elements should be changed once a season. Fuel primers are also built into the top of each fuel filter. OS 315...

  • Page 29: Diesel Generator Fuel System (Optional)

    Fuel system damage, related to use of alcohol-blended fuels is not covered by the Pursuit Limited Warranty. Refer to the engine owner's manual for specific fuel requirements for your engines.

  • Page 30: Fuel System Maintenance

    3/4 full. Changes in temperature and 9. Install and tighten fuel cap. Do not to weather conditions can cause condensation in fuel tanks. Your Pursuit dealer or the overtighten. engine manufacturer can provide additional 10. Check the fuel compartment and information on fuel degrading and fuel stabi- below the deck for fuel odors.

  • Page 31: Electrical Systems

    4.2 DC System 4.1 General Batteries The 12-volt batteries have been selected to Your Pursuit boat is equipped with DC and provide optimum performance for engine AC electrical systems. The DC system starting, and house and electronics loads. draws current from onboard batteries. The...
  • Page 32 Section 4 Electrical System Main Distribution Panel (MDP) OS 315...

  • Page 33: Electrical System

    The elec- tronics and house batteries or the port and starboard batteries can be paralleled by switching to "combine batteries." It is not possible to parallel the engine batteries with the house and electronics batteries. OS 315...

  • Page 34: 12-Volt Dc Panels

    Pressing the top of the rocker switch acti- vates the navigation lights. Pressing the bot- CO detectors are recommended in areas tom will activate the anchor light. where CO build-up is a possibility, especially in boats having confined areas; such as OS 315...
  • Page 35 Panel and retrieves the anchor. Refer to the Wind- lass in the Exterior Equipment. Activates the instrument and compass light- ing. Cockpit Panel Livewell Activates the livewell circulating pump to supply water to the livewell. The pump is OS 315...

  • Page 36: Ac System

    30 amp, 60 cycle system. Models with The macerator switch can only be activated CE designation; operate on a 230-volt, 16 when the key switch is fully turned. Refer to amp, 50 cycle system. Head Compartment of the Interior Equip- ment. OS 315...

  • Page 37: Ac Main Distribution

    Refer to the air This breaker is very sensitive. The resulting conditioner manual for additional informa- power surge that occurs when connecting tion. the dockside cord may cause the main breaker to trip. To avoid this surge, turn the OS 315...

  • Page 38: Battery Charger Operation

    Turn the AC main breaker to "OFF" position. let and replace the outlet caps. Disconnect If the dockside outlet includes a disconnect the cable from the boat, close inlet cap and switch, turn it to "OFF." stow cable. OS 315...

  • Page 39: Generator (Optional)

    Electrical System Section 4 4.8 Generator (Optional) CAUTION If your Pursuit boat is equipped with an DO NOT start generator with selector optional diesel generator, this generator is switch in the "GENERATOR" position. not equipped with a DC charging system.
  • Page 40 Spraying receptacles and electrical to ensure proper operation. connections with electrical contact cleaner or a metal and electrical protector will help reduce corrosion and improve elec- trical continuity. 4-10 OS 315...
  • Page 41 AC alternator. Maintenance schedules and procedures are outlined in your generator owner’s manual, follow them exactly. OS 315 4-11...
  • Page 42 Operator Notes 4-12 OS 315...

  • Page 43: Plumbing System

    When properly primed and activated, the cleaned regularly and the sump is inspected water system will operate like the water sys- regularly to remove any accumulated debris. tem in a home. An automatic pressure sen- sor keeps the system pressurized. If the OS 315...

  • Page 44: Raw Water Washdown

    CAUTION DO NOT change or modify the shore water inlet connector without contact- ing Pursuit Customer Relations or Washdown Hose Connector (Typical) your dealer. Use of the wrong type or a modification can damage the fresh water system.

  • Page 45: Livewell

    Some drain thru-hull fittings are equipped excess water in the bilge. Test the bilge with ball valves that are always open under pump at regular intervals. Debris can also normal operating conditions. In the event of OS 315...
  • Page 46 Damage to the pump will occur. Exterior Drains The aft bilge pump system consists of two Your Pursuit boat has two scupper drains pumps and an automatic float switch. The located in the rear of the cockpit. Water is...

  • Page 47: Plumbing System Maintenance

    Add a commercially available potable The rope locker drains overboard through a water conditioner to the water tank to special drain fitting located in the hull side at keep it fresh. the bottom of the rope locker. Inspect the OS 315...
  • Page 48 Also, drains and from a battery with a low charge could pumps must be properly winterized lead to pump failure. before winter lay-up. The fresh and raw water systems must be winterized properly before storage. Refer to Winterizing. OS 315...

  • Page 49: Ventilation System

    Do not operate ically. These types of detection equip- the opening vent unless it is clear of ment have a limited life span. all items. OS 315...
  • Page 50 Operator Notes OS 315...

  • Page 51: Exterior Equipment

    Damage from anchor bouncing Anchor/Rope Locker in the locker is not covered by the Pursuit warranty. The anchor locker at the bow of the boat can be accessed through the deck hatch. The locker is recessed for a Danforth® type anchor. OS 315...
  • Page 52 Windshield MOVING PARTS OR ENTANGLEMENT HAZARD Contact with moving parts can entan- Your Pursuit boat is equipped with a one- gle, cut, resulting in loss of body piece vented fiberglass windshield with parts, strangulation and/or severe tinted glass. The glazing can be replaced, loss of blood, causing serious injury similar to replacing automotive windshields.

  • Page 53: Cockpit

    WARNING Swim Platform UNSAFE BOAT HAZARD Failure to close and secure transom Your Pursuit boat is equipped with an inte- door/gate while underway can expose gral swim platform. A foldaway boarding lad- passengers to rotating propellers, der is located under the hatch on the swim throw them overboard or swamp the platform.
  • Page 54 Damage to the engine cowlings, stern intend to add equipment or make modifica- seat and transom door can occur if tions to the hardtop, contact Pursuit Cus- the stern seat is not opened properly. tomer Relations to make sure the equipment...

  • Page 55: Tower (Dealer Installed)

    Damage resulting from installation of a tower is not covered by the Pursuit Limited Warranty. Also, equipping a boat with a tower may require lower pitched propellers to compensate for the wind resistance and weight of the tower.
  • Page 56 Operator Notes OS 315...

  • Page 57: Interior Equipment

    Remove the wall panels to access the head holding tank system and diesel fuel tank. The battery charger, battery isolator, stereo amplifier, windshield washer solenoid, relay OS 315...

  • Page 58: Galley

    AC breaker panel on forward bilge area, activate macerator and remove stove cover. Refer to the stove switch until tank is empty. Release the owner’s manual for additional operating and OS 315...

  • Page 59: Convertible V-Berth And Table

    Items stored on or next to the air condition- version. ing unit can damage the air conditioner or be damaged by heat or condensation. OS 315...

  • Page 60: Audio And Video Systems

    PAL tuner has its own remote. Using the TV remote control, select the A/V input from the menu and use the PAL tuner remote control to change the channel. Use the TV remote control to select the DVD player from the menu. OS 315...
  • Page 61 A red light on the antenna indicates the antenna is selected and activated. TV Cable Inlet (Optional) The TV cable inlet is mounted next to the shore power inlet. It allows the boat to be connected to shore-side cable television ser- vice. OS 315...
  • Page 62 Operator Notes OS 315...

  • Page 63: Safety Equipment

    See your Pursuit Dealer for You should also read the book entitled necessary control and cable adjustments.

  • Page 64: Automatic Fire Extinguishing System (With Optional Generator)

    CO as exhaust. Direct and prolonged generator. The red light on the fire extin- exposure to CO will cause BRAIN DAMAGE guisher control panel will light and an alarm or DEATH. will sound if this should occur. When suffi- OS 315...
  • Page 65 Therefore, low levels of CO can cause the alarm to sound before per- While a CO detector enhances your protec- sons notice any symptoms. tion from CO poisoning, it does not guaran- OS 315...
  • Page 66 CO from drive fumes away from the occupants. The accumulating in the boat whenever an canvas drop or aft curtain must be removed engine is running. and side curtains should be opened or removed to increase airflow and maintain OS 315...

  • Page 67: First Aid

    Certain electronic equipment have a limited life span, follow the CO detectors manufac- turers recommendations on when the detec- In addition to items installed by Pursuit, cer- tor must be replaced. tain other equipment is required by the U.S. Coast Guard to help ensure passenger 9.7 First Aid...
  • Page 68 Follow the manufacturer’s Visual Distress Signals directions in the use of these signal- ing devices. All Pursuit boats used on coastal waters, the Great Lakes, territorial seas, and those waters connected directly to them, must be Non-Pyrotechnic Devices equipped with Coast Guard approved visual distress signals.
  • Page 69 Safety Equipment Section 9 your presence and course. Your Pursuit boat Bilge And Fuel Fires is equipped with the navigation lights required by the U.S. Coast Guard at the time Fuel compartment and bilge fires or explo- of manufacture. It is up to you to make sure...

  • Page 70: Additional Safety Equipment

    ❑ Binoculars vided with the beacon, so the beacon's ❑ Sunglasses unique distress code can be used to quickly ❑ Marine Hardware identify the boat and owner. ❑ Extra Clothing ❑ Spare Parts OS 315...

  • Page 71: Operation

    DO NOT allow passengers to sit on the seat • Observe and avoid all security zones. backs, gunwales, bows, transoms or on fish- Avoid commercial port areas, especially ing seats whenever the boat is underway. those that involve military, cruise-line or OS 315 10-1...

  • Page 72: Rules Of The Road

    When two motor boats are crossing, the boat on the right has the right of way and should maintain its course and speed. The other vessel should slow down and permit it to pass. Both boats should sound appropri- ate signals. 10-2 OS 315...

  • Page 73: Pre-Cruise Check

    Refer to Safety Equipment for additional information. OS 315 10-3...

  • Page 74: Operating Your Boat

    When operating a boat, you accept the ❑ Needle Nose Pliers responsibility for the boat, safety of passen- ❑ Wire Crimping Tool gers and others out enjoying the water. ❑ End Wrench Set ❑ Wire Connector Set 10-4 OS 315...
  • Page 75 For more instructions on safety, equipment and boat handling, enroll in one of the sev- eral free boating courses offered. For infor- mation on the courses offered in your area, call the “Boating Safety Hotline,” 800-368- 5647. OS 315 10-5...

  • Page 76: Fishing

    Remember, weight in the tower affects center of gravity and motion of the boat is greatly exaggerated for people in the tower. 10-6 OS 315...

  • Page 77: Docking, Anchoring And Mooring

    Have the stern cleats and to mid ship pilings or the dock lines ready and secure the boat as OS 315 10-7...

  • Page 78: Controls, Steering Or Propulsion System Failure

    Investigate and correct over. It is prudent to use two anchors if you the problem if possible. Make sure the are anchoring overnight or in rough weather. engines are off before investigating the prob- 10-8 OS 315...

  • Page 79: Collision

    The mooring cleats or bow/stern eyes on ate on one engine. Do not to apply too much Pursuit boats are not designed or intended power to the running engine. When running to be used for towing or lifting. These cleats...

  • Page 80: Transporting Your Boat

    If you trailer your boat, make sure your tow vehicle is capable of towing the weight of the trailer, boat and equipment and the weight of Your Pursuit boat is a large boat and should the passengers and equipment inside the only be trailered by professionals with the vehicle.

  • Page 81: Water Skiing

    10.15 Water Skiing withstand the extreme wind pressure encountered while trailering. Remove Your Pursuit can be equipped for water ski- and properly store enclosures before ing. If you have never pulled skiers, you trailering.

  • Page 82: Man Overboard

    • Turn off the engines when person is alongside and use a ring buoy or a boat cushion with a line attached, a paddle or boathook to assist person to the boat; 10-12 OS 315...

  • Page 83: Routine Maintenance

    Boats stored in saltwater will require anodes extended periods, protect it from marine to be replaced at least every 6 months to growth by applying an antifouling paint. one year. Anodes requiring replacement Because of variations in water temperature, OS 315 11-1...
  • Page 84 This condition will be more apparent with dark colors, which require more frequent maintenance. A heavier buff- 11-2 OS 315...
  • Page 85 The anodized aluminum used on your hardware. Clean and wax chrome prior to Pursuit was coated with a metal protector extended storage. In saltwater or other called Aluma Guard at the factory. Aluma harsh environments, clean and wax more Guard is a nonabrasive marine metal protec- often.
  • Page 86 DO NOT use the following on acrylic plastic: phase separation from the use of alcohol blended fuels. • Abrasive cleaners • Acetone Contact your Pursuit dealer or engine manu- • Solvents facturer for additional information regarding • Alcohol fuels and additives.

  • Page 87: Seats, Upholstery, Canvas And Enclosures

    • Stubborn dirt - wash with a soft cloth, dampened with Ivory Flakes® and water. Rinse with clean water. OS 315 11-5...

  • Page 88: Cabin Interior

    Maintenance schedules and procedures are outlined in the generator owner’s manual; Read the label carefully on mildew protec- follow them exactly. tors and remove the protector and allow the cabin to ventilate completely before using the cabin. 11-6 OS 315...

  • Page 89: Seasonal Maintenance

    DO NOT attempt adjusted so they are not putting pressure to lift boat with a substantial amount of water on lifting strakes and are providing in the bilge. enough support for the hull. Hull damage OS 315 12-1...

  • Page 90: Winterizing

    Section 12 Seasonal Maintenance 12.2 Winterizing resulting from improper cradle or trailer support is not covered by the Pursuit warranty. Fresh Water System Preparing The Boat For Storage: The entire fresh water system must be com- pletely drained. Disconnect all hoses, check •...
  • Page 91 Makes sure all drain holes in the legs are tank and macerator discharge pump must open and legs are completely free of water. be pumped dry and one gallon of potable Remove the canvas and thoroughly clean water antifreeze poured into the tank OS 315 12-3...

  • Page 92: Recommissioning

    • Clean and wash the boat. accumulation, etc. Fasten the canvas down • Install all upholstery, cushions and can- securely so wind cannot remove it or cause vas. chafing of the hull superstructure. DO NOT 12-4 OS 315...
  • Page 93 • Carefully monitor the gauges and check for leakage and abnormal noises. • Operate boat at slow speeds until engine temperature stabilizes and all systems are operating normally. OS 315 12-5...
  • Page 94 Operator Notes 12-6 OS 315...

  • Page 95: Glossary Of Terms

    Boarding Ladder : Set of steps temporarily fitted over the side of a boat to assist per- Cockpit : An open space, usually in the aft sons coming aboard. deck, outside of the cabin. OS 315...
  • Page 96 : A soft object of rubber or plastic or lid to allow for access down into a com- used to protect the topsides from scarring partment of a boat. and rubbing against a dock or another ves- Head sel. : A toilet on a boat. OS 315...
  • Page 97 Lists Pile or Piling : A boat that inclines to port or star- : A long column driven into board while afloat. the bottom to which a boat can be tied. OS 315...

  • Page 98: Appendix A Glossary Of Terms

    : The vertical portion of the hull at the bow. Rope Locker : A locker, usually located in Stern the bow of a boat, used for stowing the : The rear end of a boat. anchor line or chain. Stow : To pack away neatly. OS 315...
  • Page 99 Trough : The area of water between the crests of waves and parallel to them. Twin-Screw Craft : A boat with two propel- lers on two separate shafts. nderway : When a boat moves through the water. OS 315...
  • Page 100 Operator Notes OS 315...

  • Page 101: Maintenance Schedule

    Inspect & protect electrical compo- nents, wire & battery connections Check battery electrolyte & service Test and inspect AC electrical system & shore power cord Inspect water systems for leaks Check neutral safety switch Check trim tab fluid level OS 315...

  • Page 102: Maintenance Log

    Appendix B Maintenance Log Maintenance Log Date Hours Dealer Service/Repairs OS 315...
  • Page 103 Maintenance Log Appendix B Date Hours Dealer Service/Repairs OS 315...
  • Page 104 Appendix B Maintenance Log Date Hours Dealer Service/Repairs OS 315...

  • Page 105: Boating Accident Report

    Boating Accident Report Appendix C Boating Accident Report OS 315...
  • Page 106 Appendix C Boating Accident Report OS 315...

  • Page 107: Float Plan

    Float Plan Appendix D Float Plan OS 315...
  • Page 108 Operator Notes OS 315...

  • Page 109: Troubleshooting Guide

    Boat is overloaded. Reduce load. RPM. • Check for excessive water in the bilge. Pump out bilge & find & correct the prob- lem. • The throttle adjustments has changed and the engine is not getting full throttle. Adjust the throttle cable. OS 315...
  • Page 110 The onboard computer has sensed a problem and has limited the The engine suddenly will not operate RPM to protect the engine. Find & cor- over 2000 RPM. rect the problem. • The tachometer is bad and needs to be replaced. OS 315...
  • Page 111 Replace the fuse. The automatic float switch on the bilge • The pump impeller is jammed by debris. pump raises but does not activate the Clean pump impeller housing. pump. • The pump is defective. Replace pump. OS 315...
  • Page 112 Operator Notes OS 315...
