Assembly

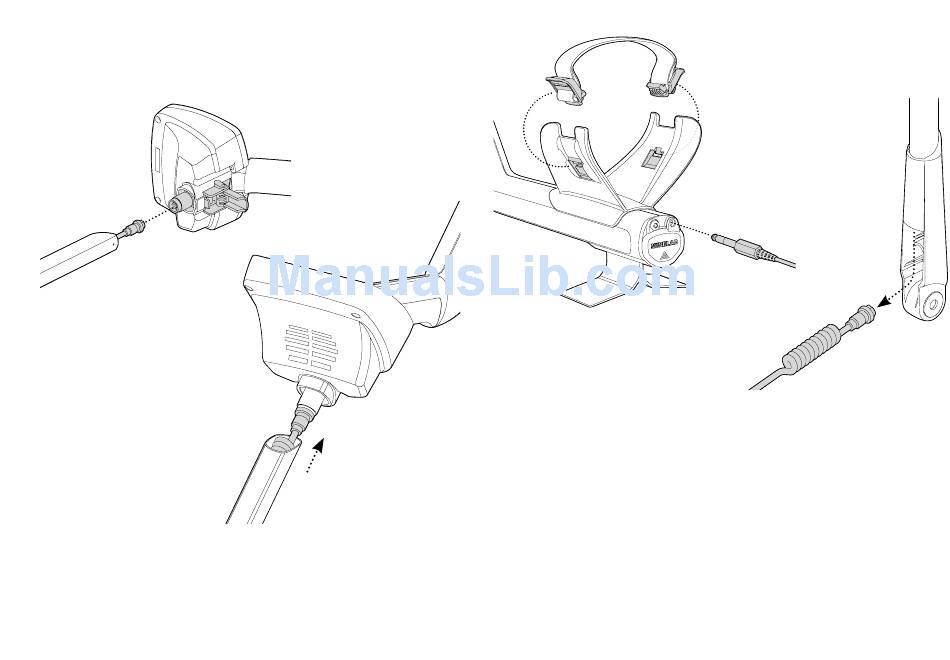

Connecting the Shaft Assembly to the
Handle Assembly:
1 Fully unlock the control box camlock.
2 Align and push the coil cable connector
into the socket underneath the control
box, firmly tightening the retaining ring
to secure.
3 Push the handle assembly onto the
upper shaft, as far as it will go.
4 Fully lock the control box camlock by
pushing the lever flat onto the control
box.
(Adjusting the Detector for Comfortable
Detecting, pg. 12)
Attaching the Armrest Strap:
Clip both buckles onto the outer sides
of the armrest.
Attaching the Headphones:
Plug the headphone jack into the
headphone socket, located in the
rubber seal at the top of the handle
assembly.
The headphones may be plugged or
unplugged at any stage during detecting.
Removing the Coil:
1 Follow the steps of Attaching the lower
shaft ... and Attaching the coil ... (pg. 6) in
reverse order to disconnect the coil from
the detector.
2 Pull the coil cable out from inside the
lower shaft.
Do not attempt to remove the shaft
assembly without first disconnecting the
coil cable from the control box.
A range of accessory coils are available,
(Accessories, pg. 74)
