Summary of Contents for Macrom M-DVD7702

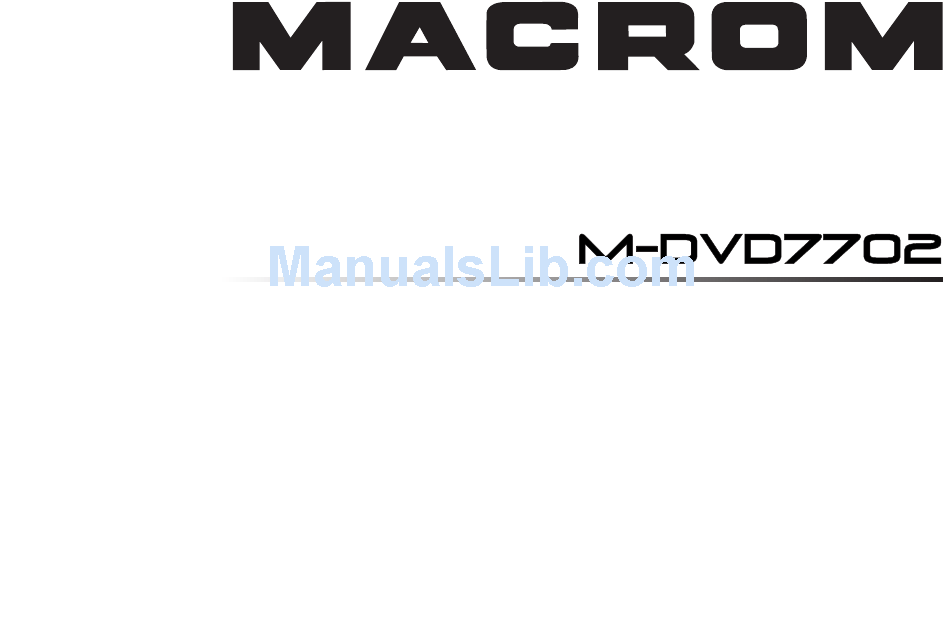

  • Page 1 NAVIGATION MULTIMEDIA RECEIVER INSTRUCTION MANUALS...

  • Page 2: Table Of Contents

    Thank you for buying this product, please read through these operating instructions, so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference. CONTENTS ACCESSORIES ...............................

  • Page 3: Contents Accessories

    ACCESSORIES Mounting Bracket (Half Sleeve) Removable Trim Ring equipped on the unit Mounting Screw M5 Rubber Remote Control Mount Strap Wire connector User manual AV in cable Screws(M5X6) Screws(M24) Release key Washer Desiccant GPS antenna GB-2...

  • Page 4: Precautions

    PRECAUTIONS Be sure to connect the color coded leads according to the diagram. Incorrect connections may cause the unit to malfunction or damage the vehicles electrical system. Be sure to connect the speaker (-) leads to the speaker (-) terminal. Never connect the left and right channel speaker cables each other or to the vehicle body.
  • Page 5 To enjoy optimum sound and images while playing, PRECAUTIONS handle the discs as follows: - Handle the disc by its edge to keep the disc clean, This unit can play the following discs only: and do not touch the surface. - do not use your disc with paste residue or ink attached.

  • Page 6: Front Panel

    PRECAUTIONS FRONT PANEL PRECAUTIONS ON FRONT PANEL 1. PANEL PLATE INSTALLATION 2. PANEL PLATE DETACHED GB-5...
  • Page 7 FRONT PANEL OPERATION Press to eject a disc. Press and hold this button to force ejecting a disc 1. AUX IN when the system becomes frozen accidentally. Connect the audio cable to the unit then you can During opening the front panel, you can press the enjoy the music.

  • Page 8: Modes Switch

    RADIO OPERATION ☆ ☆☆TIPS FOR MODES SWITCH ☆☆☆ Using the Touch screen In any mode, the controls on the touch screen change dynamically to suit the task at hand. 1/9. < / > Touch once: to seek a station automatically Flick or drag left or right to scroll modes available page downwards/upwards.
  • Page 9 RDS OPERATION MULTI-- PLAYER OPERATION In DVD mode, the touch screen displays as following after touch at random position top right/left area. 1. REG To turn on or off the REG function. 2.PTY PLAY/PAUSE To switch the RDS program types by ◀ / ▶ . To start the playback and touch again to resume the 3.TA playback.

  • Page 10: System Setup

    SYSTEM SETUP In FIG.1, the user can adjust the value of BASS, Touch on the top left position to enter source interface. TREBLE and SUB WOOFER by tapping on + / - on the The unit will return to previous mode display screen if touch screen.
  • Page 11 TIME SETTING LOUD ON: To turn on the LOUNNESS function. Tapping on TIME button to turn to time OFF: To turn off the LOUDNESS function. adjust page. RADIO REGION To select the right region as per the user locates. TOUCHSCREEN Tapping on TOUCHSCREEN button to turn to time TIME MODE TOUCHSCREEN adjust mode.

  • Page 12: Remote Control

    REMOTE CONTROL REMOTE CONTROL Installing the battery Slide the tray out on the back of the remote control and insert the battery with the plus (+) and minus (-) poles pointing in the proper direction. Use and care of the remote control Point the remote control in the direction of the front panel to operate to use it.
  • Page 13 REMOTE CONTROL OPERATION Press the button to increase or decrease volume level. Press repeatedly SEL to switch the sound characteristics. A-B/PROG Press this button to turn on the unit, press and hold In DVD/VCD/CD mode, press the button to set the it again to turn off the unit.

  • Page 14: Basic Operation

    15. SETUP In DVD/VCD/CD mode, press to set the playback In playback mode, press to display system setting time. In MP3 mode, press this button to select the picture, the user can select some relative constant desired track by number buttons on the remote parameters.

  • Page 15: Radio Operation

    performs the same operation. automatically, when revering the car. So you can Volume Control reverse the car easily and the sound will be shut off Press VOL+ button on the remote control to if the unit is playing. increase the sound level and press VOL- button on the remote control to decrease the sound level.
  • Page 16 touch on < / > button on the touch screen. buttons (1-6) to store on. Manual Tuning *If a new station will be stored in a preset There are three ways to tune in a station memory which already has a station, the manually as below: current station will be cleared and replaced by press and hold <<...
  • Page 17 RDS (RADIO DATA SYSTEM) OPERATION Press it again to switch off TA mode. The RDS allows you to receive a variety of information * Traffic information is heard only when it is being such as traffic information, station names, and to retune broadcast.

  • Page 18: Bluetooth Operation

    standard wireless communication technology. You can NEWS VARIED FINANCE COUNTRY CURRENT POP MUSIC CHILDREN NATIONAL place a hands-free call by using a Bluetooth compatible AFFAIR with the mobile phone. INFORMATION ROCK MUSIC SOCIAL OLDIES *When you place a call, speak loudly and clearly. AFFAIR SPORTS M.O.R.
  • Page 19 NOTE: PHONE BOOK *Press button on the remote control also Tap on PHONE BOOK button on the screen shown performs dial(receiving) a call or hang up a call function above, the screen will display as following FIG.2. *The incoming call will interrupt the sound output There are three items: DIALED CALLS, RECEIVED through other source, and switch to the hands-free CALLS and MISSED CALLS.

  • Page 20: Dvd/Vcd/Cd Operation

    Audio information of a bluetooth, compatible with mobile phone, portable player, etc., is transferred by wireless technology. Refer to CONNECT details to connect bluetooth audio devices. NOTE:*Video playback is not supported. AUTO-ANSWER *Using remote control also performs the same. ON: Tap on this button then the coming call will be answer automatically.
  • Page 21 the button, the options switch as follows order: slow reward, as follows: Press the >>I or I<< button on the unit for long time will 1/2→1/4→1/8→1/16→1/2→1/4→1/8→1/16→Normal perform the same function. Play Stop the playback In VCD mode, press repeatedly to slow forward in Press ■...

  • Page 22: Dvd Setup

    remote control. root menus, and then press ▲▼ [ENTER] buttons to enter the sub-menus. With pressing Changing the subtitle language (Multi-subtitle) buttons, and the number buttons, and then ENTER With DVDs featuring multi-subtitle recordings, you can button to select and enter what you desired. press SUB-T to switch between subtitle languages during playback.
  • Page 23 DVD mode, the setup menu will be displayed. It includes displays in the 4:3 aspect ratio. The display format of General Setting, Audio Setup, Video Setup, Preference DVD titles may vary; please refer to the information that Setup, Password Setup and Exit Setup menu. accompanies your specific DVD title.
  • Page 24 effective on next time power on till exchanging the saved setting. AUDIO AUDIO: Sets the preferred audio language as the default when playing DVD. (IF DVD supports these languages) SUBTITLE SUBTITLE: Sets the preferred subtitle language as the default when playing DVD. (If DVD supports these languages) Users can switch the binaural mode among STEREO, L-MONO, R-MONO and MIX-MONO.
  • Page 25 DVD supports these languages) DEFAULT PARENTAL DEFAULT: Resets to all the manufacturer's PARENTAL: The parental control function original settings for this DVD player Press works conjunction with different ENTER to perform the reset. censorship classes assigned to DVDs. These classes help to control the types of DVDs that the family watches, There are up to 8 censorship classes for DVDs.
  • Page 26 password is 136900 SETTING THE TV SCREEN SIZE PASSWORD CHANGE PASSWORD CHANGE: you can change the Multi-aspect ratio suits to different TV screen size. password, please type 6 numerals as new Function supported by DVD discs. password. 5. EXIT SETUP MENU There are many functions available on DVD discs and the functions vary per player and per manufacturer.

  • Page 27: Mp3 Operation

    MP3 OPERATION Note: * This function can be operated using the remote control Playing a disc, an SD/MMC card or a USB device or touch top right corner of screen to be functioned. containing MP3 files Connect a USB device or press * If you make a mistake, press CLEAR button to clear.

  • Page 28: Navigation Operation

    NAVIGATION OPERATION The GPS system can navigate with voice, when you do not drive on your preset line, the system will reset the line automatically to get the destination. Press OPEN button on the unit to open the TFT screen, the SD card slot is on this position (shown as illustration).

  • Page 29: Installation

    INSTALLATION Install the Unit Notes Install the unit Before finally installing the unit, connect the wiring After inserting the holder into the dash-board, select the temporarily, making sure it is all connected up properly, appropriate tabs according to the thickness of the and the unit and the system work properly.

  • Page 30: Cable Connection

    CABLE CONNECTION Note: 1. The reverse video line should be available while connected to +12 V. 2. The tel mute line should be available while connected to B-. 3. The parking break line should be available while connected to the car break. A wrong connection can be easily detected by our technical service for a repair request under the warranty.

  • Page 31: Specification

    SPECIFICATION GENERAL Power requirement -----------------------------------------------------------------------------------------12VDC (10.8~16V) Grounding system -------------------------------------------------------------------------------------------------negative type Max: current consumption ------------------------------------------------------------------------------------------------- 15 A Max: power output -------------------------------------------------------------------------------------------------------- 40Wx4 load impedance -------------------------------------------------------------------------------------------------------- 4Ω（4-8Ω） Dimensions------------------------------------------------------------------------------------------------------178X100X166MM Weight-----------------------------------------------------------------------------------------------------------------------2.65KG DVD PLAYER S/N ratio -------------------------------------------------------------------------------------------------more than 70dB (1 kHz) Dynamic range -----------------------------------------------------------------------------------------more than 80dB (1 kHz) Distortion -----------------------------------------------------------------------------------------------------------less than 0.2% Video output------------------------------------------------------------------------------------------------- 1.0Vp--p+0.2V/75Ω...

  • Page 32: Troubleshooting

    TROUBLESHOOTING Common problems Symptom Cause Remedy Power isn’t switched ON. Leads connectors incorrectly Ensure that all connections are The unit doesn’t operate connected. correct A fuse of power cable has blown. Replace the old fuse with a new one with the same capacity; try to determine the cause of the problem.
  • Page 33 operated. There is no sound. Volume level is low. Raise the volume level The player skips audio or This unit is not firmly installed. Check that the unit is installed firmly video. The disc is dirty or damaged. Clean the disc or change it. The picture is deformed.
  • Page 34 picture extremely The disc features a signal to prohibit Since this unit is compatible with the unclear/distorted dark copying (some discs may have this). copy guard analogy copy protect during playback. system, when playing a disc that has a signal prohibiting copying, the picture may suffer from horizontal stripes or other imperfections when viewed on some displays.
  • Page 35 Hierbij verklaart Macrom dat het toestel M-DVD7702 in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG Bij deze verklaart Macrom dat deze M-DVD7702 voldoet aan de essentiële eisen en aan de overige relevante bepalingen van Richtlijn 1999/5/EC.
  • Page 36 The BLUETOOTH ® world mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by ALDINET S.p.A. is under license. The MACROM brand is a registered trade mark of MACROM SA and any use of such marks by ALDINET S.p.A. is under license.
