- Page 1 USER MANUAL M-DVD6000...
-
Page 2: Table Of Contents
Contents Safety Precautions ........1-2 Playback Information ......15 Direct Track Entry ........15 Expanding system ........2 Rotate Pictures ........15 Zoom ............15 Produc overview ........... 3 Video Setup ..........15 Front Panel ..........3 Bluetooth Mode .......... 16 Remote control overview ...... -
Page 3: Safety Precautions
Safety Precautions Thank you for purchasing this product. Please Please don't change the fuse on the power read through these operating instructions cord without professional guidance, using so you will know how to operate your model improper fuse may cause damage to this unit properly. -
Page 4: Expanding System
Safety Precautions 1. Never disassemble or adjust the unit without any professional guidance. For details, please consult any professional car shop / dealer for inquiry. 2. If the front panel or TFT monitor is dirty, please use a clean silicone cloth and neutral detergent to wipe off the spot. -
Page 5: Produc Overview

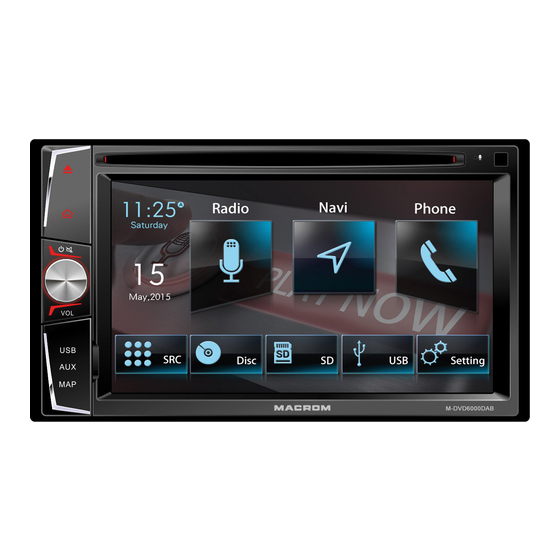

Product overview Front Panel M-DVD6000 Notice: The graphic in this manual is for reference only, and may be different from the actual unit. 1. [ ] Button Press to eject a disc. 2. [MENU] Button Press to switch between the available audio/video sources applied to the unit. -
Page 6: Remote Control Overview
Remote control overview Front view 1. Return to the home menu 2. Eject the disc 3. Access to tuner source 4. Access to disc source 5. Search an available radio station by decreasing tuning frequency Select the previous chapter/track for playback 6. -
Page 7: Remote Battery
Remote battery Notes of remote control using 1) Aim the remote control at the remote sensor on the unit. 2) Remove the battery from the remote control or insert a battery insulator if the battery has not been used for a month or longer. 3) DO NOT store the remote control under direct sunlight or in high temperature environment, or it may not function properly. -
Page 8: Basic Operations
Basic Operations Detect parking brake • Connect the cable "BRAKE" to the parking brake switch to view video files on the TFT monitor. Engage the parking brake for viewing videos. • When the parking brake is not engaged, the monitor displays "Warning!!!, Video playback is disabled for your safety. -
Page 9: Eq Menu
Basic Operations EQ Menu The Audio Control feature allows you to easily adjust your audio system to meet the acoustical characteristics of your vehicle, which vary depending on the type of vehicle and its measurements. Proper setting of the Fader and Balance boosts the effects of the cabin equalizer. Select Preset Equalizer 1. -
Page 10: Set Date
Setting Date /Time 1. Touch [ 2. Touch [ Time ]. The date/time setup menu is displayed. Set Date 1. Touch [ Time ]. 2. Touch the date information on the screen . A submenu is displayed. 3. Touch [ ] or [ ] to set year, month and day. -
Page 11: Radio Mode
Radio Mode Tuner TFT Display 1. Touch to view the MENU and select a new playback source 2. Strong Local signal broadcasting indicator 3. Stereo broadcasting indicator 4. Current radio band indicator 5. Broadcaster information stored at the preset 6. Touch to view more on-screen buttons 7. -
Page 12: Preset Station
Radio Mode Preset Station The unit has 5 bands, such as FM1, FM2, FM3, AM1, AM2, and each band can store 6 stations; the unit can store 30 stations in total. Search Stations Automatically Touch [ ] to search station and store 6 strongest stations in current band automatically. -
Page 13: Rds ( Radio Data System )
Radio Mode RDS ( Radio Data System ) The unit provides basic functions of RDS. RDS service availability varies with areas. Please verify if RDS service is available in your area. AF Function Alternative Frequencies Lists are used in conjunction with the PI code (Program Identification code)to assist automatic tuning. -
Page 14: Playback Mode
Playback Mode Load a Disc You can play video, audio or images stored on the following discs: • DVD Video, DVD-R, DVD-RW • VCD • Audio CD, CD-R, CD-RW Note:Ensure that the disc contains playable content. Eject a Disc Press the [ ] key on the front panel to eject the disc. -
Page 15: Search For A Folder
Playback Mode Search for a Folder For Audio Files 1. Touch [ ] to display all available audio folders. 2. Touch a folder,then touch the desired file. 3. Touch the file again to start play. For Video Files 1. Touch [ ] to display all available video folders. -
Page 16: Repeat A-B
Playback Mode For CD/MP3 files: 1. Touch anywhere except the upper left corner to display menu on the screen. 2. Touch [ ] repeatedly: ] Repeat single: Play the current single repeatedly. ] Repeat all: Play all in the all repeatedly. ] Repeat off: Cancel repeat play. -
Page 17: Playback Information
Playback Mode Playback Information Touch the screen when playing back DVD and VCD discs and the playback information will be displayed on the top area of the TFT. For DVD 1. Disc type. DVD T:01/08 C:005/012 2. DVD Title information. “01/08” indicates that this DVD has 8 titles and the title playing back now is the first title. -
Page 18: Bluetooth Mode
2. Touch [ ] to search for Bluetooth device with the unit. 3. Start scanning on the Bluetooth device and select the unit “M-DVD6000” 4. Enter default password “0000”. Tip: • The operational range between this unit and a Bluetooth device is approximately 5 meters . -
Page 19: Receive A Call
Bluetooth Mode Receive a Call By default, all incoming calls are received automaticaly. 1. If there is an incoming call, the screen will appear “Incoming”. 2. You may touch the screen to select [ hang up ] or [ Answer ]. •... -
Page 20: Settings
Settings General Settings 1. Touch [ General ] in the settings page. 2. Touch to highlight a setting. 3. Touch on the option to display/select an option. 4. Touch [ ] or press the Menu button on the front panel to exit. General settings Options Description... -
Page 21: Sound Settings
Settings Sound settings 1. Touch [Sound]. 2. Touch an option repeatedly to select: 3. Touch [ ] or press the Menu button on the front panel to exit. Sound settings Options Description Turn on the subwoofer. Subwoofer Turn off the subwoofer 80Hz Subwoofer filter Select subwoofer filter criteria. -
Page 22: Dvd Settings
Settings DVD settings 1. Touch [DVD]. 2. Touch an option repeatedly to select. 3. Touch [ ] or press the Menu button on the front panel to exit. DVD settings Options Description Set password Set password to restrict the play of discs. The default password is 0000. Kid safe Acceptable for children. -
Page 23: Other Modes
Other Modes Other Devices You can connect an external audio/video device to the unit. 1. Connect the external device with the supplied AV cable. 2. Touch the upper left corner to display the main menu. 3. Touch [AV1] front input or [AV2] rear input. Reset When the unit hangs up, you can reset it. -
Page 24: Specifications
Specifications General Reference Supply Voltage ....................... 12V Operating Voltage Range .................... 10.5 - 15.8V Max Operating Current ......................... 15A Grounding System ................... Car Battery Negative Pole Dimensions(WXHXD) .................... 178X100X167.9mm Weight(main unit)........................2.1kg Signal Noise Ratio ........................≥55dB Residual Noise Sensitivity (S/N=30dB) ..................18dBμV Frequency Response (±3dB) .................. -
Page 25: Region Code
Specifications Supported Formats: • USB or memory file format: FAT16,FAT32 • Mp3 bit rate(date rate): 32-320 Kbps and variable bit rate • Directory nesting up to a maximum of 8 levels • Number of albums/folders: maximum 99 • Number of tracks/titles: maximum 999 •... -
Page 26: Troubleshooting
Troubleshooting What appears to be trouble is not always serious. Please check the following points before calling a service center. Problem Cause Corrective action General Unit fuse blown. Install new fuse with correct rating. Unit can not power on Car battery fuse blown. Install new fuse with correct rating. -
Page 27: Wire Connections
Wire Connections RADIO FM/AM Antenna GPS Antenna FM/AM Antenna SWC & LINE OUTPUT MICROPHONE CONNECTOR B GPS Antenna & AV IN CAMERA IN CONNECTOR A USB-0.5A SWC & LINE OUTPUT MICROPHONE CONNECTOR B SUB 1 Front L Rear L Aux R CAMERA IN &... -
Page 28: Declartion Of Conformity
The manufacturer Aldinet S.p.A declares that the type of radio equipment - Multimedia Navigation Receiver, model M-DVD6000, brand Macrom - complies with the 2014/53 / EU Directive. The full text of the EU Declaration of conformity is available at the following internet address: www.macrom.it or at...
