- Page 1 USER MANUAL M-DL7000D...
-
Page 3: Table Of Contents
Contents Safety Precautions ........1-2 iPod ............. 11 Play with iPod ......... 11 Warning ............2 Android Auto ..........11 Product overview .......... 3 Installation procedure ....11-12-13 Front Panel ..........3 Play with Android ........14 Map ............14 Basic Opertion ..........4 Call out/ receive Call ...... -
Page 4: Safety Precautions
Safety Precautions Thank you for purchasing this product. Please Please don't change the fuse on the power read through these operating instructions cord without professional guidance, using so you will know how to operate your model improper fuse may cause damage to this unit properly. -
Page 5: Warning
Safety Precautions 1. Never disassemble or adjust the unit without any professional guidance. For details, please consult any professional car shop / dealer for inquiry. 2. If the front panel or TFT monitor is dirty, please use a clean silicone cloth and neutral detergent to wipe off the spot. -
Page 6: Product Overview
Product overview Front Panel M-DL7000D Notice: The graphic in this manual is for reference only, and may be different from the actual unit. 1. [ ] button Activate Siri/Google voice control 2. [ ] button Short press: Switch on device... -
Page 7: Basic Opertion
Basic Operations Power On / Off Press the [ ] button on the unit to turn the unit on. The buttons on the front of the unit light up and the current mode status appears in the LCD. Press and hold the [ ] knob to power off the unit. -
Page 8: Audio Control
Audio control Equalizer Menu The Audio Control feature allows you to easily adjust your audio system to meet the acoustical characteristics of your vehicle, which vary depending on the type of vehicle and its measurements. Proper setting of the Fader and Balance boosts the effects of the cabin equalizer. Select Preset Equalizer 1. -
Page 9: Fm/Am Radio Mode
FM/AM Radio mode Radio overview 1. Touch to view the MENU and select a new playback source 2. Tune backward (short press) Seek backward (long press) 3. Current radio frequency 4. Tune forward (short press) Seek forward (long press) 5. Broadcaster information stored at the preset 6. -
Page 10: Selection
FM/AM Radio mode Preset Station The unit has 5 bands, such as FM1, FM2, FM3, AM1, AM2, and each band can store 6 stations; the unit can store 30 stations in total. Search Stations Automatically Touch [ ] to search station and store 6 strongest stations in current band automatically. -
Page 11: Radio Data System
FM/AM Radio mode RDS ( Radio Data System ) The unit provides basic functions of RDS. RDS service availability varies with areas. Please verify if RDS service is available in your area. AF Function Alternative Frequencies Lists are used in conjunction with the PI code (Program Identification code)to assist automatic tuning. -
Page 12: Dab Radio Mode
DAB Radio mode DAB overview Playback menu 1. Enter the main menu 2. Information area 3. Display system time 4. Previous station 5. Next station 6. Show service list 7. Auto Scan, Search all service available and store stations automatically. 8. -
Page 13: Carplay

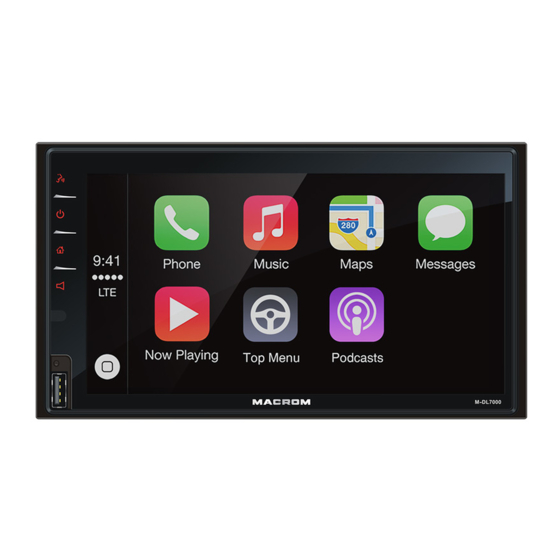

Car Play Using Apple lightning cable to connect iPhone with the product, and it will automatically show the CarPlay interface. User could directly operate the common functions of iPhone on the product. iPhone support: minimum iPhone5; Required iOS: minimum iOS 7.1. Play with CarPlay 1. -
Page 14: Ipod
iPod iPod Using Apple cable to connect the iPod with the product, then user could listen to the iPod music on the product. Play with iPod 1. Select the iPod source to play music. Android Auto Connect Android phone by standard micro USB cable, drivers can enjoy the music from their phone, show the way with Google map or other map App and make or receive a call. -
Page 15: Installation Procedure
Android Auto Installation procedure To continue with the installation, you must agree to the terms provided by Google. Next step, are to allow Android Auto to easily work with navigation, music, calls messages and other voice commands. If you want these functions to Allow or Deny the functions. - 12 -... - Page 16 Android Auto Next step, are to allow Android Auto to show your notifications on top of your other apps. Next step, Get started to Android Auto. - 13 -...
-
Page 17: Play With Android
Android Auto Connect Android phone by standard micro USB cable, drivers can enjoy the music from their phone, show the way with Google map or other map App and make or receive a call. User need to enable Bluetooth on phones and the product at the same time. Required Android OS: 5.0. -
Page 18: Playback Mode
Playback Mode Touch Screen Controls The touch key areas for playback are outlined below: A: Return to the main menu B: Display onscreen control menu C: Time display Controlling Playback To access the on-screen controls, touch the screen except upper left corner, and touch again to cancel display. -
Page 19: Search Content
Playback Mode Search for a content For Folder Control 1. Touch [ ] to display all available folders 2. Touch a folder, then touch the desired file. 3. Touch the file again to start play For Audio Files 1. Touch [ ] to display all available audio folders. -
Page 20: Bluetooth Mode
2. Touch [ ] to search for the Bluetooth device with the unit. 3. Start scanning on the Bluetooth device and select the unit “M-DL7000D” 4. If required, enter the default password “0000”. The connection is established and the menu for the registered device is displayed. -
Page 21: Function
Bluetooth mode Bluetooth function ] Call up the phone book. ] Call up records lists. ] Display the dial keypad menu. ] Disconnect connection with current device. ] Display options menu. Make a Call • Enter a phone number with the dial keypad and press the [ ] button. -
Page 22: Setting
Settings General 1. Touch [ General ] in the settings page. 2. Touch to highlight a setting. 3. Touch to display/select an option. General settings Options Description System Language Select on-screen display language. Lighting You can select the key color. Radio Area Select your region of origin. -
Page 23: System
Settings System 1. Touch [ System ]. 2. Touch an option repeatedly to select: System settings Description MCU Update Update MCU MPEG Update Update MPEG MCU Version Display the current MCU version information. MPEG Version Display the current MPEG version information. Load factory Restore to default settings. -
Page 24: Specifications
Specifications General Reference Supply Voltage ......................12V Operating Voltage Range ...................... 9 - 16V Max Operating Current ........................15A Grounding System ..................Car Battery Negative Pole Dimensions(WXHXD)..................... 178X100X166.5mm Weight(main unit) ......................... 1.9kg Signal Noise Ratio ........................≥55dB Residual Noise Sensitivity (S/N=30dB ................) ≤10dBµV Frequency Response (±3dB) .................. -
Page 25: Troubleshooting
Troubleshooting If the unit is faulty, please consult the following points before calling the service center. Problem Phenomena Solutions Check the connection, if it is broken, try to reconnect it; Cannot power on/off Check the main fuse, if it is damaged, replace it; Press reset key. -
Page 26: Wire Connetions
Wire Connections DAB Antenna RADIO FM/AM Antenna SWC & LINE OUTPUT MICROPHONE CONNECTOR B CAMERA IN & AV IN CONNECTOR A USB-0.5A Not available SUB 1 Front L Rear L Aux R Video SUB 2 Front R Rear R Aux L Video Out Camera IN Video Out... -
Page 28: Declaration Of Conformity
The manufacturer Aldinet S.p.A declares that the type of radio equipment - Multimedia Navigation Receiver, model M-DL7000D, brand Macrom - complies with the 2014/53 / EU Directive. The full text of the EU Declaration of conformity is available at the following internet address: www.macrom.it, or at...
