Page 1: User Manual
USER MANUAL M-DL9000... -
Page 2: Table Of Contents
Contents Safety Precautions ........1-2 Android Auto ..........11 Installation procedure ....11-12-13 Warning ............2 Play with aAndroid Auto ......14 Open map ..........14 Produc overview ........... 3 Call Out / Receive Call......14 Front Panel ..........3 Back to Android Auto ......14 Basic Operations .......... -
Page 3: Safety Precautions
Safety Precautions Thank you for purchasing this product. Please Please don't change the fuse on the power read through these operating instructions cord without professional guidance, using so you will know how to operate your model improper fuse may cause damage to this unit properly. -
Page 4: Warning
Safety Precautions 1. Never disassemble or adjust the unit without any professional guidance. For details, please consult any professional car shop / dealer for inquiry. 2. If the front panel or TFT monitor is dirty, please use a clean silicone cloth and neutral detergent to wipe off the spot. -
Page 5: Produc Overview

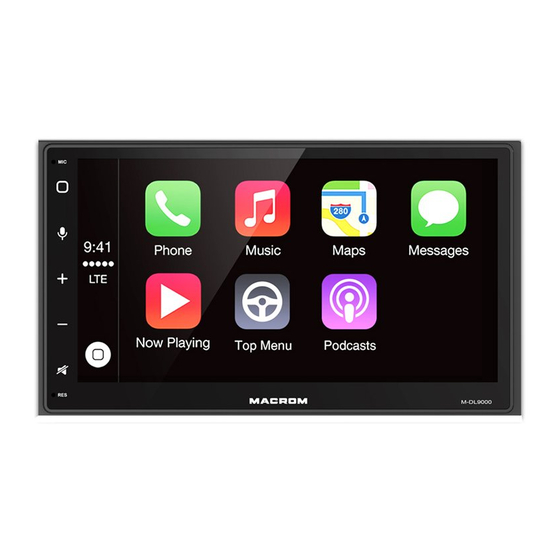

Product overview Front Panel Notice: The graphic in this manual is for reference only, and may be different from the actual unit. 1. Internal Microphone Iternal microphone for Bluetooth calls. 2. [MENU] button Press to turn the unit ON. Press and hold to turn the unit OFF. Press to access the main. -
Page 6: Basic Operations
Basic Operations Power On / Off Press the [ ] button on the unit to turn the unit on. The buttons on the front of the unit light up and the current mode status appears in the LCD. Press and hold the [ ] knob to power off the unit. -
Page 7: General Settings
General settings Date & Time 1. Touch to select the time zone in the region. 2. Touch to set date, touch OK for setting done. 3. Touch to set the time, touch OK for setting done. 4. On/Off/24H mode. 5. On/Off automatically adjust time according to the navigation position. -
Page 8: Steering Wheel Control
Steering wheel control SWC settings 1. Before starting press Calibrate. 2. Then press YES to reset the preset setting 3. Select the function key, then press the phisically key on steering wheel. 4. Repeat the sequence until the available functions are completed. 5. -
Page 9: Audio Settings
Audio settings Audio 1. On/Off beep, one touch one beep. 2. On/Off loudness effect. 3. Subwoover volume level. 4. Subwoofer frequency cutting (low pass) 80Hz - 120Hz - 160Hz Volume 5. Adjust the volume of multimedia (music, video and radio). 6. -
Page 10: Bluetooth Settings
Bluetooth settings Bluetooth 1. To turn On or Off “Bluetooth” function. 2. To turn On or Off “Auto connect” function. 3. To turn On or Off “Auto answer” function. If setting to On, the incoming call will be received automatically. 4. -
Page 11: Radio Playback Music
Radio playback music Play music 1. Select the Radio source to play music. 2. Touch(FM-AM)to alternate switch between FM and AM. 3. Touch ( ) or ( ) to automatic search the radio station. 4. Touch ( ) or ( ) to manually search the radio station. -
Page 12: Car Play
Car Play Using Apple lightning cable to connect iPhone with the product, and it will automatically show the CarPlay interface. User could directly operate the common functions of iPhone on the product. iPhone support: minimum iPhone5; Required iOS: minimum iOS 7.1. Play with CarPlay 1. -
Page 13: Ipod
iPod iPod Using Apple cable to connect the iPod with the product, then user could listen to the iPod music on the product. Play with iPod 1. Select the iPod source to play music. Android Auto Connect Android phone by standard micro USB cable, drivers can enjoy the music from their phone, show the way with Google map or other map App and make or receive a call. -
Page 14: Installation Procedure
Android Auto Installation procedure To continue with the installation, you must agree to the terms provided by Google. Next step, are to allow Android Auto to easily work with navigation, music, calls messages and other voice commands. If you want these functions to Allow or Deny the functions. - 12 -... - Page 15 Android Auto Next step, are to allow Android Auto to show your notifications on top of your other apps. Next step, Get started to Android Auto. - 13 -...
-
Page 16: Play With Aandroid Auto
Android Auto Connect Android phone by standard micro USB cable, drivers can enjoy the music from their phone, show the way with Google map or other map App and make or receive a call. User need to enable Bluetooth on phones and the product at the same time. Required Android OS: 5.0. -
Page 17: Usb Playback Music
USB playback music Supporting Format • Music: APE, FLAC, MP3, WMA, WAV,M4A, OGG. 1. Select the USB device to play music. Play music 2. Touch list ( ), to view the available media player. 3. Select ( ) to show the music list. Music 4. -
Page 18: Usb Playback Video
USB playback video Supporting Format • Video: 3GP, AVI, MKV, MOV, MP4, MPEG, RMVB. Play video 1. Touch list ( ), to view the available media player. 2. Select ( ) to show the music list. Video 3. Drag up and down the list, touch the selected song to play and adjust the play progress in the progress bar. -
Page 19: Bluetooth Mode
Bluetooth mode You can make or receive phone calls with Bluetooth-enabled phones through the unit. You can also listen to music from a Bluetooth-enabled device. Search Bluetooth device Please make sure that the device you desire to connect has been turned on and allowed to be detected. Using a mobile device to search the product, the name will be displayed on your mobile device, or touch ( ) to search the... -
Page 20: Bluetooth Audio Music
Bluetooth audio music Supported format The product supports A2DP, AVRCP, PBAP and HFP protocol. Make sure Bluetooth device volume is turned to max. 1. Select the Bluetooth device to play music by streaming. Play song 1. Select ( ) to show play song from Bluetooth. 2. -
Page 21: Specifications
Specifications General Reference Supply Voltage ......................12V(DC) Operating Voltage Range ....................9 - 16V(DC) Max Operating Current ........................5A Grounding System ..................Car Battery Negative Pole Dimensions(WXHXD)....................178X100X170mm Weight(main unit) ......................... 1.4kg Signal Noise Ratio ........................≥55dB Residual Noise Sensitivity (S/N=30dB ................) ≤10dBµV Frequency Response (±3dB) .................. -
Page 22: Troubleshooting
Troubleshooting When the machine fails 1. Recovery to factory settings or reset. 2. Try reigniting. 3. Please check the phenomena that are described in the table below and try to use the solutions. 4. Contact Service Center. Machine/function Phenomena Solutions Check the connection, if it is broken, try to reconnect it;... -
Page 23: Wire Connections
Wire Connections Rear view camera Aux Input Line output (Front-Rear-Subwoofer) Antenna FM/AM Aux Audio/video input Steering Wheel Control Rear view camera Aux Input FM/AM Antenna GPS Antenna Aux Audio/video input REVERSE SWC & LINE OUTPUT MICROPHONE CONNECTOR B CAMERA IN &... -
Page 24: Declaration Of Conformity
The manufacturer Aldinet S.p.A declares that the type of radio equipment-Multimedia Navigation Receiver, model M-DL9000, brand Macrom - complies with the 2014/53 / EU Directive. The full text of the EU Declaration of conformity is available at the following internet address: www.macrom.it...
