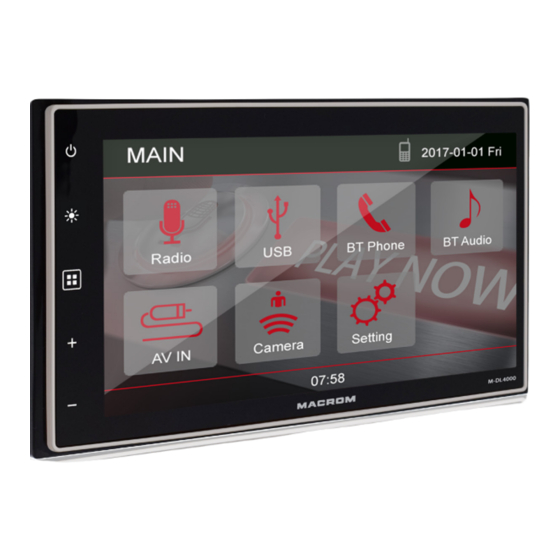

  • Page 1: User Manual

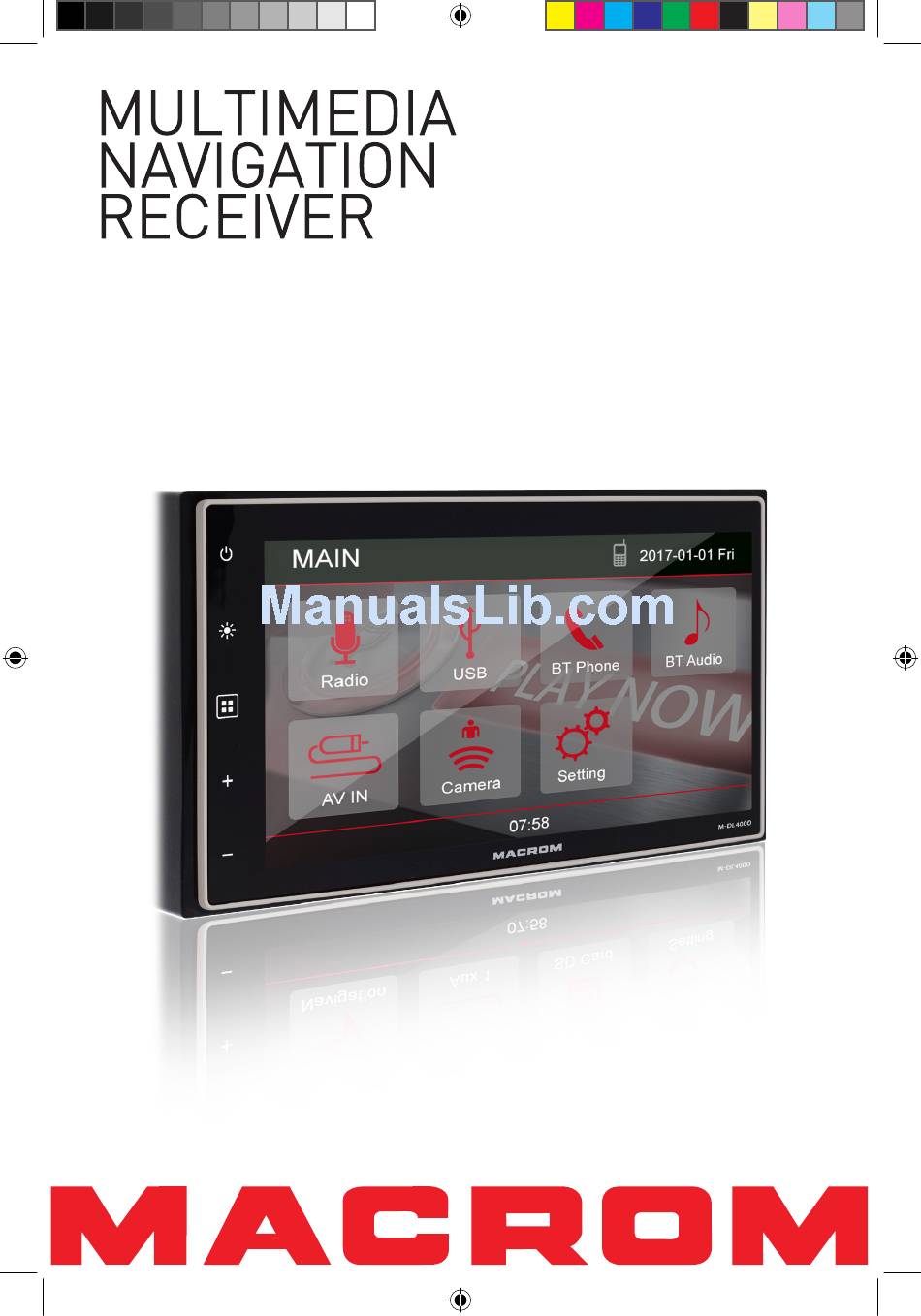

    USER MANUAL M-DL4000 M-DL4000 User manual_ENG.indd 1 08/06/2017 15:41:06...

  • Page 2: Table Of Contents

    Bluetooth Mode .......... 11 Pair the Bluetooth-enabled Devices..11 Disconnect Bluetooth Device ....11 Make a Call ..........11 Receive a Call ......... 12 Adjust Bluetooth Settings ...... 12 Bluetooth Music Function ...... 12 - 2 - M-DL4000 User manual_ENG.indd 2 08/06/2017 15:41:06...

  • Page 3: Safety Precautions

    & regulations and also to reduce the risk of traffic accident except for using rear view video camera. Never expose this unit, amplifier, and speakers to moisture or water to prevent electric sparks or fire. - 1 - M-DL4000 User manual_ENG.indd 1 08/06/2017 15:41:07...
  • Page 4 Monitor Monitor Power Amplifier SD Card memory M-DVD6000 Bluetooth Portable player cellular phone (connected via AV Input) Note: The items listed outside of the frame are the commercial products generally sold. - 2 - M-DL4000 User manual_ENG.indd 2 08/06/2017 15:41:07...

  • Page 5: Produc Overview

    13. Preset station (3) 14. Preset station (4) 15. - 16. Adjust volume level. 17. Next / Seek up 18. Scan play / Preset scan Auto memory store (long press) 19. Select tuner band. - 3 - M-DL4000 User manual_ENG.indd 3 08/06/2017 15:41:07...

  • Page 6: Basic Operations

    ] oppure [ ]to view the previous or next page of playing sources. 2. Playing source icon: touch to access corresponding work mode. 3. Time status. 4. Bluetooth status. 5. Date. - 4 - M-DL4000 User manual_ENG.indd 4 08/06/2017 15:41:08...

  • Page 7: Eq Menu

    2. The EQ mode will change to ‘User’ automatically when you adjust the frequency value under the modes besides ‘User’. 3. The value of Sub is independent of EQ mode and can be adjusted separately. - 5 - M-DL4000 User manual_ENG.indd 5 08/06/2017 15:41:08...

  • Page 8: Radio Mode

    1. Touch the numeric keypad icon [ Numeric keyboard is displayed, touch number to input frequency. 2. Touch [ ] to delete the input number step by step. 3. Touch [ OK ] to enter. - 6 - M-DL4000 User manual_ENG.indd 6 08/06/2017 15:41:08...

  • Page 9: Preset Station

    When an option is selected PTY (eg News), the radio unit, the PTY search available. If the PTY requested was not found, the unit returns to the original radio frequency. - 7 - M-DL4000 User manual_ENG.indd 7 08/06/2017 15:41:08...

  • Page 10: Playback Mode

    ] icon to display all the folders and files of the data carrier. - Or - Press the [ ] icon to display all the audio files of the data carrier. - 8 - M-DL4000 User manual_ENG.indd 8 08/06/2017 15:41:09...

  • Page 11: Video Playback From Usb

    1. Shortcut. 2. Display the folder/file list. 3. Short press: Previous movie. Long press: Fast backward. 4. Pause playback and continue playback. 5. Short press: Next movie. Long press: Fast forward. - 9 - M-DL4000 User manual_ENG.indd 9 08/06/2017 15:41:09...

  • Page 12: Video Playback From Usb

    ] to display additional operating options of the playback menu. 6. Zoom in/out. 7. Rotate images . 8. Adjust the brightness, contrast, and saturation. 9. Display keypad to directly enter the number of the desired title. - 10 - M-DL4000 User manual_ENG.indd 10 08/06/2017 15:41:10...

  • Page 13: Bluetooth Mode

    BT. If you have many contacts, this may take up to 3-4 minutes. 3. Search for phone number from the following list: [Phone Book] [Call History] [Missed calls] [Received calls] [Dialed calls] - 11 - M-DL4000 User manual_ENG.indd 11 08/06/2017 15:41:11...

  • Page 14: Image Playback From Usb

    If there is an incoming call, the music player stops, and the screen will show “Incoming Call”. At the end of the call, the screen will display the music playback menu. - 12 - M-DL4000 User manual_ENG.indd 12 08/06/2017 15:41:12...

  • Page 15: Settings

    Touch [ 24Hr ] or [ 12Hr ] to switch clock mode. Time Touch to set hour and minutes. Note: When date/time is set, touch [ Save ] to confirm or [ Cancel ] to exit. - 13 - M-DL4000 User manual_ENG.indd 13 08/06/2017 15:41:12...

  • Page 16: Language

    3. The volume range is from “00” to “06” When switching to the source, the volume increases automatically. 4. Touch blank area to close the sub-menu and touch the upper left corner icon [ ] to exit setting menu. - 14 - M-DL4000 User manual_ENG.indd 14 08/06/2017 15:41:12...

  • Page 17: Calibration

    It will then be required to push each button on the OE wheel (for 1 second), so that the unit can store the corresponding function. 4. SWC learning / programming is now complete. 5. Touch [ ] to exit. - 15 - M-DL4000 User manual_ENG.indd 15 08/06/2017 15:41:12...

  • Page 18: Other Modes

    1. Take out the unit from dashbpard. 2. Check all electrical connections. 3. Buy a fuse that matches the amperage of the damaged fuse. 4. Replace the fuse while the units power is disconnected. - 16 - M-DL4000 User manual_ENG.indd 16 08/06/2017 15:41:13...

  • Page 19: Specifications

    When the unit is operated to extremes, such as with maximum power output for a long time, or the temperature is over 70°C, it will enter heat protection mode, the volume will be reduced automatically. This is normal. - 17 - M-DL4000 User manual_ENG.indd 17 08/06/2017 15:41:13...
  • Page 20 • Maximum title number: 512(depending on file name length) • Maximum album number: 255 • Supported sampling frequencies: 32kHz,44.1kHz,48kHz • Supported Bit-rates: 32-320Kbps and variable bit rate Supported Video Formats: • MPEG • RMVB - 18 - M-DL4000 User manual_ENG.indd 18 08/06/2017 15:41:13...

  • Page 21: Troubleshooting

    PBC cannot be used during PBC is not available on the disc. Use disc with PBC available. VCD playback Repeat or search function is PBC is on. Turn PBC off. invalid during VCD playback - 19 - M-DL4000 User manual_ENG.indd 19 08/06/2017 15:41:13...

  • Page 22: Wire Connections

    SWC 1 SWC 2 SUB Output 2 LINE Output RR SUB Output 1 LINE Output FR P.ANT LINE Output FL ACC (Ignition) Illumination GND (Ground) BATT (+12Volt) P. Antenna (+12Volt out 100mA) - 20 - M-DL4000 User manual_ENG.indd 20 08/06/2017 15:41:13...
  • Page 23 M-DL4000 User manual_ENG.indd 21 08/06/2017 15:41:13...

  • Page 24: Declaration Of Conformity

    The manufacturer Aldinet S.p.A declares that the type of radio equipment-Multimedia Navigation Receiver, model M-DL4000, brand Macrom - complies with the 2014/53 / EU Directive. The full text of the EU Declaration of conformity is available at the following internet address: www.macrom.it...
