Page 1: User Manual

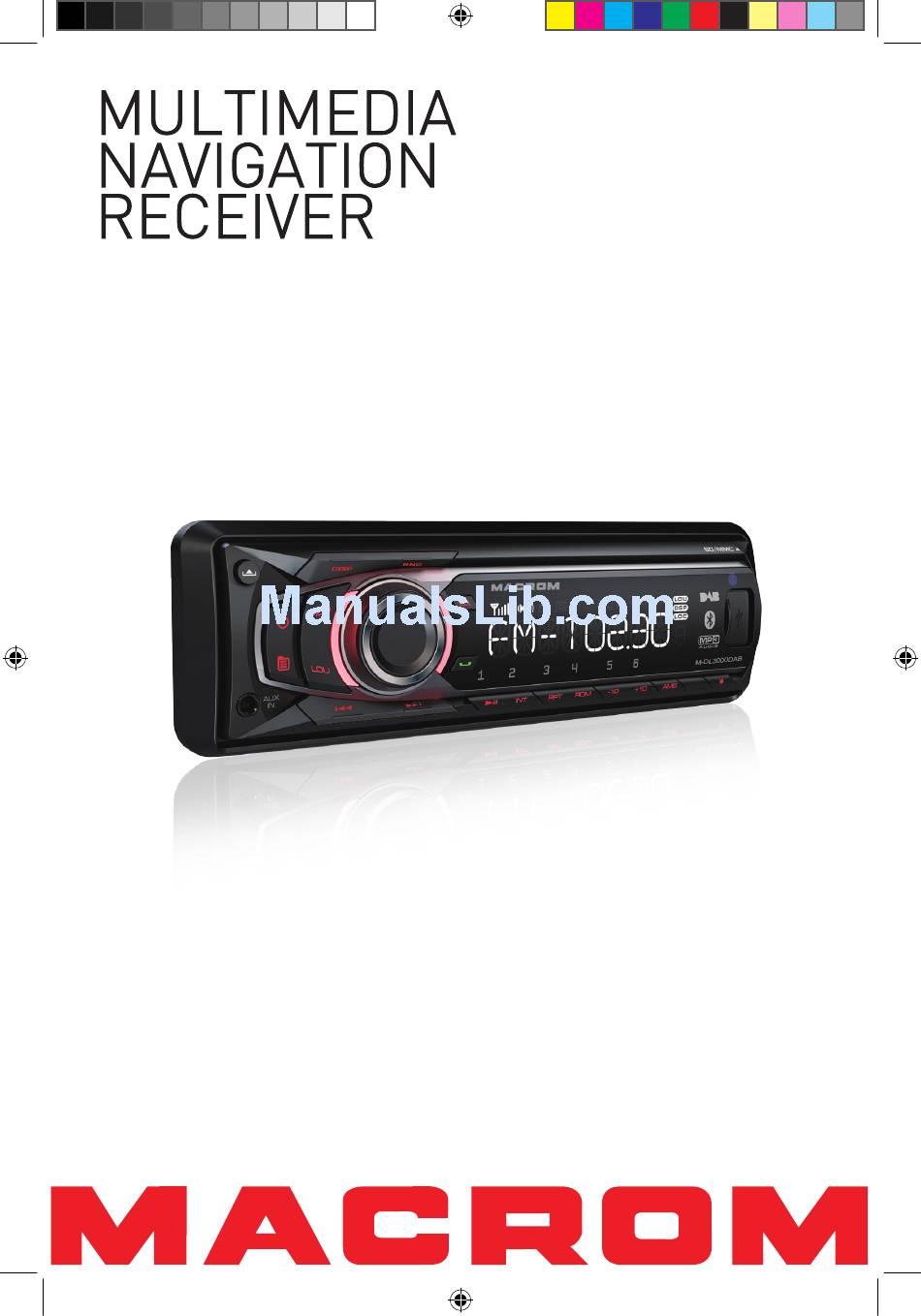

USER MANUAL M-DL3000DAB M-DL3000 User manual_ENG.indd 1 26/06/2017 10:38:22... -
Page 2: Safety Precautions
Safety Precautions Thank you for purchasing this product. Please Please don't change the fuse on the power read through these operating instructions cord without professional guidance, using so you will know how to operate your model improper fuse may cause damage to this unit properly. -
Page 3: Installation
Installation • Before final installation, connect the wiring temporalty and make sure it is all working properly. • Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions. • This item must be installed by an authorized dealer in order to keep the warranty vaild. •... - Page 4 Installation Detachable control panel (D.C.P.) Removing the detachable control panel 1. Turn the power off 2. Press the D.C.P release button 3. Remove the D.C.P Panel release button Attaching the detachable control panel 1. Insert the panel from the right side. 2.
-
Page 5: Product Overview
Product overview Front Panel M-DL3000DAB Notice: The graphic in this manual is for reference only, and may be different from the actual unit. 1. Release Button 2. Power Button 3. Mode Switch (AM/FM – DAB –Bluetooth – USB – SD – Aux IN) Hang up Button 4. -
Page 6: General Operations
General Operations Power On/Off button Press POWER button or any other button on the front of the radio to turn the unit on. Press POWER button again to turn the unit off. MENU button in radio mode, press MENU Button to navigate through the menu items as follow: RDS ON/OFF >... -
Page 7: Display Button
General Operations Front aux input Connect the external device to the front 3.5mm jack on front panel, then press Mode button to select AUDIO IN mode. Press Mode button again to cancel M-DL3 this Mode and return to previous mode. Display button Press DISP button once to display current playing status (e.g. - Page 8 & serious damage to the unit andmay cause access to the buttons on the front panel impossible. User must use an extension cable (not supplied in the M-DL3000DAB product packaging) to connect with USB socket to prevent any damage cause.
- Page 9 MMC/SD card & USB Operations Caution Carefully unplug the USB socket from the unit, excessive force may cause permanent and severe damage to the drive and USB device. Compatibility This unit may not be compatible with all USB devices. In particular, USB devices requiring a driver or a power supply of more than 500mA. USB specification * Support MAX 32G USB flash memory * Support MAX 9999 Songs...
-
Page 10: Bluetooth Mode
1. Select the BT audio source by repeatedly pressing the MODE button. The display shows the message “NO DEVICE”.Activate the Bluetooth function on your mobile phone and select the name of the Bluetooth device “M-DL3000DAB” 2. Wait until the last connection is complete, the unit display shows “PAIRED” and the name of your device. -
Page 11: Wire Connections
Wire Connections Connector A (Output speaker) Connector B (Power/service) 1. DAB Antenna 1. Rear Right (+) 1. nc 2. FM/AM Antenna 2. Rear Right (-) 2. nc 3. Front Left output 3. Front Right (+) 3. nc 4. Subwoofer output 4. -
Page 12: Declaration Of Conformity
The manufacturer Aldinet S.p.A declares that the type of radio equipment-Multimedia Navigation Receiver, model M-DL3000DAB, brand Macrom - complies with the 2014/53 / EU Directive. The full text of the EU Declaration of conformity is available at the following internet address: www.macrom.it...
