Summary of Contents for IKEA RENLIG FWM5

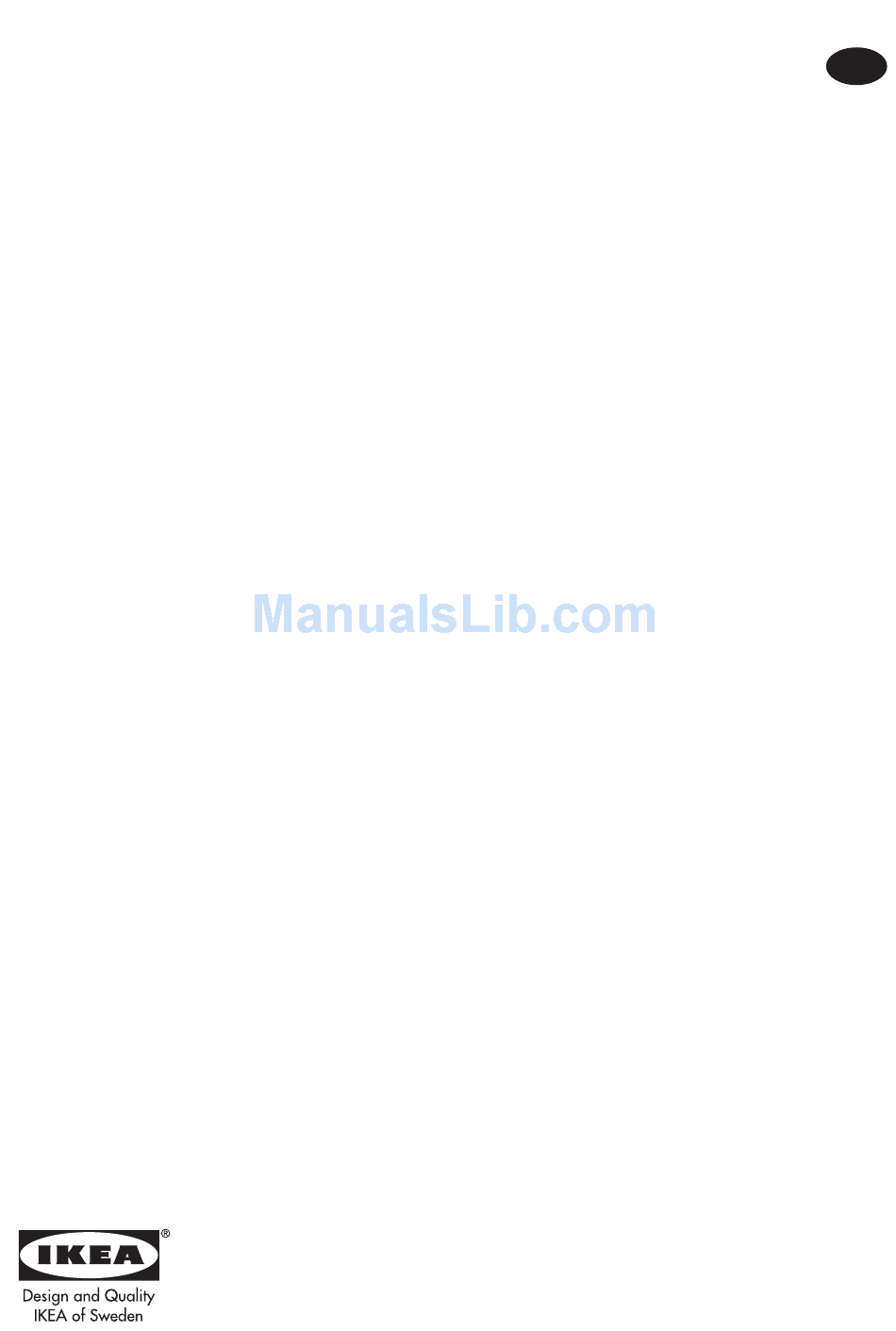

- Page 1 RENLIG FWM5...
- Page 3 ENGLISH...
-
Page 4: Table Of Contents
Installation Daily use Electrical connection Helpful hints and tips Environment concerns Washing programmes IKEA GUARANTEE Consumption values Subject to change without notice Safety information For your safety and correct operation of the appliance, read this manual careful- ly before installation and use. Always keep these instructions with the appliance even if you move or sell it. - Page 5 ENGLISH Installation • Do not overload the appliance. See the Washing Programme Table. • A qualified and competent person must do • Before washing, ensure that all pockets are the electrical and the plumbing installation. empty and buttons and zips are fastened. •...
- Page 6 ENGLISH • Do not use connection hoses from an old • The drain hose must be placed at a height appliance to connect it to the water supply. of not less than 44 cm and not more than • The water pressure must be in the limits 90 cm.
-
Page 7: Product Description
ENGLISH Product description Detergent dispenser drawer Control panel Door opening handle Rating Plate Adjustable feet Detergent dispenser drawer Compartment for powder or liquid deter- gent used for main wash. If using liquid de- tergent pour it just before starting the pro- gramme. -
Page 8: Control Panel
ENGLISH Control panel Below is a picture of the control panel. It shows the programme selector dial as well as the buttons and the indicator lights. These are presented by relevant numbers on the follow- ing pages. 90˚ 60˚ 40˚ AUTO 30˚... -
Page 9: First Use
ENGLISH Temperature button By pressing this button you can select the most suitable tem- perature for washing your laundry . Multi-Function button By pressing this button, you can select only one of the options. The relevant light will light up. •... -
Page 10: Daily Use
ENGLISH ure of detergent into the main wash compartment and start the machine. Daily use Open the door • Remove the drawer. Push the drawer Open the door by carefully pulling the door edge outwards where indicated by the handle outwards. arrow (PUSH) to facilitate drawer remov- Load the laundry The flap is down and you wish to use... - Page 11 ENGLISH For the description of each wash cycle, • Measure out the detergent. the compatibility among the washing programmes and the options, consult the For the quantity of detergent, refer al- chapter «Washing Programmes». ways to what is written on the product packing and ensure that the detergent can Caution! If you turn the programme be poured in the drawer.
- Page 12 ENGLISH Cancelling the delayed start after having Interrupting a programme started the programme: Press the button 5 to interrupt a programme 1. Set the washing appliance to PAUSE by which is running, the corresponding green in- pressing button 5. dicator light starts blinking. 2.
-
Page 13: Helpful Hints And Tips
ENGLISH At the end of the programme, the door can Stand by: once the programme has fin- be now opened. Turn the programme selec- ished the energy saving system is ena- tor dial to O to switch the appliance off. bled with the pilot lights switched on. -
Page 14: Washing Programmes
ENGLISH A water softener must be added when water has a medium-high degree of hardness. Fol- low the manufacturer’s instructions. The quantity of detergent can then always be adjus- ted (reduced) to degree of hardness soft. Washing programmes Please always refer to the care label symbol of your garment and select the washing pro- gramme based on what it says. - Page 15 ENGLISH WOOL/ Special programme Main wash Spin HANDWASH for wool garments Rinses Rinse Hold 40°-30°-Cold bearing the «Pure Max. final new wool, non-shrink, spin at 1200 appliance washable» 2 kg label and delicate fabrics with «hand washing» care sym- bol. RINSE With this programme Rinse...
-
Page 16: Consumption Values
ENGLISH BABY Special programme Main wash Spin 30°-Cold for baby suits. Rinses Rinse Hold Max. final 2 kg Extra Rinse spin at 700 EASY IRON Synthetic fabrics: se- Main wash Spin 60°-40°-30°- lecting this pro- Rinses Rinse Hold Cold gramme the laundry Max. -
Page 17: Care And Cleaning
ENGLISH Programme Energy consumption Water consumption Programme dura- (KWh) (litres) tion (Minutes) Cottons 60° 1.10 Cottons ECONOMY 0.95 60° Cottons 40° 0.70 Synthetics 40° 0.55 Delicates 40° 0.55 Wool 40° 0.55 Handwash 30° 0.30 1) Without prewash option selected. 2) «Cottons Economy» at 60°C with a load of 5 kg is the reference programme for the data entered in the energy label, in compliance with CEI 456 standards. - Page 18 ENGLISH • open the filter cover by pressing the special hook and by rotating the cover up- wards; Warning! Keep the filter cover open until the filter removal. • Use a stiff brush to clean and remove all • before removing washing powder residue.
- Page 19 ENGLISH • Turn off the water tap. • Unscrew the hose from the tap. • Clean the filter in the hose with a stiff brush. • Screw firmly the inlet hose back onto the tap. The filter is inserted correctly when the in- dicator on its top is visible and blocked.
-
Page 20: What To Do If
ENGLISH The dangers of freezing 5. place a bowl on the floor; 6. let the drain hose run along the floor, If the appliance is installed in a place where place the external extremities of the drain the temperature could drop below 0°C, pro- and inlet hoses in the bowl placed on the ceed as follows to remove any water remain- floor and let water drain out completely;... - Page 21 ENGLISH Problem Possible cause Solution The inlet hose is squashed or kinked Check the inlet hose connection. (The red indicator light of button 5 blinks). The filter in the inlet hose or the inlet Clean the water inlet filters. (See valve filter are blocked (The red in- "Cleaning the water inlet filters"...
-
Page 22: Technical Data
If the malfunction shows again, contact your write the data here: After Sales Service. Model description (MOD): ..... Product number (PNC): ......Serial number (S.N.): ....... Made In Italy © Inter IKEA Systems B.V. 1999 000.000.00 21552 Technical data Dimensions Width (cm) 59,6... -
Page 23: Installation
ENGLISH Depth (cm) 53,7 Minimum 0,5 bar (0,05 MPa) Water supply pressure Maximum 8 bar (0,8 MPa) Cotton max. load (kg) Max. spin speed (rpm) 1200 Energy class Washing class Spinning class Washing noise (dB(A)) Spinning noise (db(A)) Average annual energy con- sumption (kWh) Average annual water con- 9200... -
Page 24: Electrical Connection
ENGLISH Caution! Do not place the inlet hose Caution! Make sure that the water downwards. couplings are tight to prevent water leakage. The inlet hose must not be lengthened. If it is too short and you do not wish to The drain hose may be extended to a move the tap, you will have to purchase a maximum of 4 metres. -
Page 25: Ikea Guarantee
Your appli- tion or material faults from the date of pur- ance at IKEA, unless the appliance is named chase from IKEA. This guarantee applies to LAGAN in which case two (2) years of guar- domestic use only. - Page 26 • Deliberate or negligent damage, damage • Cost for carrying out the initial installation caused by failure to observe operating in- of the IKEA appliance. However, if an IKEA structions, incorrect installation or by con- service provider or its authorized service...
- Page 27 You need an assistance for. Before calling us, To ensure that we provide you with the best assure that You have to hand the IKEA article assistance, please read carefully the Assem- number (8 digit code) for the appliance of bly Instructions and/or the User Manual sec- which you need our assistance.
- Page 28 Hétköznap 8 és 10 óra között 0900 235 45 32 ma-vr 9.00-21.00 "0,10 EUR/min (niet lokaal) Nederland and/or zat 9.00-20.00 Incl. BTW" 0900 BEL IKEA zon 9.00-18.00 Norge 815 22052 Takst innland 8 til 20 ukedager Österreich 0810 300486 zum Ortstarif...
- Page 32 © Inter IKEA Systems B.V. 2008 AA-504251-1...
