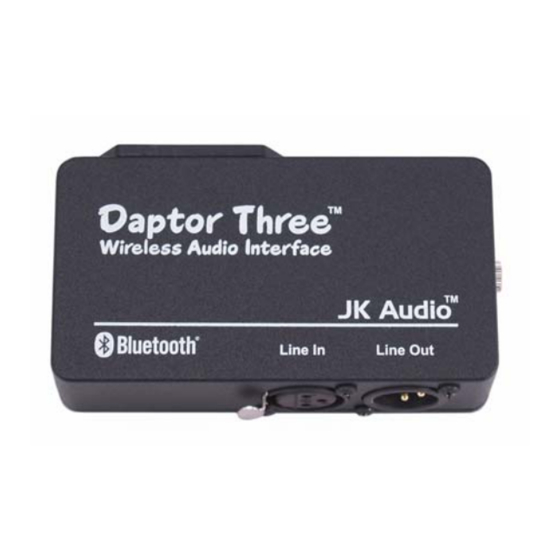

JK Audio Daptor Three User Manual

Wireless audio interface
Hide thumbs Also See for Daptor Three:

Advertisement

Quick Links

Download this manual See also: User Manual
Daptor Three
Wireless Audio Interface
User Guide
JK Audio

Advertisement

loading
Need help?

Need help?

Do you have a question about the Daptor Three and is the answer not in the manual?

Questions and answers

Related Manuals for JK Audio Daptor Three

Summary of Contents for JK Audio Daptor Three

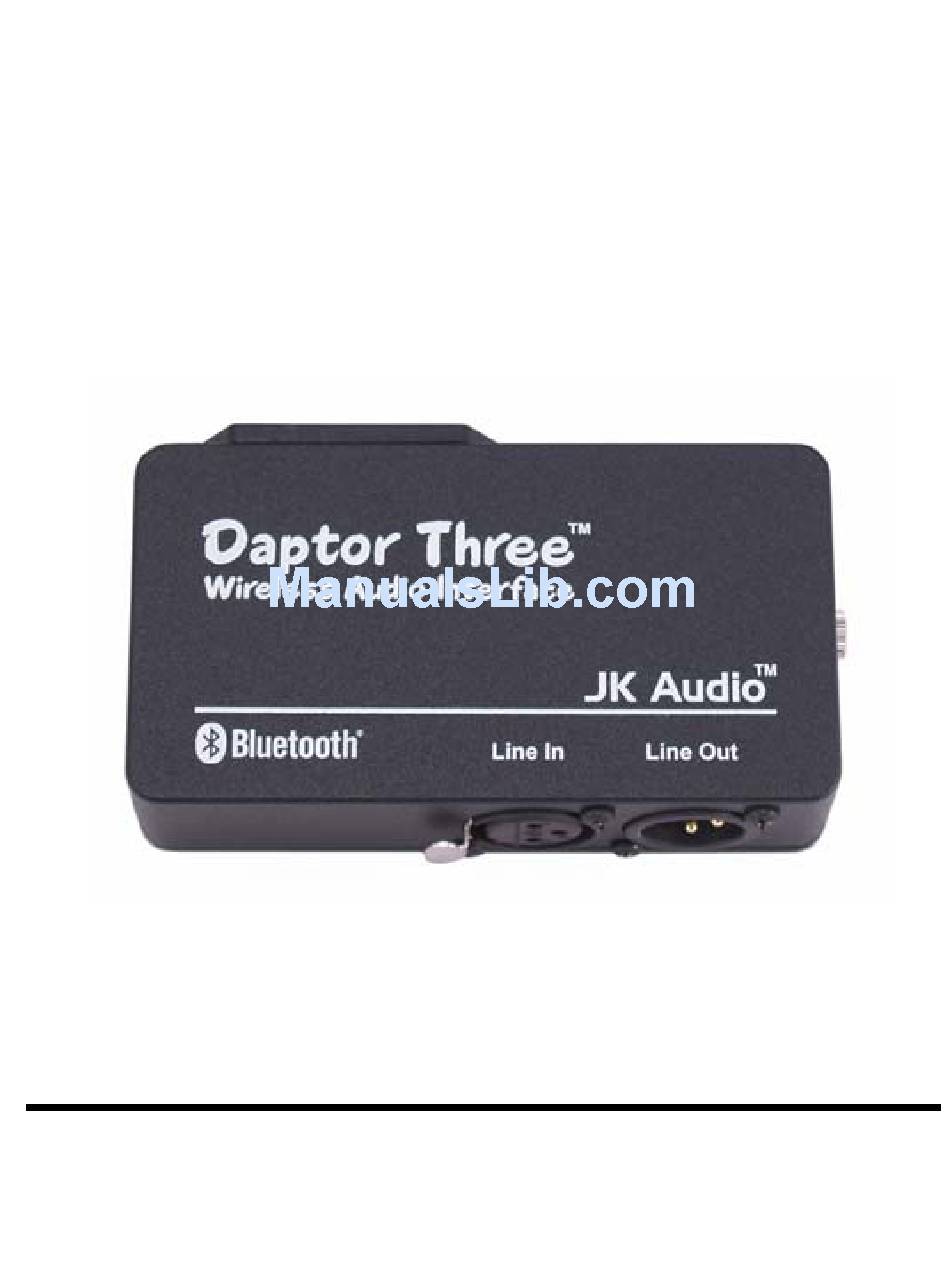

  • Page 1 Daptor Three Wireless Audio Interface User Guide JK Audio...
  • Page 2 Three is built to take real world abuse. * The Bluetooth word mark and logos are owned by the Blue- tooth SIG, Inc. and any use of such marks by JK Audio, Inc. is under license. Other trademarks and trade names are those of...
  • Page 3 Connection Connect your cables from either the balanced XLR or the unbalanced stereo mini Line In and Line Out jacks to your other audio equipment. While you can use both the balanced and unbalanced outputs simultaneously, only one input can be used at a time.

  • Page 4: Bluetooth Wireless Technology

    Three for approx. 5 seconds. You will hear a beep in your headphones, followed by a second beep or beeps. The blue LED will flash rapidly as Daptor Three enters Pairing Mode. There is a difference between “Pairing Mode” and “Idle Mode”.
  • Page 5 DAP301110 use a unique pin of 3xxx). When bonding is complete, the blue LED will flash at a rate of 1 sec on, 2 sec off. Once Daptor Three has been added to your cell phone, subsequent connections can be made more quickly from Idle Mode.
  • Page 6 Bluetooth Wireless Technology Bluetooth LED pattern to initiate Bonding Initiate bonding Idle Mode Pairing Mode 2 sec off, 200 ms off, 100 ms off, 2 sec on 200 ms on 100 ms on Hold Bluetooth button in > 5 sec to Pairing Mode reach Pairing Mode the first time a will time out...
  • Page 7 Bluetooth Wireless Technology Bluetooth LED pattern after Bonding Bonded 2 seconds off, 1 second on...
  • Page 8 25 feet from your Bluetooth de- vice. Because transmitting signals over longer distances will require more power, you should keep Daptor Three as close as possible to your Bluetooth device to conserve battery power. How do I send full bandwidth stereo audio...
  • Page 9 FAQs How long will the battery last? Based on our lab tests using a standard alka- line battery with Daptor Three about 1 meter from your Bluetooth device, the battery should last for about 18 hours under normal use. Lithium batteries can add 3 to 4 times the battery life, at 3 to 4 times the cost.

  • Page 10: Specifications

    4.4” x 2.7” x 1.2” (11.2 x 6.9 x 3.5 cm) Weight: 7 ounces Note: While Daptor Three was designed to be very rug- ged and durable, it is not waterproof and care should be taken to keep the unit dry.
  • Page 11 Changes or modifications not expressly approved by JK Audio can void the user's authority to operate the equipment. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

  • Page 12: Warranty

    Warranty The model Daptor Three is covered by a 2 year warranty to be free from defective workmanship and materials. In the event that the Daptor Three needs repair, you must call us to get an authorization, and then carefully pack and ship it to us.
