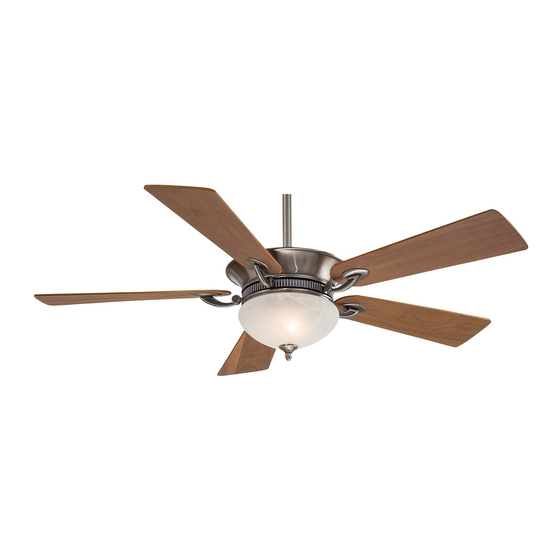

Summary of Contents for Minka-Aire DELANO F701L-PW

  • Page 1 DELANO INSTRUCTION MANUAL WARRANTY CERTIFICATE...
  • Page 2 ©2019 Minka Lighting Inc. Manual design and all elements of manual design are protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws.
  • Page 3 (excluding wall controls and electrical components), to the original purchaser or user. * The warranty is voided with the use of any non- Minka-Aire®electrical devices, E.g., wall controls or electrical dimmer switches, etc… * The warranty is void once the original purchaser or user ceases to own the fan or the fan is moved from its original point of installation.
  • Page 4 To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty claim.
  • Page 5: Table Of Contents

    CONTENTS SAFETY RULES..................FINISHING THE INSTALLATION............PACKAGE CONTENTS..............BLADE INSTALLATION................INSTALLING THE FAN..............INSTALLING THE LIGHT BULBS & GLASS SHADE....ASSEMBLING THE FAN..............OPERATING YOUR WALL TRANSMITTER........HANGING THE FAN................. CARE OF YOUR FAN................ELECTRICAL CONNECTIONS............TROUBLESHOOTING................INSTALLING THE WALL TRANSMITTER......... SPECIFICATIONS..................
  • Page 6: Safety Rules

    SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
  • Page 7 NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be supplied by the person (s) installing, caring for and operating the unit.
  • Page 8: Package Contents

    PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (5 ) Receiver with 7 wire nuts Hanger bracket Extra Wall Plate w/2 Mounting screws Canopy Balancing kit Canopy cover Downrod assembly Mounting Hardware: Coupling cover #10 x 1.5"...
  • Page 9: Installing The Fan

    To hang your fan where there is an existing fixture but no ceiling joist, you may need to install UPSIDE HANGER RECESSED BRACKET OUTLET BOX ® a hanger bar as shown in Fig. 4 (available at your Minka-Aire dealer). FIG. 3 FIG. 4...
  • Page 10: Assembling The Fan

    ASSEMBLING THE FAN RUBBER SCREW WASHERS Your fan is packed with the motor and Upper Housing unassembled, proceed WIRE BULB HOLDER the following steps for fan assembly: CONNECTORS ASSEMBLY UPPER HOUSING TOP MOTOR Step1. Remove the two screws and rubber washers from the top of the motor MOTOR MOTOR center band.
  • Page 11: Hanging The Fan

    HANGING THE FAN WARNING: All of the parts, hardware and components such as the Step 4. Carefully feed fan wires up through the downrod. (Fig. 11) hanger bracket and hanger ball have been provided for your safety and Thread the rod into the coupling, next line up holes and replace lock the proper installation of your new ceiling fan.
  • Page 12 DOWNROD OUTLET BOX CANOPY DOWNROD CROSS PIN ALLEN SET SCREWS HITCH LOCK CANOPY COVER HANGER COUPLING COVER BALL SET SCREW REGISTRATION SUPPLY SLOT WIRES SET SCREWS DOWNROD HANGER BRACKET Fig. 13 Fig. 8 Fig. 9 Fig. 10 Fig. 11 LOCK PIN HITCH PIN Fig.
  • Page 13: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING: To avoid possible electrical shock be sure electricity is Step 2. Motor to Receiver Electrical Connections: Connect the turned off at the main fuse or breaker box before wiring. WHITE wire from the fan to the WHITE wire marked "TO MOTOR N" from the Receiver.
  • Page 14 Step 3. Receiver to House Supply Wires Electrical Connections: Connect the WHITE wire (Neutral) from the outlet box to the WHITE wire marked "AC in N" from the receiver. Connect the BLACK wire (Hot) from the outlet box to the BLACK wire marked "AC in L" from the receiver.
  • Page 15 INPUT AC120V Outlet box White (neutral) Black (hot) White Green or bare AC SUPPLY copper (ground) Black ("AC IN L") Black White ("AC IN N") Receiver Black ("to motor L") White ("to motor N") Orange Ground Ground (Connect to (for upper light) ground wire on (green) hanger bracket...
  • Page 16: Installing The Wall Transmitter

    INSTALLING THE WALL TRANSMITTER WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE OF ELECTRIC CIRCUIT TO THE TRANSMITTER WALL SWITCH, DAMAGE TO THE TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR. Step 1. Remove the existing wall plate and switch from the wall outlet box. Step 2.
  • Page 17: Finishing The Installation

    FINISHING THE INSTALLATION Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the other OUTLET BOX one half a turn from the screw head. HANGER BRACKET Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes.
  • Page 18: Blade Installation

    BLADE INSTALLATION THE FOLLOWING OPERATION MUST BE ACCOMPLISHED BEFORE INSTALLING THE LIGHT KIT. SCREWS Step1. Attach the fan blade to the blade holder using the FIBER BLADE screws and fiber washers provided. Tighten screws securely. WASHERS HOLDER Repeat process for remaining blades.(Fig. 20) BLADE Step2.
  • Page 19: Installing The Light Bulbs & Glass Shade

    INSTALLING THE LIGHT BULBS & GLASS SHADE WARNING: Shut of the power supply before removing or replacing lamp. In handling of LED bulb, care should be taken not to touch it with your bare hands. Oil residue will shorten the life of the LED bulb.
  • Page 20 OPERATING THE REMOTE CONTROL/WALL CONTROL Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time. Restore Power to Ceiling Fan. instructions apply to ceiling fans that feature a DOWN D.
  • Page 21 Speed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans. NOTE: Wait for fan to stop before changing the setting of the slide switch. Warm Weather (forward) A DOWNWARD airflow creates a cooling effect as shown in Figure 23.
  • Page 22: Care Of Your Fan

    CARE OF YOUR FAN Here are some suggestions to help maintain your fan. 4. Use a lint free lightly damp cloth or duster to remove dust from the blades. 1. Because of the fan's natural movement some connections may become 5.
  • Page 23: Troubleshooting

    TROUBLESHOOTING SYMPTOM SYMPTOM Fan will not start Fan Sounds Noisy SOLUTION SOLUTION Check to make sure the wall switch is turned on. Allow a 24-hour "break in" period. Most noises associated with a new fan will go away during this time. Check circuit fuses or breakers.
  • Page 24 SYMPTOM SYMPTOM Fan Wobble Fans/Light Turn On and Off Unexpectedly SOLUTION SOLUTION NOTE: All blade sets are grouped by weight. Because wood and This is caused by interference, Please see "Frequency interference" for plastic blades vary in density, the fan may wobble even though steps to change the frequency.
  • Page 25 SYMPTOM Frequency Interference SOLUTION Turn the power off to your ceiling fan. Please use a small size tool to change the frequency settings on the control system. Return power to the unit. Note: After the AC power is on, do not press any other button on the transmitter before pressing the "Stop" button, doing so will cause the procedure to fail.
  • Page 26: Specifications

    SPECIFICATIONS These are typical readings. Your actual fan may vary. Fan Size Speed Volts Amps Watts N.W. G.W. C.F. They do not include amps and wattage used by the light(s). 0.365 17.21 52" 13.12 11.59 2.74' High 0.580 69.23...
  • Page 27 PERFORMANCE AND ENERGY INFORMATION FAN SPEED AIRFLOW POWER USE AIRFLOW EFFICIENCY (CFM)* (Watts) (CFM/Watt) 2100 17.21 High 5097 69.23 Ceiling fan airflow is measured in cubic feet per minute (CFM). Estimated Airflow Power use is measured in watts. To maximize energy savings: 3,693 Yearly Energy Cost •...
