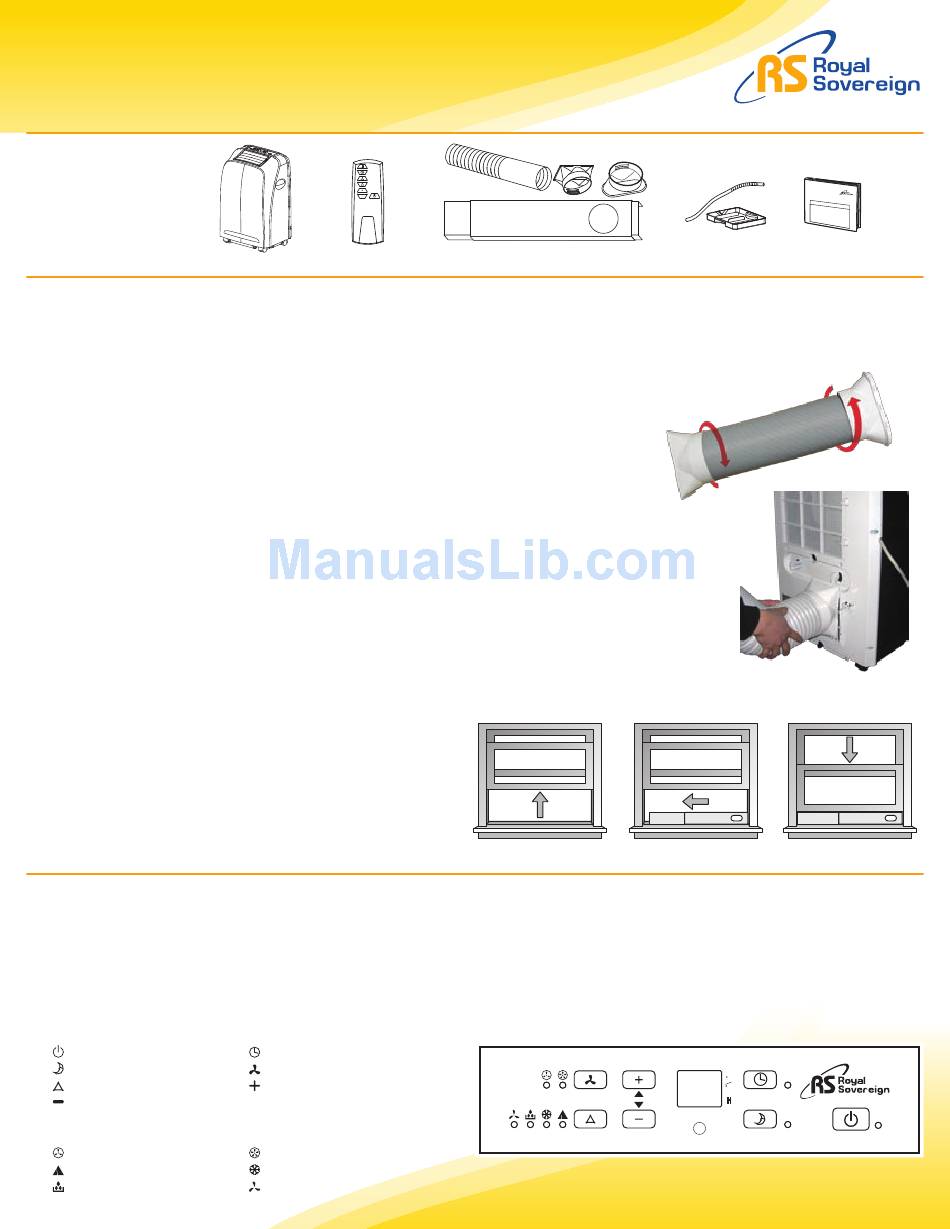

QUICK SETUP GUIDE
Portable Air Conditioner

Box Contents:

Portable Air Conditioner

SETUP

• Unpack PAC and let stand upright for 2 hours before using
• Unpack window kit and accessories and make sure all items listed above are included
• Check to make sure rubber drain plugs are securely plugged into the drain ports on the back of the unit to prevent water leaks
• PAC must be vented out a window or door
• Louvers on top of unit must be open

Part 1: Exhaust hose, connector and adapter

1. Extend one end of the exhaust hose.
2. Take the hose connector and twist it counterclockwise onto one end of the exhaust hose.
3. Extend the opposite end of the exhaust hose.
4. Take the hose adapter and twist it counterclockwise onto the unused end of the exhaust hose.

Part 2: Attaching exhaust hose

1. Hold the exhaust hose parallel to the floor with the hose connector positioned up and down
2. Line up the hose connector above the tabs on the exhaust outlet. Slide connector down into the
tabs locking the connector in place.

Part 3: Installing window slider kit

1. Open the window and place the window slider on the inside edge of the window.
2. Adjust the window slider to the width of the window.
3. Insert a screw into the top of the window slider to secure it at the correct length.
4. Take window slider out and attach to exhaust hose by snapping the hose adapter into the hole on the window slider.
Make sure that the tabs on the window slider are facing outside.
5. Extend exhaust hose to desired length.
6. Place window slider and hose into the edge of the window.
7. Close window to secure slider.

OPERATION

1. Press the power button and turn on the unit.
2. Press the mode and timer buttons to select your desired settings.
See user manual for troubleshooting.

Control Panel

Buttons

Power button
Sleep mode button
Mode button
Temperature / Timer down button

Indicator Lights

Low fan speed
Automatic mode
Dehumidify mode
Remote Control
Timer button
Fan speed button
Temperature / Timer up button
High fan speed
Cool mode
Fan only mode
Window Kit Drainage hose
Fig 3.
www.royalsovereign.com
Owner's Manual
Fig 1.
Fig 2.
F
C
H
