MODEL:
TPN A128 IVP + TPG A128 IVP
TPN A135 IVP + TPG A135 IVP
TPN A180 IVP + TPG A180 IVP
TPN A240 IVP + TPG A240 IVP

Advertisement

Table of Contents
loading

Related Manuals for Toyotomi TPN A128 IVP

Summary of Contents for Toyotomi TPN A128 IVP

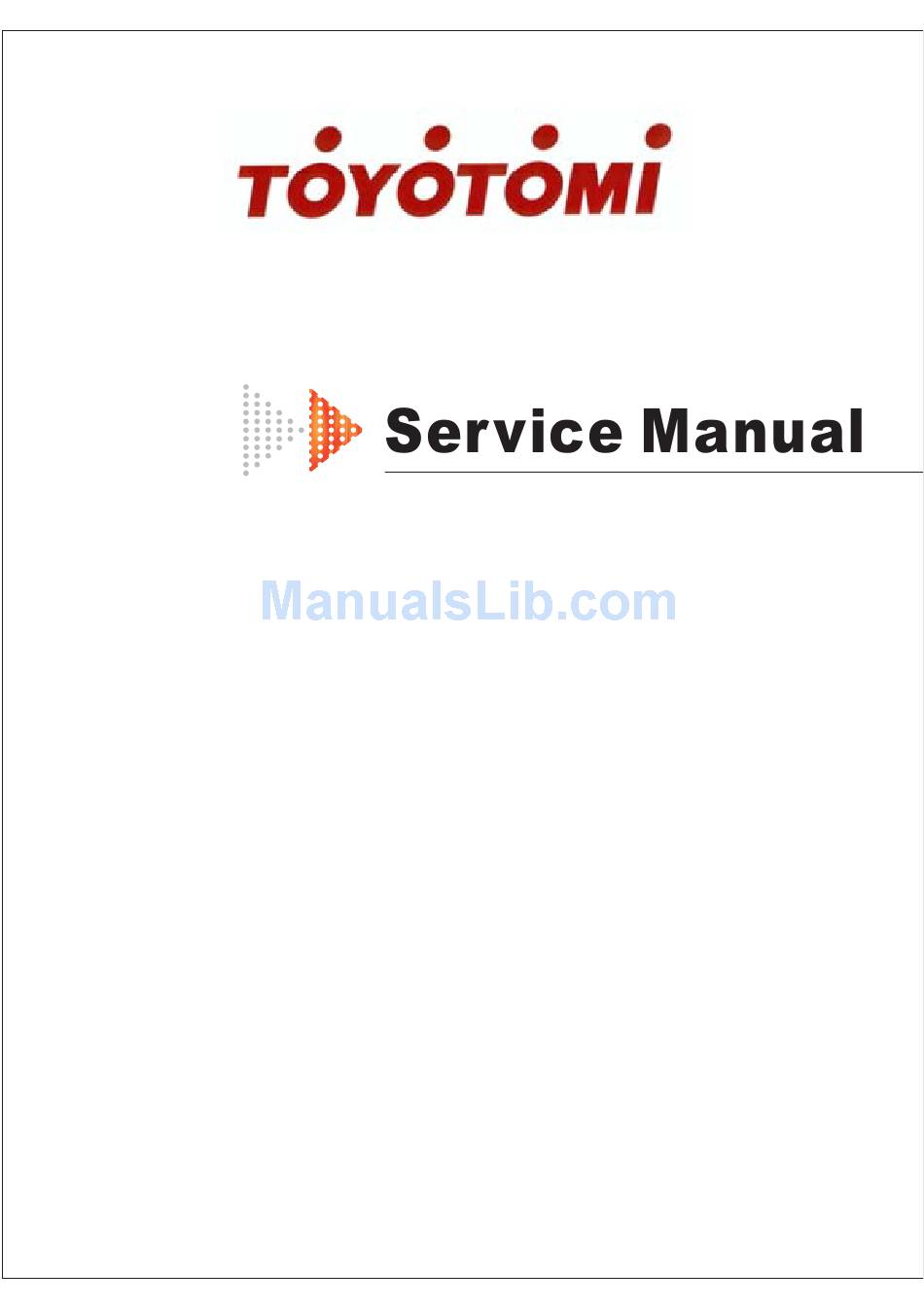

  • Page 1 MODEL: TPN A128 IVP + TPG A128 IVP TPN A135 IVP + TPG A135 IVP TPN A180 IVP + TPG A180 IVP TPN A240 IVP + TPG A240 IVP...

  • Page 2: Table Of Contents

    CONTENTS 1. Precaution ..............................3   1.1 Safety Precaution ........................3  1.2 Warning ............................3  2. Function ................................ 7   3. Dimension ..............................8   3.1 Indoor Unit ........................... 8  3.2 Outdoor Unit ..........................9  4. Refrigerant Cycle Diagram ........................10   5.

  • Page 3: Precaution

    1. Precaution 1.1 Safety Precaution To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring instruction will cause harm or damage. Before service the unit, be sure to read this service manual at first. 1.2 Warning Installation Do not use a defective or underrated circuit breaker.
  • Page 4 condenser and evaporator. For installation, always contact the dealer or an authorized service center. Do not install the product on a defective installation stand. Be sure the installation area does not deteriorate with age. If the base collapses, the air conditioner could fall with it, causing property damage, product failure, and personal injury.
  • Page 5 There is risk of property damage, failure of product, or electric shock. Do not open the inlet grill of the product during operation. (Do not touch the electrostatic filter, if the unit is so equipped.) There is risk of physical injury, electric shock, or product failure. When the product is soaked, contact an authorized service center.
  • Page 6 could cause product malfunction or inefficient operation. Operational Do not expose the skin directly to cool air for long time. (Do not sit in the draft). Do not use the product for special purposes, such as preserving foods, works of art etc. It is a consumer air conditioner, not a precision refrigerant system.

  • Page 7: Function

    2. Function Model Names of Indoor/Outdoor Units Capacity Indoor units Outdoor units TPN A128 IVP TPG A128 IVP TPN A135 IVP TPG A135 IVP Inverter TPN A180 IVP TPG A180 IVP TPN A240 IVP TPG A240 IVP Filter Killer of Formaldehyde...

  • Page 8: Dimension

    3. Dimension 3.1 Indoor Unit Model TPN A128 IVP TPN A135 IVP TPN A180 IVP TPN A240 IVP 1036 Model R(mm) L(mm) H(mm) Dimension of installation hole(mm) TPG A128 IVP 111.5 TPG A135 IVP 83.5 Φ65 TPG A180 IVP TPG A240 IVP...

  • Page 9: Outdoor Unit

    2 Outdoor Unit More than 30cm More than 60cm (Service space More than 30cm More than 60cm More than 70cm Model TPG A128 IVP TPG A135 IVP TPG A180 IVP TPG A240 IVP...

  • Page 10: Refrigerant Cycle Diagram

    4. Refrigerant Cycle Diagram INDOOR OUTDOOR CHECK VALVE LIQUID SIDE (Heating Model only) 2-WAY VALVE CAPILIARY TUBE HEAT HEAT EXCHANGE EXCHANGE (EVAPORATOR) (CONDENSER) GAS SIDE REVERSING VALVE 3-WAY VALVE (Heating Model only) ACCUMULATOR COOLING COMPRESSOR HEATING...

  • Page 11: Wiring Diagram

    5. Wiring Diagram 5.1 Indoor Unit TPN A128 IVP , TPN A135 IVP , TPN A180 IVP TPN A240 IVP...

  • Page 12: Outdoor Unit

    5.2 Outdoor Unit TPGA128IVP TPG A135 IVP, TPG A180 IVP...
  • Page 13 TPG A240 IVP...

  • Page 14: Installation Details

    6 Installation Details 6.1 Wrench torque sheet for installation Outside diameter Torque Additional tightening torque inch N.cm N.cm Ф6.35 1500(153kgf.cm) 1600(163kgf.cm) Ф9.52 2500(255kgf.cm) 2600(265kgf.cm) Ф12.7 3500(357kgf.cm) 3600(367kgf.cm) Ф15.9 4500(459kgf.cm) 4700(479kgf.cm) Ф19 6500(663kgf.cm) 6700(683kgf.cm) 6.2 Connecting the cables The power cord of connect should be selected according to the following specifications sheet. Rated current of appliance Nominal cross-sectional area (mm²) >3 and ≤6...

  • Page 15: Pipe Length And The Elevation

    Standard Max. Max. Additional Model length Elevation Length refrigerant Liquid B (m) A (m) (g/m) TPN A128 IVP TPG A128 IVP 3/8’’ 1/4’’ (Ф9.52) (Ф6.35) TPN A135 IVP TPG A135 IVP 1/2’’ 1/4’’ TPN A180 IVP TPG A180 IVP (Ф12.7) (Ф6.35)

  • Page 16: Installation For The First Time

    6.4 Installation for the first time Air and moisture in the refrigerant system have undesirable effects as below: ● Pressure in the system rises. ● Operating current rises. ● Cooling or heating efficiency drops. ● Moisture in the refrigerant circuit may freeze and block capillary tubing. ●...
  • Page 17 the meter does not indicate -0.1Mpa after pumping 30 minutes, it should be pumped 20 minutes more. If the pressure can’t achieve -0.1Mpa after pumping 50 minutes, please check if there are some leakage points. Fully close the handle Lo valve of the manifold valve and stop the operation of the vacuum pump. Confirm that the gauge needle does not move (approximately 5 minutes after turning off the vacuum pump).
  • Page 18 Close the valve on the charging cylinder and discharge the refrigerant by loosening the flare nut on the 2-way valve approximately 45’ until the gauge indicates 0.3 to 0.5 Mpa. 6). Disconnect the charge set and the charging cylinder, and set the 2-way and 3-way valves to the open position.

  • Page 19: Adding The Refrigerant After Running The System For Many Years

    6).When the electronic scale displays the proper weight (refer to the table), disconnect the charge hose from the 3-way valve’s service port immediately and turn off the air conditioner before disconnecting the hose. 7). Mount the valve stem caps and the service port Use torque wrench to tighten the service port cap to a torque of 18N.m.

  • Page 20: Re-Installation While The Indoor Unit Need To Be Repaired

    6).When the electronic scale displays the proper weight (refer to the gauge and the pressure of the low side), disconnect the charge hose from the 3-way valve’s service port immediately and turn off the air conditioner before disconnecting the hose. 7).
  • Page 21 5). Operate the air conditioner at the cooling cycle and stop it when the gauge indicates 0.1MPa. 6). Set the 3-way valve to the closed position immediately Do this quickly so that the gauge ends up indicating 0.3 to 0.5Mpa. Disconnect the charge set, and tighten the 2-way and 3-way valve’s stem nuts.

  • Page 22: Re-Installation While The Outdoor Unit Need To Be Repaired

    Close the valve on the charging cylinder and discharge the refrigerant by loosening the flare nut on the 2-way valve approximately 45’ until the gauge indicates 0.3 to 0.5 Mpa. 6). Disconnect the charge set and the charging cylinder, and set the 2-way and 3-way valves to the open position Be sure to use a hexagonal wrench to operate the valve stems.
  • Page 23 2. Refrigerant charging Procedure: Electronic scale 1). Connect the charge hose to the charging cylinder, open the 2-way valve and the 3-way valve Connect the charge hose which you disconnected from the vacuum pump to the valve at the bottom of the cylinder.

  • Page 24: Operation Characteristics

    7. Operation Characteristics Temperature Cooling operation Heating operation Drying operation Mode ＞10℃ Room temperature ≥17℃ ≤30℃ 0℃～50℃ -15℃～50℃ Outdoor temperature -15℃～30℃ 0℃～50℃ (For the models with low temperature cooling system) CAUTION: 1. If the air conditioner is used beyond the above conditions, certain safety protection features may come into operation and cause the unit to operate abnormally.

  • Page 25: Electronic Function

    8. Electronic function 8.1 Abbreviation T1: Indoor room temperature T2: Coil temperature of evaporator T3: Coil temperature of condenser T4: Outdoor ambient temperature T5: Compressor discharge temperature 8.2 Display function 8.2.1 Icon explanation on indoor display board. Auto indicator: This indicator illuminates when the air conditioner is in AUTO operation. PRE.-DEF.

  • Page 26: Main Protection

    8.3 Main Protection 8.3.1 Time delay at restart for compressor 1 minute delay for the 1 time start-up and 3 minutes delay for others. 8.3.2 Temperature protection of compressor top The unit will stop working when the compressor top temp. protector cut off, and will restart after the compressor top temp.
  • Page 27 compressor is heated without operation. Preheating release condition: If T4＞5℃ or the compressor starts running, the preheating function will stop. 8.3.8 Zero crossing detection error protection(except MSR1-24HRDN1-QRC4W) If AC detects time interval is not correct for continuous 240s, the unit will stop and the LED will display the failure.
  • Page 28 Open condition: Define the evaporator coil temp.T2 of the compressor just starts running as Tcool. In the beginning 5 minutes after the compressor starts up, if T2 ＜Tcool－2℃ does not keep continuous 4 seconds and this situation happens 3 times, the display area will show “EC” and AC will turn off.

  • Page 29: Operation Modes And Functions

    8.4 Operation Modes and Functions 8.4.1 Fan mode (1) Outdoor fan and compressor stop. (2) Temperature setting function is disabled, and no setting temperature is displayed. (3) Indoor fan can be set to high/med/low/auto. (4) The louver operates same as in cooling mode. (5) Auto fan: For TPN A240 IVP : 27.5...
  • Page 30 8.4.2 Cooling Mode 8.4.2.1 Compressor running rules The maximum operation frequency of compressor after starting submits to following rule. Fmax=T4FREMAX1 Fmax=T4FREMAX2 Fmax=T4FREMAX3 Fmax=T4FREMAX4 Fmax=T4FREMAX5 Fmax=T4FREMAX6 Fmax=T4FREMAX7 Meanwhile, the maximum frequency is limited by the indoor fan speed. Indoor fan speed Maximum frequency High speed / turbo function No limit...
  • Page 31 T1-Ts -1.0 -1.5 While the zones of A,B,C... are corresponding to different compressor running frequency. Note: When T1-Ts keeps in the same temp. zone for 3 minutes, the compressor will run as the below rules: A:Increase the frequency to 3 grade higher until to FREMAX. B~E: Increase the frequency to 2 grade higher until to FREMAX.
  • Page 32 8.4.2.2 Outdoor fan running rules Cooling While A,B,C…means different fan speed of outdoor unit. 8.4.2.3 Indoor fan running rules In cooling mode, indoor fan runs all the time and the speed can be selected as high, medium, low, auto and silent. When the compressor is running, the indoor fan is controlled as below:...
  • Page 33 The auto fan acts as below rules: For 240 IVP: 27.5 High Medium 25.5 For other models: T1-Ts (H -L)*0.75+L (H -L)*0.5+L (H -L)*0.25+L 8.4.2.4 Condenser temperature protection ---55℃<T3<60℃, the compressor frequency will decrease to the lower level until to F1 and then runs at F1.If T3<54℃, the compressor will keep running at the current frequency.
  • Page 34 8.4.3 Heating Mode 8.4.3.1 Compressor running rules The maximum operation frequency of the compressor after starting submits to the following rule. Fmax=T4FREHEATMAX1 Fmax=T4FREHEATMAX2 Fmax=T4FREHEATMAX3 Fmax=T4FREHEATMAX4 Fmax=T4FREHEATMAX5 Fmax=T4FREHEATMAX6 Fmax=T4FREHEATMAX7 Fmax=T4FREHEATMAX8 Fmax=T4FREHEATMAX9 Fmax=F21 Fmax=F22 Fmax=F23 Fmax=F24 Fmax=F25...
  • Page 35 Meanwhile, the maximum frequency is limited by the indoor fan speed. Indoor fan speed Maximum frequency High speed/8 degree heating/ turbo function No limit Medium speed FHeatMaxMidFan Low speed/sleep mode FHeatMaxLowFan Silent mode Fixed at F3 If users switch on AC by remote controller, the compressor will run at the Fmax frequency for 7 minutes according to outdoor ambient temp.
  • Page 36 Meanwhile, the compressor running frequency is limited by the current. HeatT4Zone4I HeatT4Zone3I HeatT4Zone2I HeatT4Zone1I 8.4.3.2 Outdoor fan running rules Heating 8.4.3.3 Indoor fan running rules In heating mode, indoor fan can be selected as high, medium, low, auto and silent. The anti-cold- wind function is preferential.
  • Page 37 If the compressor stops caused by the room temperature rising, the indoor fan will be forced to run 127 seconds with breeze. During this period, the anti-cold-wind is disabled. Auto fan action in heating mode: For 240 IVP: T1-Ts Medium High For other models: T1-Ts+¦...
  • Page 38 8.4.3.4 Defrosting mode Condition of defrosting: If any one of the following items is satisfied, AC will enter the defrosting mode. After the compressor starts up and keeps running, mark the minimum value of T3 from the 10th minutes to 15th minutes as T30. 1)If the compressor cumulate running time is up to 29 minutes and T3<...
  • Page 39 Defrosting action： For TPN A128 IVP TPG A128 IVP , TPN A135 IVP TPG A135 IVP Frequency F3 FrequencyF16 Compressor 4-way valve Outdoor fan Indoor fan Indoor fan breeze(10s) no longer than 10m xx=60 For TPN A180 IVP TPG A180 IVP, TPN A240 IVP...
  • Page 40 8.4.3.5 Evaporator coil temperature protection TEstop Decrease TEdown Hold TEnorm Resume Off: Compressor stops. Decrease: Decrease the running frequency to the lower level. Hold: Keep the current frequency. Resume: No limitation for frequency. 8.4.4 Auto-mode This mode can be chosen with remote controller and the setting temperature can be changed between 17~30 ℃...
  • Page 41 8.4.5.2 Compressor running rules T1-Ts 8.4.5.3 Low indoor room temperature protection In drying mode, if room temperature is lower than 10 ℃ , the compressor will stop and not resume until room temperature exceeds 12 ℃ . 8.4.5.4 Evaporator anti-freezing protection, condenser high temperature protection and outdoor unit frequency limit are active and the same as that in cooling mode.
  • Page 42 8.4.7.2 Timer on. The machine will turn on automatically when reaching the setting time. 8.4.7.3 Timer off. The machine will turn off automatically when reaching the setting time. 8.4.7.4 Timer on/off. The machine will turn on automatically when reaching the setting “on” time, and then turn off automatically when reaching the setting “off”...
  • Page 43 If AC is off before power off and AC is required to start up now, the compressor will have 1 minute delay when power on. Other conditions, the compressor will have 3 minutes delay when restarts. 8.4.10 8℃ Heating(optional) In heating operation, the preset temperature of the air conditioner can be as lower as 8 ℃ , which keeps the room temperature steady at 8 ℃...

  • Page 44: Troubleshooting

    9. Troubleshooting 9.1 Indoor Unit Error Display Operation lamp Timer lamp Display LED STATUS ☆ 1 time Indoor unit EEPROM parameter error ☆ 2 times Indoor / outdoor units communication error Zero crossing detection error(except ☆ 3 times MSR1-24HRDN1-QRC4W) ☆ 4 times Indoor fan speed has been out of control Open circuit or short circuit of indoor room temperature T1 ☆...

  • Page 45: Diagnosis And Solution

    9.2 Diagnosis and Solution 9.2.1 EEPROM parameter error diagnosis and solution(E0) EEPROM: a read-only memory whose contents can be erased and reprogrammed using a pulsed voltage.
  • Page 46 9.2.2 Indoor unit and outdoor unit communication protection error diagnosis and solution(E1)
  • Page 47 9.2.3 Zero crossing detection error diagnosis and solution(E2) 9.2.4 Indoor fan speed has been out of control diagnosis and solution(E3)
  • Page 48 9.2.5 Open circuit or short circuit of temperature sensor diagnosis and solution (E4/E5/F1/F2/F3)
  • Page 49 9.2.6 Refrigerant Leakage Detection diagnosis and solution(EC) Shut off the power supply and turn it on 5 seconds later. Is it still displaying the error code? Check if T2 sensor is well Is there cool air blowing fixed. Correct the installation or replace T2 sensor.
  • Page 50 9.2.7 Outdoor fan speed has been out of control diagnosis and solution(F5)
  • Page 51 9.2.8 IPM malfunction or IGBT over-strong current protection diagnosis and solution(P0)
  • Page 52 9.2.9 Over voltage or too low voltage protection diagnosis and solution(P1)
  • Page 53 9.2.10 Inverter compressor drive error diagnosis and solution(P4)
  • Page 54 Safety Electricity power is still kept in capacitors even the power supply is shut off. Do not forget to discharge the electricity power in capacitor. Electrolytic Capacitors (HIGH VOLTAGE! CAUTION!) Connect discharge resistance (approx.100Ω 40W) or soldering iron (plug) between +, - terminals of the electrolytic capacitor on the contrary side of the outdoor PCB.
  • Page 55 Temperature Sensors. Room temp.(T1) sensor, Indoor coil temp.(T2) sensor, Outdoor coil temp.(T3) sensor, Outdoor ambient temp.(T4) sensor, Compressor discharge temp.(T5) sensor. Measure the resistance value of each winding by using the multi-meter. Table 1:Some frequently-used R-T data for T1,T2,T3 and T4 sensor: Temperature (℃) Resistance Value (KΩ) 26.9...
