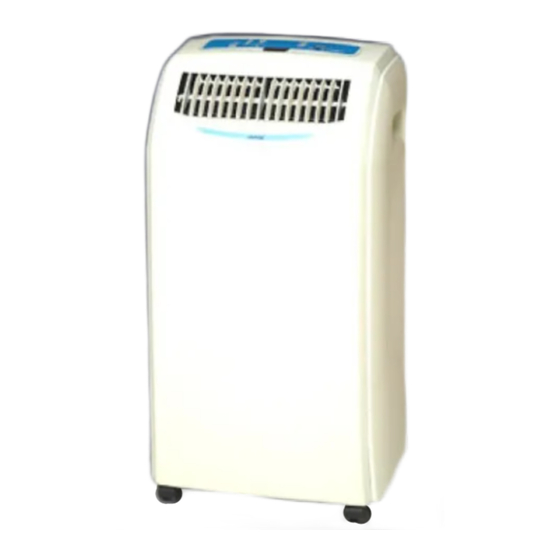

Toyotomi TAD-30F Service Manual
Hide thumbs Also See for TAD-30F:

Advertisement

Quick Links

SERVICE MANUAL
MODEL: TAD-30F

Advertisement

loading
Need help?

Need help?

Do you have a question about the TAD-30F and is the answer not in the manual?

Questions and answers

Alejandra
July 22, 2025

Por que cuando está encendido no deja de gotear mucha agua

Subscribe to Our Youtube Channel

Summary of Contents for Toyotomi TAD-30F

  • Page 1 SERVICE MANUAL MODEL: TAD-30F...
  • Page 2: Operational Features

    1. THE SUMMARY The idea behind the unit is to provide a localized supply of cool air. The unit will greatly enhance your personal comfort whether at a work station or even in your favorite chair. Four (4) casters enable you to move the unit easily from room to room. It cools and dries the air at the same time so that you can stay comfortable even when it's humid or rainy outside.
  • Page 3 3. DESCRIPTION OF PARTS AND COMPONENTS [FRONT] Operation panel Air outlet Carrying handle Vertical louver Horizontal louver Front panel Caster [REAR] HAF air filter (inside) Air intake grille (Pre-filter) Air intake (Evaporator) Exhaust outlet Air intake (Condenser) Power supply cord Drain water outlet LCDI plug...
  • Page 4 4. NAME AND FUNCTIONS OF OPERATIONAL PANEL Cool Room Timer Digital mode mode mode temp temp indicator lamp lamp lamp lamp lamp lamp Cool Cool Cool High Room T Room Temp Room Temp Set T Set Temp Set Temp Tank full Tank Full Tank Full...
  • Page 5: Safety Tips

    5. SAFETY TIPS IMPORTANT ¡ Read instructions carefully before operation. ¡ The unit should be operated when the room temperature is between 64˚F (18˚C) to 95˚F (35˚C). If the room temperature is below 64˚F (18˚C), ice may form on the coils. If the room temperature is above 95˚F (35˚C), the compressor will automatically shut off to protect itself.
  • Page 6: Specifications

    6. SPECIFICATIONS (I) SPECIFICATIONS ITEM UNIT TAD-30F 18-5/8"(W) × 13-9/16"(D) × 34-1/4"(H) [472(W) × 345(D) × 869(H) mm] OUTER DIMENSIONS REFERENTIAL USING AREA 140~200 (13~19m RATED VOLTAGE V/Hz 115/60 RUNNING VOLTAGE 198-264 COOLING CAPACITY B.T.U. 10,000 DEHUMIDIFYING CAPACITY GAL/H 0.48 (1.8 L/H)
  • Page 7 7. DISASSEMBLING WARNING • Make sure to disconnect the power source before disassembling the unit. • Carefully disassemble the unit. Do not touch evaporator and condenser directly or you may cut or injure your hands. CAUTION • Do not touch the compressor, the discharge pipes, or any parts that may be subjected to high temperature, before the temperature becomes low or with the use of protect gloves.
  • Page 8: Troubleshooting

    8. TROUBLESHOOTING (I) Make sure that electric power is coming to the unit. AIR CONDITIONER CHECK THE NO POWER POWER TRIPPED WON'T START POWER SWITCH PLUG AND SOCKET RE-PLUGING THE ARE LOOSE POWER SUPPLY CORD TESTING BY CHANGE THE TIMER FAILURE ELECTROSCOPE SWITCH AIR CONDITIONER...
  • Page 9 9. FUNCTION 1. Cooling operation Room temperature setting range is 61 ~ 90˚F (16 ~ 32˚C). Room temperature indication range is 32 ~ 122˚F (0 ~ 50˚C). State of operating is as shown below. Room More than More than temperature 150 seconds 150 seconds +2˚F (+1.0˚C)
  • Page 10 COMPRESSOR ON – OFF ROOM TEMPERATURE FAN SPEED More than 79˚F (26˚C) Compressor ON Selected fan speed 9min. – 3min. (A) 77˚F ~ 73˚F (25˚C ~ 23˚C) 9min. – 3min. (B) 72˚F ~ 68˚F (22˚C ~ 20˚C) 6min. – 3min. (C) Less than 66˚F (19˚C) ¡During the dry operation, the control as mentioned above will change continuously.
  • Page 11 PARTS LIST PART # PART NAME PART # PART NAME PART # PART NAME 22740229 Base pan assembly 22740247 Capacitor B 22740240 Charcoal filter 22740270 Caster 22740212 Main circuit board 22740249 Exhaust duct hose 22740230 Float 22740248 Capacitor C 22740250 Exhaust duct connector 22740206 Micro switch...
  • Page 12 TOYOTOMI CO., LTD. 5-17, Momozono-cho, Mizuho-ku, Nagoya, 467-0855 Japan www.toyotomi.jp New 5/05 Printed in Japan...
