Overview

Use the DAS-AMP4 and DAS-AMP8 Carbon XA Amplifiers (FIG. 1) in
conjunction with Tango Audio Controllers to increase the total number of audio
outputs available to each Controller, per Zone.
DAS-AMP4/8 amplifiers
FIG. 1
• The DAS-AMP4 is a 4-channel amp that provides 2 speaker pairs per unit.
• The DAS-AMP8 is an 8-channel amp that supports an additional 4
speaker pairs per unit.

Features

• High-quality sound - delivers 60 watts of high-quality sound per channel.
• Expandable - stack up to three Carbon XA amplifiers units per zone to
allow up to 12 speaker pairs (24 channels) in a single zone.
• Easy installation - SWT (Speaker Wire Technology) makes installation
simple using four-conductor speaker wire.
• Integrates with Delta Series and Mi Series controllers, as well as C, C-DT
and EL Series speakers.

Product Specifications

Carbon XA Amplifiers Product Specifications
Models Available: DAS-AMP4 4-Channel amplifier
• US version (120V) - FG1102-01
• Int'l version (230V) - FG1102-03
DAS-AMP8 8-Channel amplifier
• US version (120V) - FG1102-02
• Int'l version (230V) - FG1102-04
Dimensions (HWD): • 3 1/16" x 17" x 13 1/2" (7.68cm x 43.18cm x 33.52cm)
• RU: 2
Weight: 25.75 lbs (11.68 kg)
Power: • High current Torroidal power supply
• Maximum: 634 W
Average usage:
• DAS-AMP4: 250 W
• DAS-AMP8: 500 W
Stereo Output: • Dual mono amplifier stage design
• 60 W per channel (1 KHz continuous .006%@ 8 Ohms
THD+N)
• Each Carbon XA amplifier is capable of providing
480 watts @ 8 Ohms
Configuration: • Modular Design - configurable in single pairs up to 4
stereo pairs (8 channels).
• Stackable (up to 3 Carbon XA amplifiers)
Control Options: • Matrix keypad
• C-Series speakers using SWT
Front Panel Components:
Dual stage status • Red in standby
LED:
• Green when active
Rear Panel Components:
Power Switch & The master power switch will remain in the ON position
Receptacle normally.
Output 1-4: SWT connectors provide direct connection to speakers.
From Controller: SWT input port (connects to Audio Controller)
DAS-AMP4/8
Carbon XA Amplifiers - Product Specifications (Cont.)
To Keypad: SWT output port (connects to Matrix keypad or interface)
This connector can also be used to connect to a another
Carbon XA amplifier, to allow for expansion (up to three
Carbon XA amplifiers units per zone).
Included Accessories: Power Cord
Other AMX Equipment: DAS-MRMK Mi Series Rack Mount Kit (FG1101-60)

Wiring and Connections

Front and Rear Panel Components

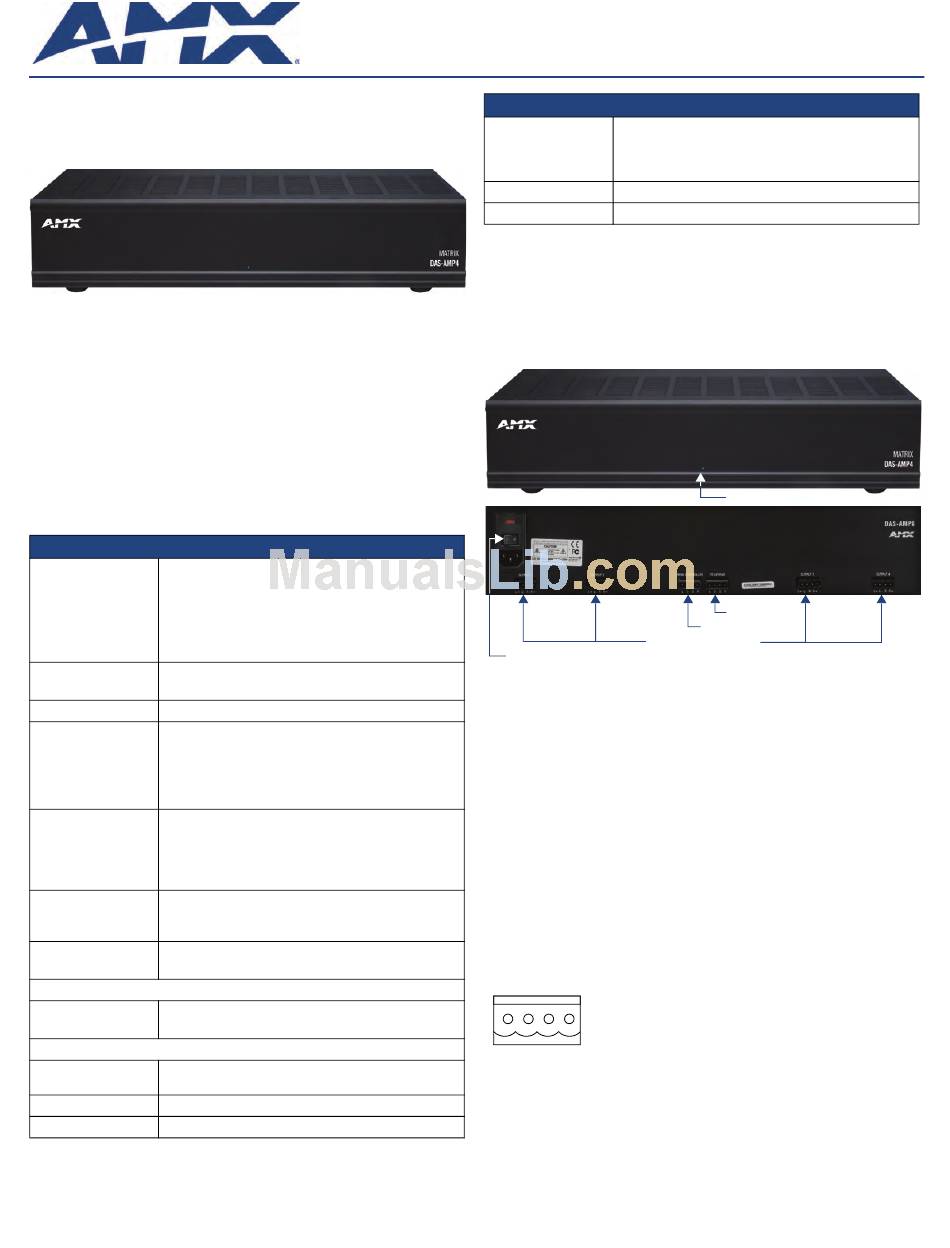

FIG. 2 provides views of the front and rear panels of the DAS-AMP4/8 Carbon
XA amplifiers.
Note that the front panel is identical for both Carbon XA Amps, and the only
difference between the two relative to the rear panel is the number of Zone
Outputs (2 on the DAS-AMP4, or 4 on the DAS-AMP8).
Zone Outputs (2 or 4)
Power Switch & Receptacle
Carbon XA amplifiers (DAS-AMP8 shown)
FIG. 2

Cabling Instructions

This installation uses low voltage cabling similar to telephone and alarm wiring,
and as such does not commonly have very many restrictions on their
installation. However rules may vary in different regions.
Note: Be sure to check for any wiring restrictions required by the electrical code
in your area.

Cable Type

The Carbon XA amplifier is cabled using standard four-conductor speaker cable
originating at the Mi-Series Audio Controller, passing through the Keypad, and
terminating at the speaker location. AMX recommends using a bundled
four-conductor 16-gauge stranded copper wire in a single continuous run.

Connecting Zone Outputs (Speakers)

SWT Connectors

SWT cabling follows a specific pinout configuration that is labelled on the
Carbon XA amplifier, Controller, Matrix keypads, and other Matrix devices, as
shown in FIG. 3.
L D G R
L = Left audio channel (+)
D = Data / Power (+)
G = Ground (-) - also provides return for L/R Audio
R = Right audio channel (+)
SWT pinout configuration
FIG. 3
Installation Guide
Carbon XA Amplifiers
Status LED
To Keypad
From Controller
