AMX Solecis AVB-DA-RGBHV-ST-0102 Installation Manual

Overview

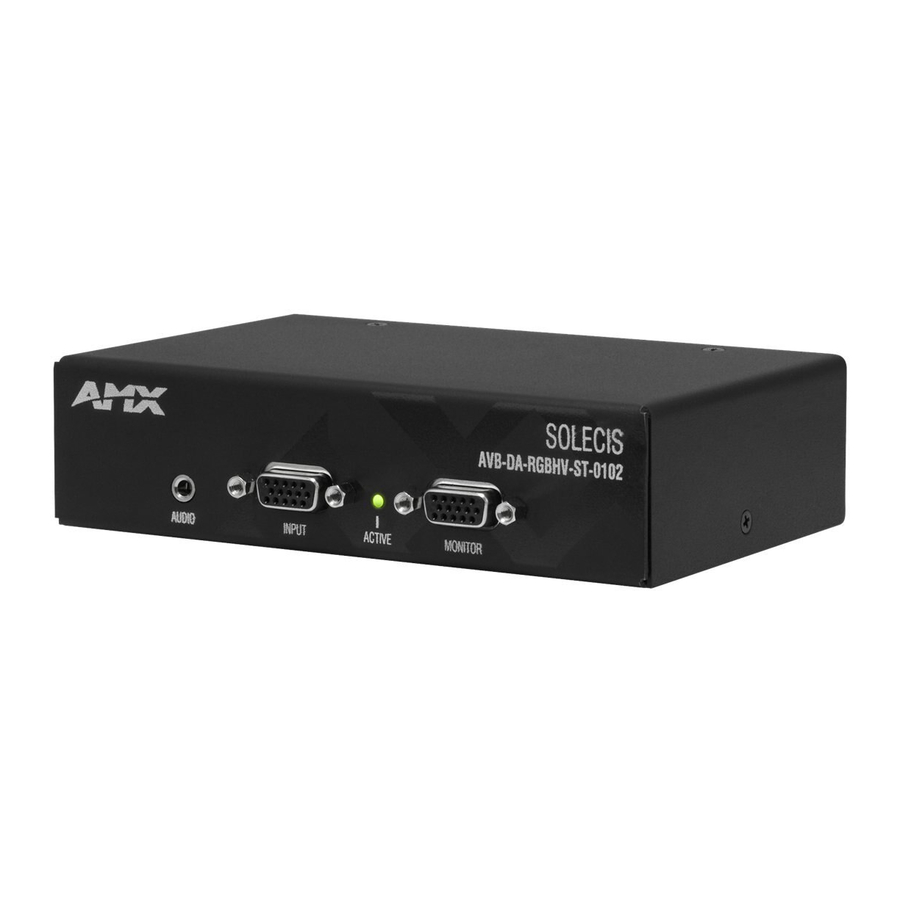

The Solecis AVB-DA-RGBHV-ST-0102 1x2 RGBHV HD-15, Stereo Distribution
Amplifier (FG1340-1101-02) is a high resolution wideband PC Splitter with
exceptional characteristics and features second to none. With an RGB video
bandwidth in excess of 350Mhz (-3dB) the AVB-DA-RGBHV-ST-0102 is the
perfect choice for all presentation applications.
The buffered input provides for a local monitor loop through and main output for
onward connection to monitors, projectors and plasma displays. The main output
features 75 ohm drive for connection to long cable runs and TTL Sync restore for
total compatibility.
The AVB-DA-RGBHV-ST-0102 is capable of providing either balanced or
unbalanced audio outputs.
Audio IN Video IN
(front)
(rear)
Video OUT

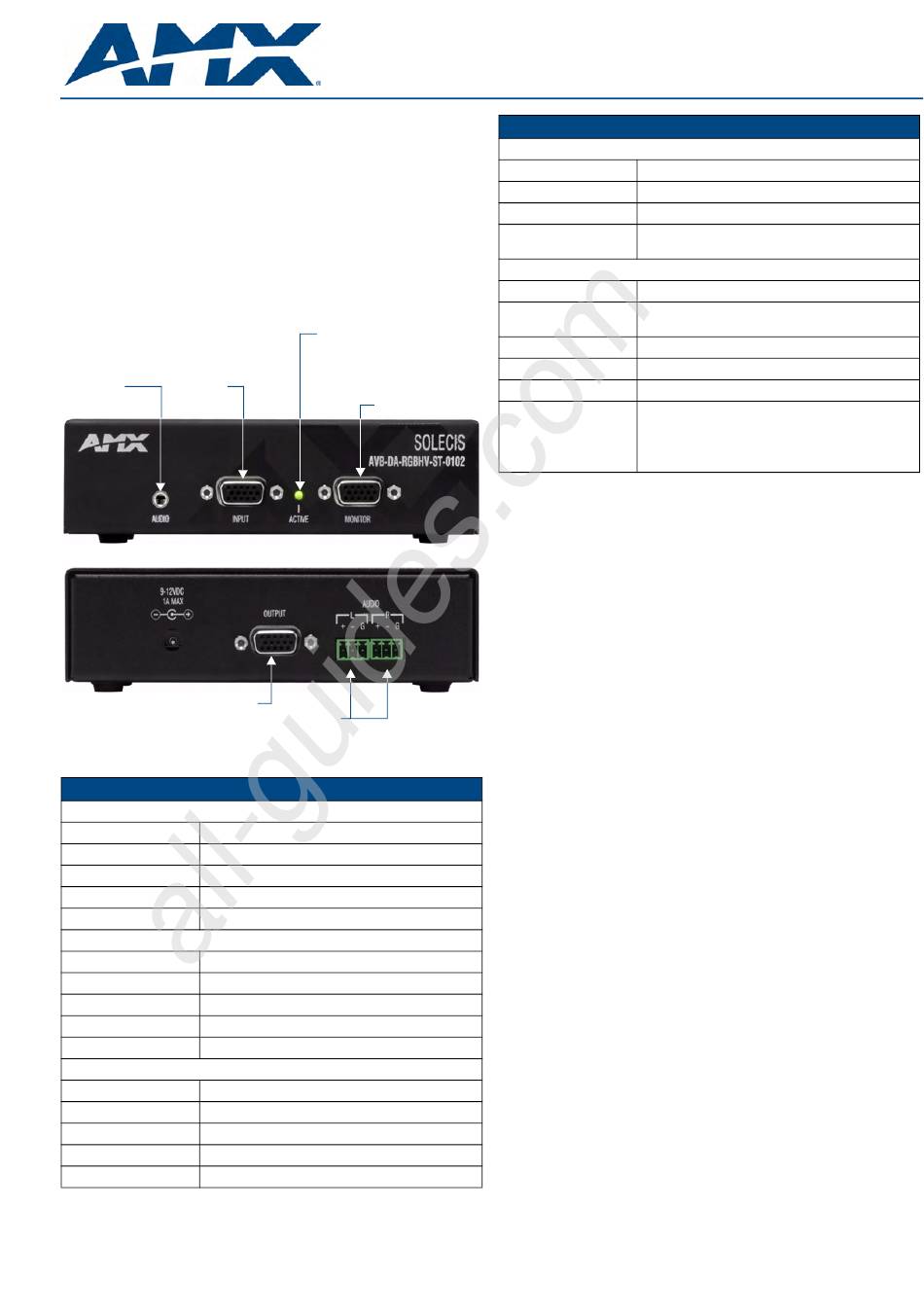

FIG. 1
Solecis AVB-DA-RGBHV-ST-0102

Product Specifications

AVB-DA-RGBHV-ST-0102 Specifications
RGB Input
Number: 1
Connector: HD-15
Level: Analog
Max Level: 1V p-p
Impedance: 75 ohm
Sync Input
Type: Analogue or TTL
Impedance: 470 ohm
RGB Video Bandwidth: 300MHz -3dB
RGB Return Loss: -45dB@10MHz, -27dB@100MHz
Sync Processing: None
RGB Output
Number: 2
Connectors: HD-15
Level: Analog
Gain: Unity
Impedance: 75 ohm
All manuals and user guides at all-guides.com
Activity LED
green = signal source present
red = unit powered but not
connected to RGBHV source
Monitor IN
Audio OUT
Solecis
AVB-DA-RGBHV-ST-0102
AVB-DA-RGBHV-ST-0102 Specifications (Cont.)
Sync Output
Level:
Gain:
Impedance:
Audio:
Power
Input Voltage:
Connector:
Power Consumption:
Dimensions (HWD):
Weight:
Certifications:
Safety Instructions
Please read these instructions before using your AMX Solecis device. Failure to
comply with these instructions could result in fire, electrical shock, personal injury,
death, or damage to the equipment.
Liquid Spills
Do not set drinks on top of the unit or immerse the unit in liquid.
Do Not Disassemble
This device contains no user serviceable parts. All servicing must be performed by a
qualified service technician.
For Safety Reasons
• Do not place the unit on an unstable surface.
• Do not use near water or sources of heat.
• Use only recommended attachments.
• Use the type of power supply as specified.
Unplug the power to the unit and refer servicing to qualified personnel under the
following conditions:
• If liquid has been spilled or the unit has been exposed to rain or water.
• If it does not operate normally when the operating instructions are followed or if it
exhibits a distinct change in performance indicating a need for service.
• If the unit has been dropped or the cabinet damaged.
Connections
Connect the RGBHV and Audio sources to the Input sockets on the front panel
of the unit.
• The RGB inputs are 75 ohm terminated and the audio input 47Kohm termi-
nated. The video outputs are fully 75 ohm driven and the audio balanced.
• For unbalanced systems use the + and Gnd terminals.
Note: It is imperative that the input sources are fully compatible with the display
and sound devices.
The unit may now be powered.
Power / Video Indication ("Active" LED)
• When the unit is powered without the RGBHV input connected, the Active
indicator will be Red.
• When a signal source is applied, the indicator will turn Green.

Installation Guide

TTL
TTL restore
75 ohm
Balanced/Unbalanced audio via 3.5mm stereo socket to
phoenix
9V
2.1mm DC power jack for use with included external
power supply.
3W
1.49" x 5.70" x 3.85" (38cm x 14.5cm x 9.8cm)
1.5 lbs. (0.68kg)
• CE
• UL
• FCC class B, part 15
• RoHS/WEEE compliant
