The Solecis AVB-DA-RGBHV-HD15-0106 (FG1340-4616-01) is an RGBHV
distribution amplifier on HD-15 connectors with all outputs 75 Ohm driven for
long cable runs connections and has TTL sync restore for compatibility with all
display devices.
The high-performance, wide-bandwidth circuitry provides compatibility across all
resolutions. The AVB-DA-RGBHV-HD15-0106 can be used for RGBHV, RGBS,
RGsB and YUV. The unit is a 1-In 6-Out RGBHV distribution amplifier on HD-15
connectors and Output 1 can be used as a local monitor output.
The AVB-DA-RGBHV-HD15-0106 is housed in a 1U metal enclosure and
features a 100-240V internal power supply.
Video IN

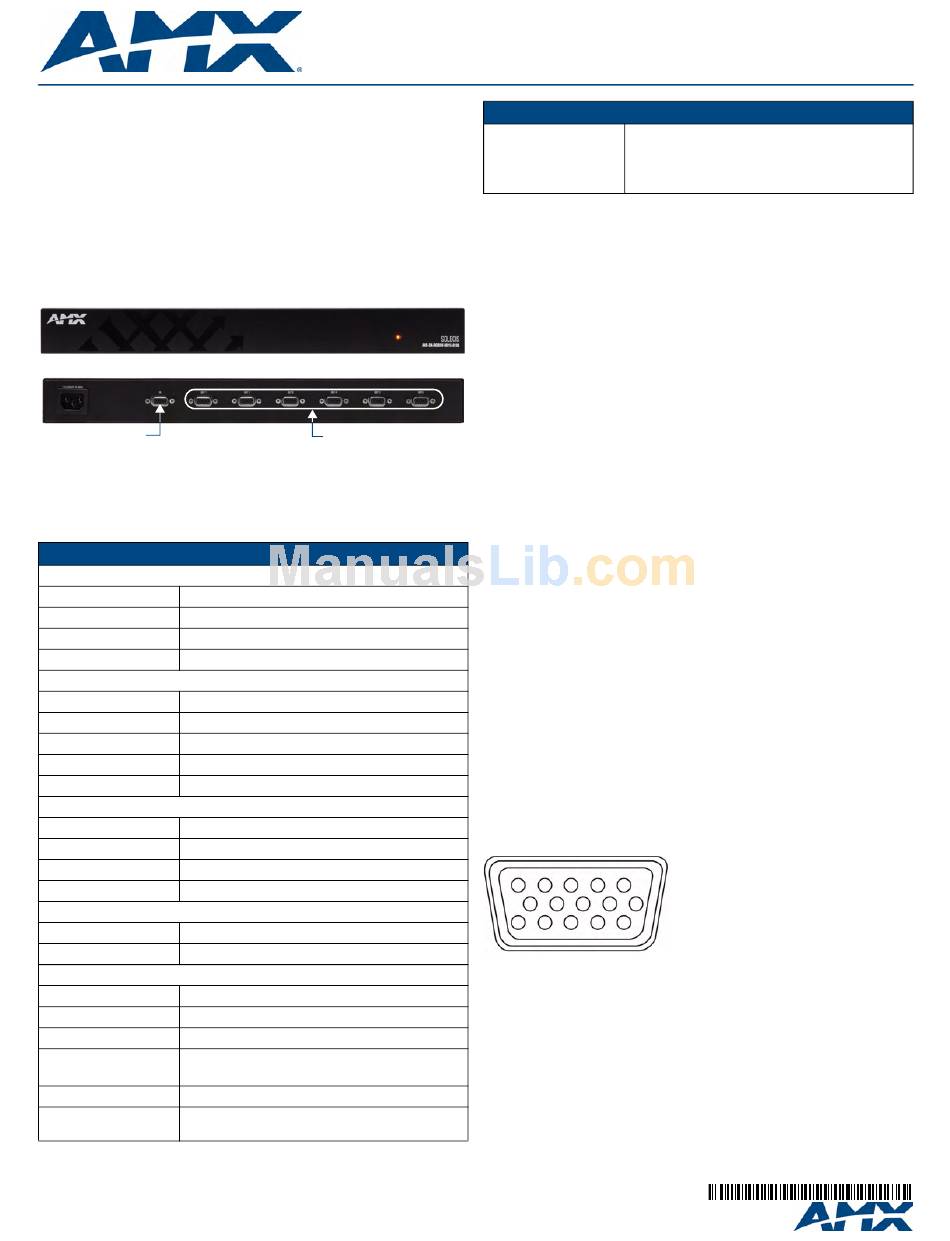

FIG. 1
Solecis AVB-DA-RGBHV-HD15-0106
Common Application
Great for delivering up to six outputs over long cable runs.
Product Specifications
AVB-DA-RGBHV-HD15-0106 Specifications
RGB Input (HD-15)
Number:
1
Level:
Analog
Max Level:
1V p-p
Impedance:
75 ohm
Sync Input
Type:
Analog or TTL
Impedance:
75 ohm
RGB Video Bandwidth:
350MHz -3dB
RGB Return Loss:
-40dB@10MHz, -27dB@100MHz
Adjacent Channel X-talk:
-70dB@10MHz, -48dB@100MHz
RGB Outputs (HD-15)
Number:
6
Level:
Analog
Gain:
Unity
Impedance:
75 ohm
Sync Output
Level:
TTL
Impedance:
75 ohm
Power
Input Voltage:
100-240V 50/60Hz
Power Consumption:
8W
Heat Dissipation:
27.29 BTU/hr
Dimensions (HWD):
1.72" x 17.00" x 6.43"
43.7mm x 431.8mm x 163.4mm
Weight:
5.73 lbs. (2.6kg)
Included Accessories:
• Detachable Rack Mount
• AC Power Cord
For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).
©2009 AMX. All rights reserved. AMX and the AMX logo are registered trademarks of AMX.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com
Solecis
Video OUT 1-6
6/09
AMX reserves the right to alter specifications without notice at any time.
AVB-DA-RGBHV-HD15-0106
AVB-DA-RGBHV-HD15-0106 Specifications (Cont.)
Certifications:
Safety Instructions
Please read these instructions before using your AMX Solecis device. Failure to
comply with these instructions could result in fire, electrical shock, personal injury,
death, or damage to the equipment.
Power Source
Use only a 3-wire grounding type source. The power source should not exceed
(front)
264VAC. Do not remove under any circumstances the ground wire.
Power Cord
Use only the cord shipped with the unit. Do not use the cord if it has become damaged
or frayed. Contact your AMX Solecis dealer if you need to replace the power cord.
Grounding
The interface is grounded through the grounding conductor on the power cord. To
avoid electric shock plug the power cord into a properly wired receptacle. Do not
defeat the purpose of the grounding-type plug.
Fuse
(rear)
For protection against the risk of fire, use only a fuse of the same rating and type.
Liquid Spills
Do not set drinks on top of the unit or immerse the unit in liquid.
Do Not Disassemble
This device contains no user serviceable parts. All servicing must be performed by a
qualified service technician.
For Safety Reasons
•
Do not place the unit on an unstable surface.
•
Do not use near water or sources of heat.
•
Use only recommended attachments.
•
Use the type of power supply as specified.
Unplug the power to the unit and refer servicing to qualified personnel under the
following conditions:
•
If liquid has been spilled or the unit has been exposed to rain or water.
•
If it does not operate normally when the operating instructions are followed or if
it exhibits a distinct change in performance indicating a need for service.
•
If the unit has been dropped or the cabinet damaged.
Connections
Connect the PC input and outputs on the rear panel of the unit.
Note: It is imperative that the input source is fully compatible with the display
devices.
The RGB input is 75 ohm terminated and the outputs fully 75 ohm driven for
connection to long cable runs.
The unit can now be connected to the mains and the power switched on.
Video Pin Connections
FIG. 2 provides the pin layout for the HD-15 connectors:
5
4
3
2
10
9
8
7
15
14
13
12
FIG. 2
RGBHV HD-15 connector
The pin configuration for the HD-15 (video) connector are as follows:
1 - RED
2 - GREEN
3 - BLUE
4 - n/c
5 - n/c
6 - RED GROUND
7 - GREEN GROUND
8 - BLUE GROUND
Installation Guide
• CE
• UL
• FCC class B, part 15
• RoHS/WEEE compliant
1
6
11
9 - n/c
10 - SYNC GROUND
11 - n/c
12 - n/c
13 - H SYNC
14 - V SYNC
15 - n/c
93-1340-4616-01
REV: C
