Impex Marcy Diamond Elite MD-MXM6 Owner's Manual

Impex owner's manual marcy diamond elite smith cage md-mxm6
Hide thumbs
Table of Contents

Advertisement

Quick Links

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
MD-MXM6
Retain This
Manual for
Reference
08-3-06

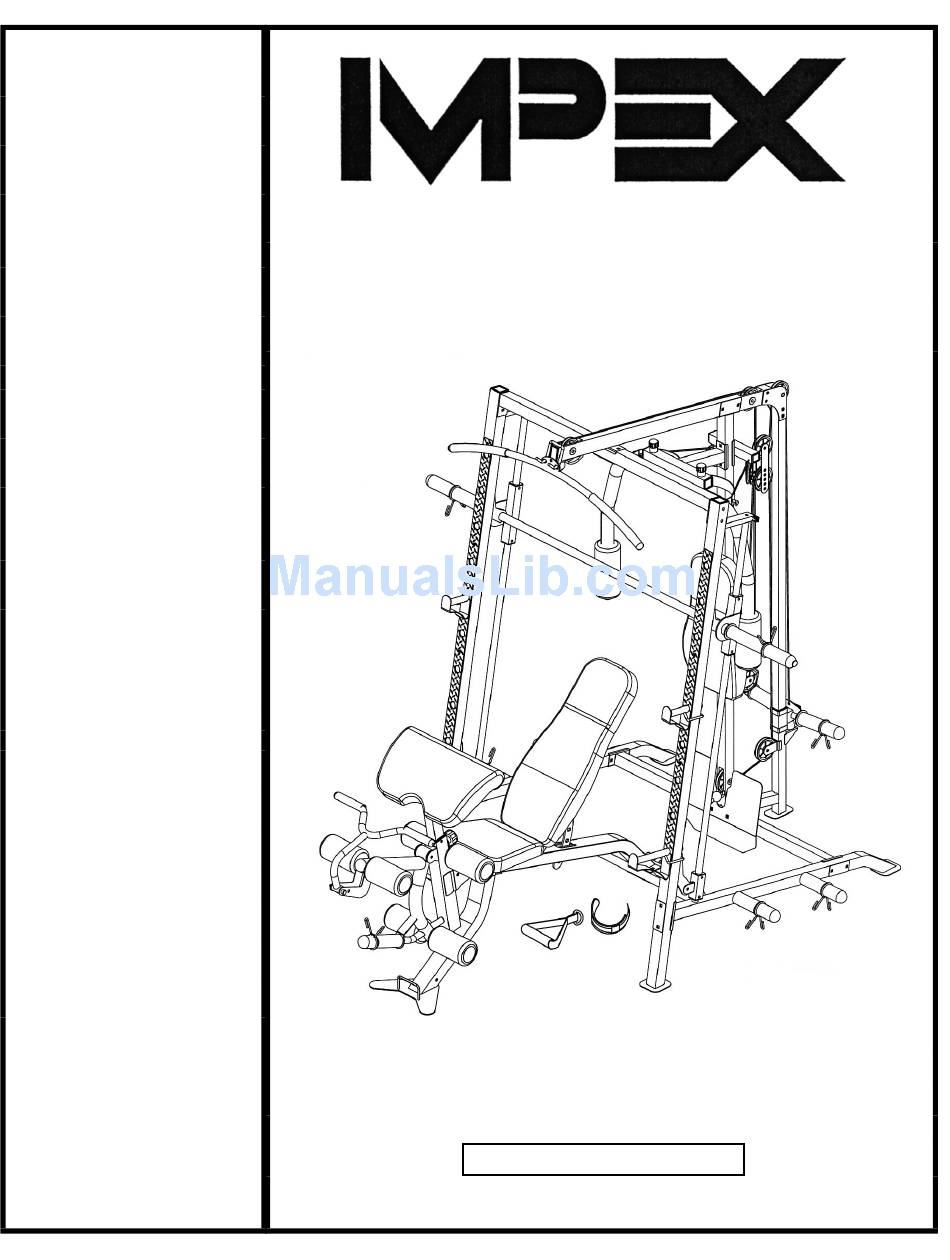

OWNER'S
MANUAL
MARCY DIAMOND ELITE
SMITH CAGE
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
MD-MXM6
®
IMPEX

Advertisement

Table of Contents
loading

Related Manuals for Impex Marcy Diamond Elite MD-MXM6

Summary of Contents for Impex Marcy Diamond Elite MD-MXM6

  • Page 1 Please read all instructions carefully before using this product Table of Contents Safety Notice Hardware Identifier Assembly Instruction Parts List Warranty Ordering Parts Model MD-MXM6 Retain This Manual for Reference 08-3-06 OWNER'S MANUAL MARCY DIAMOND ELITE SMITH CAGE MD-MXM6 IMPEX 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746...

  • Page 2: Table Of Contents

    BEFORE YOU BEGIN Thank you for selecting the MARCY DIAMOND ELITE Smith Cage MD- ® MXM6 by IMPEX . For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction.

  • Page 3: Important Safety Notices

    PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

  • Page 4: Warning Label Replacement

    WARNING LABEL REPLACEMENT The warning labels shown here have been placed on the Cross Brace, Rear Stabilizer, and Upper Frame. If the labels are missing or illegible, please call customer service at 1-800-888-8899 for replacements. Apply the labels in location shown.

  • Page 5: Hardware Pack

    HARDEWARE PACK...
  • Page 6 HARDEWARE PACK...
  • Page 7 HARDEWARE PACK...
  • Page 8 HARDEWARE PACK...

  • Page 9: Assembly Instructions

    ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches. NOTE: It is strongly recommended two or more people assembling this machine to avoid possible injury. STEP 1 (See Diagram 1) A.) NOTE: Do not tighten the Nuts and Bolts until instructed to do so. B.) Connect the Left &...
  • Page 10 DIAGRAM 1...
  • Page 11 STEP 2 (See Diagram 2) A.) Attach the Rear Vertical Beam (#38) onto the Cross Brace (#36). Attach the Weight Glide Post (#34) to the Rear Vertical Beam and Cross Brace. Attach the Foot Plate (#115) to the Cross Brace. Align the holes and secure them with two M10 x 2 ¾” Carriage Bolts (#103), ¾”...
  • Page 12 DIAGRAM2...
  • Page 13 STEP 3 (See Diagram 3) A.) Attach the Butterfly Base (#39) and Butterfly Pulley Bracket (#44) to the Rear Vertical Beam (#38). Align the holes and secure them with two M10 x 2 ½” Carriage Bolts (#102), Washers (#89), and M10 Aircraft Nuts (#106). B.) Insert the axle on the Right Butterfly (#41) through the hole on the Butterfly Base.
  • Page 14 STEP 4 (See Diagram 4) A.) Note: Help of another person is strongly recommended for this step. Place the Weight Lifting Sleeve (#48) in between the two Safety Stop Frames (#32). Align the holes and insert the Weight Bar (#49) into the Safety Stop Frame from one end through the Weight Lifting Sleeve to the other Safety Stop Frame on the opposite end.
  • Page 15 CABLE LOOP DIAGRAM...
  • Page 16 STEP 5 (See Diagram 5 & Cable Loop Diagram) A.) Attach a 124” Cable (#60) to the front opening on the Upper Frame (#37). Attach a Pulley (#81) to the opening. Secure it with one M10 x 2 1/8” Allen Bolt (#94), two Ø 1 1/8”...
  • Page 17 DIAGRAM 5...
  • Page 18 A.) Attach one end of the 79” Butterfly Cable (#61) to the clip on the Left Butterfly (#40). Draw the Cable to the left Butterfly Pulley Bracket (#44). B.) Attach a Pulley (#81) to the Bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#93), two Washers (#89), and one M10 Aircraft Nut (#106).
  • Page 19 STEP 7 (See Diagram 7 & Cable Loop Diagram) A.) Attach one 124” Cable (#60) to the lower opening on the Rear Vertical Beam (#38). Attach a Pulley to the opening. Secure it with M10 x 2 3/8” Allen Bolt (#95), two Ø 1” Bushings (#85), and one M10 Aircraft Nut (#106).
  • Page 20 STEP 8 (See Diagram 8) A.) Attach the Front Post (#3) to the Front Stabilizer (#17). B.) Secure it with three M10 x 5/8” Allen Bolts (#90) and ¾” Washers (#89). DIAGRAM 8...
  • Page 21 STEP 9 (See Diagram 9) A.) Attach the Main Seat Support (#1) to the Rear Stabilizer (#4). Secure it with two M10 x 2 3/8” Carriage Bolts (#100), one 5 1/8” x 2 3/8” Bracket (#21), two Ø ¾” Washers (#89), and two M10 Aircraft Nuts (#106).
  • Page 22 STEP-10 (See Diagram 10) A.) Attach the Leg Developer Holder (#2) to the Main Seat Support (#1). Secure it with one M10 x 5/8” Allen Bolt (#90) and Ø ¾” Washer (#89) from the top, two M10 x 3 ¾” Carriage Bolts (#101), two Ø...
  • Page 23 STEP-11 (See Diagram 11) A.) Insert two ؽ” Bushings (#113) into the holes on the Seat Bracket (#5) and align the holes to the pivot on the Main Seat Support (#1). B.) Attach the two Backrest Supports (#10) to the Seat Bracket and align the holes. Secure them with a M10 x 7 ¼”...
  • Page 24 STEP-12 (See Diagram 12) A.) Place the Seat Pad (#8) onto the Seat Bracket (#5). Secure it with four M8 x 1 5/8” Allen Bolts (#99) and Ø5/8” Washers (#88). B.) Attach the Bench Backrest Board (#9) to the Backrest Supports (#10). Secure it with four M8 x 1 5/8”...
  • Page 25 STEP-13 (See Diagram 13) A.) Insert three Foam Tubes (#16) halfway through the holes on Leg Developer Holder (#2) and Leg Developer (#12). B.) Push six Foam Rolls (#23) onto the Tubes from both ends. C.) Push six Foam Roll End Caps (#72) into the ends. D.) Attach the Arm Curl Handle (#19) to the bracket on the Leg Developer and secure it with a Lock Pin (#20).

  • Page 26: Exploded Diagram

    SMITH MACHINE EXPLODED DIAGRAM...

  • Page 28: Parts List

    PARTS LIST KEY NO. DESCRIPTION Main Seat Support Leg Developer Holder Front Post Rear Stabilizer Seat Bracket Arm Curl Stand Backrest Incline Support Seat Pad Bench Backrest Board 10 Backrest Support 11 Arm Curl Pad 12 Leg Developer 13 Ø 2” Leg Developer Bushing 14 Wheel 15 T-shaped Lock Pin 16 Foam Tube...

  • Page 29: Warranty

    Frame from the date of purchase. This warranty extends only to the original purchaser. IMPEX's obligation under this Warranty is limited to replacing or repairing, at IMPEX's option.
