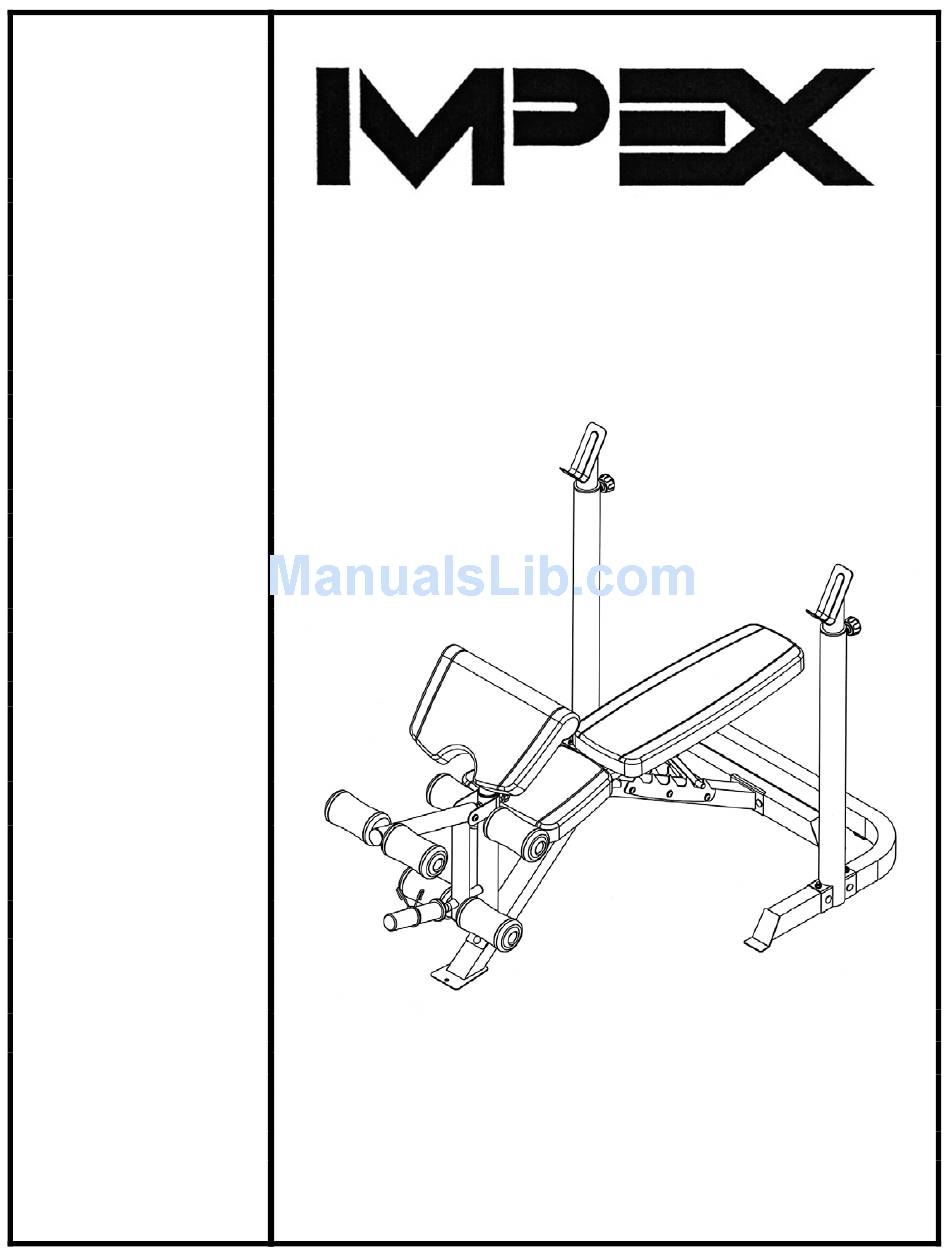

  • Page 1 NOTE: Please read all instructions carefully before using this product MARCY DIAMOND Table of Contents WEIGHT BENCH Safety Notice MD-859P Hardware Pack Assembly Instruction Exploded Diagram Parts List Warranty Ordering Parts Model MD-859P Retain This Manual for Reference 110719 ®...

  • Page 2: Table Of Contents

    EXPLODED DIAGRAM..................PARTS LIST..................... WARRANTY..................... ORDERING PARTS..................BEFORE YOU BEGIN Thank you for selecting the MARCY DIAMOND WEIGHT BENCH MD-859P by ® IMPEX INC. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction.

  • Page 3: Important Safety Notice

    IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: 1.
  • Page 4 WARNING LABEL REPLACEMENT The Warning Labels shown here have been placed on the Rear Base Frame and Rear Stabilizer. If the labels are missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the labels in location shown...

  • Page 5: Hardware Pack

    HARDWARE PACK NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.

  • Page 6: Assembly Instruction

    ASSEMBLY INSTRUCTION Tools Required For Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches. NOTE: It is strongly recommended for two or more people to assemble this machine to avoid possible injury. STEP 1 (See Diagram 1) A.) Attach one Base Frame (#3) to the Rear Base Frame (#2). Attach an Upright Beam (#1) onto the Base Frame and Rear Base Frame.
  • Page 7 STEP 2 (See Diagram 2) A.) Attach the Main Seat Support (#5) to the Rear Stabilizer (#6). Secure it with two M10 x 2 ¾” Carriage Bolts (#33), one 5 1/8” x 2 ¾” Bracket (#14), two Ø ¾” Washers (#41), and two M10 Aircraft Nuts (#44).
  • Page 8 STEP 3 (See Diagram 3) A.) Attach the pivot on the Leg Developer Holder (#7) to the open bracket on the Main Seat Support (#5). Attach the bottom of Leg Developer Holder to the Main Seat Support. Secure it with one M10 x 2 ¾” Carriage Bolt (#33) from front, one M10 x 2 ½” Allen Bolt (#37) from rear, two Ø...
  • Page 9 STEP 4 (See Diagram 4) A.) Attach the Backrest Board (#17) to the Backrest Supports (#8). Secure it with four M8 x 1 5/8” Allen Bolts (#38) and four Ø 5/8” Washers (#42). B.) Place the Seat Pad (#16) onto the seat bracket on Leg Developer Holder (#7). Secure it with two M8 x 1 5/8”...
  • Page 10 STEP 5 (See Diagram 5) A.) Attach two Ø 3/4” Bushings (#20) to the Leg Developer (#10). Attach the Leg Developer to the Leg Developer Holder (#7). Secure it with one M10 x 3 1/8” Allen Bolt (#36), two Ø ¾” Washers (#41), and one M10 Aircraft Nut (#44).

  • Page 12: Parts List

    PARTS LIST KEY NO. DESCRIPTION QUANTITY Upright Beam Rear Base Frame Base Frame Crutch Main Seat Support Rear Stabilizer Leg Developer Holder Backrest Support Incline Support Leg Developer Arm Curl Stand Incline Support Frame Foam Tube 5 1/8” x 2 ¾” Bracket 5 ½”...

  • Page 13: Limited Warranty

    IMPEX INC. LIMITED WARRANTY ® IMPEX Inc. ("IMPEX ") warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of two years on the Frame from the date of purchase. This warranty extends only to the original purchaser.
