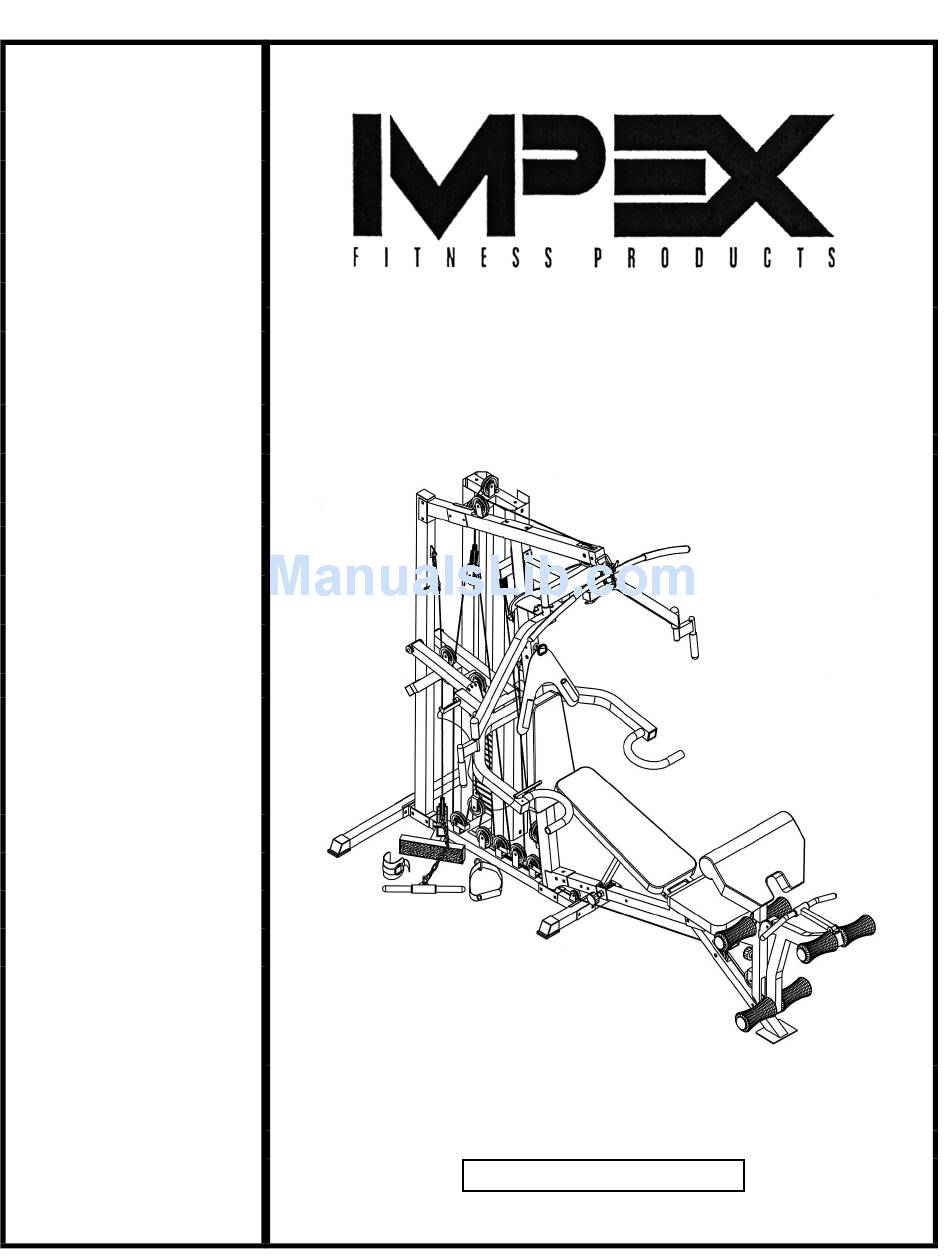

Impex MACH V Owner's Manual

Impex MACH V Owner's Manual

Impex marcy magnum v home gym owner's manual mach v
Hide thumbs

Advertisement

Quick Links

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
Parts List
Resistance Chart
Warranty
Ordering Parts
Model
MACH V
Retain This
Manual for
Reference
08-26-03
OWNER'S
MANUAL
MARCY MAGNUM V
HOME GYM
IMPEX FITNESS PRODUCTS
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the MACH V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Impex MACH V

Summary of Contents for Impex MACH V

  • Page 1 Table of Contents Safety Notice Hardware Pack Assembly Instruction Parts List Resistance Chart Warranty Ordering Parts Model MACH V Retain This Manual for Reference 08-26-03 OWNER'S MANUAL MARCY MAGNUM V HOME GYM IMPEX FITNESS PRODUCTS 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746 Tel: (800) 999-8899 Fax: (626) 961-9966 www.impex-fitness.com...

  • Page 2: Table Of Contents

    BEFORE YOU BEGIN Thank you for selecting the MARCY MAGNUM V PERSONAL TRAINER by IMPEX FITNESS PRODUCTS. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction. If you have...

  • Page 3: Important Safety Notice

    PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

  • Page 4: Hardware Pack

    HARDWARE PACK...
  • Page 5 HARDWARE PACK...
  • Page 6 HARDWARE PACK...
  • Page 7 HARDWARE PACK...

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches NOTE: It is strongly recommended this machine be assembled by two or more people to avoid possible injury. STEP 1 (See Diagram 1) A.) Attach two Ø 2 ½” Rubber Bumpers (#88) to the holes on the Main Base Frame (#1). B.) Align the holes and insert two Guide Rods (#10) into the holes.
  • Page 9 STEP 2 (See Diagram 2) A.) Connect the Main Base Frame (#1) to both the Front & Rear Stabilizers (#5 & 4). Secure each end with two M10 x 2 ¾” Carriage Bolts (#109), one 4 ¾” x 2” Bracket (#44), two (#124), and two M10 Aircraft Nuts (#128).
  • Page 10 STEP 3 (See Diagram 3) A.) Place the Swivel Frame (#11) onto the axle on the Main Base Frame (#1). Secure it with one M10 x ¾” Allen Bolt (#120) and Ø ¾” Washer (#124). B.) Attach the Foot Support (#12) to the Main Base Frame. Attach the 4” x 2” Bracket (#42) to the opposite side on the Main Base Frame.
  • Page 11 STEP 4 (See Diagram 4) A.) Attach the Butterfly Support Frame (#15) to the front of the Front Vertical Beam (#7). Attach the Butterfly Pulley Support (#16) to the back of the Front Vertical Beam (#7). Align the holes and secure them with two M10 x 3 ¾”...
  • Page 12 STEP 5 (See Diagram 5) A.) Install 19 Weight Plates (#58). To install the plates, hold the plate at an angle and place between the two Guide Rods (#10) then drop it down. Make sure the grooves on the plastic covers all face up.
  • Page 13 STEP6 (See Diagram 6) A.) Attach the Bench Press Base (#14) to the opening on the Rear Vertical Beam (#6). Carefully place two 1 ½” x Ø 1” Washers (#132) in between the Base and the Rear Vertical Beam. Align the holes and insert a 9”...
  • Page 14 STEP 7 (See Diagram 7) A.) Slide the Sliding Block (#37) onto the Main Seat Support (#2). Thread a Lock Knob (#87) into the hole on the Sliding Block to hold it in position. B.) Attach the rear end of Main Seat Support (#2) to the open bracket on the Front Vertical Beam (#7).
  • Page 15 STEP 8 (See Diagram 8) A.) Attach Backrest Board (#48) to the Front Vertical Beam (#7). Secure it with two M8 x 3 3/8” Allen Bolts (#115) and Ø 5/8” Washers (#125). B.) Attach the Adjustable Backrest Board (#49) to the Backrest Supports (#25). Secure it with four M6 x 1 3/8”...
  • Page 16 STEP 9 (See Diagram 9) A.) Attach the two Weight Stack Covers (#39) to the Top Socket Assembly (#9) and Main Base Frame (#1). Secure each Cover with two M10 x ¾” Allen Bolts (#120) and Ø ¾” Washers (#124). DIAGRAM 9...
  • Page 18 STEP 10 (See Cable Loop Diagram & Diagram 10) A.) Attach one end of the 143” Butterfly Cable (#56) to the Clip on the Butterfly Pulley Bracket (#17) on the right side. Draw the Cable to the Butterfly Pulley Support (#16). B.) Attach a Pulley (#66) to the open bracket.
  • Page 19 STEP 11 (See Cable Loop Diagram & Diagram 11) A.) Attach the 118” Upper Cable (#52) to the front opening on the Upper Frame (#8). Attach a Pulley to the opening. Secure the Pulley with one M10 x 2 ½” Allen Bolt (#117), two Ø 7/8” Pulley Bushings (#70), and one M10 Aircraft Nut (#128).
  • Page 20 DIAGRAM 11...
  • Page 21 STEP 12 (See Cable Loop Diagram & Diagram 12) A.) Attach the Ball-end of the 163” AB Cable (#55) to the opening on the Front Vertical Beam (#7). Attach a Pulley to the opening. Secure it with one M10 x 2 ½” Allen Bolt (#117), two Ø...
  • Page 22 DIAGRAM 12...
  • Page 23 STEP 13 (See Cable Loop Diagram & Diagram 13) A.) Attach one end of the 78” Bench Press Cable (#54) to a Single Floating Pulley Bracket (#35). Secure it with one M10 x 1” Allen Bolt (#114), two Ø ¾” Washers (#124), and one M10 Aircraft Nut (#128).
  • Page 24 STEP 14 (See Cable Loop Diagram & Diagram 14) A.) Attach the 163” Lower Cable (#53) to the Swivel Frame (#11). B.) Install a Pulley to the bracket on the Swivel Frame with one M10 x 1 ¾” Allen Bolt (#113), two Ø...

  • Page 26: Parts List

    2 3/8” x 2” Sleeve 2” x 1 ¾” Sleeve 2” Square End Cap 2” Stabilizer End Cap 2 3/8” x 1 5/8” End Cap (Impex) 2 2 ¾” x 2” End Cap 2” Square End Cap (Impex) 1 ½” Square End Cap (Impex) 1”...
  • Page 27 M10 x 7 ¼” Hex Bolt M6 x 1 5/8” Hex Bolt M6 x 1 3/8” Hex Bolt M10 x 1 ¾” Allen Bolt M10 x 1” Allen Bolt M8 x 3 3/8” Allen Bolt M10 x 3” Allen Bolt M10 x 2 ½”...

  • Page 28: Resistance Chart

    MACH IV WEIGHT RESISTANCE CHART Plate Curl Pulley * Numbers are approximate. Actual weights may vary. * Values for Butterfly are for each arm. High Butterfly Pulley Station Bench Press...

  • Page 29: Warranty

    IMPEX Customer Service Department at 1-800-999-8899. All freights on products returned to IMPEX must be prepaid by the customer. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an IMPEX authorized service center or for products used for commercial or rental purposes.

This manual is also suitable for:

Marcy magnum v
