Impex APEX II Owner's Manual

Impex APEX II Owner's Manual

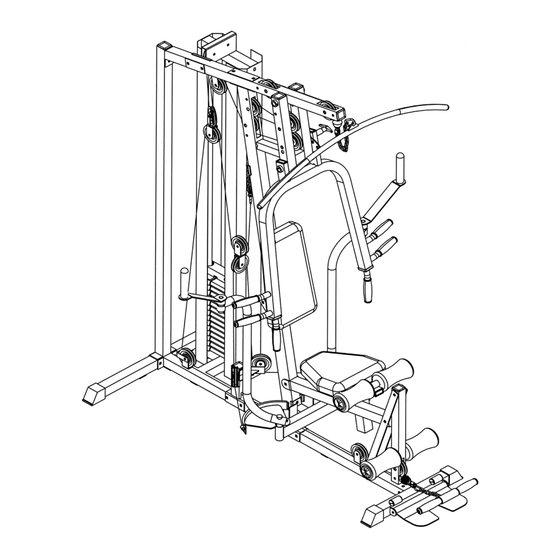

Marcy home gym

Advertisement

NOTE:
Please read all instructions
carefully before using this
product
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Resistance Chart
Warranty
Ordering Parts
Model
APEX II
Retain This
Manual for
Reference
08-14-01
OWNER'S
MANUAL
MARCY HOME GYM
IMPEX FITNESS PRODUCTS
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
APEX II

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APEX II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Impex APEX II

  • Page 1 NOTE: Please read all instructions carefully before using this product Safety Notice MARCY HOME GYM Hardware Identifier APEX II Assembly Instruction Parts List Resistance Chart Warranty Ordering Parts Model APEX II Retain This Manual for Reference 08-14-01 IMPEX FITNESS PRODUCTS OWNER'S 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746...
  • Page 2: Table Of Contents

    ORDERING PARTS..................………… 21 BEFORE YOU BEGIN Thank you for selecting the MARCY APEX II HOME GYM by IMPEX FITNESS PRODUCTS. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction.
  • Page 3: Important Safety Notices

    PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
  • Page 5: Assembly Instructions

    ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches, two Allen Wrenches, and one Flat Head Screwdriver. NOTE: It is strongly recommended this machine to be assembled by two or more people to avoid possible injury. STEP 1 (See Diagram 1) A.) Connect the Main Base Frame (#1) and Rear Vertical Beam (#4) to the Rear Stabilizer (#9).
  • Page 6 STEP 2 (See Diagram 2) A.) Place two Rubber Bumpers (#72) onto the Main Base Frame (#1). Align the holes and push two Guide Rods (#8) through the Bumpers into the Main Base Frame (#1). B.) Install fourteen Weight Plates (#42). To install the plate, hold the plate at an angle and place it in between the two Guide Rods then drop it down.
  • Page 7 STEP 3 (See Diagram 3) A.) Attach the Backrest Board (#23) to the Backrest Support (#16). Secure it with two M8 x 1 5/8” Allen Bolts (#89) and 5/8” Washers (#93). B.) Push two 1” Bushings (#70) to the holes on the Front Vertical Beam (#2) from both sides. Attach the Backrest Support (#16) to the holes.
  • Page 8 STEP 4 (See Diagram 4) A.) Attach two 1 5/8” x ¼” Bushings (#76) to the holes on the Upper Frame (#3). Attach the Front Press Base (#14) to the Bushings. Align the holes then insert a 7” Axle (#33) through the holes.
  • Page 9 STEP 5 (See Diagram 5) A.) Attach two 1 5/8” x ½” Bushings (#75) to the Front Press Base (#14). Attach the Front Press (#15) to the Base. Align the holes then insert a M12 x 10 ¾” Axle (#34) through the holes.
  • Page 10 STEP 6 (See Diagram 6) A.) Attach the Butterfly Base (#18) to the Front Vertical Beam (#2). Secure it with one 4 ¾” Bracket (#27), two M10 x 3 ½” Carriage Bolts (#78), ¾” Washers (#94), and M10 Aircraft Nuts (#96). B.) Insert the Right Butterfly (#21) through the right hole on the Butterfly Base.
  • Page 11 STEP 7 (See Diagram 7) A.) Place the Seat Pad (#22) onto the Seat Post (#13). Secure it with two M8 x 1 5/8” Allen Bolts (#89) and 5/8” Washers (#93). Insert the Seat Post (#13) into the opening on the Seat Support (#10).
  • Page 12 CABLE LOOP DIAGRAM...
  • Page 13 STEP 8 (See Diagram 8 & Cable Loop Diagram) A.) Attach the 174” Upper Cable (#36) to the opening at the front of the Upper Frame (#3). Note: The Ball Stopper on the cable should be underneath the Frame. B.) Attach a Pulley (#50) to the slotted opening. Then attach two 7/8”...
  • Page 14 DIAGRAM 8...
  • Page 15 STEP 9 (See Diagram 9 & Cable Loop Diagram) A.) Attach the 169” Lower Cable (#38) to the opening on the Leg Developer (#12). Place a Pulley (#50) in the opening. Secure it with one M10 x 2 3/8” Allen Bolt (#86), two 7/8”...
  • Page 16 DIAGRAM 9...
  • Page 17 STEP 10 (See Diagram 10 & Cable Loop Diagram) A.) Attach one end of the 87” Butterfly Cable (#37) to the clip on the Right Butterfly (#21). Draw the Cable to the right open bracket on the Butterfly Pulley Bracket (#19). B.) Attach a Pulley to the Bracket and secure it with one M10 x 1 ¾”...
  • Page 18 STEP 11 (See Diagram 11) A.) Attach a Long Chain (#45) to the Upper Cable (#36). Attach the Lat Bar (#26) to the Chain using a C-clip (#44). Adjust the length of the Chain to obtain desired Lat Bar exercise position. See How to Use on page 18. B.) Attach a Long Chain (#45) to the Lower Cable (#38).
  • Page 19: How To Use

    HOW TO USE How to use the quick release connector. The Clip is removed from the Connector. Connector Clip Place the chain in between the connector and insert the Clip through the holes. Chain Insert Push down the Clip to secure.
  • Page 20: Parts List

    Swivel Sleeve Rear Stabilizer 1” x 2” End Cap Seat Support 2” End Cap (Impex Logo) Front Support Frame 1 ¾” End Cap (Impex Logo) Leg Developer 1 ½” Round End Cap Seat Post 1 ¼” End Cap Front Press Base...
  • Page 22: Warranty

    IMPEX Customer Service Department at 1-800-999-8899. All freights on products returned to IMPEX must be prepaid by the customer. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an IMPEX authorized service center or for products used for commercial or rental purposes.
