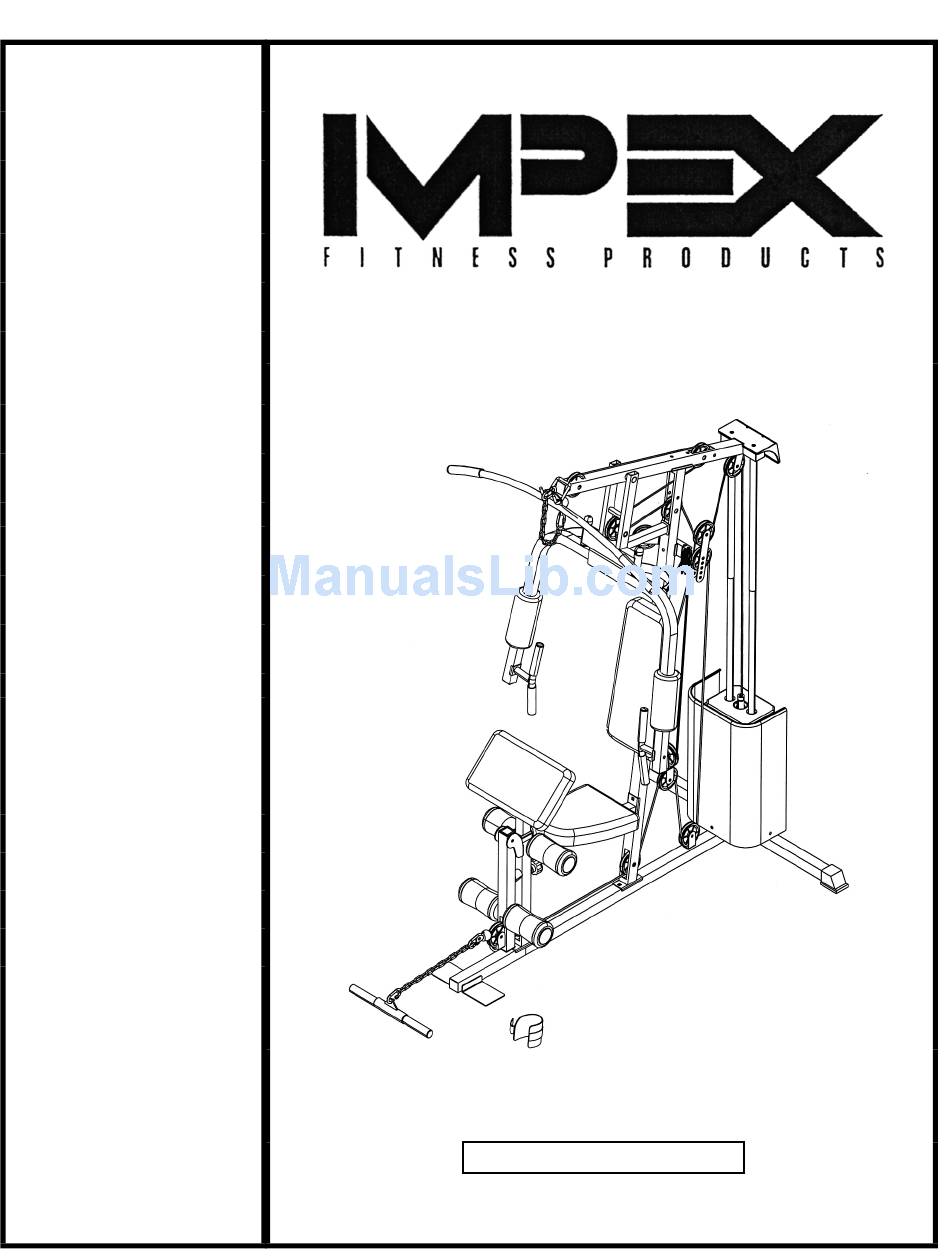

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Resistance Chart
Warranty
Ordering Parts
Model
MCH-1510
Retain This
Manual for
Reference
5-9-07
OWNER'S
MANUAL
Marcy Classic Home Gym
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
MCH-1510
IMPEX INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Marcy MCH-1510 and is the answer not in the manual?

Questions and answers

Steve Trank
July 12, 2025

how much do the 9 weight plates weigh?

0

Related Manuals for Impex Marcy MCH-1510

Summary of Contents for Impex Marcy MCH-1510

  • Page 1 NOTE: Please read all instructions carefully before using this product Table of Contents Safety Notice Marcy Classic Home Gym Hardware Identifier MCH-1510 Assembly Instruction Parts List Resistance Chart Warranty Ordering Parts Model MCH-1510 Retain This Manual for Reference 5-9-07 OWNER'S IMPEX INC.

  • Page 2: Table Of Contents

    WARRANTY....................…………. 21 ORDERING PARTS..................………… 21 BEFORE YOU BEGIN Thank you for selecting the Marcy Classic MCH-1510 HOME GYM by IMPEX FITNESS PRODUCTS. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction.

  • Page 3: Important Safety Notice

    IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: 1.

  • Page 4: Warning Label Replacement

    WARNING LABEL REPLACEMENT The warning labels shown here have been placed on the Rear Base and Upper Frame. If the labels are missing or illegible, please call customer service at 1-800-888-8899 for replacements. Apply the labels in the location shown.

  • Page 5: Hardware Pack

    HARDWARE PACK...
  • Page 6 HARDWARE PACK...
  • Page 7 HARDWARE PACK...

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches, two Allen Wrenches, and one Philips Screwdriver. NOTE: It is strongly recommended this machine to be assembled by two or more people to avoid possible injury. STEP 1 (See Diagram 1) A.) Connect two Lower Guide Rods (23) and two Upper Guide Rods (#24) with two M10 Stud Bolts (#80).
  • Page 9 DIAGRAM 1...
  • Page 10 STEP 2 (See Diagram 2) A.) Slide two Ø2 ½” x 1” Rubber Bumpers (#65) onto the Guide Rods. B.) Slide 9 Weight Plates (#33) onto the Guide Rods. Make sure the groove on the Weight Plates all facing the back of the machine and downward. Insert the Selector Rod (#17) through the center hole on the Weight Plates.
  • Page 11 DIAGRAM 2...
  • Page 12 STEP 3 (See Diagram 3) A.) Attach the Front Press Base (#11) to the Upper Frame (#4). Secure it with one Long Axle (#46), two Ø ¾” Washers (#83), and two M10 Aircraft Nuts (#85). B.) Attach the Right Butterfly (#6) to the Front Press Base (#11). Secure it with one Ø 1 ½” Washer (#82), one M6 x 1 ¼”...
  • Page 13 STEP 4 (See Diagram 4) A.) Attach the Leg Developer (#7) to the bracket on the Leg Developer Holder (#1). Secure it with a Leg Developer Axle (#47), two M10 x 5/8” Allen Bolts (#74), and two Ø ¾” Washers (#83).
  • Page 14 CABLE LOOP DIAGRAM...
  • Page 15 STEP 5 (See Diagram 5 & Cable Loop Diagram) A.) Attach the 142” Upper Cable (#35) to the opening at the front of the Upper Frame (#4). Note: The Ball Stopper on the cable should be underneath the Frame. B.) Attach a Pulley (#63) to the opening. Secure it with one M10 x 2 3/8” Allen Bolt (#71), two Pulley Bushings (#50), and one M10 Aircraft Nut (#85).
  • Page 16 DIAGRAM 5...
  • Page 17 STEP 6 (See Diagram 6 & Cable Loop Diagram) A.) Attach one end of the 119” Butterfly Cable (#37) to the hook on the Right Butterfly (#6). B.) Draw the Cable to the right Swivel Pulley Bracket (#21). C.) Attach a Pulley to the bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#72), two Ø ¾” Washers (#83), and one M10 Aircraft Nut (#85).
  • Page 18 STEP 7 (See Diagram 7 & Cable Loop Diagram) A.) Attach the 128” Lower Cable (#36) to the open bracket on the bottom of the Leg Developer (#7). B.) Attach a Pulley to the bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#72), two Ø ¾”...
  • Page 19 DIAGRAM 7...

  • Page 20: Parts List

    PARTS LIST KEY NO. DESCRIPTION Q’ty Leg Developer Holder Sleeve Rear Base Frame Handle Grip Lower Vertical Frame C-clip Upper Frame Poster Hanger Left Butterfly 1 ¾” Square End Cap Right Butterfly 1 5/8” x ¾” End Cap Leg Developer 1 ¾”...

  • Page 22: Warranty

    IMPEX INC. LIMITED WARRANTY IMPEX Inc. ("IMPEX") warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of two years on the Frame from the date of purchase. This warranty extends only to the original purchaser. IMPEX's obligation under this Warranty is limited to replacing or repairing, at IMPEX's option.
