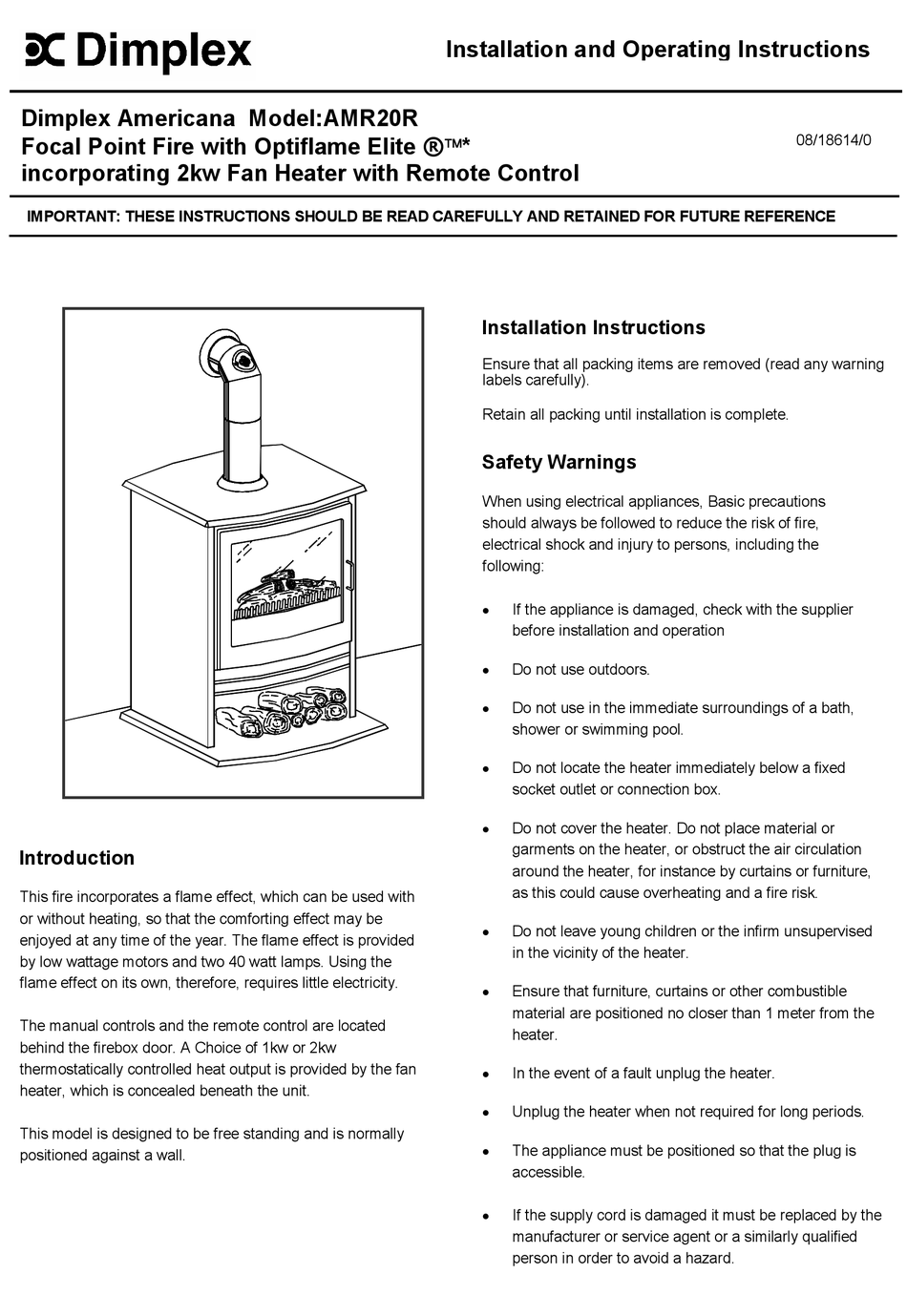

Dimplex Americana AMR20R Installation And Operating Instructions

Dimplex Americana Model:AMR20R
Focal Point Fire with Optiflame Elite ®*
incorporating 2kw Fan Heater with Remote Control
IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
Introduction
This fire incorporates a flame effect, which can be used with
or without heating, so that the comforting effect may be
enjoyed at any time of the year. The flame effect is provided
by low wattage motors and two 40 watt lamps. Using the
flame effect on its own, therefore, requires little electricity.
The manual controls and the remote control are located
behind the firebox door. A Choice of 1kw or 2kw
thermostatically controlled heat output is provided by the fan
heater, which is concealed beneath the unit.
This model is designed to be free standing and is normally
positioned against a wall.

Installation and Operating Instructions

Installation Instructions

Ensure that all packing items are removed (read any warning
labels carefully).
Retain all packing until installation is complete.

Safety Warnings

When using electrical appliances, Basic precautions
should always be followed to reduce the risk of fire,
electrical shock and injury to persons, including the
following:
•
If the appliance is damaged, check with the supplier
before installation and operation
•
Do not use outdoors.
•
Do not use in the immediate surroundings of a bath,
shower or swimming pool.
•
Do not locate the heater immediately below a fixed
socket outlet or connection box.
•
Do not cover the heater. Do not place material or
garments on the heater, or obstruct the air circulation
around the heater, for instance by curtains or furniture,
as this could cause overheating and a fire risk.
•
Do not leave young children or the infirm unsupervised
in the vicinity of the heater.
•
Ensure that furniture, curtains or other combustible
material are positioned no closer than 1 meter from the
heater.
•
In the event of a fault unplug the heater.
•
Unplug the heater when not required for long periods.
•
The appliance must be positioned so that the plug is
accessible.
•
If the supply cord is damaged it must be replaced by the
manufacturer or service agent or a similarly qualified
person in order to avoid a hazard.
08/18614/0
