Installation and User's Guide
We value your feedback!
Your input helps to create even better
products and experiences.
Share the warmth and leave a review.
dimplex.com/sharethewarmth
@DimplexNorthAmerica
IMPORTANT SAFETY INFORMATION:
Read this manual first before attempting to install or use this electric fireplace. Always comply with the
warnings and safety instructions contained in this manual to prevent personal injury or property damage.
To view the full line of Dimplex products, visit www.dimplex.com
7216930100R00

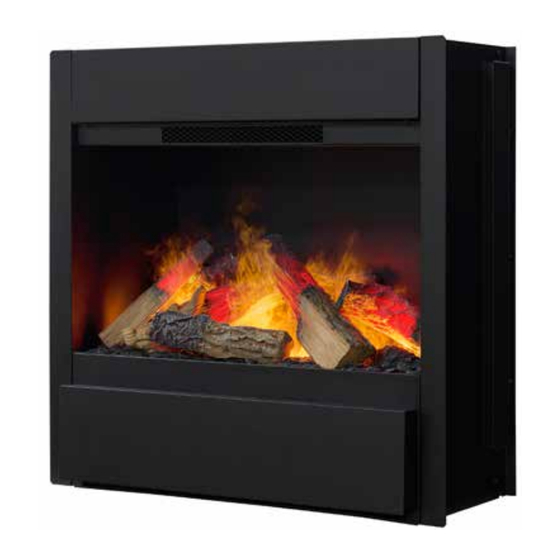

Revive
Model
ABN15-RGB-AM
Advertisement
Related Manuals for Dimplex Optimyst Revive ABN15-RGB-AM
Summary of Contents for Dimplex Optimyst Revive ABN15-RGB-AM
- Page 1 Read this manual first before attempting to install or use this electric fireplace. Always comply with the warnings and safety instructions contained in this manual to prevent personal injury or property damage. To view the full line of Dimplex products, visit www.dimplex.com 7216930100R00...
-
Page 2: Table Of Contents
Procedures and techniques techniques that are which, if not carefully which, if not carefully followed, considered important followed, will result in will expose the user to the risk enough to emphasize. damage to the equipment. of fire, serious injury, or death. www.dimplex.com... -
Page 3: Registration
If you have questions regarding the operation of this product or if you require service, before returning this product to the place of purchase. For technical support, contact us at: www .dimplex .com/support Toll-Free 1-888-346-7539 Please have your model number and product serial number ready. -
Page 4: Important Instructions
⑱ Regular cleaning and maintenance is required to contact Glen Dimplex Americas Technical ensure safe and correct operation. Service at 1-888-346-7539. ! NOTE: Changes or modifications not ⑦... - Page 5 IMPORTANT INSTRUCTIONS FCC Compliance WARNING: This product can expose you to chemicals including nickel which is known to CAUTION: This unit has been tested and found the State of California to cause cancer. For more to comply with the limits for Class B digital information, visit www.P65Warnings.ca.gov device, pursuant to part 15 of the FCC Rules.
-
Page 6: Technical Specifications
UL Listing File Number: E71416 Model Reference 500003863 ABN15-RGB-AM 6914220100 Product Dimensions " " 11.73 12.91 298 mm 328 mm " 25.20 640 mm " 11.89 " 302 mm " 24.93 22.24 633 mm 565 mm " 530 mm www.dimplex.com... -
Page 7: Installation
Installation Optimyst components Refillable water tank Top cover Transducer Water reservoir Optimyst features antimicrobial technology to inhibit the growth of bacteria by up to 99.99% (tested to ISO 22196 standard.) Regular cleaning and maintenance is required. Water quality • Normal clean tap water should be used. •... - Page 8 Similar to a candle, large movements of air will affect the unit’s ability to create and maintain the flame effect. Installation in a fireplace opening If fitting this product in an existing fireplace opening, the chimney should be professional cleaned and blocked off for safe and efficient operation. www.dimplex.com...
- Page 9 Installation Connect power supply WARNING: Use the appropriate wire to meet CAUTION: A dedicated, properly fused 15 local and national electrical codes for rated Amp circuit is recommended, rated for 120 V. power consumption. A dedicated circuit will be required if, after installation, the circuit breaker trips or fuse blows on a regular basis when the heater is WARNING: The installation of the electric...
- Page 10 1. Open the drawer and remove the water tank from its location on top of the water reservoir. 2. The tank should be filled with clean tap water only - Refer to Water Quality (page 7) for more details. 3. Close the drawer. www.dimplex.com...
- Page 11 Installation Install batteries in remote control The remote control is supplied with two AA batteries in a bag. Lift off the battery cover on the back of the remote control and insert the batteries taking note of the polarity. Customize flame effect Install either the spacers or the slotted inserts, depending on the desired appearance of the flame effect.
-
Page 12: Operation
NOTE: After a power interruption the fireplace will return to Standby mode and retain the previously used settings. Manual controls Follow remote control instructions to operate Power switch Note: This switch must be in the ‘ON’ ( I ) position for each appliance to operate Control panel: Open the drawer to access the control panel. www.dimplex.com... -
Page 13: Remote Control Operation
Operation Remote Control Operation NOTE: After a power interruption the fireplace will return to Standby mode and retain the previously used settings. Display Screen ‘Menu’ Button ‘Back’ Button ‘Advance’ Button(ADV) ‘Up and Down’ Arrows ‘Enter’ Button (Press to Activate the Remote) Navigation To use the functions, press menu and use the arrows until the desired selection is flashing. - Page 14 4. Press to set the Day, press 5. Press to set the Month, press 6. Press to set the Year, press 7. Press to select ON/OFF for the Daylight saving time, press Enter to confirm and returns to home screen. www.dimplex.com...
- Page 15 Operation This features will allow the product to turn on or off automatically at scheduled times. Four times slots are available throughout the day and these can be customised for each day of the week. To toggle the the timer schedule on or off, navigate to .
-
Page 16: Flame Connect Mobile App
2. Refill the water tank using filtered/decalcified water only. 3. The tank can then be replaced on top of the water reservoir. 4. If the product was not switched into stand-by mode after experiencing low later, the product will restart automatically after about 20 seconds of refilling. www.dimplex.com... -
Page 17: Maintenance
If cleaning does not improve the performance of the flame effect, replacement of the transducer may be required. This unit comes with replacement transducers. Additional transducers may be purchased at www.dimplex.com/replacement-parts (9601210100RP). NOTE: To remove the transducer, release the retaining tab in the water reservoir and remove transducer. -
Page 18: Troubleshooting
Troubleshooting For more troubleshooting, consult the service manual which can be found at www.dimplex.com/customer_support/technical_and_troubleshooting Problem Cause Solution Power switch is not on Ensure the power switch is on. Ensure unit is wired correctly. Fireplace does not turn on with the No incoming power Check main disconnect panel. - Page 19 Troubleshooting Problem Cause Solution Transducer not operating correctly Check operation of transducer Transducer is dirty Clean water reservoir and transducer Switch off product, take nozzle Transducer is not sitting correctly in off water reservoir and ensure transducer is fitted in water reservoir water reservoir correctly Little or no mist generation...
-
Page 20: Wiring Diagram
Wiring Diagram ELEMENT ELEMENT HEATER MOTOR REVIVE www.dimplex.com... -
Page 21: Warranty
OPTI-MYST REVIVE™ 2-YEAR LIMITED WARRANTY charge. If Glen Dimplex Americas is unable to repair or Section 1 Products to which this Limited Warranty replace such product or part, or if repair or replacement... - Page 22 For additional information, visit www .flame-connect .com Available in the App Store and Google Play 1-888-346-7539 | www.dimplex.com In keeping with our policy of continuous product improvement, we reserve the right to make changes without notice. © 2024 Glen Dimplex Americas...
