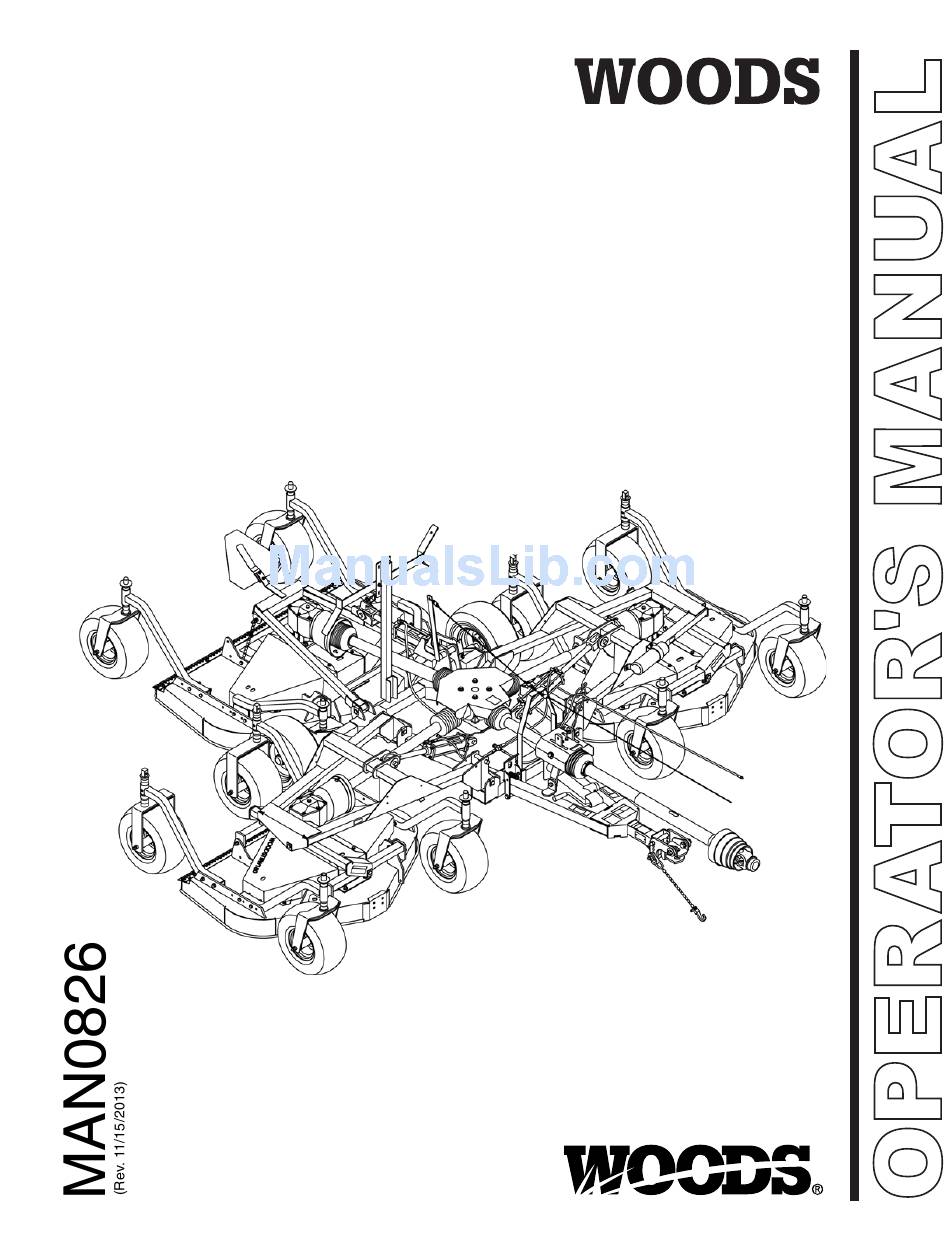

  • Page 1 TURF BATWING ® TBW144 TBW180 TBW204...

  • Page 2: Introduction

    TO THE OWNER: Read this manual before operating your Woods equipment. The information presented will prepare you to do a better and safer job. Keep this manual handy for ready reference. Require all operators to read this manual carefully and become acquainted with all adjustment and operating procedures before attempting to operate.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ..........2 SPECIFICATIONS.

  • Page 4: General Information

    GENERAL INFORMATION ARNING experience and these instructions, you should be able to develop procedures suitable to your particular situa- tion. ■ Some illustrations in this manual show the The illustrations and data used in this manual were cur- mower with safety shields removed to provide a rent at the time of printing.

  • Page 5: Safety Rules

    SAFETY RULES ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! PREPARATION Safety is a primary concern in the design and  Check that all hardware is properly installed. manufacture of our products. Unfortunately, our efforts to provide safe equipment can be wiped Always tighten to torque chart specifications out by an operator’s single careless act.
  • Page 6 SAFETY RULES ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! imum transport speed. Doing so could result in: (Safety Rules continued from previous page) • Loss of control of the implement and tractor  Before starting power unit, check all equipment •...
  • Page 7 SAFETY RULES ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!  Do not operate or transport equipment while  Always connect safety chain from equipment to under the influence of alcohol or drugs. towing vehicle when transporting.  Operate only in daylight or good artificial light. MAINTENANCE ...
  • Page 8 SAFETY RULES ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!  When lubricating telescoping PTO drives, keep (Safety Rules continued from previous page) fingers out of shield access slots to prevent injury.  Tighten all bolts, nuts, and screws to torque chart specifications.

  • Page 9: Safety Decals

    Replacement safety decals can be ordered free from your Woods dealer. To locate your nearest dealer, check the Dealer Locator at www.WoodsEquipment.com, or in the United ROTATING BLADES AND States and Canada call 1-800-319-6637.
  • Page 10 SAFETY & INSTRUCTIONAL DECALS ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! Replace Immediately If Damaged! 16 - 38446 WING DECK IMPORTANT • OPERATING MOWERS AT RAISED ANGLES EXCEEDING 25 WILL CREATE U-JOINT KNOCKING NOISE AND DAMAGE DRIVELINE. FAILURES RESULTING FROM THIS OPERATION WILL NOT BE COVERED BY WARRANTY.
  • Page 11 SAFETY & INSTRUCTIONAL DECALS ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! Replace Immediately If Damaged! WARNING PIN STORAGE POSITION RAISED MOWER CAN DROP AND CRUSH Before working underneath rear mower: Raise rear mower to transport position. Insert pin to lock transport latch. Securely block up rear of mower.
  • Page 12 SAFETY & INSTRUCTIONAL DECALS ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! Replace Immediately If Damaged! TBW144, TBW180, & TBW204 TRAILER 18 - 1002941 WARNING WARNING TO AVOID SERIOUS INJURY OR DEATH: CRUSHING AND Read Operator's Manual (available from dealer) and follow all safety PINCHING HAZARD precautions.

  • Page 13: Operation 13

    OPERATION  Make sure spring-activated locking pin or collar The operator is responsible for the safe operation of the cutter. The operator must be properly trained. slides freely and is seated firmly in tractor PTO spline groove. Operators should be familiar with the cutter, the tractor, and all safety practices before starting operation.

  • Page 14: Leveling Mower

    CV Driveline Turning Limits The PTO drive shaft is intended for use with tractors that have 14 inches between the end of the PTO shaft NOTICE and the tractor's drawbar hitch pin hole. ■ Do not exceed turning angle of 80 degrees at 3.

  • Page 15: Cutting Height Adjustment

    4. Set mower on the ground. 5. Retighten screws. This equalizes clearance in the bolt holes. 6. Best mowing results will be obtained with front of mower level with, or slightly lower than, the rear. 7. Cutting height is controlled with front and rear caster wheel adjustment.

  • Page 16: Starting And Stopping Mower

    TRANSPORT 3. Pull the transport lock release rope to disengage the locks. Lower the wings and rear deck and When transporting the mower short distances, raise release the rope. the wings and the rear deck until all three transport locks engage automatically. STARTING AND STOPPING MOWER ARNING Install locking pins to secure the mower wings for...

  • Page 17: Operating Technique

    When engaging the PTO, engine rpm should always be Extremely tall material should be cut twice. Set mower low. Once engaged and ready for mowing, increase at a higher cutting height for the first pass. Then cut at PTO speed to 540 rpm and maintain speed throughout desired height 90 degrees to the first pass.
  • Page 18 PRE-OPERATION CHECK LIST NOTES (OWNER's RESPONSIBILITY) ___ Review and follow all safety rules and safety decal instructions on pages 5 through 12. ___ Check that all safety decals are installed and in good condition. Replace if damaged. ___ Check that all shields and guards are properly installed and in good condition.

  • Page 19: Owner Service 19

    OWNER SERVICE The information in this section is written for operators who possess basic mechanical skills. If you need help, CAUTION your dealer has trained service technicians available.  Always wear relatively tight and belted clothing For your protection, read and follow the safety informa- tion in this manual to avoid getting caught in moving parts.

  • Page 20: Lubrication Information

    LUBRICATION INFORMATION Be sure to clean fittings thoroughly before attaching grease gun. When applied according to the lubrication chart, one good pump of most guns is sufficient. Use CAUTION SAE 90W gear lube in gearboxes.  When lubricating telescoping PTO drives, keep Daily lubrication of PTO slip joints is necessary.
  • Page 21 DESCRIPTION FREQUENCY Caster Wheel Pivots 8 Hours Caster Wheel Hubs 8 Hours Blade Spindles 24 Hours Gearbox (Fill 1/2 full with Check For Leaks Daily SAE 90W gear lube Driveline U-Joints 8 Hours Wing Pivots 8 Hours Telescoping Shaft 8 Hours Shield Bearing 8 Hours Deck Pivot...

  • Page 22: Belt Service

    BELT SERVICE CAUTION Belt Replacement One of the major causes of belt failure is improper  Use care when installing or removing belt from installation. Before installing a new belt, check the fol- spring-loaded idler. Springs store energy when lowing: extended and, if released suddenly, can cause per- sonal injury.
  • Page 23 BLADE SHARPENING NOTICE ■ When sharpening blades, be sure to balance them. Unbalanced blades will cause excessive vibration that can damage blade spindle bearings. Vibration may also cause structural cracks in mower housings. 1. Remove blades. 2. Always sharpen both ends to maintain balance. 3.

  • Page 24: Periodically Or Before Extended Storage

    2. Blade ● Sand down scratches and the edges of areas of missing paint and coat with Woods spray paint of 3. Screw, HHCS 1/2 NC x 1-1/2 matching color (purchase from your Woods dealer). 4. Nut, flange lock 1/2 NC ●...

  • Page 25: Troubleshooting

    TROUBLESHOOTING MOWING CONDITIONS PROBLEM POSSIBLE CAUSE SOLUTION Grass cut higher in center of Height of mower higher at front Adjust mower height and attitude so that swath than at edge than at rear mower rear and front are within 1/2 inch of same height.

  • Page 26: Belt Conditions

    TROUBLESHOOTING BELT CONDITIONS PROBLEM POSSIBLE CAUSE SOLUTION Belt slippage Mower overloading; material too Reduce tractor ground speed but tall or heavy maintain full PTO rpm. Cut material twice, one high pass and then mow at desired height. Cut 90 degrees to first pass. Oil on belt from over-lubrication Be careful not to over-lubricate.

  • Page 27: Dealer Service 27

    DEALER SERVICE The information in this section is written for dealer ser- 4. Disassemble split taper bushing (5) (located on top vice personnel. The repair described here requires of pulley) by removing the two bolts (2) and special skills and tools. If your shop is not properly washers (4).
  • Page 28 Spindle Disassembly 3. Place bottom bearing cone into spindle with taper positioned to mate with cup. 1. Place spindle assembly in press and press shaft 4. Identify the open side of the seal containing the down through housing. spring. 2. Remove seals from housing. 5.

  • Page 29: Spindle Installation

    13. Apply a thin coat of Permatex to shaft area where 7. Remove four bolts (63) and lock nuts (59) that sleeve will seat. attach gearbox to gearbox stand and remove gearbox. 14. Install sleeve on shaft and press sleeve and bearing into housing until all free play is removed and there is a very light drag on bearings (similar to adjusting front wheel bearings on an automobile).

  • Page 30: Seal Installation

    Leakage can occur at the vertical or horizontal gaskets and shaft seals. Leakage at the horizontal gasket or seal can be repaired without removing the gearbox from the cutter. Seal Installation NOTE: Proper seal installation is important. An improp- erly installed seal will leak. 1.
  • Page 31 5. Remove vertical shaft seal (18). Replace with new 14. Remove bearing (26) by using a punch and seal (see Seal Replacement, page 29). hammer from the top, outside the housing. 15. Support housing upside down (top cover surface) Vertical seal should be recessed in housing. Horizontal and remove bearing (6) by using a punch and seal should be pressed flush with outside of housing.

  • Page 32: Universal Joint Repair

    12. While holding gear (1) in place, slide input shaft (3) 5. Replace driveline shield. Attach driveline to through gear (1) and bearing (7). Align splines on gearbox. shaft (3) and gear (1). 13. Slide spacer (12) over input shaft (3) and press 1.
  • Page 33 2. With snap rings removed, support drive in vise, U-Joint Assembly hold yoke in hand and tap on yoke to drive cup up 1. Place seals securely on bearing cups. Insert cup out of yoke. See Figure 23. into yoke from outside and press in with hand pressure as far as possible.

  • Page 34: 34 Assembly

    ASSEMBLY INSTRUCTIONS DEALER SET-UP INSTRUCTIONS The mower is shipped mostly assembled but requires dealer set-up. The Woods dealer should deliver the mower to the owner completely assembled, lubricated, and adjusted for normal conditions. Recommended torque values for hardware are located on page 67.

  • Page 35: Optional Equipment

    7. Extra slack in the light wires should be located near Attach the mower hydraulic hose to the tractor port. Hydraulic quick coupler is not supplied. the wiring harness. Make sure wires cannot become entangled in driveline or hydraulic cylinder. Secure wires to frame tubes above cylinder and NOTE: The mower hydraulic system should have been lock with cable ties.
  • Page 36 Front Roller Kit Installation -- Roller Kit, Front Complete 2. 1/2 NC Flange Lock Nut 3. 1/2 NC x 9 HHCS GR5 4. Flat Washer, 1/2 SAE 5. Carriage Bolt, 3/8 NC x 1 6. Flanged Whiz Nut, 3/8 NC 7.
  • Page 37 Hydraulic Latch Release Installation 1. Release Base 2. Slide Channel 3. 3-1/2 x 8 Hydraulic Cylinder 4. Bushing 5. Elbow 6. Hose, 108” 7. Pin 1 x 4.08 8. Cotter Pin 9. Flat Washer, 1” 10. 3/8 NC x 1 HHCS GR5 11.
  • Page 38 TBW180 & TBW204 Mulching Kit 1. 1/2 NC x 1-1/4 HHCS GR5 2. 1/2 NC Flange Lock Nut Figure 34. Mulching Kit Installation NOTE: Use high lift blades for best performance if tractor does not have enough horsepower for the high lift blades, then use low lift blades.
  • Page 39 NOTES Assembly 39 MAN0826 (8/31/2010)

  • Page 40: Dealer Check Lists

    DEALER CHECK LISTS PRE-DELIVERY CHECK LIST DELIVERY CHECK (DEALER’S RESPONSIBILITY) (DEALER’S RESPONSIBILITY) Inspect the equipment thoroughly after assembly to ___ Show customer how to make adjustments and ensure it is set up properly before delivering it to the select proper PTO speed. customer.

  • Page 41: Parts Lists

    PARTS INDEX Turf Batwing Mowers: TBW144, TBW180, & TBW204 COMMON PARTS MAIN FRAME ASSEMBLY......... . . 42 - 43 TRAILER ASSEMBLY .
  • Page 42 TBW144, TBW180 & TBW204 MAIN FRAME ASSEMBLY (Rev. 11/15/2013) 42 Parts MAN0826 (8/31/2010)
  • Page 43 TBW144, TBW180 & TBW204 MAIN FRAME ASSEMBLY PART DESCRIPTION PART DESCRIPTION ----- 1 Trailer assembly (see page 44) 38294 1 Rope, .25 x 46.0 ----- 1 Right wing assembly (see page 47) 1031166 2 Hydraulic cylinder 3 x 10 (see page 61) ----- 1 Left wing assembly (see page 47) 29474 1...
  • Page 44 TBW144, TBW180 & TBW204 TRAILER ASSEMBLY (Rev. 11/15/2013) 44 Parts MAN0826 (8/31/2010)
  • Page 45 TBW144, TBW180 & TBW204 TRAILER ASSEMBLY PART DESCRIPTION PART DESCRIPTION 1031780 Wing stop, TBW144 -or- ----- 1 Trailer frame 1038403 Rear wing stop, TBW180 -or- 1009501 1 Hitch, Cat 1 -or- 1038184 Rear wing stop, TBW204 1009502 1 Hitch, Cat 2 -or- 11606 1 Pin, Spirol 3/8 x 1-1/2 1003635 1...
  • Page 46 TBW144, TBW180 & TBW204 WING FRAME TBW144 TBW180 TBW204 DESCRIPTION 1032460 1032480 1032490 Frame, right wing 1032461 1032481 1032491 Frame, left wing 1032451 1032455 1032455 Link, wing deck lift 40895 40895 40887 Trunnion, front deck 40896 40896 40888 Trunnion, rear deck 1026530 1026530 1026530 Manual tube 71444...
  • Page 47 TBW144 CENTER DECK TBW180 & TBW204 CENTER & WING DECK ASSEMBLY PART DESCRIPTION PART DESCRIPTION 1002048 Clutch Shield 1031795 1 5’ Mower Deck (TBW144 Rear, TBW180 Wings) 35141 Ring, Retaining Int .062 x 1.56 1031796 1 6’ Mower Deck (TBW180 Rear, TBW204 All) 1266 Pin, Cotter 3/16 x 1-1/2 1001244 1...

  • Page 48: Tbw144 Wing Deck Assembly

    TBW144 WING DECK ASSEMBLY PART DESCRIPTION PART DESCRIPTION 35141 2 Ring, Retaining Int .062 x 1.56 1031800 1 4’ Mower Deck, RH -or- 1266 * Pin, Cotter 3/16 x 1-1/2 1031801 1 4’ Mower Deck, LH 35155 * Washer, Flat 5/16 SAE 40930 1 V-Belt, W80 2472 * Lock Washer, 5/16 ---------- 3 CW Spindle assembly (See page 58)

  • Page 49: Hub & Axle Assembly

    HEIGHT ADUSTMENT POST PART DESCRIPTION Caster Arm, RH (TBW144) - or - 58993 1 1031754 1 Caster Arm, RH (TBW180, TBW204) Caster Arm, LH (TBW144) - or - 58994 1 1031755 1 Caster Arm, LH (TBW180, TBW204) 58998 1 Sleeve, Drid .81 x 1.25 x 8.00 58999 1 Wear Pad 15134 1...
  • Page 50 CASTER ARM & WHEEL ASSEMBLY 50 Parts MAN0826 (8/31/2010)
  • Page 51 CASTER ARM & WHEEL ASSEMBLY TBW144 TBW180 & TBW204 PART DESCRIPTION PART DESCRIPTION 1 WP1031703G 1 Wheel, Gray 18.00 x 9.50 x 8 1 WP38267G 1 Wheel, Gray 15.00 x 6.00 x 6 1031819 Wheel Rim 9.50 x 8 w/cups 38476 Wheel Rim 6.00 x 6 w/cups Grease fitting, 1/8 pipe thread...

  • Page 52: Wing Gearbox Assembly

    WING GEARBOX ASSEMBLY PART DESCRIPTION 1002499 1 Gearbox Repair Assembly 57458 1 Gear Crown Z25 M5.3 Gearbox Housing 1005320 1 Shaft, Input 1-3/8 -6 1005321 1 Shaft, Output 1-1/4 57491 1 Pinion Gear Z13 M5.3 57476 1 Bearing 57462 1 Bearing 20888 1 Washer, Protective Flat...
  • Page 53 BLADE & SPINDLE ASSEMBLY PART DESCRIPTION 37009 Nut, Jam 7/8 NF 10378 Screw HHCS 1/4 NC x 1 GR5 52898 Washer, Lock .929 x 1.66 1985 Washer, Lock 1/4 34440 Bushing, H 1 Strt bore w/key 12622 Sheave, H 1 BK 5.0 PD (TBW144 Wing Deck, TBW180 Rear Deck, TBW204 Wing &...

  • Page 54: Tbw180 & Tbw204 Front Roller Assembly (Optional)

    TBW144 REAR DECK AND TBW180 & TBW204 FRONT ROLLER ASSEMBLY (OPTIONAL) PART DESCRIPTION 1006417KT Front roller kit, complete (one per deck) 11900 * 1/2 NC Flanged lock nut 38107 1/2 NC x 9 Cap screw GR5 3598 1/2 Flat washer SAE 6697 * 3/8 NC x 1 Carriage bolt 70069...

  • Page 55: Rear Roller Assembly (Optional)

    REAR ROLLER ASSEMBLY (OPTIONAL) PART DESCRIPTION 1031818 Kit, TBW Rear Roller 1029865 Rear Roller 1031723 Rear Roller Bracket 12305 1/2 NC x 5-1/2 HHCS GR5 3598 * 1/2 Flat washer SAE 11900 * 1/2 NC Flange Lock Nut 6697 * 3/8 NC x 1 Carriage Bolt GR5 14350 * 3/8 NC Flange Lock Nut...
  • Page 56 TBW144, TBW180 &TBW204 REAR & WING DECK DRIVES 56 Parts MAN0826 (8/31/2010)
  • Page 57 TBW144, TBW180 & TBW204 REAR & WING DECK DRIVES TBW144 Wing Drive TBW180 Wing Drive PART DESCRIPTION PART DESCRIPTION 1023226 Drive, Cmpl 40, 21.3 x 32.3 1023227 Drive, Cmpl 40, 25.6 x 40.9 1026999 Complete collar yoke C12 1026999 1 Complete collar yoke C12 36990 U-Joint Repair Kit 50...
  • Page 58 TYPE A - CV DRIVE ASSEMBLY PART DESCRIPTION PART DESCRIPTION 1021100 Drive, Cmpl CV 35R, 35.0 x 47.6 18864 1 Decal, danger rotating driveline 19851 Slide lock repair kit 1021302 1 Outer shield CV 1021301 Yoke QD CV 1-3/8 - 6 1021303 1 Inner shield CV 52520...
  • Page 59 TYPE B - CV DRIVE ASSEMBLY PART DESCRIPTION PART DESCRIPTION 1021100 Drive, Cmpl CV 35R, 35.0 x 47.6 18864 1 Decal, danger rotating driveline 19851 Slide lock repair kit 1021302 1 Outer shield CV 1032289 Yoke QD CV 1-3/8 - 6 1021303 1 Inner shield CV 1032290...

  • Page 60: Jackshaft Drive Assembly

    JACKSHAFT DRIVE ASSEMBLY PART DESCRIPTION PART DESCRIPTION 1011759 Complete jackshaft drive assembly 30922 6 Retainer, shield 1028775 Complete collar yoke 1011757 1 Centering ring 36990 U-Joint repair kit 1011755 1 Inner bearing ring 1011756 Yoke, outer 1011754 1 Shield, complete (includes 5, 6, 7 & 8) 1001330 Flexible pin 1001340 1...
  • Page 61 HYDRAULIC CYLINDERS Note: The center deck uses a 3 x 8 cylinder. Wing decks use a 3 x 10 cylinder. Verify cylinder size before ordering replacement parts. 3 x 8 3 x 10 PART PART DESCRIPTION 29474 1031166 Complete cylinder 19810 19810 Seal repair kit (includes items 2A - 2G...

  • Page 62: Light Kit (Optional)

    LIGHT KIT (OPTIONAL) PART DESCRIPTION 1031385 TBW Light kit 90401149 1 Light, 4 pin right 90401150 1 Light, 4 pin left 1031386 2 Light bracket 1031388 2 Blank .16 x 4.00 x 4.00 1004479 1 Wire harness 31138 3/8 NC x 3-1/2 HHCS GR5 14350 3/8 NC Flange lock nut 10378...

  • Page 63: Skid Shoe Kit (Optional)

    SKID SHOE KIT (OPTIONAL) Mower Deck DIM “A” TBW144 Wing Deck (Outside) 18.75 TBW144 Wing Deck (Inside) TBW144 Rear Deck 7.25 TBW180 Wing Deck 7.25 TBW180 Rear Deck 9.50 TBW180 All Decks INSTALLATION INSTRUCTION PART DESCRIPTION 10041111 Skid shoe kit 1.
  • Page 64 ANTI STREAKING KIT (OPTIONAL) Mower Deck Position “A” Position B TBW144 Wing Deck 27-15/16 36-3/4 TBW144 Rear Deck 24-9/16 33-7/16 TBW180 Wing Deck 24-9/16 33-7/16 TBW180 Rear Deck 27-15/16 36-3/4 TBW180 All Decks 27-15/16 36-3/4 INSTALLATION INSTRUCTION PART DESCRIPTION 1004116 Anti-Streaking kit (TBW) 1.
  • Page 65 TBW180 & TBW204 MULCHING KIT (OPTIONAL) NOTE: Use high lift blades for best performance if tractor does not have enough horsepower for the high lift blades, then use low lift blades. PART DESCRIPTION 1019430 5’ Deck Mulching Kit (TBW180 Wings) 1019431 6’...

  • Page 66: Hydraulic Latch Release Kit (Optional)

    HYDRAULIC LATCH RELEASE KIT (OPTIONAL) INSTALLATION INSTRUCTION PART DESCRIPTION 1032454 TBW Hydraulic Latch Release Kit 1. Remove four 1/3 NC x 2 hex head cap screws and 1032479 1 Release Base 1/2” flat washers from top of shield on trailer. 1032489 1 Slide Channel 2.

  • Page 67: Bolt Torque Chart

    BOLT TORQUE CHART Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific application. Fasteners must always be replaced with the same grade as specified in the manual parts list. Always use the proper tool for tightening hardware: SAE for SAE hardware and Metric for metric hardware. Make sure fastener threads are clean and you start thread engagement properly.

  • Page 68: Bolt Size Chart & Abbreviations

    BOLT SIZE CHART NOTE: Chart shows bolt thread sizes and corresponding head (wrench) sizes for standard SAE and metric bolts. SAE Bolt Thread Sizes 5/16 Metric Bolt Thread Sizes 10MM 12MM 14MM 16MM 18MM ABBREVIATIONS AG .............. Agriculture MPa ............Mega Pascal ASABE ....American Society of Agricultural &...

  • Page 69: Index

    INDEX Adjustments Check List Pre-Operation (Owners Responsibility) Cutting Height Cutting Height Adjustment Leveling Mower CV Driveline Turning Limits Assembly Leveling Mower Optional Equipment Operating Skid Shoe Kit On Uneven Terrain Dealer Check List Technique Delivery Check (Dealer’s Responsibility) Tips Pre-Delivery Check List (Dealer’s Responsibility) Removing Mower from Tractor Start and Stop Mower Dealer Service...
  • Page 70 BW180HD, BW1260, BW1800, BW240, BW240HD, DS1260, DSO1260, DS1440, TS1680 Under no circumstances will this Warranty apply in the event that the product, in the good faith opinion of WOODS, has been subjected to improper operation, improper maintenance, misuse, or an accident. This Warranty does not apply in the event that the product has been materially modified or repaired by someone other than WOODS, a WOODS authorized dealer or distributor, and/or a WOODS authorized service center.
  • Page 71 ©2002 Woods Equipment Company. All rights reserved. WOODS, the Woods logo, and "Tested. Proven. Unbeatable." are trademarks of Woods Equipment Company. All other trademarks, trade names, or service marks not owned by Woods Equipment Company that appear in this manual are the property of their respective companies or mark holders.
  • Page 72 © 2011 Woods Equipment Company. All rights reserved. WOODS, the Woods logo, and "Tested. Proven. Unbeatable." are trademarks of Woods Equipment Company. All other trademarks, trade names, or service marks not owned by Woods Equipment Company that appear in this manual...
