How to install the belt. on the RM550
1 comments:
Mr. Anderson
March 11, 2025
To install the belt on the Woods RM550, follow these steps:
1. Remove Belt Shields – Take off the belt shields for access. 2. Position Belt on Drive Pulley – Ensure the belt is on drive pulley “A.” 3. Route the Belt – Guide the belt around idler “F” and connect the idler spring to the lug on the deck. 4. Thread Belt Around Pulleys – Route the belt around pulley “B,” idler “C,” and pulley “D” as shown in the diagram (if available). 5. Use Spring-Loaded Idler – Pull the spring-loaded idler with the belt to get enough slack to route it over pulley “C.” 6. Check Idler Movement – Ensure the spring-loaded idler pivots freely with the belt installed. 7. Adjust Belt Guide – Set belt guide “G” to provide a clearance of 1/16” to 1/8” from the belt. 8. Tighten Bolt – Secure the bolt on the belt guide to 85 lbs.-ft.
Ensure all components are properly aligned and the belt moves freely before operating the mower.
Need help?
Do you have a question about the RM550 and is the answer not in the manual?
Questions and answers
How to install the belt. on the RM550
To install the belt on the Woods RM550, follow these steps:
1. Remove Belt Shields – Take off the belt shields for access.
2. Position Belt on Drive Pulley – Ensure the belt is on drive pulley “A.”
3. Route the Belt – Guide the belt around idler “F” and connect the idler spring to the lug on the deck.

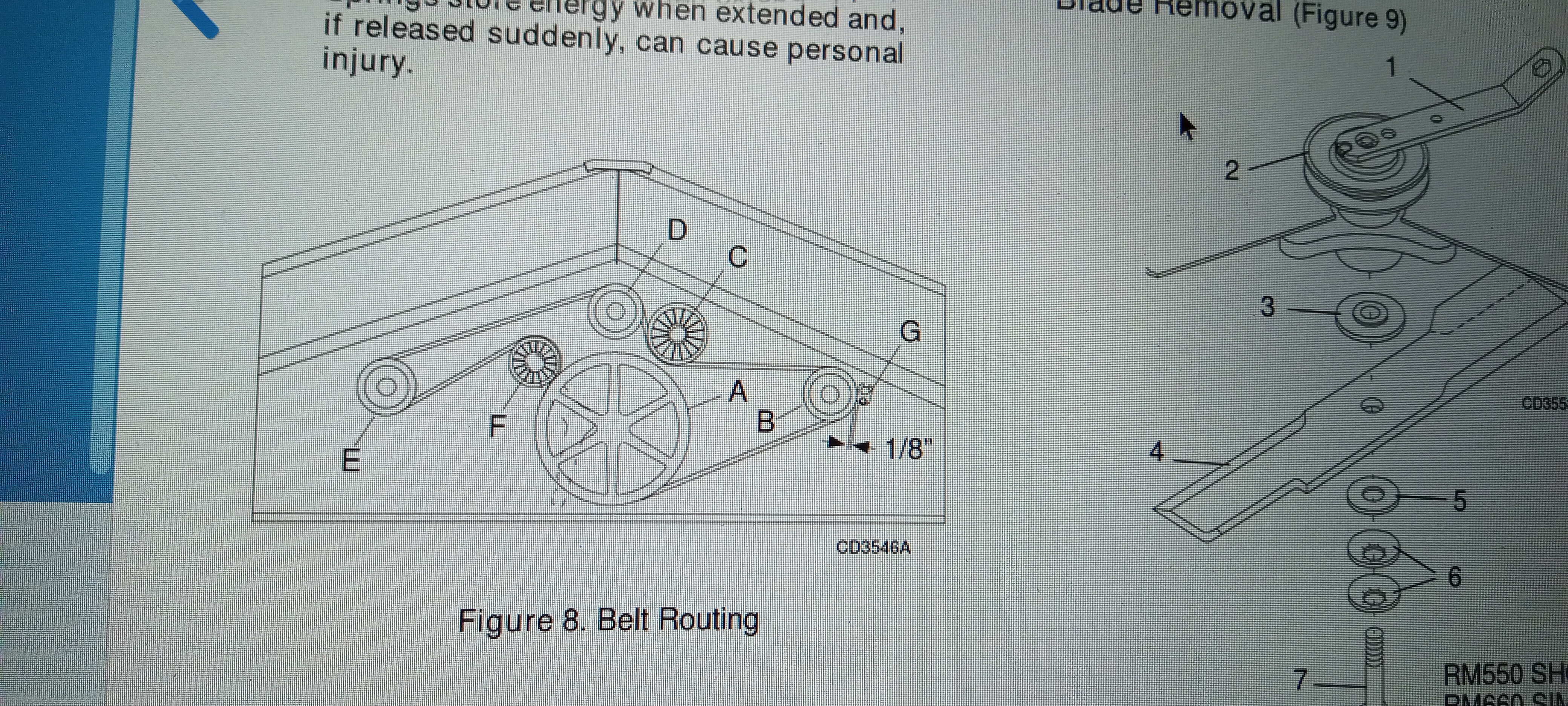

4. Thread Belt Around Pulleys – Route the belt around pulley “B,” idler “C,” and pulley “D” as shown in the diagram (if available).
