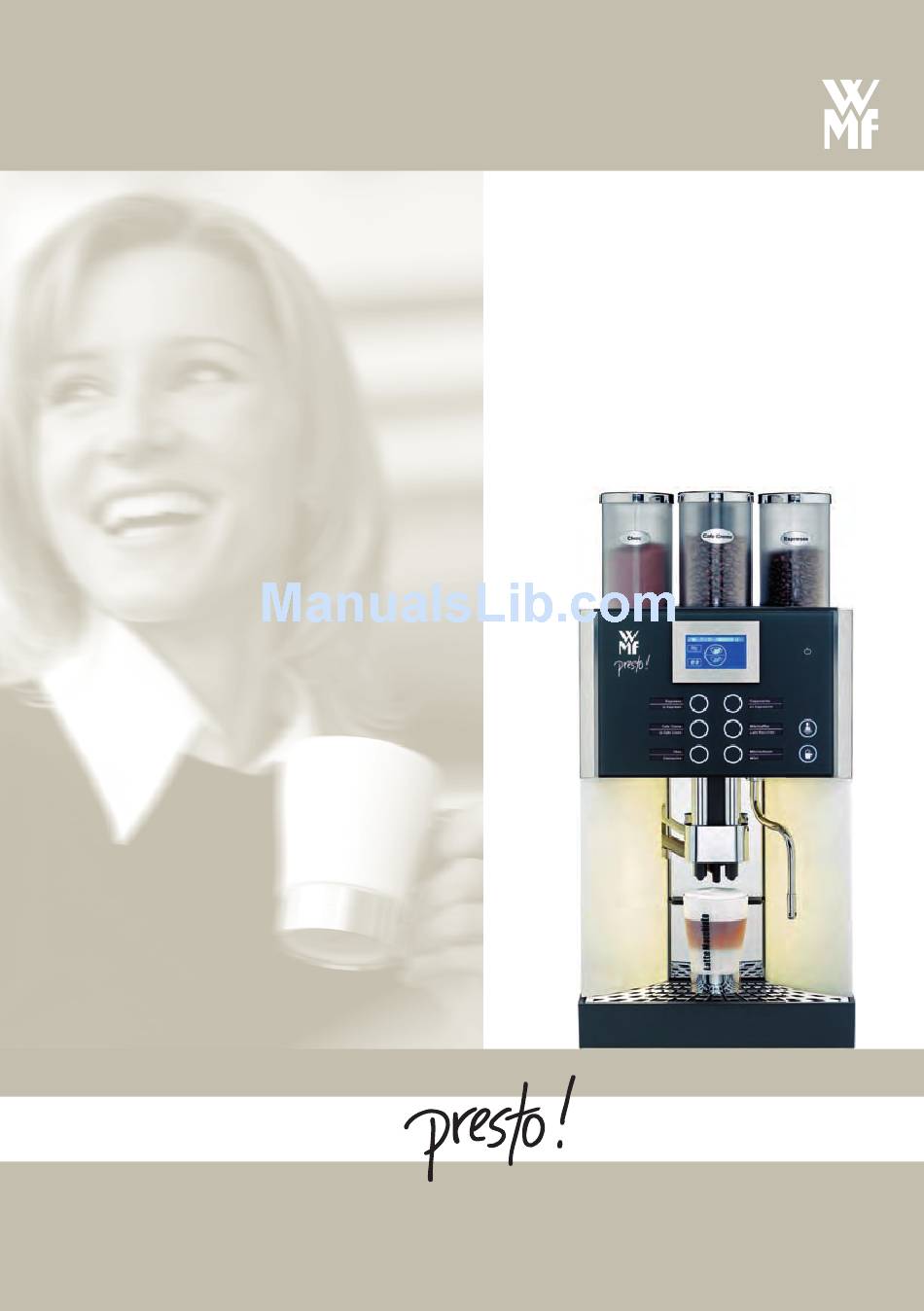

Page 1: User Manual
USER MANUAL COFFEE MACHINE ENGLISH 02.06.001 MODEL SERIES 1400 ORDER NR. 33 0914 7010 EDITION 06.06... - Page 2 You will be impressed by technical design, durability, economy of use and first and foremost the quality of the coffee. The WMF presto coffee machine is a fully automatic single-cup machine for espresso, café crème, cappuccino, milk coffee, foamed milk and hot water. Optionally also hot chocolate beverage and steam dispensing is possible.
-
Page 3: Table Of Contents
Timer Info ........ User Manual WMF presto... - Page 4 General Cleaning ........37 User Manual WMF presto...
- Page 5 No Warranty is provided: ......55 Appendix A: Quick Reference Overview Appendix: Coffee Machine Technical Data Terms and Conditions of Use and Installation Appendix: Accessories and Spares Index User Manual WMF presto...
-
Page 6: Chapter 1 Introduction
Introduction and General Chapter 1 Introduction Designation of Coffee Machine Parts One Level Display User Manual WMF presto... - Page 7 Steam Outlet (optional) or Hot Water Dispenser Water Tank (unplumbed coffee machines) Warm Rinse Pad Barista Pad Timer and Clock Display Info Pad Instruction/Error Message Display Pad Menu Pad (opens Main Menu) Second Level Toggle Pad (option) User Manual WMF presto...
-
Page 8: User Manuals Signs And Symbols
Call Up Main Menu: ... with additional touch pads ... with additional touch pads On the Readiness State display touch clear touch pad. Additional pads are activated. Press Main Menu is displayed. Main Menu Main Menu User Manual WMF presto... -
Page 9: Glossary
For example: Anti-scale filter capacity in litres Personal identity number Coffee Grounds See coffee grounds container; chapter .10 Chute Rinse Intermediate cleansing Topping Milk powder Twin-Topping Divided container for two types of powder, e.g. choc and topping User Manual WMF presto... -
Page 10: Chapter 2 Operating
Dispensing continues for as long as the button is held. Dispense Hot Water Pressing the hot water button starts dispensing. If less water is required than is set to dispense, dispensing can be stopped by repeatedly pressing the button. User Manual WMF presto... -
Page 11: Steam Outlet (Optional)
See Safety chapter! See Safety chapter! Warming Beverage For example cromargan jug For example cromargan jug WMF Order Code 06.3417.6040 WMF Order Code 06.3417.6040 Use as tall and slim as possible cromargan jug with handle. Fill jug to no more than half way. -
Page 12: Adjust Combi Spout Height
Tablet Insert coffee machine lid. Tablet insert is used: • to insert cleaning tablet Manual insert is used: • to insert cleaning tablet • when using an additional coffee variety, for example decaffeinated • for coffee trial User Manual WMF presto... -
Page 13: 2.10 Coffee Grounds Container
This is machine! machine! continued through the existing countertop. The spent Clean coffee grounds chute Clean coffee grounds chute coffee grounds are therefore collected in a large reser- daily! daily! voir under the countertop. User Manual WMF presto... -
Page 14: 2.12 Drip Tray
Turn off mains water tap. see setting > operation options see setting > operation options software chapter software chapter If not observed, guarantee/warranty is invalidated in the event of any resultant damage. See safety chapter! See safety chapter! User Manual WMF presto... -
Page 15: Chapter 3 Software
Software Chapter 3 Software Overview Readiness State WMF presto coffee machine readiness state Touch readiness state display clear touch pad. Further pads are activated. If there are errors the relevant touch pad is displayed! If Cleaning , Descaling , Filter Change or Maintenance... -
Page 16: Reset
/ leave without saving (Exit) clear or reset start test brew grounds check increase and reduce settings values forward or back one step in listings User Manual WMF presto... -
Page 17: Readiness State
• next maintenance • software version Customer Care • journal log of last cleaning • cleaning info info on last cleaning • descaling info info on last/next decalcification • softener info (optional) remaining range info User Manual WMF presto... -
Page 18: Brew Times
... with additional touch pads ... with additional touch pads Main Menu is displayed. Delayed displaying menu pad Delayed displaying menu pad see setting > operating options see setting > operating options software chapter software chapter User Manual WMF presto... -
Page 19: Main Menu
Increase value -> longer interval 3.3.2 Timer Program The Timer Program sets on/off times. Main ”Timer Program” menu contains the following selec- tion options: • Timer State • Set Timer • Timer Overview • Timer Delete • Timer Info User Manual WMF presto... -
Page 20: Timer State
Programmed event times are displayed here. Up to 16 event times per day are possible. Programmed times are listed chronologically. Any new time is chronologically sorted immediately on input and confirmed with Touching directly accesses Timer Overview. User Manual WMF presto... -
Page 21: Copy Day
A security dialogue now appears querying whether dele- tion is actually intended . Confirm with The day is deleted with all its timer events. This action cannot be This action cannot be retrospectively cancelled. retrospectively cancelled. User Manual WMF presto... -
Page 22: Timer Info
Software Timer Info Touching accesses a display with the next timer event. User Manual WMF presto... -
Page 23: Customer Care
Daily Cleaning the quick reference Daily Cleaning. In the interests of your own safety and to ensure long life of your WMF presto prior to carrying out cleaning, please note the heat warnings in the chapter on safety. = More... -
Page 24: Foamer Cleaning
• Rinsing interrupted nowhere. interrupted nowhere. Use only WMF Descaling Agent for descaling. Any other descaling product may cause damage to the coffee machine. No liability is accepted for damage caused by the use of any other descaling products and... -
Page 25: Descaling With Water Tank
Software Descaling with Water Tank Preparation Stage The following is needed for descaling: • bottles of WMF Liquid Descaling Agent (per 0.75 l) • 3 bottles water (.5 l) Displays lead step by step Displays lead step by step through the program. -
Page 26: Descaling With Constant Water Supply
Software Descaling with Constant Water Supply Preparation Stage • bottles of WMF Liquid Descaling Agent (per 0.75 l) • 3 bottles water (.5 l) • 5-litre collection container Displays lead step by step Displays lead step by step through the program. -
Page 27: Filter Change
This must be carried out within one week, otherwise the message is displayed after every brew. Carry out Customer Check-up operation 1/10.000. See Customer Check-up See Customer Check-up Instruction 1/10.000 Instruction 1/10.000 See Warranty chapter! See Warranty chapter! User Manual WMF presto... -
Page 28: Setting
Milk volume Coffee Beverage: Quality The five available quality levels affect the coffee brew. Qualitity Level Qualitity Level The higher the quality level the more intensive the release of the taste and aromatic substances in the coffee. User Manual WMF presto... -
Page 29: Button Allocation
(Change brewing water temperature). (Setting range 94° - 99° C) Reset Coffee machine software is restarted. Clock and Date Clock time and date are set here. Language Language used in the display is set here. User Manual WMF presto... -
Page 30: Display Contrast
Warm up pad Self-service recommendation: inactive Barista pad Self-service recommendation: inactive Second Level Toggle Pad Self-service recommendation: inactive User Manual WMF presto... -
Page 31: Introduction
If a PIN has been assigned for a particular access level no access will be granted without a PIN. Level Cleaning Cleaning Level Access Cleaning Level Access On entering valid PIN access to: Set milk foam quality Timer program Customer Care PIN-access ON/OFF-button User Manual WMF presto... -
Page 32: Level Settings
Main Menu. for superior levels. for superior levels. Select desired level Example: Numerical keyboard display appears. Enter desired 4-figure number Number entered is displayed. Confirm with This level is now PIN-protected. User Manual WMF presto... -
Page 33: Delete Pin
The “Accounting Statistics” function should be protected with a PIN to prevent unauthorised access. = More = More = Less = Less = Leave without change = Leave without change = Save values = Save values = Clear pad = Clear pad User Manual WMF presto... -
Page 34: Other Settings
Turn the position screw behind the water tank to the desired position using the multitool. The sticker provides a reference. Arrow pointing left = Water tank Arrow pointing right = Constant water supply messages in chapter 8 User Manual WMF presto... -
Page 35: Beverage Buttons Labelling
First switch off coffee machine in order not to trigger dispensing inadvertently. Withdraw existing labelling behind front glass in a downwards direction. Label stickers as desired using WMF template supplied. Stick on label mount and re-insert behind front glass ... -
Page 36: Chapter 5 Customer Care
Software -> Customer Care Descaling Daily = at least once daily and when required Weekly = weekly cleaning Regular = regularly and when required Required = when required Optional = optional (depending on model) = as required daily User Manual WMF presto... -
Page 37: Daily Cleaning
Milk Tank Cleaning (optional) Thourough cleaning of the milk tank. See HACCP schedule chapter See HACCP schedule chapter 5.1.6 General Cleaning Coffee Grounds Container cleaning (optional grounds chute) Empty, rinse under running water and clean using a damp cloth. User Manual WMF presto... -
Page 38: Weekly Cleaning
For cleaning metal housing parts (matt surface) we avoid triggering beverage avoid triggering beverage recommend WMF Purargan® forte cleaner. inadvertently inadvertently Do not clean with scouring powders or similar! There is a risk of causing scratches or scores. Do not... -
Page 39: Choc/Topping Mixer Cleaning (Optional)
Depending on powder used cleaning will be more/less frequent! Switch off the coffee machine with the ON/OFF button. Remove mains plug. Remove milk compartment lid. Pull off mixer tube from mixer to combi spout. User Manual WMF presto... -
Page 40: Milk Compartment Cleaning
Attention! Hot liquid! Attention! Hot liquid! 5.2.3 Milk Compartment Cleaning Wipe weekly or as required with a damp cleaning cloth. 5.2.4 Water Tank Cleaning Thoroughly rinse out water tank weekly with clear water. User Manual WMF presto... -
Page 41: Regular Cleaning
Unlock product hoppers with multitool by turning in a clockwise direction. Lift product hopper out and empty completely. Unlock Unlock Lock Lock Unscrew union nut(s) front and rear. Remove the dosing auger(s). User Manual WMF presto... -
Page 42: Filter Changing
When changing filters follow the anti-scale filter instruc- tions for use. For Filter Change For Filter Change After a filter change run a display-led rinse. see Software chapter see Software chapter Descaling Descaling is display-led. Descaling Descaling see Software chapte see Software chapte User Manual WMF presto... -
Page 43: Chapter 6 Haccp Cleaning Schedule
With correct installation, cutomer care, servicing and cleaning WMF coffee machines meet the requirements described above. If customer care of the coffee machines are not carried out properly dispensing milk beverages will constitute a food hygiene hazard point. -
Page 44: Recommendation For Choc/Topping (Optional)
20 cappuccinos. approx. 20 cappuccinos. WMF AG offers a range of WMF AG offers a range of refrigeration options refrigeration options (e.g. WMF Countertop Coolers or (e.g. -
Page 45: Chapter 7 Maintenance
Error Messages and Notes Error Messages and Notes whichever is sooner: may only be undertaken by trained personnel or by WMF Service, as in this instance safety checks must be carried out. • Servicing every 90,000 coffees or every 6 years,... -
Page 46: Mixer Maintenance (Choc)
Maintenance every 18,000 Choc servings or every years, whichever is sooner: trained personnel or WMF-Service only. WMF Customer Service Please contact your local service partner. Service Desk UK: Phone: 01895 816100 Fax: 01895 816101 E-Mail: service@wmf.uk.com User Manual WMF presto... -
Page 47: Chapter 8 Messages And Tips
Replace coffee grounds container and close lid. See weekly cleaning See weekly cleaning Brew Fault Remove brewing unit. Clean brewer sieve. Replace brewing unit and ensure that it engages correctly in the lock. User Manual WMF presto... -
Page 48: Error/Fault Messages
Basic procedure on display of error or fault messages: Switch coffee machine off and then on again after a few seconds. Repeat the process which led to the fault. In many cases the fault is rectified and you can carry on working. User Manual WMF presto... -
Page 49: Fault Numbers
The beverage buttons that are still illuminated can continue to be served. Your WMF presto is provided with a diagnostics program. Any faults occurring are shown in the display. The faults listed may also be caused by an interruption to the mains electricity supply. - Page 50 Outlet temporarily blocked. overheating After releasing check milk foam and steam outlet. Switch off machine, allow to cool and switch on again. Steam boiler heat- Switch machine off and on again. up time failure User Manual WMF presto...
-
Page 51: Faults With No Display
using the separate switch. Pump runs permanently, Unplug machine and reconnect. water in coffee grounds If not remedied call WMF Customer Service. container Milk foamer and water tank Lightly smear O-rings with WMF Sealing Grease. assembly/disassembly stiff... -
Page 52: Chapter 9 Safety
Safety Chapter 9 Safety Hazards for the User At WMF safety is one of the most essential product features. The effectiveness of safety devices is only warranted if the following points are observed: • Read the User Manuals carefully prior to use. -
Page 53: Danger To The Machine
Please observe the following points so as to prevent problems with and damage to the coffee machine: • With water with a carbonate hardness in excess of 5°dCH a WMF anti-scale filter should be fitted other- wise the machine can be damaged due to build-up of scale. •... -
Page 54: Responsibilities Of The Operator
years is advised and boiler replacement after no longer than 6 years. These measures are routinely carried out in the course of servicing by WMF Customer Service. This device is subject of the directive on waste electrical and electronic equipment (WEEE/EU directive) and may not be disposed of as domestic waste. -
Page 55: No Warranty Is Provided
• In respect of faults due to the effect of the elements, scale build-up, chemical, electrochemical or electrical effects unless attributable to fault on the part of WMF. • If an anti-scale filter is not fitted even though the local water supply requires use of an anti-scale filter and if faults occur as a consequence. -
Page 56: Appendix A: Quick Reference Overview
Appendix: Quick Reference Overview Appendix A: Quick Reference Overview User Manual WMF presto... - Page 57 Appendix: Quick Reference Overview User Manual WMF presto...
-
Page 58: Appendix: Coffee Machine Technical Data
Necessary preparatory work at the customers premises are to be arranged by the machine operator themselves. The work must be carried out by registered installers in compliance with general - including local - regulations. WMF Customer Service may only connect the machine to existing prepared connection points. - Page 59 To improve safety the coffee machine should be fitted with an FI 30 mA earth leakage current circuit breaker to EN 61008 standards. A plug top wall socket should be fitted near the machine. If the mains connection lead of this coffee machine is damaged it must be replaced by WMF Customer Services or a similarly qualified person.
-
Page 60: Appendix: Accessories And Spares
Appendix: Accessories and Spares Appendix: Accessories and Spares User Manual WMF presto... - Page 61 Appendix: Accessories and Spares User Manual WMF presto...
-
Page 62: Index
Dispense Foamed Milk 10 Menu Control Pads 16 Dispense Hot Water 10 Menu Pad 7 Dispense Milk 10 Menu pad 31 Display Contrast 30 Messages and Tips 47 Drip Tray 7, 14 Milk and Foam 19 User Manual WMF presto... -
Page 63: User Manual Wmf Presto
Water Tank Cleaning 40 Quick Reference installation instruction 56 Water volume 8 Weekly Cleaning 38 Weigh Grounds 9 WMF Customer Service 46 Readiness State 15, 17 Readiness State Display Touch Pads 15 Recipes and Beverage Button 8 Regular Cleaning 41... - Page 64 Your nearest WMF Customer Service Centre: © 005-006 WMF Aktiengesellschaft Coffee Machines Division Postfach 1401, D-73309 Geislingen/Steige, Germany. All rights reserved, in particular duplication, distribution and translation rights. No part of this Manual may be reproduced in any form or processed, duplicated or distributed using electronic systems without written consent.
