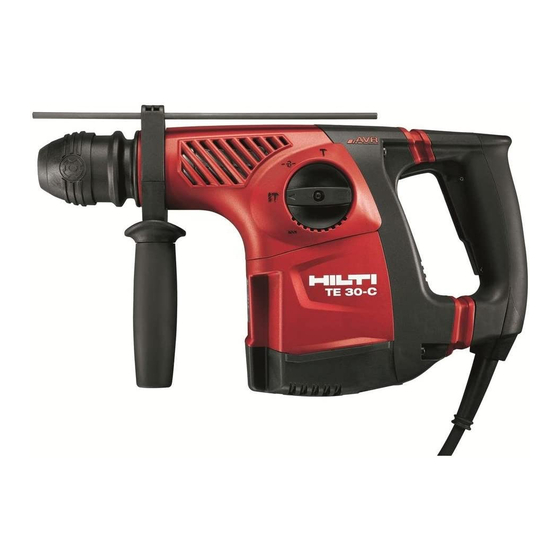

Hilti TE 30 Operating Instructions Manual
Rotary hammer
Hide thumbs
Also See for TE 30:
- User manual ,
- Original operating instructions (64 pages) ,
- Operating instructions manual (261 pages)
Subscribe to Our Youtube Channel
Related Manuals for Hilti TE 30
Summary of Contents for Hilti TE 30
- Page 1 TE 30/TE 30-AVR/ TE 30-C-AVR/ TE 30-M-AVR Operating instructions Mode d’emploi Manual de instrucciones Manual de instruções Printed: 07.07.2013 | Doc-Nr: PUB / 5139143 / 000 / 00...
- Page 2 ETL listed to US and Canadian safety standards Homologué ETL (conforme aux normes de sécurité américaines et canadiennes) Producto homologado según normas de seguridad americanas y canadienses Produto homologado de accordo com as normas de segurança americanas e canadianas Printed: 07.07.2013 | Doc-Nr: PUB / 5139143 / 000 / 00...
- Page 3 Printed: 07.07.2013 | Doc-Nr: PUB / 5139143 / 000 / 00...
- Page 4 Printed: 07.07.2013 | Doc-Nr: PUB / 5139143 / 000 / 00...
-
Page 5: Table Of Contents
In these operating instructions, the designation “the Always keep these operating instructions to- power tool” always refers to the TE 30, TE 30‑AVR, gether with the power tool. TE 30‑C‑AVR or TE 30‑M‑AVR rotary hammer. Ensure that the operating instructions are... -
Page 6: Description
To avoid the risk of injury, use only genuine Hilti accessories and insert tools. Observe the information printed in the operating instructions concerning operation, care and maintenance. - Page 7 Mechanical slip clutch 2.9 Lubrication Oil lubrication 2.10 Active vibration reduction (TE 30‑AVR, TE 30‑C‑AVR, TE 30‑M‑AVR) The power tool is equipped with an AVR active vibration reduction system which reduces vibration significantly compared to power tools without AVR. 2.11 Items supplied as standard Power tool TE‑C or TE‑T chuck...
-
Page 8: Insert Tools, Accessories
/ or overvoltage peaks, resulting in damage to the power tool. 3 Insert tools, accessories Insert tools and accessories for the TE 30, TE 30‑AVR, TE 30‑C and TE 30‑M Designation Description Chuck TE‑C (SDS Plus) -
Page 9: Technical Data
The power tool is available in various voltage ratings. Please refer to the power tool’s type identification plate for details of its rated voltage and rated input power. Power tool TE 30 / TE 30‑AVR / TE 30‑C‑AVR TE 30‑M‑AVR Rated power input... -
Page 10: Safety Instructions
5 Safety instructions protection used for appropriate conditions will reduce 5.1 General Power Tool Safety Warnings personal injuries. c) Prevent unintentional starting. Ensure the switch WARNING is in the off‐position before connecting to power Read all safety warnings and instructions. Failure source and/or battery pack, picking up or carrying to follow the warnings and instructions may result the tool. - Page 11 WARNING: Some dust created by grinding, sand- frequently for work on conductive materials ing, cutting and drilling contains chemicals known should be checked at regular intervals at a Hilti to cause cancer, birth defects, infertility or other Service Center. Under unfavorable circumstances, reproductive harm;...
-
Page 12: Before Use
5.3.4 Work area safety 5.3.5 Personal protective equipment a) Ensure that the workplace is well lit. b) Ensure that the workplace is well ventilated. Ex- posure to dust at a poorly ventilated workplace may result in damage to the health. c) If the work involves breaking right through, take the appropriate safety measures at the opposite side. - Page 13 NOTE 7.1.3 Removing the insert tool 5 The TE 30‑M is equipped with a protective electronic CAUTION motor cut-out that is active in 1st gear (rotary-only drilling Wear protective gloves when changing insert tools as and hammer drilling).
- Page 14 Turn the function selector switch until it engages in the “Drilling without hammering” position NOTE (TE 30‑M‑AVR 1st and 2nd gear) . The chisel can be adjusted to 12 different positions Bring the side handle into the desired position and (in 30°...
-
Page 15: Care And Maintenance
Do not operate the power tool if parts are ing agents which contain silicone. damaged or when the controls do not function faultlessly. If necessary, the power tool should be repaired by Hilti The outer casing of the power tool is made from impact- Service. -
Page 16: Disposal
10 Disposal Most of the materials from which Hilti power tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back your old power tools or appliances for recycling. - Page 17 Tel.: +423 / 234 21 11 Fax:+423 / 234 29 65 www.hilti.com Hilti = registered trademark of Hilti Corp., Schaan W 3644 | 0313 | 00-Pos. 3 | 1 Printed in Germany © 2013 Right of technical and programme changes reserved S. E. & O 402497 / A2 Printed: 07.07.2013 | Doc-Nr: PUB / 5139143 / 000 / 00...
