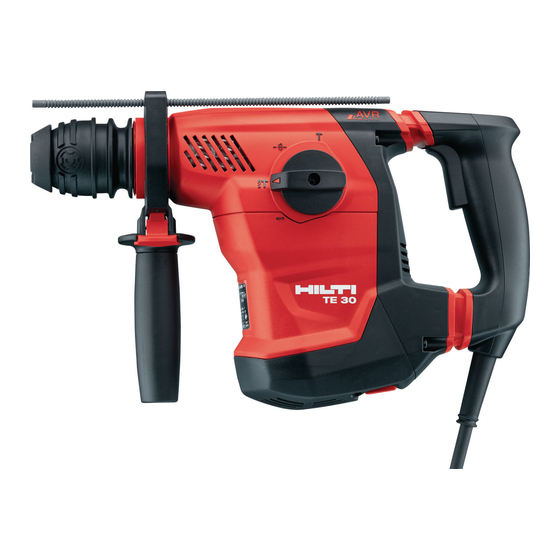

Hilti TE 30 Operating Instructions Manual
Hide thumbs
Also See for TE 30:
- User manual ,
- Operating instructions manual (261 pages) ,
- Manual (228 pages)
Advertisement
Quick Links
Printed: 03.03.2017 | Doc-Nr: PUB / 5324647 / 000 / 01
TE 30
TE 30-AVR
Deutsch
English
Nederlands
Français
Español
Português
Italiano
Dansk
Svenska
Norsk
Suomi
Eesti
Latviešu
Lietuvių
Magyar
Български
Українська
Ελληνικά
ﻲ
ﺑ ﺮ
ﻋ
1
10
19
28
37
46
55
64
73
82
90
99
107
116
125
134
143
153
162
Advertisement
Related Manuals for Hilti TE 30
Summary of Contents for Hilti TE 30
- Page 1 TE 30 TE 30-AVR Deutsch English Nederlands Français Español Português Italiano Dansk Svenska Norsk Suomi Eesti Latviešu Lietuvių Magyar Български Українська Ελληνικά ﻲ ﺑ ﺮ ﻋ Printed: 03.03.2017 | Doc-Nr: PUB / 5324647 / 000 / 01...
- Page 2 Printed: 03.03.2017 | Doc-Nr: PUB / 5324647 / 000 / 01...
- Page 3 Printed: 03.03.2017 | Doc-Nr: PUB / 5324647 / 000 / 01...
- Page 4 Printed: 03.03.2017 | Doc-Nr: PUB / 5324647 / 000 / 01...
- Page 5 TE 30 TE 30-AVR Original-Bedienungsanleitung ........
- Page 6 Printed: 03.03.2017 | Doc-Nr: PUB / 5324647 / 000 / 01...
- Page 7 1 Information about the documentation 1.1 About this documentation • Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free handling and use of the product. • Observe the safety instructions and warnings in this documentation and on the product. •...
- Page 8 Revolutions per minute 1.4 Product information Hilti products are designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.
- Page 9 ▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. ▶ Prevent unintentional starting. Ensure the switch is in the off‐position before connecting to power source, picking up or carrying the tool.
- Page 10 Note For safe, reliable operation, use only genuine Hilti spare parts and accessories. Spare parts, accessories and consumables approved by Hilti for use with this product can be found at your Hilti Center or at www.hilti.com. 4 Technical data 4.1 Combihammer Note For details of the rated voltage, current, frequency and/or input power, please refer to the power tool’s...
-
Page 11: Operation
Model TE 30 TE 30AVR Weight in accordance with EPTA procedure 01 4.1 kg 4.2 kg Ø hammer drill bits 6 mm … 28 mm 6 mm … 28 mm Ø drill bits for wood 3 mm … 25 mm 3 mm …... - Page 12 1. Apply a little grease to the connection end of the accessory tool. ◁ Use only genuine Hilti grease. Use of the wrong grease can result in damage to the tool. 2. Push the accessory tool into the chuck as far as it will go, turning it and applying light pressure until it engages with an audible click.
- Page 13 ▶ Set the function selector switch to this symbol: 5.2.3 Drilling with hammering action (hammer drilling) ▶ Set the function selector switch to this symbol: 5.2.4 Positioning the chisel (only TE 30-AVR) CAUTION Risk of injury! Loss of control over the chisel direction.
-
Page 14: Troubleshooting
To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Center or online at: www.hilti.com 7 Transport and storage •... - Page 15 Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
- Page 16 Printed: 03.03.2017 | Doc-Nr: PUB / 5324647 / 000 / 01...
- Page 17 *2143373* 2143373 Hilti = registered trademark of Hilti Corp., Schaan Pos. 1 | 20170209 Printed: 03.03.2017 | Doc-Nr: PUB / 5324647 / 000 / 01...
