Treasure Cove Vibra-Quatic 2 Installation And Operating Instructions

TREASURE
detectors with a pulse
P R O D U C T S
TM

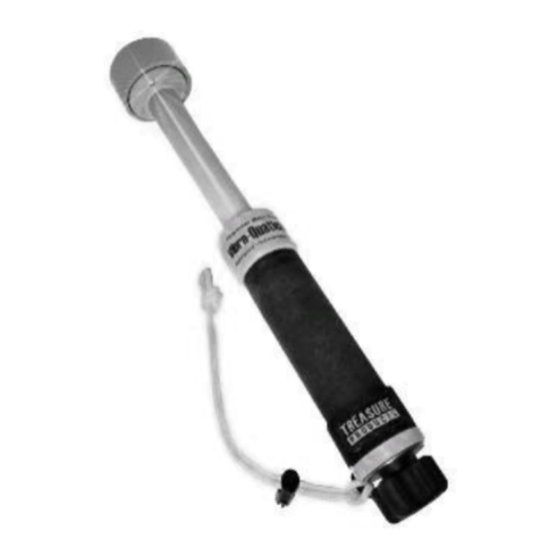

Vibra-Quatic
Pinpointer Metal Detector
Thank you for choosing the Vibra-Quatic 2 pinpointer metal
detector made by Treasure Products, the originators of
the vibrating pinpointer.

PRODUCT FEATURES

• Communicates with vibration & light - When a target
is located the Vibra-Quatic 2 signals with pulses of
vibration and flashes of bright light from a blue L.E.D.
• Pulse Induction Technology (PI) - Allows hunting in
salt water or in any type of soil, including black sand.
• Detection depth stability - Advanced circuitry maintains
detection distance throughout the life of the battery.
• Target distancing - As you get closer to the target the
pulses of vibration and light will increase in quantity.
• Automatic tuning - The state of the art microprocessor
controlled design requires no adjustments of any kind.
• Waterproof - Sealed design allows hunting in the rain
or under water to a depth of 100 feet. Great for divers!.
Treasure Products, Inc.
1464 Madera Rd. #N195, Simi Valley, CA 93065
Visit us online at www.treasureproducts.com
When the knob of the battery compartment seal is rotated
clockwise, the plug expands and presses against the inside
wall, sealing the unit.
TM
To open the battery compartment seal, rotate the knob
counter-clockwise a few turns, then pull to remove.
2
Connect a standard 9v battery to the battery clip and insert
the battery into the detector, clip side first.
To replace the seal, insert all the way in. Then turn the
knob clockwise until hand tight to assure a water-tight seal.
Before submerging the Vibra-Quatic make
sure the battery compartment seal is secure.
Turn on sequence: Hold unit with the tip up for at least 3
seconds. Light will blink. Two short pulses of vibration and
a steady dim light indicate unit is on.
Turn off sequence: After use, hold unit with tip up for at
least 3 seconds. Light will blink. Two long pulses of vibration
and no light indicate the unit is off.
Low battery turn off: When the battery is low the unit will
shut down automatically indicated by four long pulses.
Operation: The Vibra-Quatic communicates through
pulses of vibration and bright light. These pulses increase
in quantity the closer the tip is to a target.
The quantity of pulses is proportional to the target size
and distance. The bigger the target, or the closer the probe
tip is to the target, the higher the pulse count.
You can either probe the soil or sweep the head side to
side on the surface you are detecting. The Vibra-Quatic
directs its detection field straight out the tip. This allows
you to precisely locate the target .
Vibra-Phone
Hearing impaired?
Don't like headphones?
Replace sound with vibration.

BATTERY INSTALLATION

OPERATING INSTRUCTIONS

Other fine products from Treasure Products, Inc.
280
TM Vibra-Tector
Pulse Induction Metal Detector
• Signals with vibration and light
• Waterproof - Submersible
• Great for divers!

IMPORTANT NOTES

Raising the detectors tip up while in use will start the turn-
off sequence, indicated by a blinking light. Lower the
detectors tip within 3 seconds to continue detecting.
Unit will not detect when the light is blinking in either the
turn-on or turn-off sequence.
As with any new detector you should practice with known
targets to develop your technique.

HELPFUL HINTS

If you continue to hold the detector with the tip up after
turn on, then the detector will remain on indefinitely. This
feature may be useful if searching with the detector in a
vertical position is necessary.
You can secure the Vibra-Quatic to your wrist using the
attached wrist strap. To adjust fit, press down on the cord
lock button and move it to the desired location.

CARE AND MAINTANANCE

Your Vibra-Quatic is a sensitive electronic instrument.
Although it is rugged, care in transporting and handling
will extend its life and result in optimum performance.
When the Vibra-Quatic is off there is no drain on the
battery. However, if stored for long periods of time, we
recommend that the battery be removed to prevent
damage to the detector due to a potential battery leak.
If the detector has been exposed to salt water always rinse
with fresh water and check the battery compartment for
any leaks. If water has entered the battery compartment
carefully wipe dry and leave open until completely dry.
Always use high quality batteries such as
alkaline or nickel metal hydride (NiMH).
