OWNER'S MANUAL

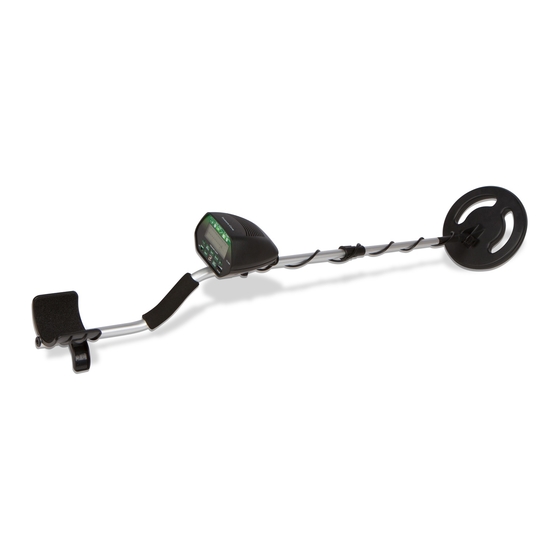

Fortune Finder 'Platinum' Edition TC-3020
GET THE LATEST UPDATED MANUAL FOR THIS
PRODUCT BY VISITING US FREQUENTLY AT
WWW.TREASURE-COVE.COM
Follow us or contact us on Facebook at
Facebook.com/TreasureCoveUSA
Need parts, tech support, or warranty assistance?
For fastest response, please visit us at:
www.treasure-cove.com/support/
805-288-5735
You may also reach us:
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Treasure Cove TC-3020
Summary of Contents for Treasure Cove TC-3020
- Page 1 OWNER’S MANUAL Fortune Finder ‘Platinum’ Edition TC-3020 GET THE LATEST UPDATED MANUAL FOR THIS PRODUCT BY VISITING US FREQUENTLY AT WWW.TREASURE-COVE.COM Follow us or contact us on Facebook at Facebook.com/TreasureCoveUSA Need parts, tech support, or warranty assistance? For fastest response, please visit us at: www.treasure-cove.com/support/...
-
Page 2: Table Of Contents
CONTENTS Features……………………………………………………………………... Preparation………………………………………………………………….. Assembling the detector………………………………………………… Installing the batteries…………………………………………………… Using headphones……………………………………………………….. Listening safely…………………………………………………………… Functions and indications………………………………………………….. A quick look at the detector……………………………………………… Displays…………………………………………………………………… Tones……………………………………………………………………… Operation……………………………………………………………………. Turning on the detector………………………………………………… Setting the operation mode……………………………………………… Testing and using the detector………………………………………….. Indoor testing and use………………………………………………… Outdoor testing and use………………………………………………. - Page 3 With your metal detector, you can hunt for coins, relics, jewelry, gold, and silver just about anywhere. The detector is versatile and easy to use. The detector’s features include: LCD Display—shows the probable type of metal with an arrow, the depth of the target, DISC/NOTCH range, the level of SENS with segment, the operating mode, and low battery indication.
-
Page 4: Preparation
PREPARATION ASSEMBLING THE DETECTOR Assembling your detector is easy and requires no special tools. Just follow these steps. 1. Slightly loosen the lock nut on the bigger stem. Insert the smaller stem into the bigger one and tighten the lock nut. 2. -
Page 5: Installing The Batteries
5. Turn the stem’s lock nut clockwise until it loosens. Lengthen or shorten so when you stand upright with the detector in your hand, the search coil is level with and about 1/2 to 2 inches above the ground with your arm relaxed at your side. -
Page 6: Using Headphones
3~4hours of operation. USING HEADPHONES 1. Insert the headphones’ 3.5mm plug into the PHONE jack. At this time the internal speaker disconnects. 2. Set the VOLUME to the desired setting. PHONE Listening Safely To protect your hearing, set the volume to the lowest setting before you begin listening, adjust the volume to a comfortable level. -
Page 7: Displays
2. DISPLAYS The indicator of target includes target icons and LCD displays and is located at the top of the detector. It can indicate coins of different type, gold, silver etc. When the detector detects an object, an arrow appears below the target icon of probable type of metal being detected. -
Page 8: Tones
might register within PULL TAB category. S-CAPS—indicates that the target is probably a type of metal like bottle cap with whorl. Some medium sized gold rings might register within this category. — 1¢ indicates that the target might be a zinc penny or a copper coin. Some large rough gold items might register within 1¢... -
Page 9: Operation
OPERATION TURNING ON THE DETECTOR 1. Slide the power switch to ON. The unit displays all symbols on the LCD screen. The detector sounds low , medium, high tones respectively. After about 2 seconds the detector enters stand-by state. At this time the LCD displays ALL METAL and SENS. The value of SENS on the segment is 5. -
Page 10: Testing And Using The Detector
the metal type desired by pressing the UP and Dn keys. The LCD segment will indicate the selected types of metal. The detector can detect the selected metal type. TESTING AND USING THE DETECTOR To learn how the detector reacts to different metals, you should test it before you use it the first time. -
Page 11: Outdoor Testing And Use
If you are using a coin, the detector will detect it more easily if you hold it so a flat side is parallel with the flat side of the search coil. A sweep with the side of coin over search coil might cause false indication and unstable display of arrow. -
Page 12: Adjusting Sensitivity
Sweep slowly hurrying will cause you to miss targets. It’s better you sweep the search coil from side to side in an arc line of 3 inches motion and keep the search coil parallel with the ground. If the detector detects the item, it sounds a tone, an arrow and the depth appear on the display below the target icon. -
Page 13: Application Hints
to a high position. But not to set the level of SENS to Max position, or the detector will receive interference and false signal from broadcast antenna and other electronic lines. The detector will have unstable arrow and irregular tone indications. Application Hints Pinpointing The Target Accurately pinpointing a target makes digging it up easier. -
Page 14: Care And Maintenance
If you detect patiently and correctly and practice more times, you’ll get satisfactory result. CARE AND MAINTENANCE Your TC-3020 metal detector is an example of superior design and craftsmanship. The following suggestions will help you care for your metal detector so you can enjoy it for years. - Page 15 State of California PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. GET THE LATEST UPDATED MANUAL FOR THIS PRODUCT BY VISITING US FREQUENTLY AT WWW.TREASURE-COVE.COM Follow us on Facebook at Facebook.com/TreasureCoveUSA...
