Page 1: Line Trimmer

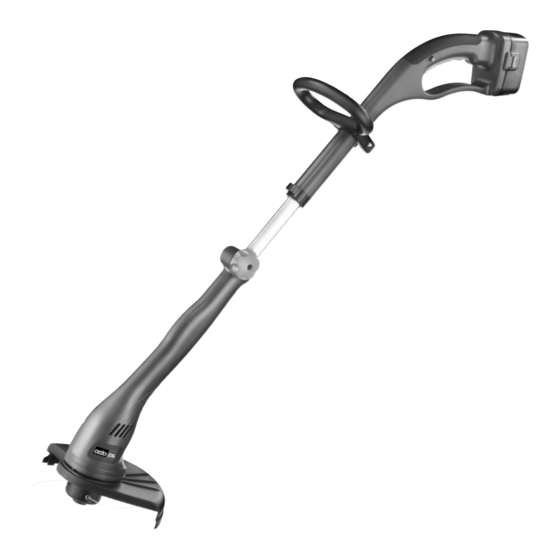

Cordless Line Trimmer 18 Volt Operation Manual 2 Year Replacement Warranty OZCLT18VA CAUTION: Read this operation manual before using this tool. 0212 www.ozito.com.au To view the full range visit:... -
Page 2: Specifications
SPECIFICATIONS - MODEL NO. OZCLT18VA Power Input: Batteries: 1 x 18V, 1.3Ah Ni-Cd Charge time: 1 hour No load speed: 10,000 /min Noise level: 96dB(A) Cutting diameter: 250mm Cutting line thickness: 1.3mm Cutting line feed: Bump feed Weight: 2.5kg (incl. battery) -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS ………………………………………… Page 2 TABLE OF CONTENTS………………………………….. Page 3 INTRODUCTION………………………………………... Page 4 SAFETY INSTRUCTIONS……………………………….. Page 4 OPERATION …………………………………………….. Page 11 MAINTENANCE …………….………………………….. Page 14 SPARE PARTS/ACCESSORIES…………………………. Page 14 CONTENTS ……………………………………………... Page 15 WARRANTY……………………………………………… Page 16... -
Page 4: Introduction
We hope you will enjoy using this line trimmer for many years. Your Ozito Cordless Line Trimmer OZCLT18VA has been designed for trimming lawn edges and grass around shrubs and trees. This product is intended for DIY use only. - Page 5 GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool" in all of the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
- Page 6 GENERAL POWER TOOL SAFETY WARNINGS Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 7 • Do not disassemble charger, if service or repair is required. Incorrect reassembling may result in a risk of electric shock, electrocution or fire. New chargers can be obtained through Ozito. • To reduce risk of electric shock, unplug charging adaptor from the socket outlet before attempting any cleaning.
- Page 8 ADDITIONAL SAFETY INSTRUCTIONS FOR LINE TRIMMERS • Inspect the items you want to cut before starting to work. Remove any foreign objects. If you hit an obstacle while cutting, turn off the machine and remove the obstacle. • Work only in good visibility. •...
- Page 9 ADDITIONAL SAFETY INSTRUCTIONS FOR LINE TRIMMERS (cont.) • Keep cables and other objects out of the work area you want to cut. • If you have to lift the grass trimmer to move it, switch off the motor and wait for spool &...
-
Page 10: Operation
OPERATION Assembly Warning! Before assembly, remove the battery from the tool. To install the handle on the telescopic shaft (10) Fit the upper handle assembly (7) onto the telescopic shaft (10) and insert it as far as possible (Fig 1). The lock button (9) will engage automatically. - Page 11 OPERATION (cont.) Important! Make sure that you disconnect the battery pack (3) before manually adjusting the line length (Fig. 5)! The line trimmer has a bump feed line extension system. Each time you bump the spool & line assembly, the line will be extended to ensure that you can cut your lawn with the correct cutting length at all times.
- Page 12 OPERATION (cont.) Replacing the spool & line (14) Important! Make sure that you unplug the battery pack (3) before replacing the spool & line (14) (Fig. 9)! • Press the sides of the spool cover as shown and remove it with the spool (Figure 9+10).
-
Page 13: Maintenance
• Regularly use a blunt scraper to remove grass and dirt from the underneath of the guard. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool. -
Page 14: Spare Parts/Accessories
TROUBLE SHOOTING If your tool seems not to operate properly, follow the instructions below. If this does not solve the problem, please return it to your place of purchase with your receipt. Warning! Before proceeding, remove the battery from the tool SYMPTOMS SOLUTIONS Tools Runs Slow... -
Page 15: Contents
1 x Spool & Line (fitted) 1 x Cutting Guard and screws 1 x 18V Battery 1 x Operation Manual OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175 Telephone: 1800 069 486 Facsimile: +61 3 9238 5588 Website: www.ozito.com.au... -
Page 16: Warranty
If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations. • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175...
