Part List—Model No. IMSB53950
Key No. Qty. Description
1 1 Console With Overlay
2 2 3-wire Power Cord
3 1 Filter Cover
4 8 Rubber Washer
5 1 Filter Cartridge
6 2 Rubber Isolator
7 1 CD Player
8 1 Power Supply
9 6 #8 x 1" Sheet Metal Screw
10 1 2-speed Pump
11 1 Spa Cover
12 21 Small Adjustable Pulsating Jet
13 4 Jet Pump/Motor O-ring
14 1 Controller
15 5 Adjustable Directional Jet
16 7 Adjustable Pulsating Jet
17 4 Suction Cover
18 4 Air Control Knob
19 1 1-speed Pump
20 1 4-wire Power Cord
21 1 Large Rotary Jet
22 1 Basket Assembly
23 8 1/4" Lock Washer
24 1 Filter Housing Door
25 2 Access Panel
26 4 Buckle
27 8 #4 x 3/4" Screw
28 8 1/4" x 1 1/2" Screw
29 1 Overlay
30 1 Whirlpool Jet
31 14 1/4" Washer

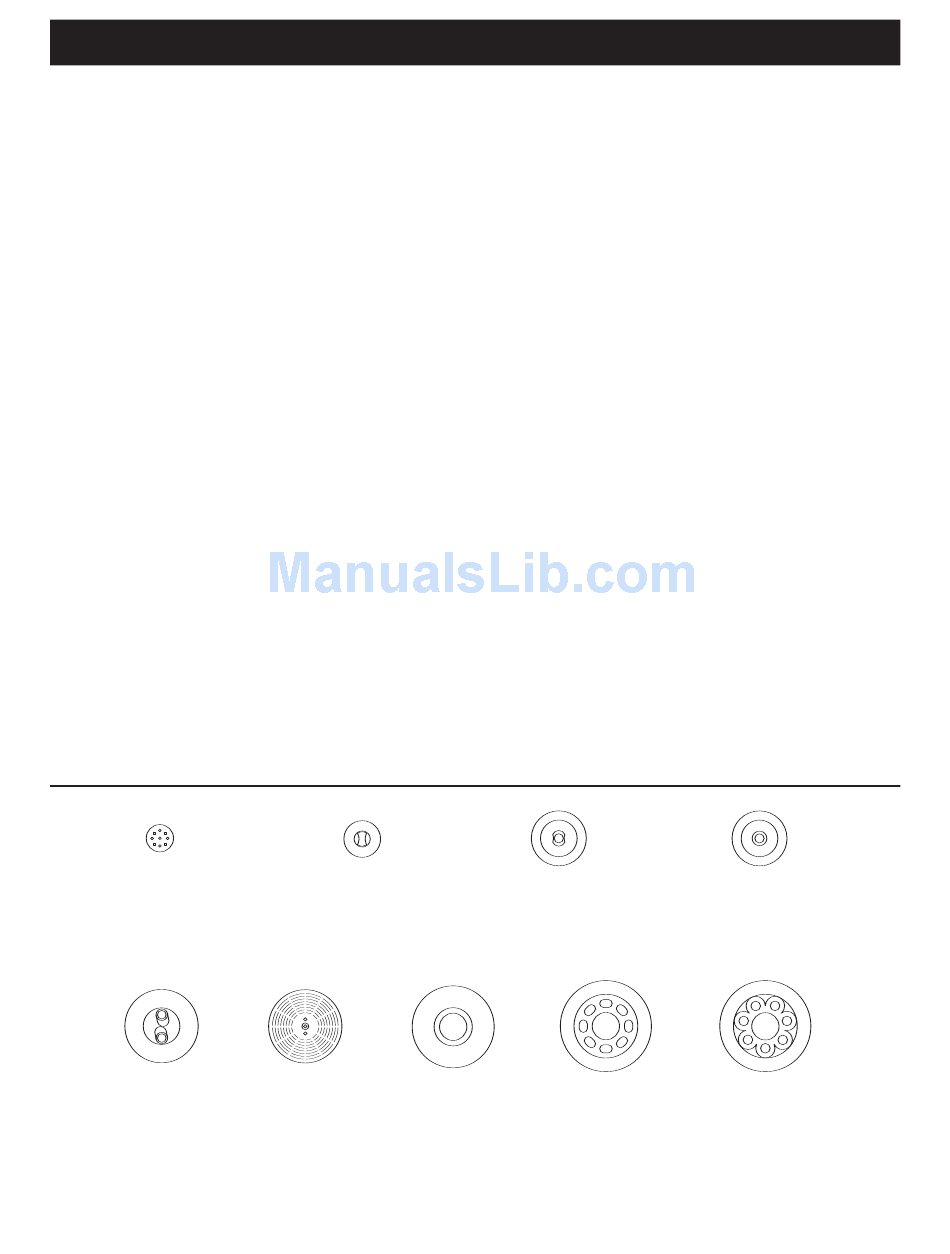

Air Injector
(45)
Adjustable
Pulsating
Jet (16)
Small
Adjustable
Pulsating
Jet (12)
Suction
Whirlpool
Cover (17)
Jet (30)
Key No. Qty. Description
32 1 Face Plate
33 6 Panel
34 2 Heater Collar With Screw
35 1 Volcano Jet
36 2 Drain Plug
37 48 #10 x 2" Machine Screw
38 2 Pillow
39 2 Drain Plug O-ring
40 4 Corner Panel
41 2 Neck Jet
42 1 Filter Housing
43 2 Heater Gasket
44 1 Waterfall Valve
45 10 Air Injector
46 1 Blower
47 1 CD Cover
48 2 6" Speaker
49 2 Pop-up Speaker
50 2 4" Vent
51 20 LED Point
# 2 Ground Wire
# 2 Key
# 1 User's Manual
# 1 Large Warning Sign
# 1 Warning Sign
# 1 LED Light
#Indicates a non-illustrated part.
Specifications are subject to change without notice.
Adjustable
Directional
Jet (15)
Volcano Jet (35)
22
R0604A
Neck Jet (41)
Large Rotary
Jet (21)
