JGA-510-DEC DECORATOR SPRAY GUN
IMPORTANT: Before using this equip-
ment, read all safety precautions and
instructions. Retain for future use.
DESCRIPTION
The JGA-510-DEC is a gun that can
apply decorative spatter effects to
wood furniture, metal panels, etc.
Finish may be changed from a fine
mist to larger droplet size particles.
Simply adjust fluid pressure and/or
air pressure
The JGA-510-DEC comes with the flat-
end AV-447 spatter cap assembly.
Small spatter dots are the result of
coarse atomization when using the
standard spatter cap assembly (2).
OPERATION
Note
This gun may be used with
chlorinated solvents. Alumi-
num is not used in the fluid
passage areas.
Mix material according to manufacturer's
instructions. It may be necessary to strain
material.
A greater than normal gun distance
provides a more uniform particle size.
Particle spacing is determined by speed
of movement and degree of overlap.
Particle size is dependent on the mate-
rial consistency. Specially formulated
spatter materials are available, although
standard paints may be used. Apply
standard paints using very little or no
reduction.
Pressure on cup or tank controls
material flow. Begin with the fluid
needle adjusting screw (32) wide open.
Use fluid needle adjusting screw (32)
to regulate material flow under
abnormally low material pressure or
material viscosity conditions.
Adjust atomization air to get desired
particle size. It should be high enough
to carry particles to surface. Spatter
dot size increases with pressure reduc-
tion, and decreases with pressure in-
crease. Pressure used depends on
material viscosity being sprayed and
desired operation speed.
PREVENTIVE MAINTENANCE
To clean gun passages, blow back
paint to material supply source and
flush fluid passage with clean solvent.
Model HD-503 Gun/Hose Cleaner is a
very fast and effective way of cleaning
(See Accessories). Wipe gun clean
with solvent soaked cloth.
If slots of ring (4) become clogged,
clean by soaking cap in solvent and
scrubbing with a gun cleaning brush.
Note
When replacing the fluid tip or
fluid needle, replace both at
the same time. Using worn
parts can cause fluid leakge.
Also, replace the needle pack-
ing at this time.
Using SSL-10 gun lube, lightly lubri-
cate the threads of the fluid tip before
reassembling. Torque to 12-15 ft. lbs.
To prevent damage to the fluid
tip (7) or fluid needle (28), be
sure to either 1) pull the trigger
and hold while tightening the
fluid tip or 2) remove fluid
needle adjusting screw to re-
lieve spring pressure.
SERVICE BULLETIN
SB-2-582
Replaces SB-2-582

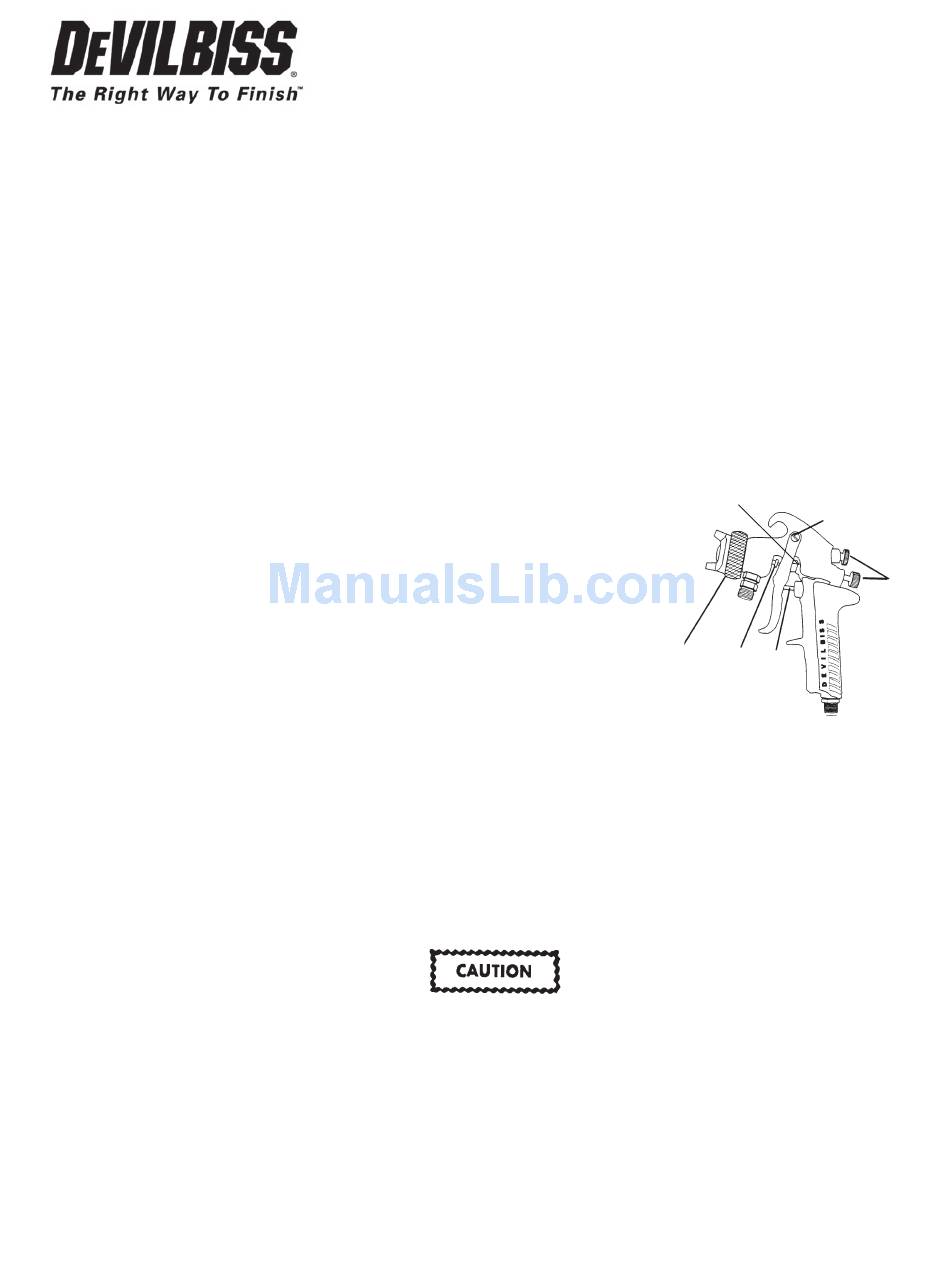

Spray Gun Lubrication
For best results, lubricate the points
indicated, daily. Use SSL-10 Spray
Gun Lube to lubricate.
A. Trigger Points
B. Packings
C. Adjusting Valves
D. Air Baffle Threads
B
A
D
B
A
C
