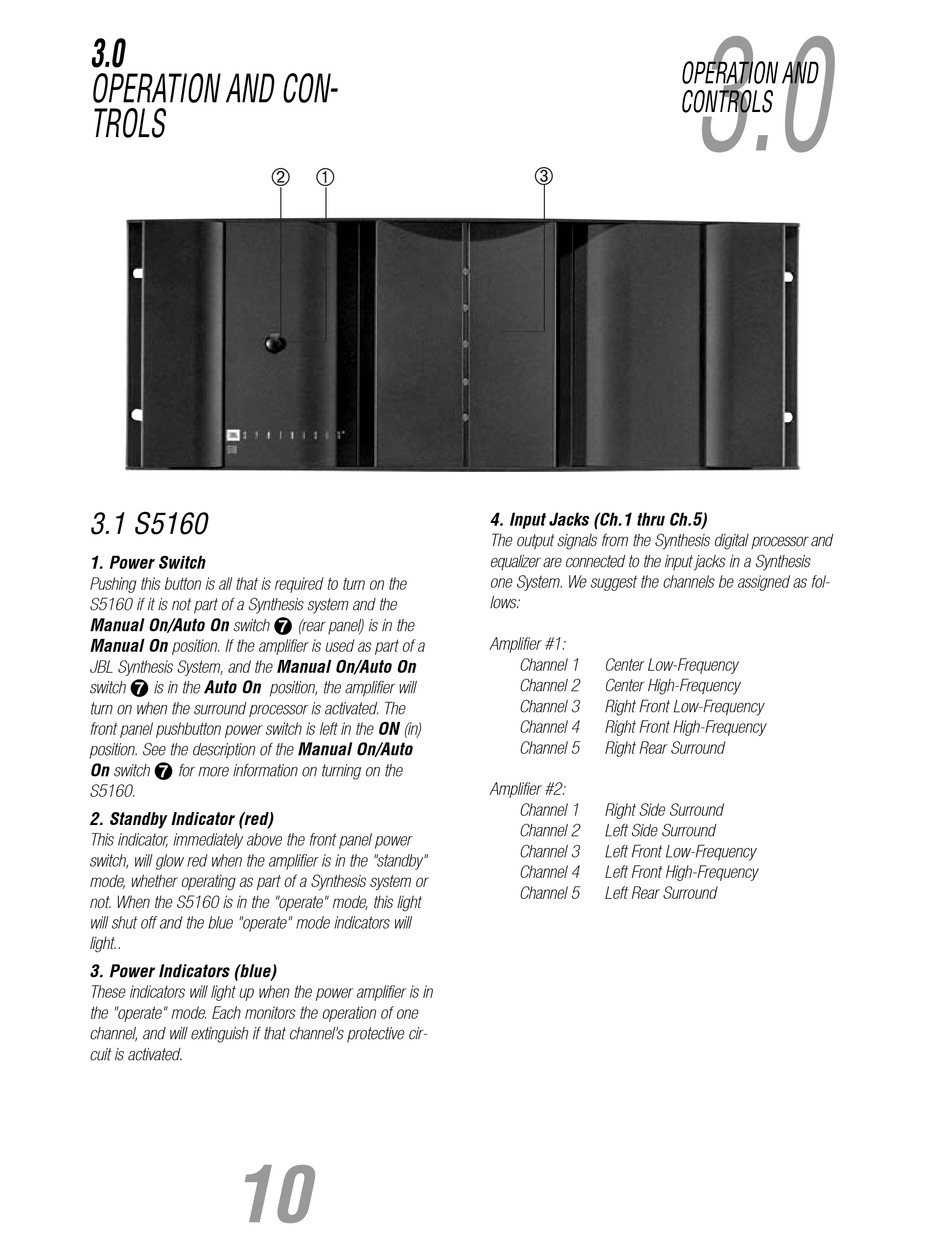

3.0
OPERATION AND CON-
TROLS

3.1 S5160

1. Power Switch
Pushing this button is all that is required to turn on the
S5160 if it is not part of a Synthesis system and the
Manual On/Auto On switch ¶ (rear panel) is in the
Manual On position. If the amplifier is used as part of a
JBL Synthesis System, and the Manual On/Auto On
switch ¶ is in the Auto On position, the amplifier will
turn on when the surround processor is activated. The
front panel pushbutton power switch is left in the ON (in)
position. See the description of the Manual On/Auto
On switch ¶ for more information on turning on the
S5160.
2. Standby Indicator (red)
This indicator, immediately above the front panel power
switch, will glow red when the amplifier is in the "standby"
mode, whether operating as part of a Synthesis system or
not. When the S5160 is in the "operate" mode, this light
will shut off and the blue "operate" mode indicators will
light..
3. Power Indicators (blue)
These indicators will light up when the power amplifier is in
the "operate" mode. Each monitors the operation of one
channel, and will extinguish if that channel's protective cir-
cuit is activated.
10
4. Input Jacks (Ch.1 thru Ch.5)
The output signals from the Synthesis digital processor and
equalizer are connected to the input jacks in a Synthesis
one System. We suggest the channels be assigned as fol-
lows:
Amplifier #1:
Channel 1
Center Low-Frequency
Channel 2
Center High-Frequency
Channel 3
Right Front Low-Frequency
Channel 4
Right Front High-Frequency
Channel 5
Right Rear Surround
Amplifier #2:
Channel 1
Right Side Surround
Channel 2
Left Side Surround
Channel 3
Left Front Low-Frequency
Channel 4
Left Front High-Frequency
Channel 5
Left Rear Surround
3.0
OPERATION AND
CONTROLS
