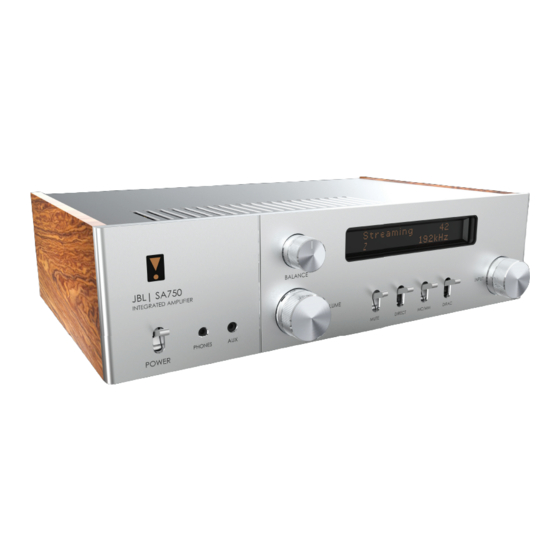

SA750 INTEGRATED AMPLIFIER
HANDBOOK

Advertisement

Table of Contents
loading

Related Manuals for JBL SA750

Summary of Contents for JBL SA750

  • Page 1 SA750 INTEGRATED AMPLIFIER HANDBOOK...

  • Page 2: Safety Guidelines

    SAFETY GUIDELINES Important Safety Instructions Class II Product 13. Refer all servicing to qualified service 19. Damage requiring service personnel. The equipment should be serviced by qualified This equipment is a Class II or double insulated Read these instructions. Servicing is required when the apparatus has service personnel when: electrical appliance.
  • Page 3 … Unplug the power cord when not using the unit product according to the WEEE directive cause undesired operation. approved by JBL may void your authority, granted for long periods of time. Correct Disposal Of This Product The building installation shall be regarded as by the FCC, to use the product.

  • Page 4: Welcome

    Hi-Fi. This handbook is a guide to installing and using the SA750 and includes information on its more advanced features. Use the contents list on the next page to guide you to the section of interest.

  • Page 5: Table Of Contents

    Selecting An Audio Source EN-12 System Info EN-17 LISTENING Audio Settings EN-13 EN-17 Listening Using Headphones Network Settings EN-13 EN-18 Balance Control SA750 DIGITAL FILTERS EN-13 EN-19 Direct Mode TROUBLESHOOTING EN-13 EN-20 Processor Mode SA750 SPECIFICATIONS EN-13 EN-21 Pre-Amplifier Output EN-13...

  • Page 6: Overview

    … Do not place your record deck on top of this unit. music from traditional HiFi separates and the various … Do not place the SA750 on top of a power amplifier Record decks are very sensitive to the noise internet streaming services that are on offer.

  • Page 7: Trademark Acknowledgments

    Visit mqa.co.uk for more information. OS X Mountain Lion or later, SHALL THE FOUNDATION - Redistributions in binary form The SA750 includes MQA technology, which and PC with iTunes 10.2.2 OR CONTRIBUTORS BE must reproduce the above enables you to play back MQA audio files and or later.

  • Page 8: Front Panel Connections And Controls

    EN-13. MC/MM Selects the phono input type to be used. See "DIRAC LIVE" on page EN-15. The SA750 is designed to run warm in normal DIRAC Selects the Dirac room EQ curve. "DIRAC LIVE" on page EN-15. use, however extended use at high volume levels can result in the amplifier casework becoming hot to the touch.

  • Page 9: Rear Panel Connections And Controls

    REAR PANEL CONNECTIONS AND CONTROLS NETWORK DIGITAL AUDIO INPUTS Connect this socket to a port on your Optical and coaxial digital audio network router using an Ethernet patch connectors. See "Selecting An Audio cable. See "Home Automation Control" Source" on page EN-12 on page EN-14 USB TYPE A This USB socket is used for playback of...

  • Page 10: Connecting Loudspeakers

    … After making connections: switch the amplifier on, select a source signal, then gradually increase the volume to the required listening level. … If you are unsure as to how your system should be connected, please contact your JBL dealer who will be happy to help you.
  • Page 11 A pair of audio interconnect cables are also required to connect Remove Remove the pre-amp outputs of the SA750 to the power metal strips metal strips amplifier inputs of the second amplifier. WARNING: The strip of metal on the...

  • Page 12: Operation

    The brightness level can be set to ‘FULL’, ‘DIM’ or ‘ ’. If the SA750 is powered off with the display brightness set to ‘ ’, the display will momentarily resume to full brightness then turn off when the unit is powered back on.

  • Page 13: Listening

    By default the pre-amp outputs and speakers are This mode allows the use of the SA750 to be Analog Direct See "Bi-Amping" on page EN-11 for details of muted when the headphones are plugged in.

  • Page 14: Connecting To A Network

    AirPlay Setup Chromecast Built-In Setup Wireless Connection In order to use the AirPlay and Chromecast built-in functionality of the SA750 you will need to Power up the SA750. Wired Connection Wired Connection connect it to your home network via a wireless or Select the input.

  • Page 15: Dirac Live

    You can store up to three Dirac EQ curves in the calibration tone cycles round each of the speakers SA750. Each input can use a different curve, for To download the Dirac Live for JBL PC/Mac multiple times as the different parameters are example a “Movie”...
  • Page 16 REMOTE CONTROL Notes on batteries: Toggles power between standby and Toggles power between standby and Incorrect use of batteries can result in hazards DISP such as leakage and bursting. Info cycles through the information Selects play mode, Normal, Repeat, INFO MODE displayed on the lower portion of the Repeat All, Shuffle.

  • Page 17: Setup Menu

    USB Update PM Volume The setup menu allows you to configure various aspects of the SA750 integrated amplifier. Allows the SA750 to be updated via a USB stick. Specify the required volume level for the processor Display Entering Setup Menu Refer to the software release instruction for more mode input.

  • Page 18: Network Settings

    IP address and friendly name and host name. Net Standby Enables or disables the network control of the SA750 while the unit is in standby. The default setting is Note: The unit can still be controlled via RS232 commands, even when network standby is disabled.

  • Page 19: Sa750 Digital Filters

    SA750 DIGITAL FILTERS Brick Wall (B Wall) Minimum Phase Slow Roll Off (MinP Linear Phase Slow Roll Off (LinP The SA750 allows the listener to choose between a number of digital filters for use in the audio Slow) Slow) No phase shift, but introduces both pre and post DAC.

  • Page 20: Troubleshooting

    Contact your installation contractor If you are unable to resolve your issue, please contact your JBL dealer. If your dealer is unable to help, please visit www.JBLsynthesis.com...

  • Page 21: Sa750 Specifications

    Setup microphone USB cable Signal/Noise ratio (A-wtd) ref. 0dBFS/100W 113dB All specification values are typical unless otherwise stated. JBL has a policy of continuous improvement for its products. This means that designs and specifications are subject to change without notice. E&OE.
  • Page 22 HARMAN International, Incorporated 8500 Balboa Boulevard, Northridge, CA 91329 USA www.jblsynthesis.com © 2021 HARMAN International Industries, Incorporated. All rights reserved. JBL is a trademarks of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. Features, specifications and appearance are subject to change without notice.
