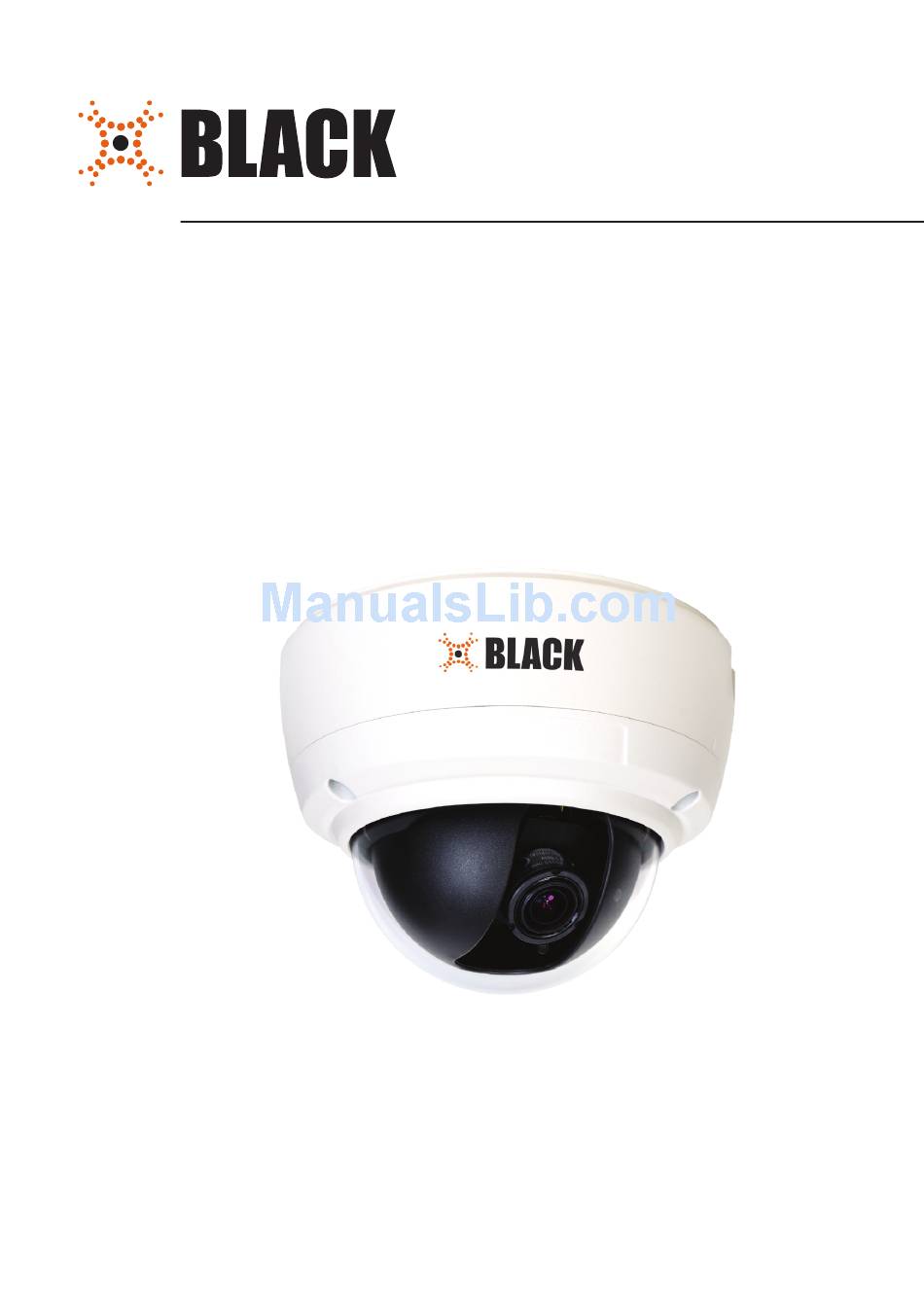

- Page 1 H.264 Megapixel Indoor/Outdoor Dome IP Camera User Manual Product: BLK-IPD105M Please read this manual before using your camera, and always follow the instructions for safety and proper use. Save this manual for future reference. BLK-IPD105M_CM 10/26/11...
- Page 2 Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. DIGIOP, Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
-
Page 3: Table Of Contents
Table of Contents SECTION 1 Features ................2 SECTION 2 Installation and Setup . -
Page 4: Features
SECTION 1: FEATURES SECTION 1 Features The DIGIOP Black BLK-IPD105M is a professional, premium-grade dome camera designed for outdoor or indoor installation. It features: Fixed vandal-proof dome • Gimbal mounted camera • Aptina™ (Micron™) 1/3.2” (4:3) CMOS 2 Megapixel sensor •... -
Page 5: Installation And Setup
SECTION 2: INSTALLATION AND SETUP SECTION 2 Installation and Setup 2.1 What’s in the box Your dome camera includes the following: BLK-IPD105M camera • DC power adapter with power plugs for different powering sources • Base seal (surface cushion) •... - Page 6 Mark the location of hole for the extension cable routing. Drill a 1-3/8” hole through the mounting surface for the extension cable. If you are routing interface cables through conduit attached to the bottom of the base, do the following: www.digiop.com...
-
Page 7: Connections
SECTION 2: INSTALLATION AND SETUP Unplug the extension cable from the camera electronics and remove it from the camera. Install a conduit fitting onto the bottom of the base. Install a junction box close enough to the camera for the extension cable LAN and power connectors to be in the box. Attach the conduit for the junction box to the conduit fitting on the bottom of the camera base. -
Page 8: Audio In/Out Connections
Route speaker and/or microphone wiring through the cable channel and into the camera base housing. Strip 1/4” of insulation from the wires and insert them into the terminal block in the locations shown connector terminal figure above. The common (ground) leads to the microphone and speaker share the same terminal block pin. www.digiop.com... -
Page 9: Sensor In (Di) Connection
SECTION 2: INSTALLATION AND SETUP 2.4.2 Sensor in (DI) connection The camera provides one channel for sensor input that can be connected to either a voltage type or relay type sensor. For voltage type sensors, the camera allows a maximum input of 24 V DC, with a 1 V DC threshold (see Specifications). The configuration of the sensor input wiring is illustrated in the diagrams below. -
Page 10: Alarm Out (Do) Connection
“C” in the terminal block is the common (COM) pin. 2.4.4 RS-485 device connection The camera provides one RS-485 interface connection. The wiring signal polarity to the terminal block is shown in the schematic below. RS-485 device wiring schematic www.digiop.com... -
Page 11: Lan And Power Connections
SECTION 2: INSTALLATION AND SETUP To connect an RS-485 device wiring to the camera: Route RS-485 device wiring through the cable channel and into the camera base housing. Strip 1/4” of insulation from the wires and insert them into the terminal block. Observe the signal polarity shown in the schematic. -
Page 12: Install Ipadmin Tool
(fixed, unchanging) settings, your camera must be configured with static network settings that are compatible with the network configuration. Additionally, if DHCP is not used on your network, DIGIOP Black cameras must be installed on the network and configured with new network settings one at a time to avoid addressing conflicts. -
Page 13: Configuring Cameras On Networks With Dhcp
SECTION 2: INSTALLATION AND SETUP ensure that your camera won’t conflict with other devices. Your network administrator should also setup WAN (Internet) access to the camera, if that is needed. If you encounter a problem and need to contact Technical Support, first complete the chart in Table 1 about your computer (PC) and camera network settings, if possible. - Page 14 ID and PW are root and pass. After entering ID and PW, the IP Setup window closes. In the IPAdmin Tool window, click Refresh and verify that the entry representing the camera now shows the new IP address. Continue with procedure 2.7 Setup camera Basic Configuration. www.digiop.com...
-
Page 15: Configuring Cameras On Networks Without Dhcp
SECTION 2: INSTALLATION AND SETUP 2.6.2 Configuring cameras on networks without DHCP NOTE The following procedure works with most networks. For further assistance, contact Technical Support. Cameras installed on a network without a DHCP server will initially use the factory default static network settings: IP address: 192.168.0.100 Subnet mask:... - Page 16 192.168.1. After the third period, include any number between 1 and 254 that is different from the one in your PC’s IP address, 168. As a first try, let’s choose 200, which will form the IP address 192.168.1.200. www.digiop.com...
- Page 17 IP addresses using the steps above until an unused address is found. Check LAN for default IP address compatibility Because all DIGIOP Black cameras and encoders are factory configured with the static IP address 192.168.0.100, check the LAN before connecting your camera to ensure that network conflicts won’t occur.
- Page 18 When the IPAdmin Tool starts, it will discover all the IP devices it supports that exist on the network. The discovery process may take a few minutes. In the Product list, find the entry with the same MAC address as the camera you installed. If the camera is not shown, click Refresh once a minute to update the list. www.digiop.com...
-
Page 19: Setup The Camera Basic Configuration
SECTION 2: INSTALLATION AND SETUP Right click on the entry for your camera and select IP Address. IP Setup window In the IP Setup window: Select the Static option if it is not selected. This option is required if video from the camera will be recorded by a network DVR, or if you want to view video from the camera across a WAN (Internet). - Page 20 If prompted to install an ActiveX control such as AxAll.cab (publisher Cap Co), follow screen prompts to install the software. IE prompt to install ActiveX control To load these ActiveX controls, you may need to adjust the security settings of your browser to accept add-ins from NOTE unknown publishers. Typical initial camera view www.digiop.com...
- Page 21 SECTION 2: INSTALLATION AND SETUP If, after logging into your camera, you cannot see live video and the message: NOTE “Can not Create XMLDOMDocument Install MSXML4.0” appears, download and install the MS XML 4.0 library. This library can be found at: http://www.microsoft.com/downloads/details.aspx?familyid=3144B72B-B4F2-46DA-B4B6-C5D7485F2B42&displaylang=en In the camera window, click the SETUP link in the upper right corner of the window.
- Page 22 In the Users menu, click Apply, then click OK to restart the webserver (if you wish to do so at this time). Click Add to include other administrators, operators or viewers to the user list. Follow the screen prompts to complete the entries. Click VIEW in the upper right corner of the window to return to the camera live view. www.digiop.com...
-
Page 23: Aim, Focus, And Image Quality Adjustment
SECTION 2: INSTALLATION AND SETUP 2.8 Aim, focus, and image quality adjustment 2.8.1 Aim The camera mount allows the camera to be rotated on three axis to set the horizon alignment, horizontal direction, and up/down position of the video frame. Horizon alignment Horizontal direction Up/down position... -
Page 24: Image Quality Adjustments
Close the PREVIEW window and click VIEW to return to the normal viewing window. 2.9 Speaker/microphone setup Verify the functionality of the speaker and microphone setup at the camera, and adjust volume levels. Re-install the camera housing. www.digiop.com... - Page 25 SECTION 2: INSTALLATION AND SETUP On the VIEW screen, click: SETUP > Video & Audio > Audio to open the Bi-directional Audio Settings menu. In the Bi-directional Audio Settings menu, click the checkboxes to select “Listen to the audio from server with setting below”...
-
Page 26: Cleaning
Do not use benzene, thinner or other chemical products on the camera assembly; these may dissolve the paint and promote damage of the surfaces. Before using any chemical product, read the accompanying instructions carefully. CAUTION www.digiop.com... -
Page 27: Specifications
SECTION 3: SPECIFICATIONS SECTION 3 Specifications Table 2. Specifications Camera Module Image Sensor Aptina (Micron) 1/3.2” (4:3) CMOS 2 Megapixel CMOS Effective Pixels 1600 x 1200 (UXGA, 2M) Scanning system Progressive Resolution 550 TV lines 71 dB Min. Illumination 0.5 Lux (50IRE), 0.1 Lux (DSS x5 ON) Wide Dynamic Range 52 dB (x128) ELECTRICAL... - Page 28 Ivory Housing: 5.94” dia x 4.47”h (ø150.8 mm x 113.5 mm (h)) Dimensions Dome: 3.94” dia. (ø100 mm) Weight 2.38 lbs. (1,080g) Mechanical characteristics Operating Temperature 32˚F ~ 122˚F (0˚C ~ 50 ˚C) Operating Humidity Up to 85% RH www.digiop.com...
- Page 29 SECTION 3: SPECIFICATIONS Table 3. Video Content Analysis (optional) VCA Presence High Performance Advanced Tracking Algorithm, Low False Alarm Rate Easy to Use Intuitive Web Browser Interface Detection Zones Multi-segment Polygons and Lines On-screen Display Real-time Display of Tracking Data and Events Burnt-in Annotation Stream out Image Stabilization...
-
Page 30: Appendix A Troubleshooting
Network settings forced to the following on networks were a DHCP server cannot be found: IP address – reset to 192.168.0.100 — Subnet mask – reset to 255.255.0.0 — Gateway – reset to 192.168.0.1 — User ID – reset to root — Password – reset to pass — www.digiop.com... -
Page 31: Checking Your Firmware
Contact DIGIOP Support for firmware updates. A.4 Support If you cannot resolve an issue, please contact the DIGIOP Support at 1.877.972.2522 for assistance. When you contact support, please provide the server reports, log file and a brief description of the problem, if possible. -
Page 32: Appendix B Dimensions
APPENDIX B: DIMENSIONS APPENDIX B Dimensions 5.94” Top View Ø 3.94” 4.47” 3/4” Tap Side View www.digiop.com... - Page 33 APPENDIX B: DIMENSIONS 1.24” 3/4” Tap Ø 4.53” ~ Ø .15” Base view H.264 Megapixel Indoor/Outdoor Dome IP Camera...
-
Page 34: Appendix C Power Over Ethernet
APPENDIX C Power over Ethernet The BLK-IPD105M camera supports Power over Ethernet (PoE) in conformance with the IEEE 802.3af standard. IEEE 802.3af allows for two power options for Category 5 cables. The PoE module signature and control circuit provides the PoE compatibility signature and power classification required by •...
