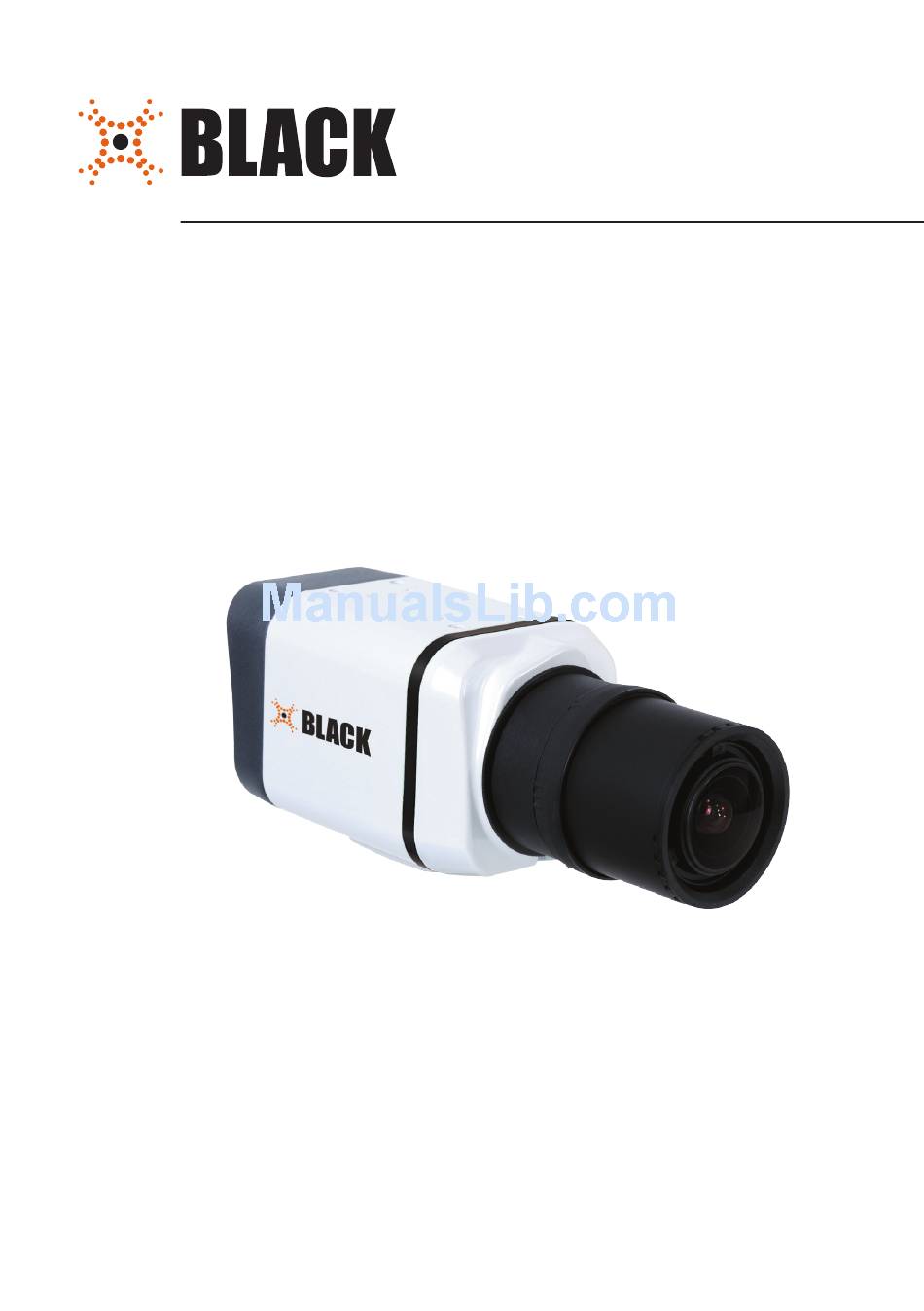

2.0 Megapixel H.264 Network IP Camera User Manual Product: BLK-IPS102M Please read this manual before using your camera, and always follow the instructions for safety and proper use. Save this manual for future reference. BLK-IPS102M_CM 5/27/11...
Page 2
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. DIGIOP, Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
SECTION 1: FEATURES SECTION 1 Features The DIGIOP Black BLK-IPS102M is a professional, premium-grade 2 megapixel, CS-mount box camera designed for indoor use. Lens and mounting bracket are optional. It features: Aptina™ 1/3.2” (4:3) CMOS 2.0 megapixel sensor • Dual streaming mode •...
Page 5
SECTION 2: INSTALLATION AND SETUP Reset USB connector DC jack adapter cable 9-pin connector terminal block connector Micro SD card slot Back connectors Reset – For restarting the camera, or resetting the camera to its factory default network settings. Refer to Appendix A, Troubleshooting, for more information.
® ® • DIGIOP recommends that a manual iris megapixel lens is used with this camera to support its full resolution. NOTE 2.3 Mount the camera Determine where the camera will be mounted and record the Media Access Control (MAC) address of the camera. The MAC address can be found on the label on the bottom of the camera.
Page 7
SECTION 2: INSTALLATION AND SETUP Install the camera mounting bracket using the instructions provided with the bracket. Attach the adapter for mounting the camera to the side with the label or to the opposite side with the screws provided. Mounting adapter Remove the protective cap covering the camera CCD.
The camera includes an interface for a mono audio input (from a microphone) and a mono audio output (to a speaker). The audio output is a low level signal that requires an amplified speaker (see Specifications). The configuration of the audio wiring (Aout, Ain) is shown in the following diagram. www.digiop.com...
SECTION 2: INSTALLATION AND SETUP Audio in/out wiring schematic To connect a speaker and/or microphone to the camera: Strip 1/4” of insulation from the microphone and speaker wires and insert them into the terminal block in the pin locations shown in the terminal block figure above. Note that the common (ground) leads of the microphone and speaker share the same terminal block pin.
The camera supports one alarm out connection to relay type device. It provides up to 24 VAC @ 500 mA or 12 V DC @ 1 A. The configuration of the relay type alarm wiring is illustrated in the diagram below. Do not exceed the maximum relay rating. Refer to the specifications in this manual for more information. CAUTION www.digiop.com...
SECTION 2: INSTALLATION AND SETUP Relay type alarm wiring schematic To connect an alarm reporting device to the camera, strip 1/4” of insulation from the alarm wires and insert them into the terminal block in the DO 1 and C pin locations shown above. The pin marked C on the terminal block is the common (COM) pin. 2.4.4 RS-485 device connection The camera provides one RS-485 interface connection.
At a computer on the same LAN (subnet) where your cameras will be installed, do the following: Insert the CD mini disk provided with your camera into your computer’s CD ROM drive and open the CD in a Windows Explorer window. Find the IPAdminTool directory on the CD. www.digiop.com...
(fixed, unchanging) settings, your camera must be configured with static network settings that are compatible with the network configuration. Additionally, if DHCP is not used on your network, DIGIOP Black cameras must be installed on the network and configured with new network settings one at a time to avoid addressing conflicts.
Page 14
In the IPAdmin Tool device list, use the camera’s MAC Address to find the camera you are installing. After finding the camera, right click the entry, then select IP Address from the drop-down list. An IP Setup window will open. In the IP Setup window, click the Static option bullet to select this option. Static Option www.digiop.com...
SECTION 2: INSTALLATION AND SETUP If you have other compatible, network settings you want to apply to the device, enter them in the appropriate locations. Click Setup to save settings. In the Login window, enter the ID and PW (password) for your camera and click Login. The default administrator values for the ID and PW are root and pass.
Page 16
Table 1. PC/Camera network settings Computer (PC) Camera IP Address Subnet Mask Default Gateway If connecting your camera to an enterprise network, consult with your network administrator for the camera IP address, subnet mask, and default gateway. CAUTION www.digiop.com...
Page 17
SECTION 2: INSTALLATION AND SETUP Find network settings (IP addresses) that are not in use At your PC, find an IP address on your network that is not in use: Write down the EXACT IP address of your PC up to the third/last period. Using the example shown above, this expression is: 192.168.1.
Page 18
IP addresses using the steps above until an unused address is found. Check LAN for default IP address compatibility Because all DIGIOP Black cameras and encoders are factory configured with the static IP address 192.168.0.100, check the LAN before connecting your camera to ensure that network conflicts won’t occur.
Page 19
SECTION 2: INSTALLATION AND SETUP In the Product list, find the entry with the same MAC address as the camera you installed. If the camera is not shown, click Refresh once a minute to update the list. Right click on the entry for your camera and select IP Address. IP Setup window In the IP Setup window: Select the Static option if it is not selected.
If prompted to install an ActiveX control such as AxNVC.cab, follow screen prompts to install the software. IE prompt to install ActiveX control To load these ActiveX controls, you may need to adjust the security settings of your browser to accept add-ins from NOTE unknown publishers. www.digiop.com...
Page 21
SECTION 2: INSTALLATION AND SETUP Typical initial camera view If, after logging into your camera, you cannot see live video and the message: NOTE “Can not Create XMLDOMDocument Install MSXML4.0” appears, download and install the MS XML 4.0 library. This library can be found at: http://www.microsoft.com/downloads/details.aspx?familyid=3144B72B-B4F2-46DA-B4B6-C5D7485F2B42&displaylang=en In the camera window, click the SETUP link in the upper right corner of the window.
Page 22
Select the Sync Source and Interval you prefer. Click Apply. In the Basic Configuration menu, click Users. In the User List, click root, and then click Modify and follow the prompts. Setup the root user with a new password and click OK. www.digiop.com...
SECTION 2: INSTALLATION AND SETUP In the Users menu, click Apply, then click OK to restart the webserver (if you wish to do so at this time). Click Add to include other administrators, operators or viewers to the user list. Follow the screen prompts to complete the entries.
Close the PREVIEW window and click VIEW to return to the normal viewing window. 2.9 Speaker/microphone setup Verify the functionality of the speaker and microphone setup at the camera, and adjust volume levels. On the VIEW screen, click SETUP > Video & Audio > Audio to open the Bi-directional Audio Settings menu. www.digiop.com...
Page 25
SECTION 2: INSTALLATION AND SETUP In the Bi-directional Audio Settings menu, click the checkboxes to select “Listen to the audio from server with setting below” and “Talk to the speakers of server”. Click Apply, and then click VIEW to return to the camera view screen. On the VIEW screen, check the SPK and MIC options to enable the speaker at the camera and the microphone on your computer.
Do not use benzene, thinner or other chemical products on the camera assembly; these may dissolve the paint and promote damage of the surfaces. Before using any chemical product, read the accompanying instructions carefully. CAUTION www.digiop.com...
SECTION 3: SPECIFICATIONS SECTION 3 Specifications Table 2. Specifications Camera Module Image Sensor Aptina (Micron ® ) 1/3.2” (4:3) CMOS 2M Effective Pixels 1600 x 1200 (UXGA, 2M) Scanning system Progressive scan Dynamic Range 71 dB Max 42.3 dB Minimum Illumination 0.5 Lux (50 IRE), 0.1 Lux (DSS x5 ON) Lens (Optional) CS mount...
Page 28
Not available 12 fps XGA (1024 x 768) Not available D1 (720 x 480) 15 fps 4CIF (704 x 576) VGA (640 x 480) 15 fps 15 fps CIF (352 x 288) QVGA (320 x 240) QCIF (176 x 144) www.digiop.com...
Page 29
SECTION 3: SPECIFICATIONS Table 4. Video Content Analysis (optional)* VCA Presence High Performance Advanced tracking algorithm, low false alarm rate Easy to Use Intuitive web browser interface Detection Zones Multi-segment polygons and lines On-screen Display Real-time display of tracking data and events Burnt-in Annotation Stream Image Stabilization...
Network settings forced to the following on networks were a DHCP server cannot be found: IP address – reset to 192.168.0.100 — Subnet mask – reset to 255.255.0.0 — Gateway – reset to 192.168.0.1 — User ID – reset to root — Password – reset to pass — www.digiop.com...
Contact DIGIOP Support for up to date firmware. A.4 Support If you cannot resolve an issue, please contact DIGIOP Support at 1.877.972.2522 for assistance. When you contact support, please provide the server reports, log file and a brief description of the problem, if possible.
The product continues to work without rebooting. B.2 Power classification The PoE Power Class supported by the IP device is Class 0. Class Usage Minimum Power Levels Output at the PSE Maximum Power Levels at the Powered Device Default 15.4 W 0.44 to 12.95 W www.digiop.com...
